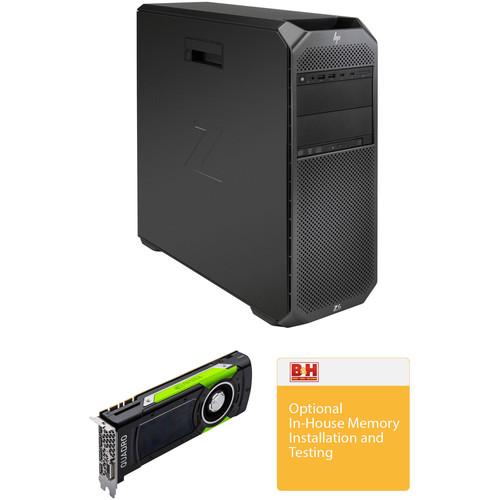

User Manual for HP Z6 G4 Series Tower Custom Workstation Click to enlarge the picture
Contents of the user manual for the HP Z6 G4 Series Tower Custom
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
|
User manual for the HP Z6 G4 Series Tower Custom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description This Custom Workstation combines the HP Z6 G4 Series Tower Workstation with an HP Quadro P6000 graphics card and installation services. - HP Z6 G4 Series Tower Workstation Enjoy smooth rendering of 3D models, compiling of programming codes, and handling of other intensive tasks with the Z6 G4 Series Tower Workstation from HP. Under the hood, an Intel Xeon Silver 4114 processor can be found along with 16GB of DDR4 ECC RAM that will accompany it. Never sacrifice performance with ten processing cores running between 2.2 and 3 GHz, while the ECC RAM automatically detects and corrects errors to help prevent data corruption. Beyond memory correction, an HP Z Turbo NVMe SSD operates under PCIe lanes that offer fast, sustained read and write performance for large file sizes. This solid-state drive is installed in an M.2 slot and provides 256GB of digital storage space, making it useful for recording or editing audio or high-resolution RAW video files. Windows 10 Pro 64 for Workstations is installed on this drive. Furthermore, HP has designed this Z8 G4 workstation with no integrated or dedicated graphics processing unit included, so you can tailor this system for your needs with a user-supplied graphics card.
As for connectivity, you'll find two Gigabit Ethernet ports as well as ten USB 3.0 ports, with one of the USB ports supporting device charging. Other notable connections include one headset connector, audio-in, audio-out, PS/2 mouse, PS/2 keyboard, and serial. There's also a slim HP DVD writer for recording memories on to optical media. The expandability features on the HP Z6 G4 start with one M.2 slot as well as two 2.5"/3.5" internal bays and two 5.25" external bays. The workstation is armed with three PCIe 3.0 x4, one PCIe 3.0 x8, and two PCIe 3.0 x16 slots to enable support for optional Thunderbolt 3 cards, RAID controllers, and other useful PCIe cards. For accommodating up to 192GB of memory modules, a total of six memory slots are available. Additionally, the Z6 G4 can support a second sold-separately processor to further enhance the system's capabilities.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series system is designed to enhance audio and video post-production workflows and more by sporting a range of top-tier processors and large RAM loadouts. Each workstation comes with a 3/3/3 limited warranty - 3 years for parts, 3 years for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. HP Z6 G4 Workstation Features - HP SureStart automatically detects intrusions in real-time, notifies you, and restores the BIOS you use
- Create two network connections without the added cost of a PCIe NIC with dual embedded 1GbE LAN ports
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192018160354 - HP Quadro P6000 Graphics Card Designed for generating high-resolution graphics and large datasets for VR, graphic design, and advanced calculations, HP's Quadro P6000 Graphics Card can beef up your workstation to increase performance. Based on NVIDIA's 16nm Pascal architecture, the Quadro P6000 features 2560 CUDA cores coupled to 24GB of VRAM with a 384-bit memory bus providing a maximum of 12 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. VR and VFX workflows benefit from the massively parallel GPU and large frame buffer. The output panel on this card features four DisplayPort terminals and a dual-link DVI-D port. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. The DVI port can be used for connecting to legacy hardware while separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, the P6000 uses a blower-style cooler. This cooler uses a radial fan to force air through the card's heatsink and out through the rear of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case.
- CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- GPUDirect Support
- Using GPUDirect, multiple GPUs, third party network adapters, solid-state drives (SSDs) and other devices can directly read and write CUDA host and device memory, eliminating unnecessary memory copies, dramatically lowering CPU overhead, and reducing latency, resulting in significant performance improvements in data transfer times for applications.
- Quadro Sync II
- By connecting up to four compatible Quadro GPUs to a separate Quadro Sync board you can perfectly synchronize the display outputs of all the connected GPUs for critical video wall and extended desktop applications utilizing multiple displays. Quadro Sync also enables NVIDIA Quadro Mosaic technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application. Quadro Sync II allows for two Quadro Sync cards to be used in the same system, enabling support for up to 32 displays with stereoscopic visuals and support for projector overlap, and WMI (Windows Instrumentation Management).
- Mosaic
- Leverage multiple displays to easily span any application across multiple displays or projectors from a single workstation, without sacrificing performance or power. Combined with NVIDIA's nView desktop management software you also get bezel correction and projector overlap for seamless multi-display exhibition.
UPC: 190781575634 - Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
- Certified Technician
- The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
- Expert Testing
- Testing is done on the computer to check if the system recognizes and allocates the additional memory.
- Get to Work Immediately
- The Installation and Testing will allow you to start working on your new computer as soon as you get it.
In the Box - Z6 G4 Series Tower Workstation ddqutvxbwaasqxza
- USB Keyboard and Mouse
- Power Cord
- Limited 3-Year Warranty for Parts
- Limited 3-Year Warranty for Labor
- 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
- Quadro P6000 Graphics Card
- B&H Photo Video - In-house Memory Installation & Testing Service
Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z6 G4 Series Tower Custom Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HP Z6 G4 Series Tower Workstation
Operating System | Windows 10 Pro for Workstations (64-Bit) | | Chipset | Intel C622 | CPU Socket | LGA 3647 | CPU | 2.2 GHz Intel Xeon Silver 4114 10-Core | Maximum Boost Speed | 3.0 GHz | L3 Cache | 13.75 MB | Memory Type | 2666 MHz DDR4 | Total Installed Memory | 16 GB | Memory Configuration | 2 x 8 GB (User-Replaceable) | Maximum Memory Capacity | 192 GB | Memory Slot Type | 288-Pin DIMM | Available Memory Slots | 4 | Buffered Memory | Yes | ECC Memory | Yes | Graphics Type | None | | Total Drive Bays | 2 x 2.5/3.5" (Internal) 2 x 5.25" (External) | SSD Slots | 1 x M.2 2280 PCIe x4 (In Use) 1 x M.2 2280 PCIe x4 (Available) | Total Installed Capacity | 256 GB | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | PCI Expansion | 2 x PCIe Gen 3 x16 1 x PCIe Gen 3 x8 3 x PCIe Gen 3 x4 | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | Ports | 10 x USB Type-A (USB 3.1 Gen 1) 2 x PS/2 1 x DE-9 (Serial) | Display | None | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output | Media Card Slots | None | | Ethernet | 2 x RJ45 (Gigabit) | | Keyboard | USB Full-Size Keyboard with Number Pad | Pointing Device | USB Mouse | | Power Supply | 1000 W | AC Input Power | 90 to 269 VAC, 50 / 60 Hz | Operating Temperature | 40 to 95°F / 4 to 35°C | Operating Humidity | 10 to 85% | Dimensions | 6.7 x 17.5 x 18.3" / 17 x 44.5 x 46.5 cm | Weight | 29 lb / 13.2 kg | | Box Dimensions (LxWxH) | 23.0 x 23.0 x 12.0" | - HP Quadro P6000 Graphics Card
GPU | NVIDIA Quadro P6000: CUDA Cores: 3840 Node Size: 16 nm Architecture: Pascal | Interface | PCI Express 3.0 x16 | Memory | Interface Width: 384-bit Interface: GDDR5X Bandwidth: 432 GB/s Configuration: 24 GB | Floating Point | Single Precision Performance: 12 TFLOPS | Outputs | 4 x DisplayPort 1.4 1 x DVI-D DL | Maximum Resolution | DisplayPort: 5120 x 2880 Dual-link DVI: 2560 x 1600 Single-link DVI: 1920 x 1200 | APIs | Graphics: Shader Model 5.1 OpenGL: 4.5 DirectX: 12 Vulkan 1.0
Compute: CUDA DirectCompute OpenCL | Form Factor | Width: Single-slot Length: 10.5" / 267 mm Form Factor: Full-height, full-length | Power Consumption | 250 W | Compliance | Not Specified by Manufacturer | System Requirements | Power Supply: Not Specified by Manufacturer CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer PCI Slots: 1 x PCI Express 3.0 x16 RAM: 2 GB (8 GB recommended) Storage: 200 MB of available disk space OS: Microsoft Windows 7/8/8.1/10, Server 2008/2012/2012 R2 64/2016, Linux Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available) | | Box Dimensions (LxWxH) | 16.9 x 8.6 x 3.2" | - Photo Video In-house Memory Installation & Testing Service
| Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
