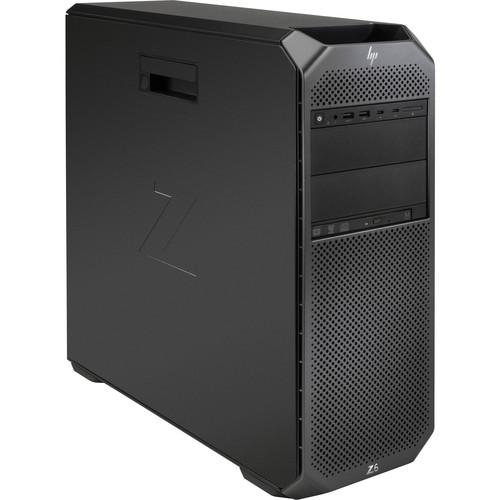

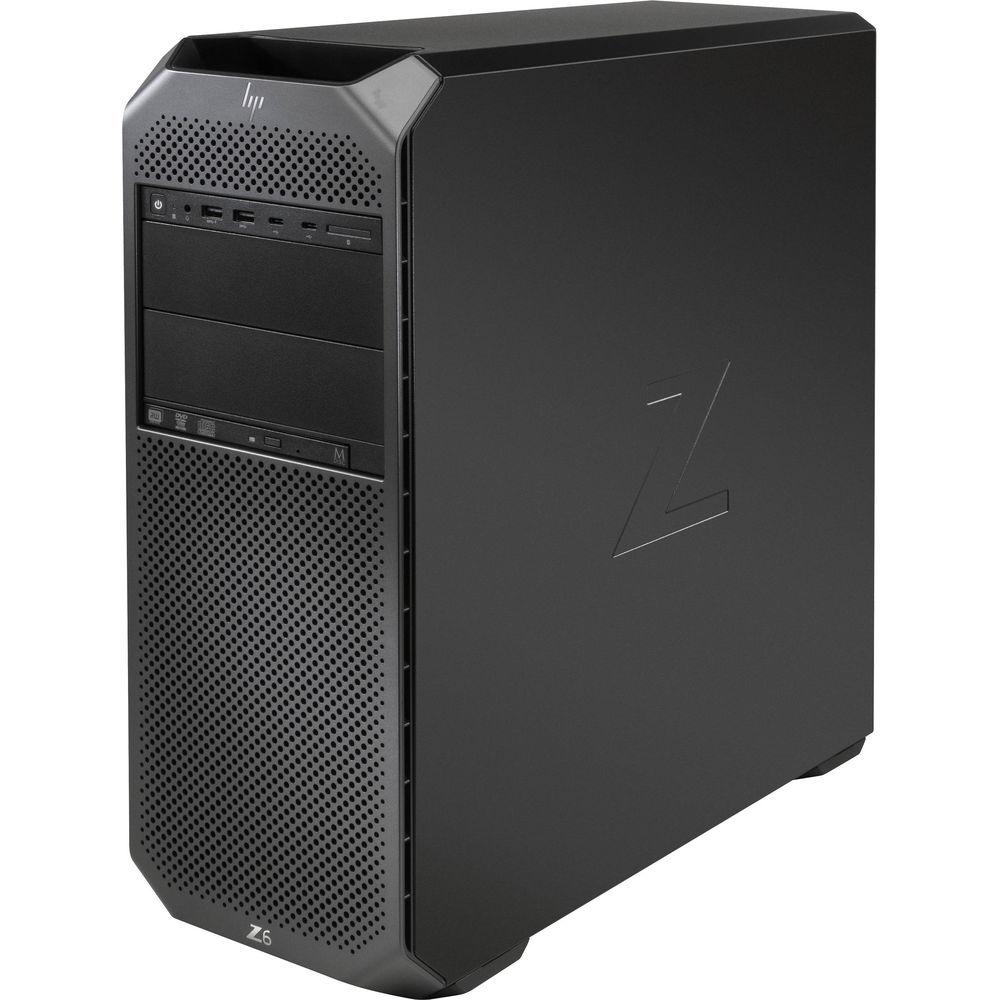

User Manual for HP Z6 G4 Series Tower Workstation Click to enlarge the picture
Contents of the user manual for the HP Z6 G4 Series Tower Workstation
- Product category: PC Workstations Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others PC Workstations
 |
User manual for the HP Z6 G4 Series Tower Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description Built as a future-proof powerhouse that can be upgraded over time, the VR-ready Z6 G4 Series Tower Workstation from HP has been designed to provide seamless performance during graphics-intensive work, such as 3D CAD & rendering, VFX, design visualization, and more. Its exterior provides tool-free access to a modular interior, and strategically placed vents and ducts throughout the system help streamline airflow for quiet performance. The system is powered by dual 2.2 GHz Intel Silver 4114 processors armed with 10 cores on each CPU, for a total of 20 cores. There is also 13.75MB of L3 cache per processor, for a total of 27.5MB. These processors, cores, and cache will allow you to run multiple applications simultaneously and provide significant performance gains when running multi-threaded tasks. If you need more power, the CPUs can deliver extra performance by increasing the clock speed up to 3.0 GHz utilizing Intel's Turbo Boost 2.0 technology.
The 64GB of 2666 MHz DDR4 ECC Registered RAM comes in a 4 x 16GB configuration, allowing the computer to run multiple applications simultaneously and to quickly access frequently used files and programs. As this RAM features ECC technology, it can help detect and correct the most common kinds of internal data corruption. This RAM is also registered, and registered memory modules, also known as buffered memory modules, place less electrical load on the memory controller and allow single systems to remain stable with more memory modules than they would have otherwise.
For storage of your files, this system is equipped with a 512GB NVMe PCIe M.2 SSD and a 2TB 7200 rpm SATA III 3.5" hard drive, for an overall storage capacity of 2.512TB. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the Z6 G4 features ten 5 Gb/s USB 3.1 Gen 1 Type-A ports (four front and six rear), one of which doubles as a charging port. There is also one serial port via an included adapter and two PS/2 ports. For users who wish to add additional components to the drive bays, the Z6 G4 features two internal 2.5"/3.5" drive bays, two internal M.2 2280 slots that support PCIe Gen3 x4, and two external 5.25" drive bays.
The dedicated NVIDIA Quadro P5000 graphics card has 16GB of GDDR5X RAM and delivers a sharp, clear picture while allowing for multiple simultaneous displays to be used via its four DisplayPort 1.4 and single Dual-Link DVI-D outputs at resolutions 5K at 60 Hz. Drive one single-cable 5K display, or two dual-cable 5K displays. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221 audio controller outputs high-definition audio and delivers higher fidelity than standard audio controllers. Network connectivity is achieved using dual integrated Gigabit Ethernet ports, and HP's Slim DVD Writer can be used to read from and write to optical media.
The Z6 G4 Series Tower Workstation includes an HP USB Business Slim keyboard, an HP Optical USB mouse, and a power cord. The installed operating system is Windows 10 Pro for Workstations (64-bit), which scales up for machines with a high number of logical processors and large amounts of RAM for server-grade hardware and power users.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. General Features - Mobility & Flexibility
- The HP Z6 G4 has integrated front and rear carrying handles and slick feet to easily slide the unit around. Its flexible design with a 4 RU form factor allows for the system to be used in the tower orientation or rack mounted on a slide-out tray.
- Interior Design
- The streamlined interior is well organized and all user-serviceable components are identified with consistent blue touchpoints. The service label located on the access panel provides users with system board and memory loading information and quick access to diagnostic information. Cables are efficiently routed to provide better component access and airflow management.
- Tool-Free Design
- The following components can be easily accessed or upgraded without tools: side access panel, hard drives, external bay devices, memory, expansion cards, and the 2nd CPU/memory module.
- Security
- Due to the tool-free ease of use, HP understands system and component security may be a concern. Therefore, several security features have been incorporated. The padlock loop and Kensington security slot are included standard. The side access panel keylock, HP Business PC Security Lock kit, system intrusion sensor, and the remotely activated solenoid lock are available as options.
- DDR4 Memory Supported
- The HP Z6 G4 supports up to 384GB using ECC RDIMM modules (8, 16, and 32GB). While the system has 12 total RAM slots, all 12 slots are only supported in systems with dual processors. Systems with single processors only support 12 RAM slots. Additionally, the system will only work with DDR4 memory and dual processor configurations with memory modules installed for only one processor is not supported.
- PCI Express Expansion Slots
- Slot 0
Mechanical-only, for use with devices that require only rear bulkhead mounting or when a 2nd CPU riser is installed.
Slot 1
PCI Express Gen3 x4 (CPU with open-ended connector)
Slot 2
PCI Express Gen3 x16 (CPU)
Slot 3
PCI Express Gen3 x4 (PCH with open-ended connector)
Slot 4
PCI Express Gen3 x8 (CPU with open-ended connector, slot converts to x4 electrical when an SSD is installed in the 2nd M.2 slot)
Slot 5
PCI Express Gen3 x16 (CPU)
Slot 6
PCI Express Gen3 x4 (PCH with open-ended connector)
M.2 Slot 1
M.2 PCIe Gen 3 x4 (CPU up to 80mm storage devices)
M.2 Slot 2
M.2 PCIe Gen 3 x4 (CPU up to 80mm storage devices) - Front I/O

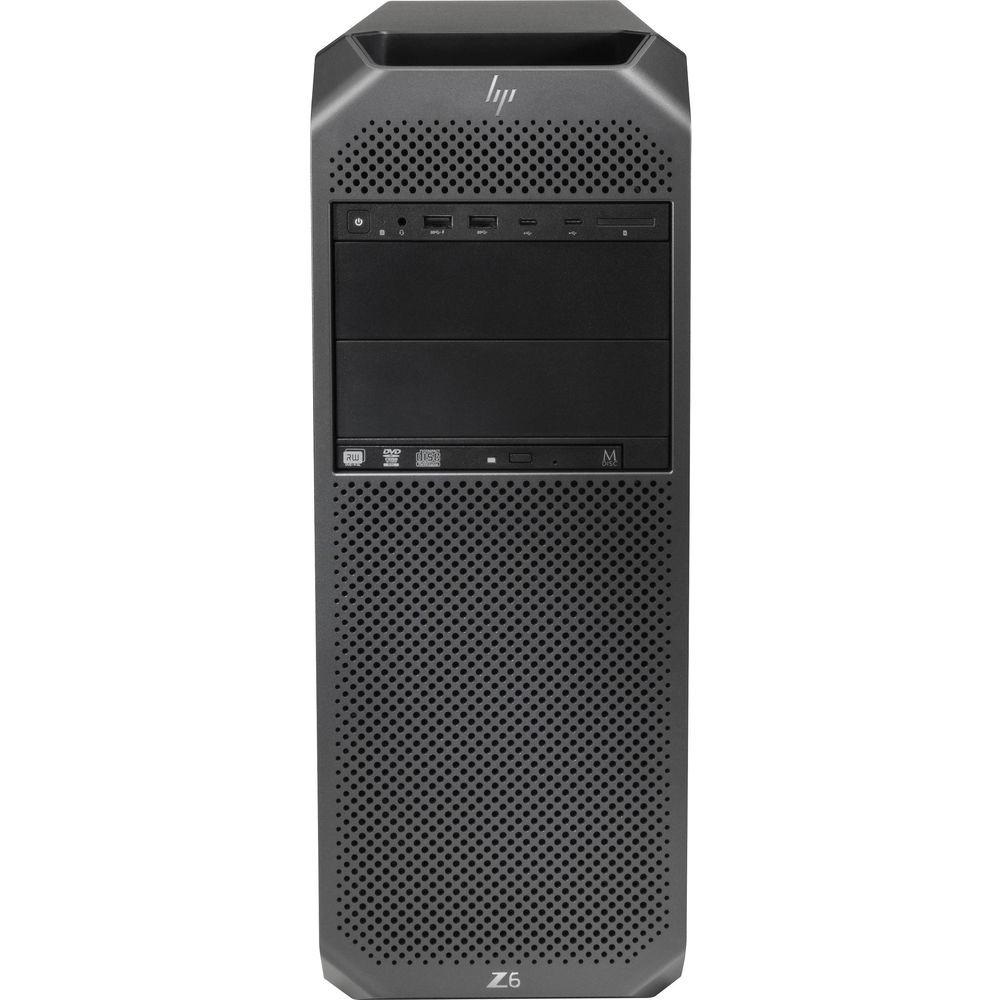

- This HP Z6 G4 is configured with the Base Front I/O option and is equipped with four 5 Gb/s USB 3.1 Gen 1 Type-A ports (the left-most supports battery charging), a combo headset/microphone jack, and the option for an SD card reader.
- Internal I/O
- 1 x USB 3.1 Gen 1 single-port header
1 x USB 2.0 single-port header
1 x USB 2.0 dual-port header - Rear I/O
- In the rear I/O area, the HP Z6 G4 provides six 5 Gb/s USB 3.1 Gen 1 Type-A ports, dual Gigabit Ethernet LAN ports, a 3.5mm audio line-in/mic-in jack, a 3.5mm audio line-out jack, two PS/2 ports, and a serial port via an included adapter. Additional rear I/O ports can be added via PCIe add-in cards.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
In the Box HP Z6 G4 Series Tower Workstation Z6 G4 Memory Cooling Solution Serial Port Adapter Power Cord Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts not Eligible for Customer Self Repair (CSR) Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z6 G4 Series Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Tower G4 Specs | Operating System | Windows 10 Pro for Workstations (64-Bit) | | | | Chipset | Intel C622 | | CPU Socket | LGA 3647 | | CPU | 2 x 2.2 GHz Intel Xeon Silver 4114 10-Core | | Maximum Boost Speed | 3.0 GHz | | L3 Cache | 27.5 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 64 GB | | Memory Configuration | 4 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 384 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 8 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P5000 with 16 GB GDDR5X VRAM | | | | Total Drive Bays | 2 x 2.5/3.5" (Internal)
2 x 5.25" (External) | | SSD Slots | 1 x M.2 PCIe x4 (Available)
1 x M.2 PCIe x4 (In Use) | | Total Installed Capacity | 2.512 TB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Hard Disk Storage | 1 x 2 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 2 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x8 (x8 Mechanical)
3 x PCIe Gen 3 x4 (x16 Mechanical) | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 10 x USB Type-A (USB 3.1 Gen 1)
2 x PS/2
1 x DE-9 (Serial) | | Display | 4 x DisplayPort 1.4 Output
1 x DVI-D DL Output | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Line Input | | Built-In Speakers | None | | Built-In Microphones | None | | Media Card Slots | None | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Keyboard | USB Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Security | Kensington Lock Slot | | Power Supply | 1000 W | | AC Input Power | 90 to 269 VAC, 50 / 60 Hz | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 10 to 85% | | Dimensions | 18.5 x 17.5 x 8.5" / 469.9 x 444.5 x 215.9 mm | | Weight | 29 lb / 13.2 kg |
