User Manual for HUBSAN H501A X4 Brushless FPV Quadcopter Click to enlarge the picture
Contents of the user manual for the HUBSAN H501A X4 Brushless FPV Quadcopter
- Product category: See All Drones HUBSAN
- Brand: HUBSAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HUBSAN See All Drones
 |
User manual for the HUBSAN H501A X4 Brushless FPV Quadcopter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HUBSAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HUBSAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HUBSAN product will considerably shorten its lifespan!
|

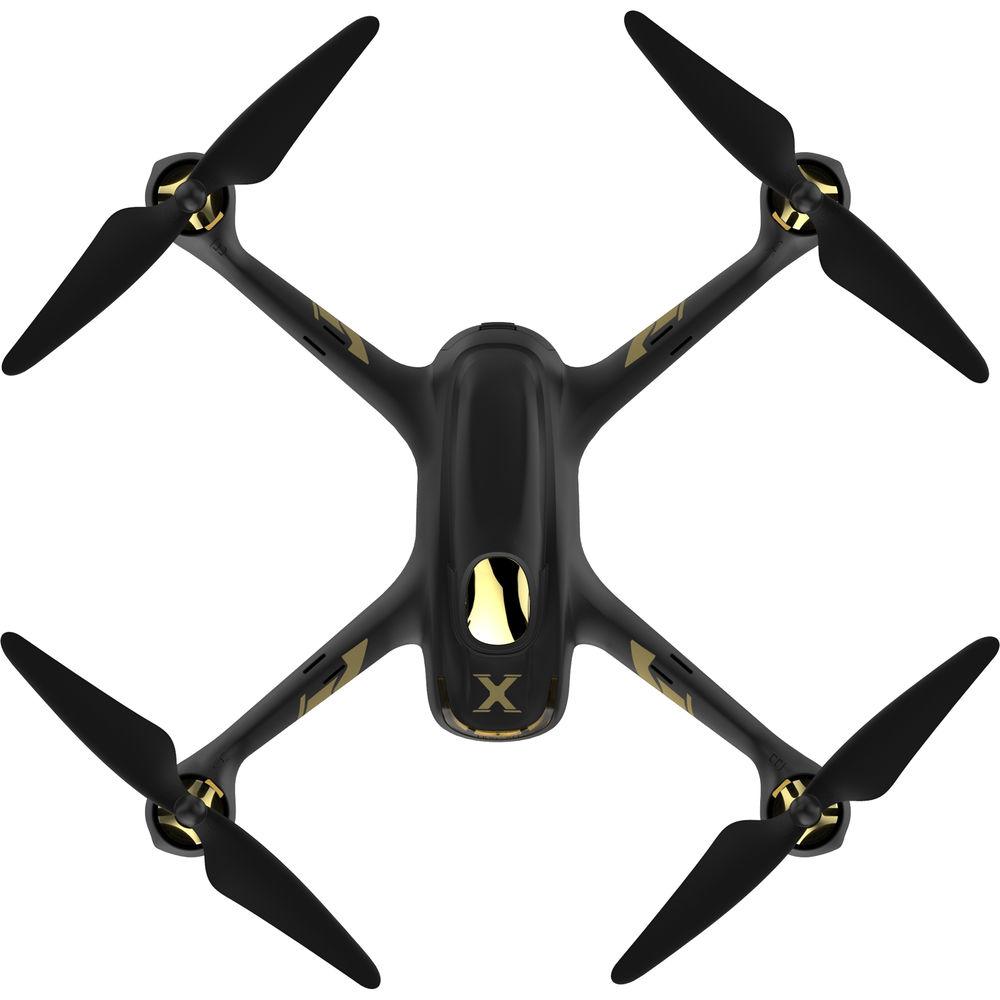

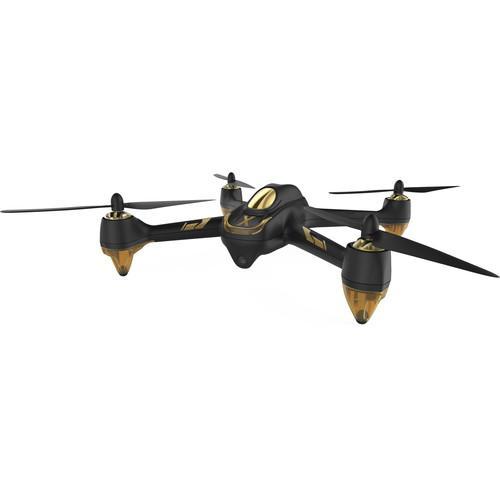

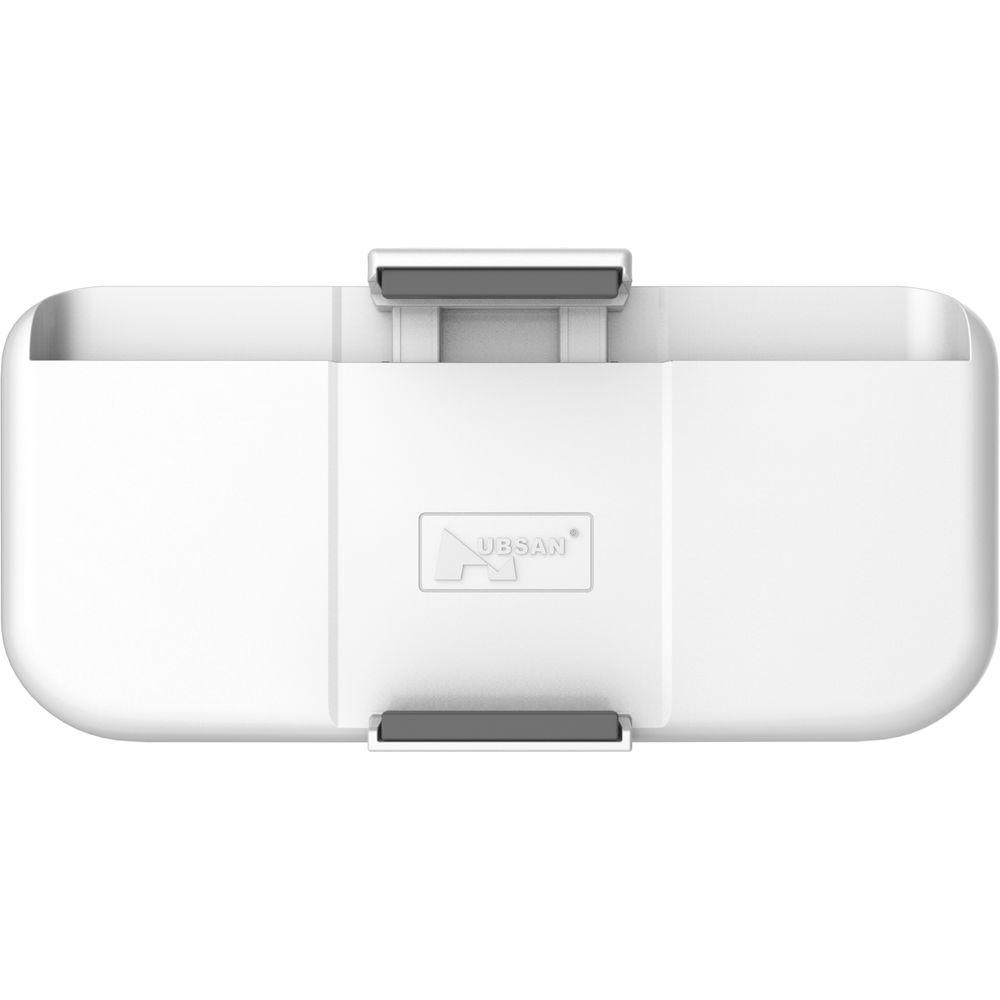

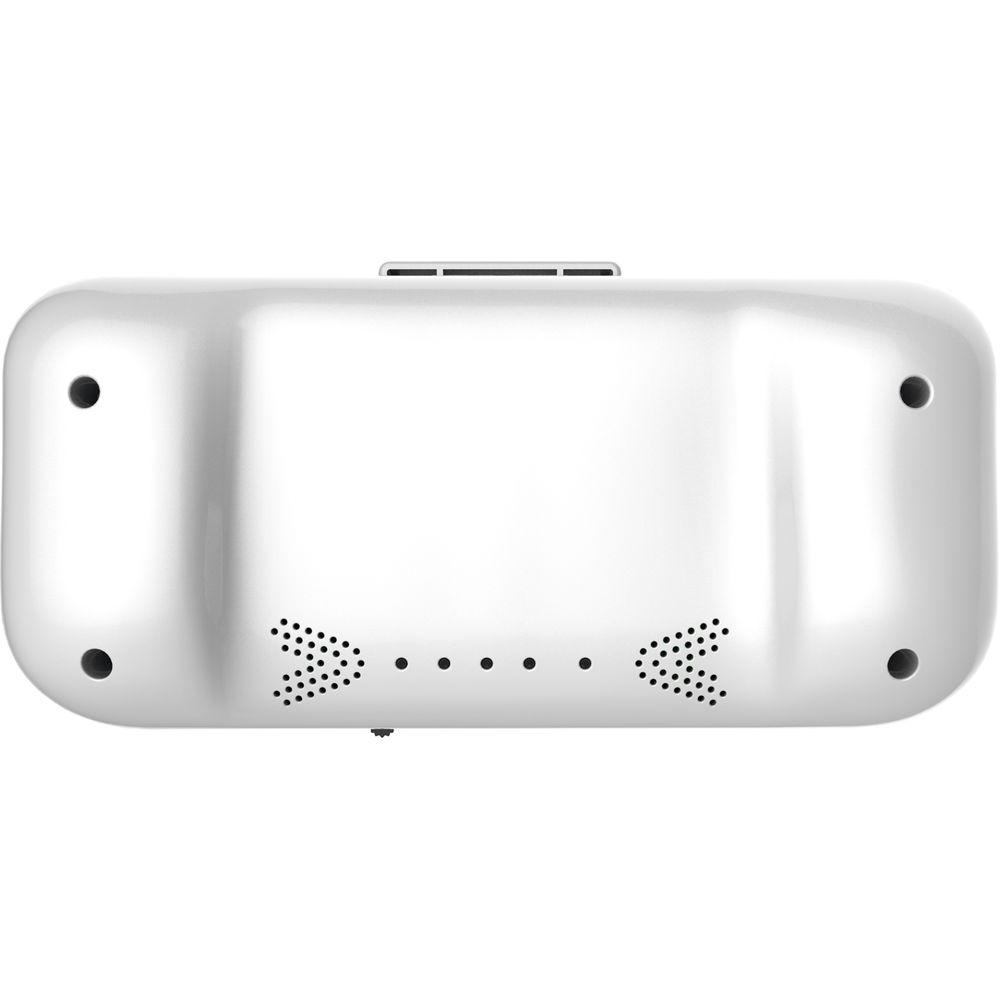

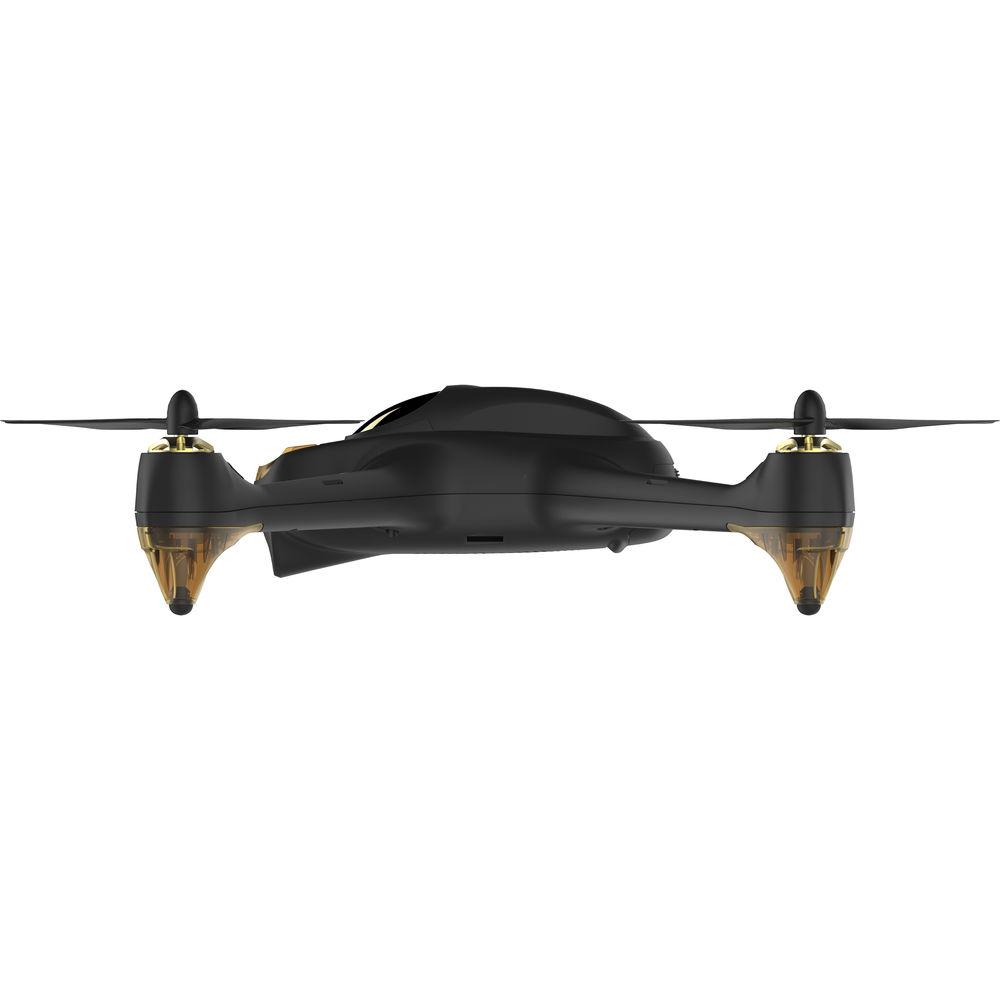

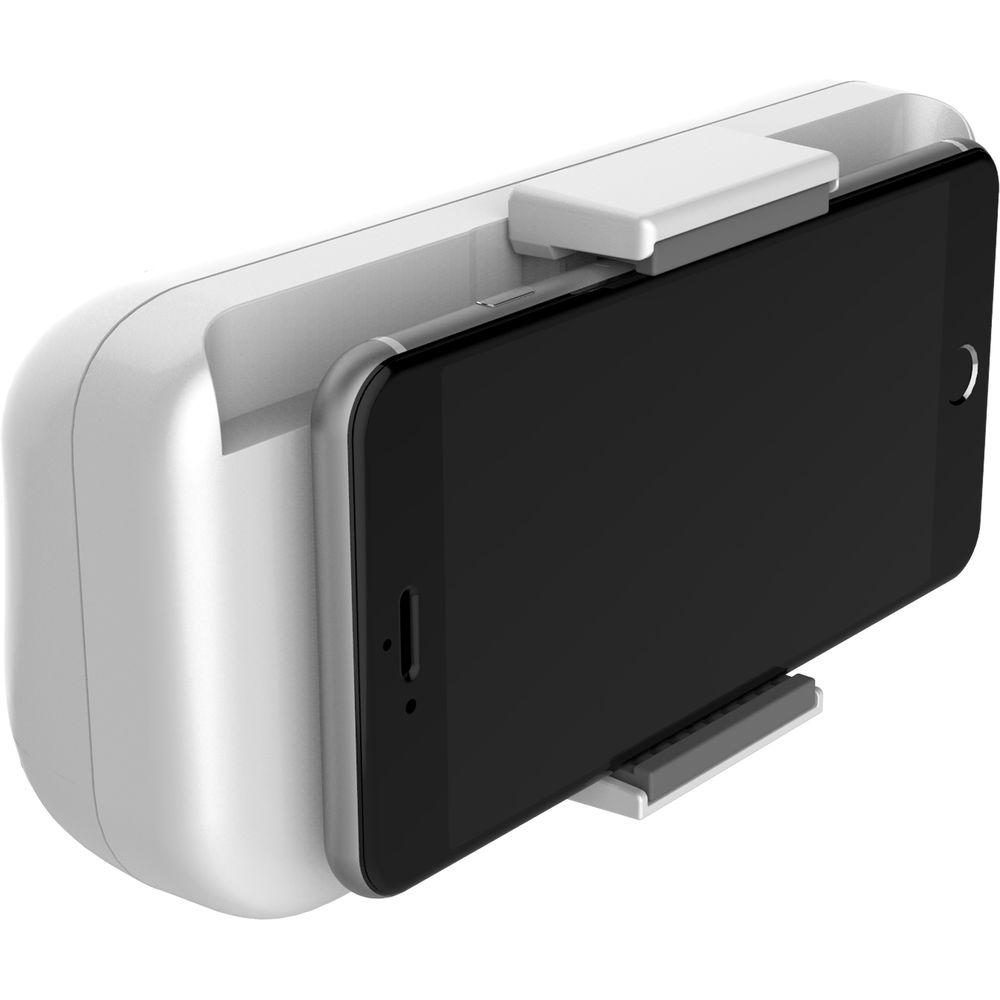

Product description Aerial Photography and Drone Glossary Read More The FPV-ready H501A Quadcopter from Hubsan is an X4-configuration quadcopter with integrated 1080p video camera and included Wi-Fi transmitter that works in tandem with your smartphone to pilot the craft. The flight controller has integrated GPS, enabling advanced autonomous features, such as Follow Me and Automatic Return. The H501A is powered by four brushless motors with self-tightening propellers. The bundle comes ready-to-fly, only requiring a smartphone and the free companion app to fly. Additionally, you can use compatible transmitters, such as the Hubsan H901A to pilot the quad. - Auto Return Home
- Thanks to a GPS-backed navigation system, the H501A is able to remember its "home," or takeoff, point. If connection is lost with the transmitter, Failsafe Mode will engage, causing the quadcopter to automatically return to the home point and land. You can also manually trigger Failsafe Mode via a switch on the transmitter.
- Follow Me Mode
- In this mode, the H501A will lock onto the position of the transmitter and track it. This is extremely beneficial when recording a moving subject that would be tricky to follow manually.
- Altitude Mode
- In this mode, based on readings from a barometer, the H501A will maintain a fixed altitude. Horizontal movement, as well as rotation (yaw), will still be enabled.
- Headless Mode - Intuitive Orientation
- In this mode, there is no longer a defined "nose" and "tail." Instead, the aircraft always moves relative to the pilot – pressing forward moves forward, pressing left moves left, and so on. This keeps flying more intuitive, especially for beginner pilots.
- Brushless Motors
- Brushless motors provide better performance than their brushed counterparts. In addition, propeller attachment is self-tightening for additional security.
UPC: 814850024082 In the Box HUBSAN H501A X4 Brushless FPV Quadcopter Wi-Fi Transmitter 4 x Propeller Pairs (CW and CCW) LiPo Flight Battery Flight Battery Charger AC Adapter for Charger Limited 6-Month Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 8.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the HUBSAN H501A X4 Brushless FPV Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHUBSAN H501A X4 Specs | | | Flight Time | Up to 21 minutes | | Hovering Time | Up to 18 minutes | | Flight Distance | Up to 0.18 miles (0.29 km) | | GPS | Yes | | Operating Temperature | 32 to 104°F (0 to 40°C) | | | | Video Recording Resolution | 1920 x 1080p at 24, 25, 30, 48, 50, 60 fps | | Video Bitrate | Up to 60 Mbps | | Photo Format | JPEG | | Video Format | MP4 (MPEG-4 AVC/H.264) | | Effective Pixels | 2.1 MP | | SD Card Requirements | microSD card up to 16 GB
Class 10 or UHS-1 rating required | | Operating Temperature | 32 to 104°F (0 to 40°C) | | | | Frequency | Wi-Fi | | Channels | 11 | | Transmission Distance | Up to 656' (200 m) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 2700 mAh | | Voltage | 7.4 V | | Charging Time | 150 minutes | | Operating Temperature | 41 to 104°F (5 to 40°C) | | | | Dimensions | Excluding Propellers: 8.66 x 8.66 x 2.75" (22.0 x 22.0 x 7.00 cm)
Including Propellers: 14.1 x 14.1 x 2.75" (35.8 x 35.8 x 7.00 cm) | | Weight | 0.90 lb (14.4 oz), including batteries and propellers | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 11.2 x 11.1 x 3.7" |
