User Manual for HUBSAN X4 H107C-HD Quadcopter with 720p Video Camera Click to enlarge the picture
Contents of the user manual for the HUBSAN X4 H107C-HD Quadcopter with 720p
- Product category: See All Drones HUBSAN
- Brand: HUBSAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HUBSAN See All Drones
|
User manual for the HUBSAN X4 H107C-HD Quadcopter with 720p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HUBSAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HUBSAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HUBSAN product will considerably shorten its lifespan!
|

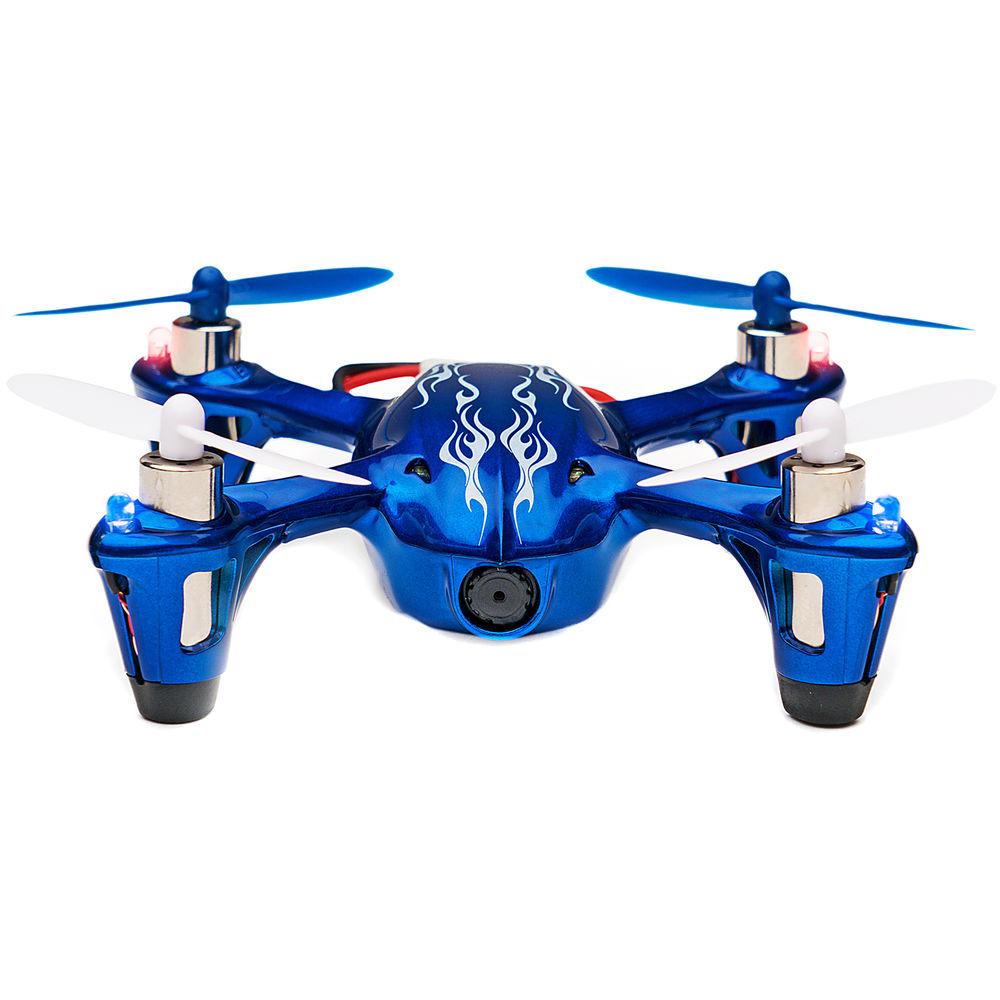

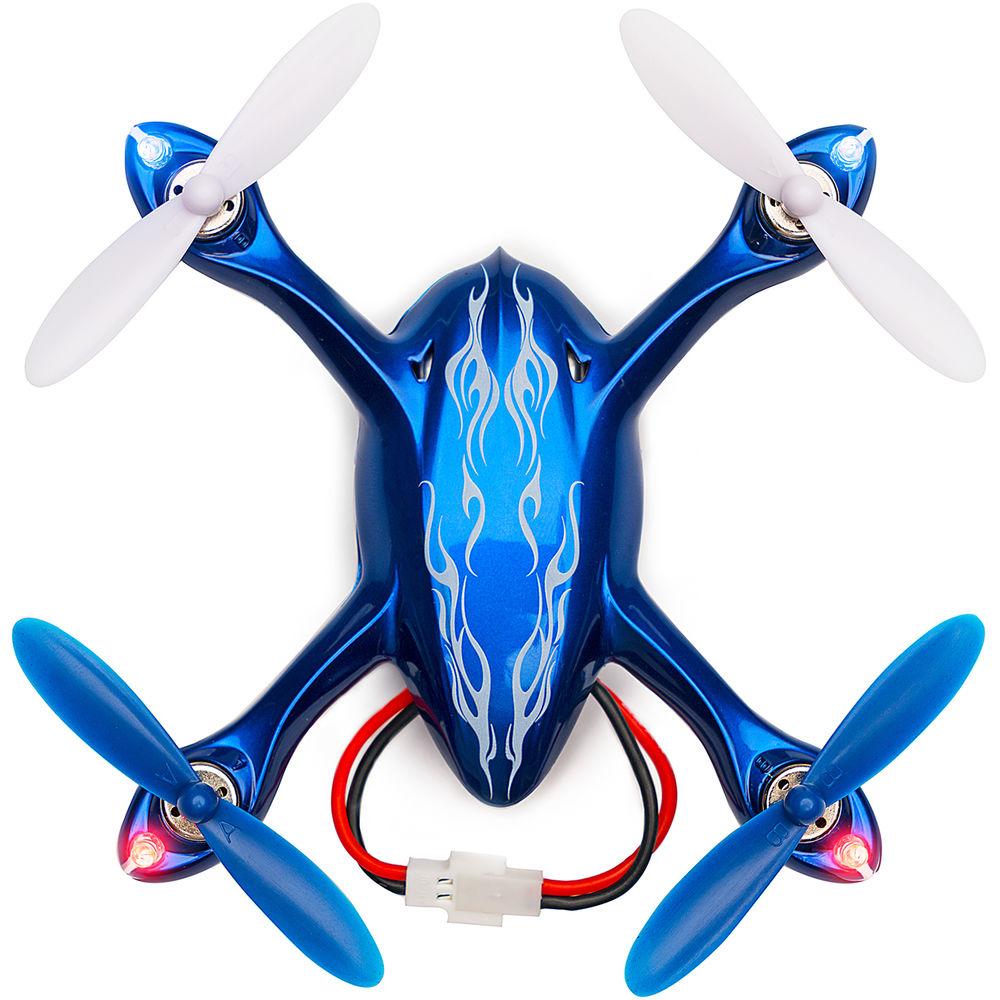

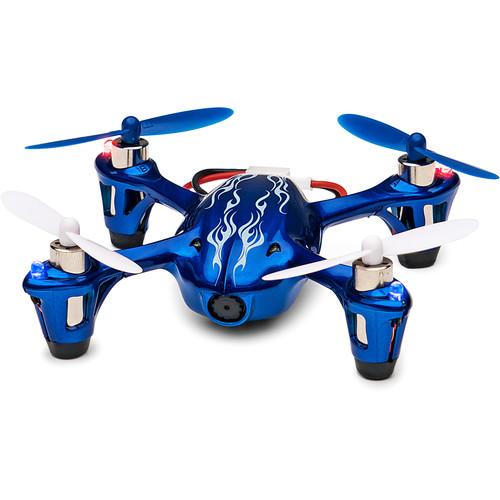

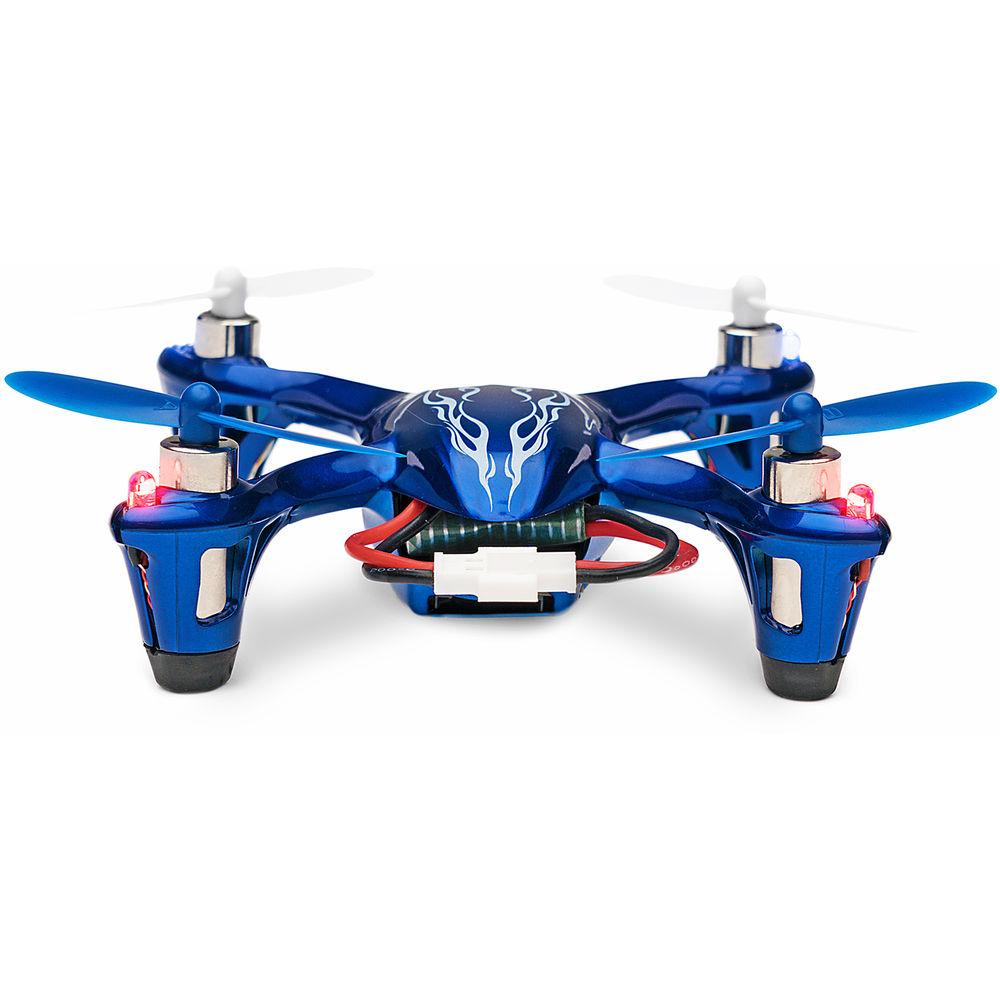

Product description Aerial Photography and Drone Glossary Read More The X4 H107C-HD Quadcopter with 720p Video Camera in Royal Blue from Hubsan is a quad-rotor, palm-sized RC helicopter that features a 2.4 GHz, 4-Channel transmitter and a built-in 720p resolution HD camera. The most notable feature of this quadcopter is its size, even with a prop-to-prop wingspan of just 5.75" it sill has room for a camera. To record video there is a microSD memory card slot below the "tail" section that is activated using a button just to the side of the card slot. It will accommodated microSD/microSDHC/microSDXC cards up to 64GB. Finally, a 3.7V, 380 mAh lithium-polymer battery tucks away inside the body providing up to 7 minutes flying time.
The transmitter (TX) supports both Mode 1 and Mode 2 stick configurations. Mode 2 is typically preferred in the U.S. as many argue it more closely simulates actual aircraft controls, however some international users may be more accustomed to Mode 1. - Camera
- Internal HD video camera (H107-A28 Camera Module)
- Records to microSD/microSDHC/microSDXC cards up to 64 GB

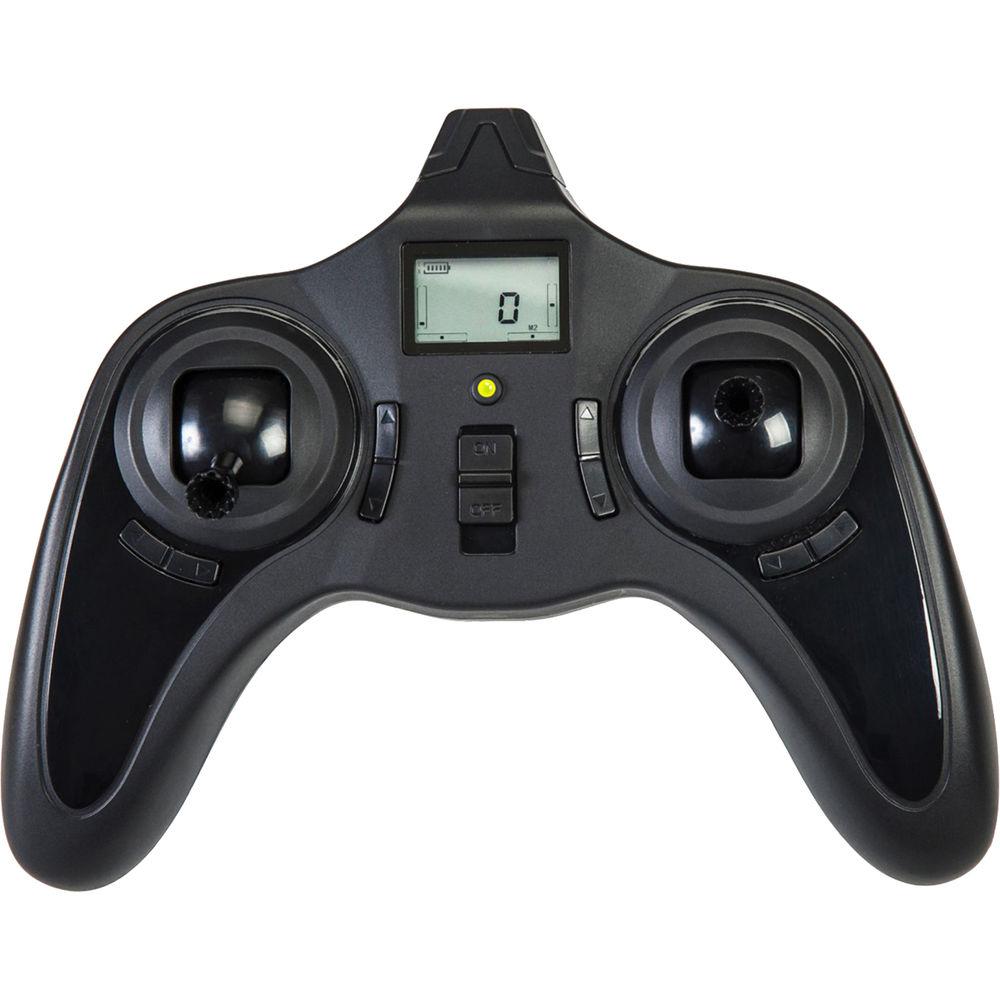

Transmitter - LCD info screen displays: remaining battery, stick trim settings, and other data
- Supports Mode 1 and Mode 2 stick configurations
- Adjustable rudder, elevator, and aileron trim to compensate for drift
- Finds rudder central point automatically after landing and powering down throttle for three seconds
- Red/green LED indicates proper binding with receiver (RX)
- Powered by 4 x AAA batteries
Flight Control System - Expert and Normal flight modes
- 6-axis gimbal with adjustable gyro sensitivity
- Advanced aerobatics including 360° barrel rolls possible in Expert Mode
Battery System - Flies up to 7 minutes with featured 380mAh lithium-polymer (LiPo) battery
- Four LEDs on the prop posts flash to indicate low battery
- Charges via USB in approximately 40 minutes using a computer or USB charger

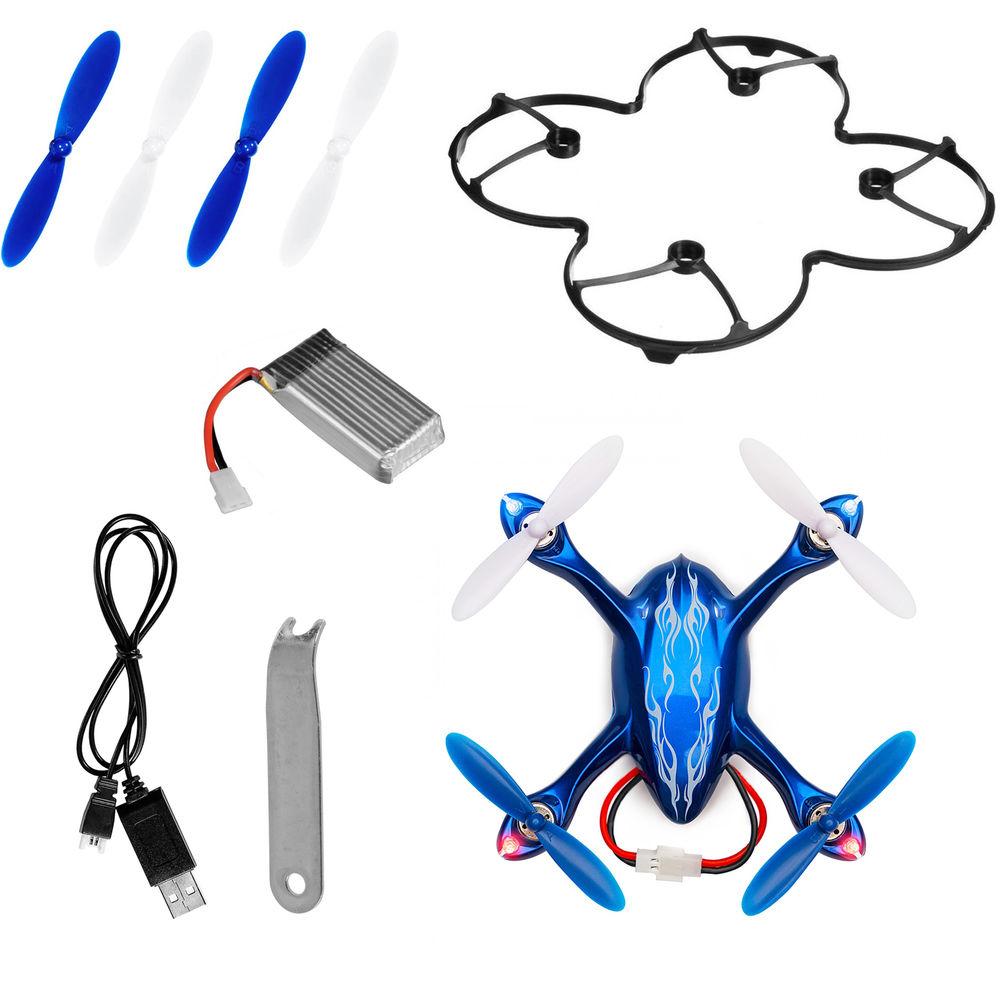

UPC: 814850020374 In the Box HUBSAN X4 H107C-HD Quadcopter with 720p Video Camera (Royal Blue) H107-16 4-Channel, 2.4 GHz Transmitter 2 x Propeller Set for H107C Quadcopter (Blue/White) X4 Quadcopter Rechargeable Flight Battery (3.7V, 380mAh LiPo) H107-19 Protection Ring USB Charger for X4 H107C and H107D Quadcopter Flight Battery H107-A11 U Wrench Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 durzqcwwtyvxrdsytrcqyzszurtbw Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 5.6mbdurzqcwwtyvxrdsytrcqyzszurtbw Table of Contents
|
Upload User Manual
Have you got an user manual for the HUBSAN X4 H107C-HD Quadcopter with 720p Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHUBSAN H107C Specs | Resolution | 1280 x 720 (720p) | Recording Media | microSD/microSDHC/microSDXC memory card (supports up to 64 GB) | | Control Modes | Mode 1 and Mode 2 | Frequency Band | 2.4 GHz | Number of Channels | 4 | Power Requirements | 4 x AAA batteries | | Flight Control System | 6-axis gimbal with adjustable gyro sensitivity | Battery | Type: 3.7 V, 380 mAh lithium-polymer Flying Time: Up to 7 mins Charging Time: Approx. 40 mins Charging Method: USB charging | Motor | 4 x coreless | Dimensions | L x H x H without Props: 3.25 x 3.25 x 1.25 (95.3 mm) Diameter with Props: 5.75 (146 mm) | | Package Weight | 1.15 lb | Box Dimensions (LxWxH) | 14.0 x 7.1 x 3.7" |
