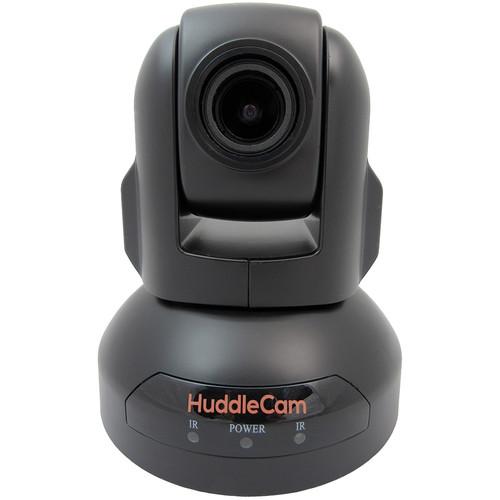

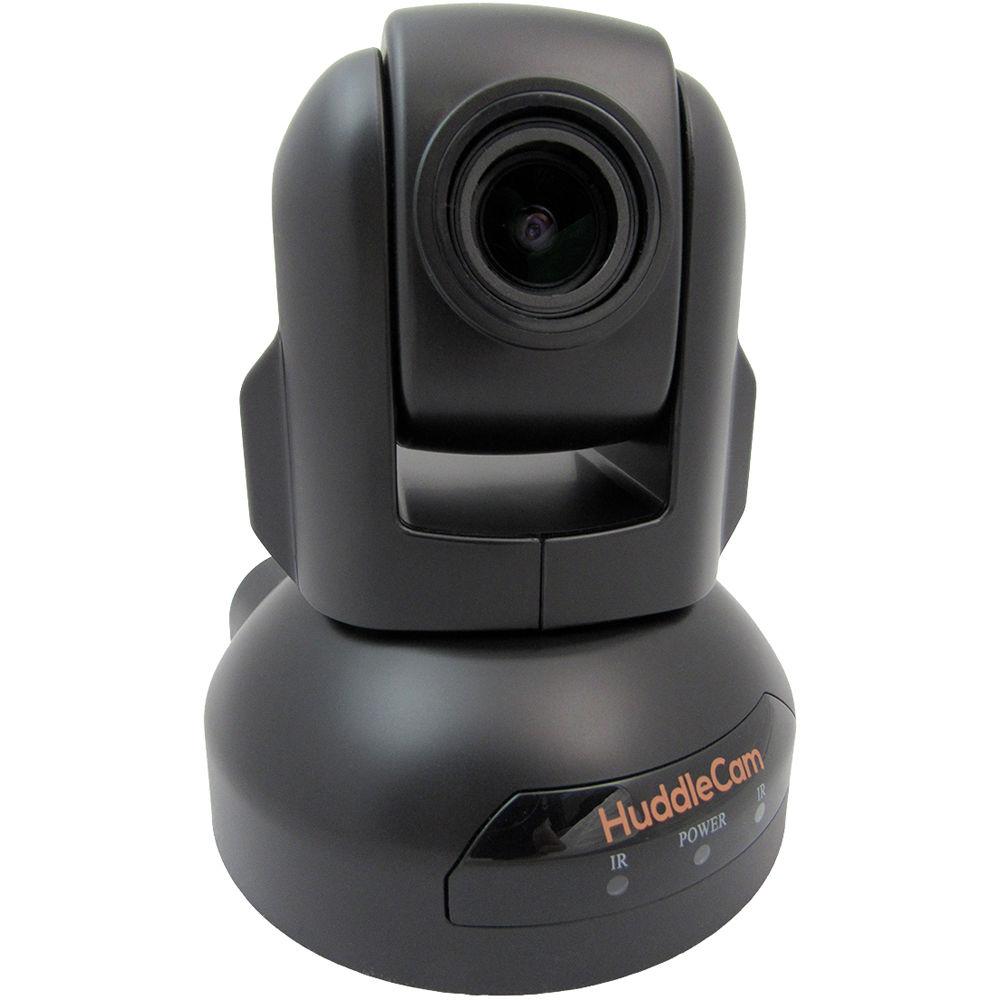

Product description The 10X-USB2 Conferencing Camera, in black, from HuddleCamHD is designed as an entry-level, Full HD 1080p conferencing solution for small- to medium-sized meeting rooms. The camera is plug-and-play compatible with virtually every Web-based conferencing/live streaming application, including Skype, Facebook Live, GoToMeeting, Vidyo, and WebEx, and it offers a 10x optical zoom, which is suitable for fully zooming in across most mid-size rooms.

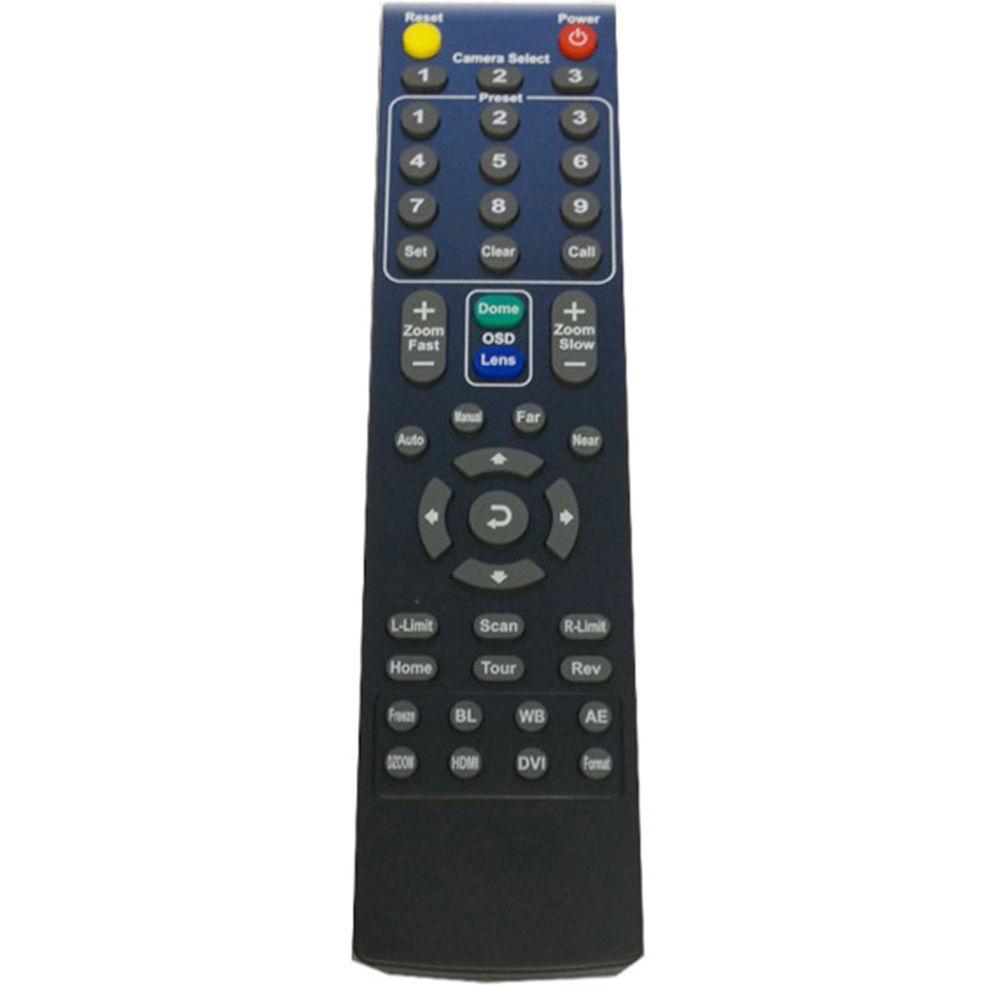

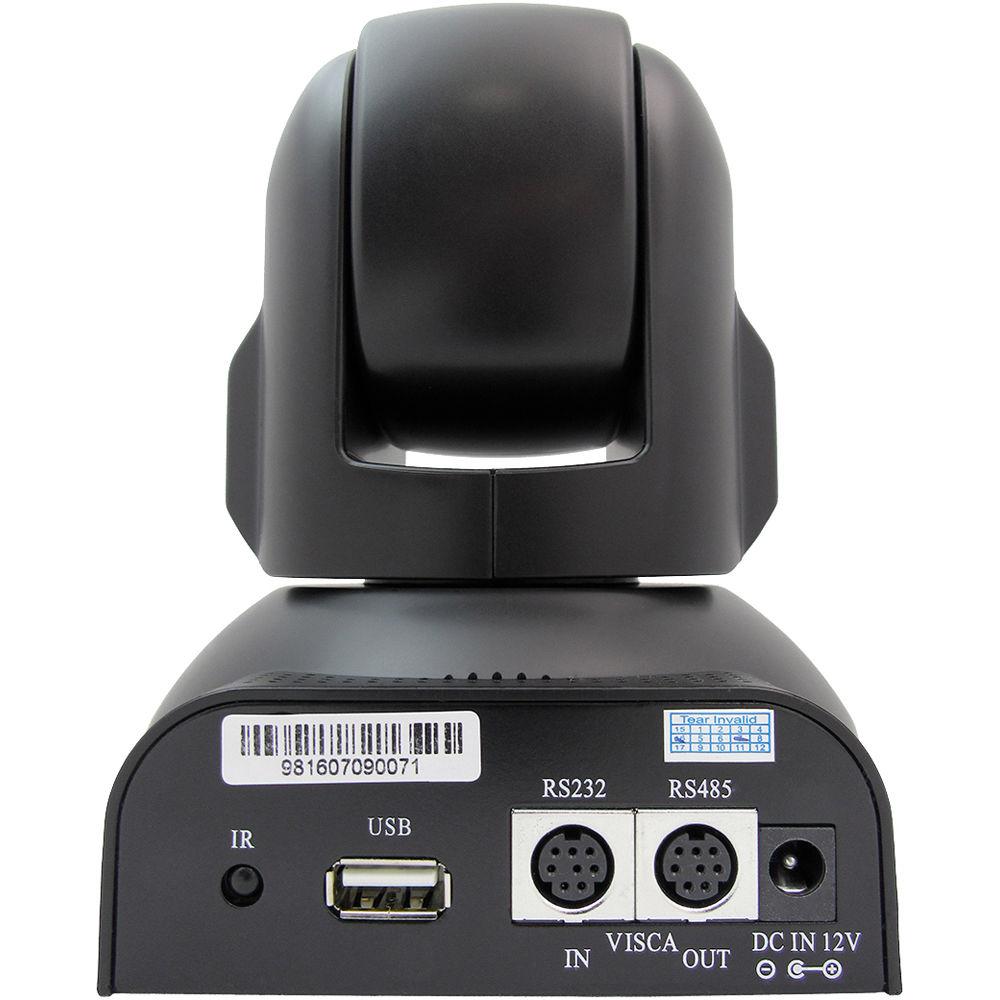

The 10X-USB2 is compatible with Windows, Mac, and ChromeBox computers. Plug it into the computer's USB port and begin your conference. You can control the camera — pan, tilt, zoom, select from up to 64 presets, and perform other functions — using the included IR remote control, using your computer with virtual control software available for free on HuddleCam's website, or using an optional joystick controller that can be plugged into the RS-232 or RS-485 port on the back of the camera. - Key Features
-
- Entry-level, 1080p solution for small- to medium-sized meeting rooms
- Plug-and-play compatible with virtually every Web-based conferencing/live streaming application
- 10x optical zoom (4.7-47mm)
- Compatible with Windows, Mac, and ChromeBox computers
- 57° field of view
- 64 presets
- Control via included IR remote control, free-download virtual joystick control software, or optional RS-232/RS-485 controllers
UPC: 737993161219 In the Box HuddleCamHD 10X-USB2 Conferencing Camera (Black) 12 VDC, 2A Power Adapter IR Remote Control Tripod Mount USB 2.0 Data Cable (16') Serial Control Cable RS-232C to RS-485 Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 10X-USB2 Conferencing Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC10X Specs | Image Sensor | 2.1 MP, 1/2.8" CMOS | | Resolution | 1080p: 30/25
720p: 30/25
SVGA | | Frame Rate | Up to 30 fps | | Zoom | 10x optical zoom, 4.7-47mm (f/1.6) | | Field of View | 7 (tele) - 57° (wide) | | Pan Movement | ±340 | | Tilt Rotation | 90° up, 30° down | | Presets | 64 | | Video Interface | USB 2.0, UVC 1.5 | | Serial Control | RS-232 Input: Mini DIN-8 (UVC 1.5)
RS-485 Input: Mini DIN-8 (UVC 1.5) | | Controller Signal Configuration | Dip-switch pin 8/TTL signal | | Baud Rate | 9600 bps | | Power Supply Requirement | 12 VDC, 2 A (12 VDC, 2 A power adapter included) | | Input Voltage | 12 VDC (10.5 - 14 VDC) | | Power Consumption | 24 W maximum | | Material of Construction | Aluminum, plastic | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions | 4.9 x 5.7 (5.9 with tilt) x 4.8" / 12.4 x 14.5 (15 with tilt) x 120 cm | | Weight | 1.7 lb / 0.75 kg | | | | Package Weight | 3.51 lb | | Box Dimensions (LxWxH) | 8.85 x 8.8 x 7.1" |
