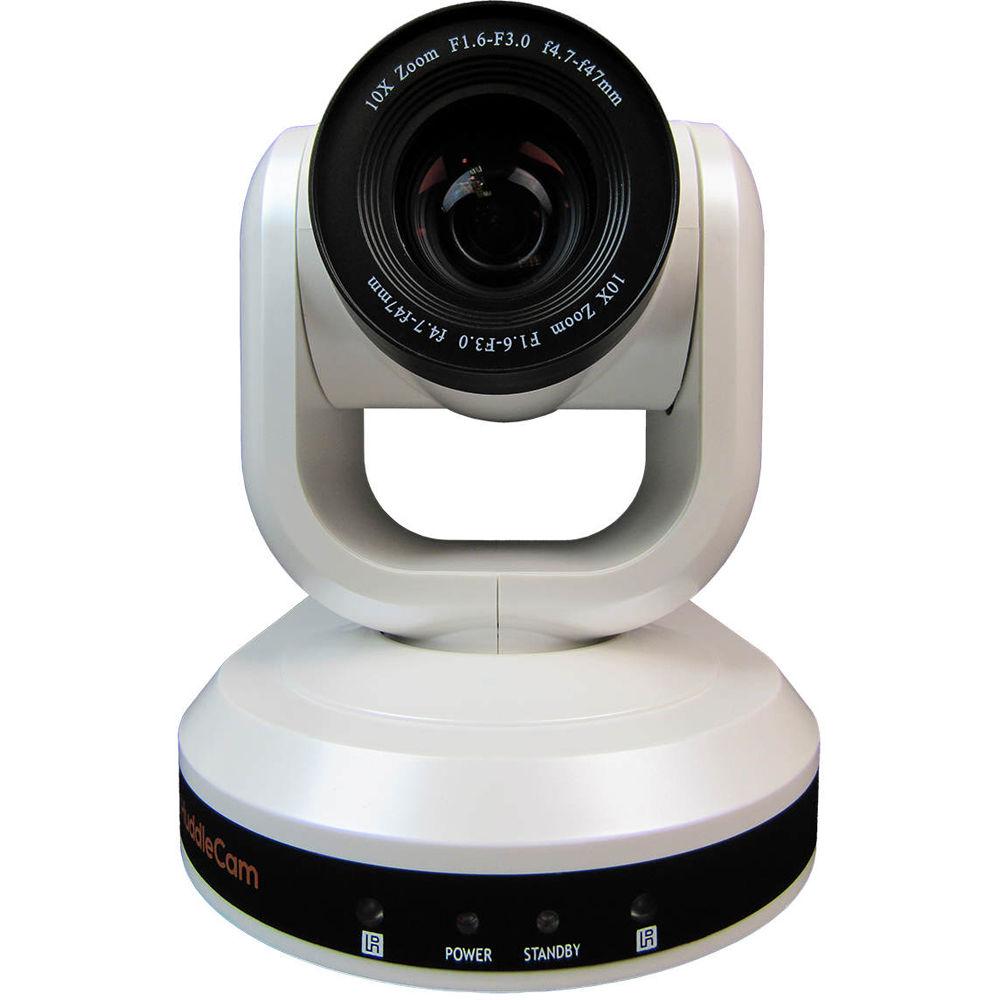

User Manual for HuddleCamHD 10X-WH-G3 PTZ Camera Click to enlarge the picture
Contents of the user manual for the HuddleCamHD 10X-WH-G3 PTZ Camera
- Product category: PTZ Cameras HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD PTZ Cameras
 |
User manual for the HuddleCamHD 10X-WH-G3 PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description - HuddleCamHD USB 3.0 Camera Setup Video

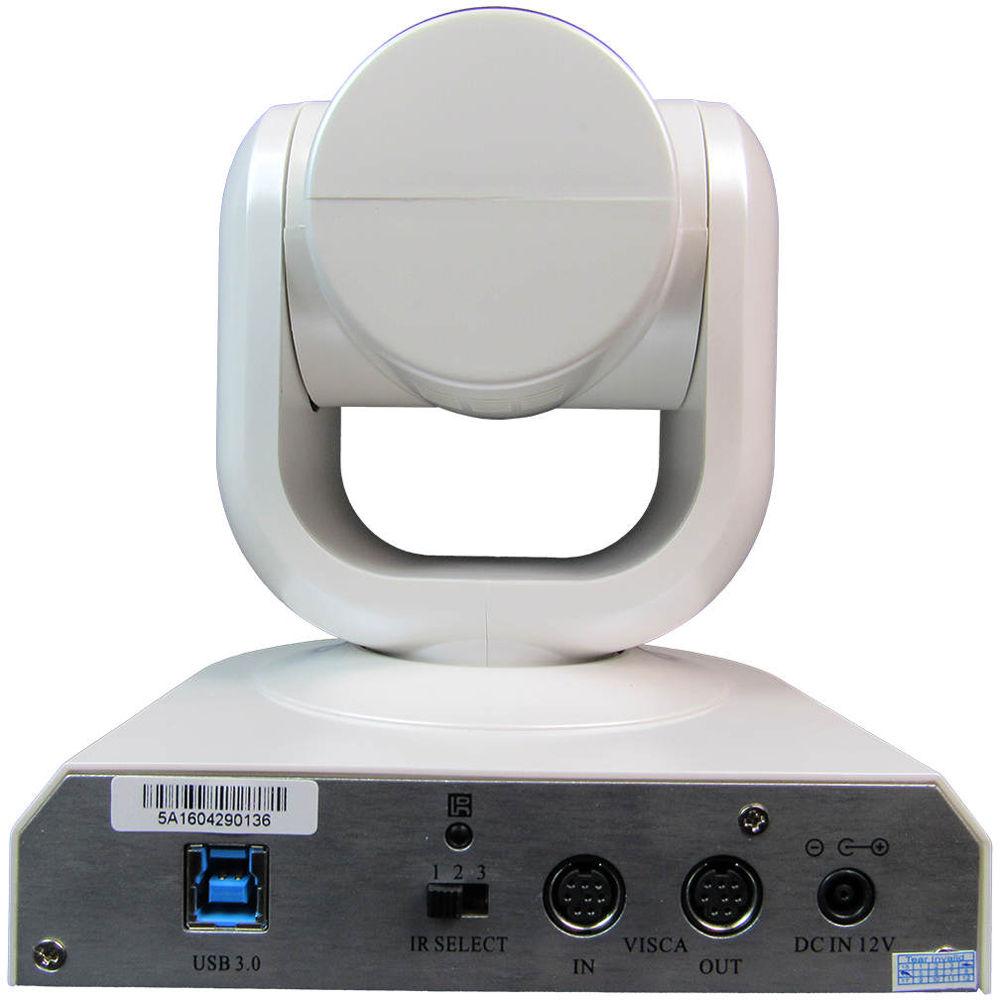

The 10X-WH-G3 Conferencing Camera (White) from HuddleCamHD offers up to 1080p30 video output and has an integrated 10x Sony zoom lens. This medium-range HuddleCamHD PTZ option features plug-and-play USB 3.0 connectivity, compatibility with most VC (video-conferencing) software, and a 6.4-56.3° field-of-view suited to medium to large rooms. Additional attributes include Windows and Mac compatibility, multiple white-balance settings, IR remote control with up to 64 presets, an invertible mount (for ceiling use), and RS-232/485 control for multi-camera integration. Blue LED lights on the base light up when the camera is in use, and orange LED lights indicate stand-by mode. A quad-core processor is required to output uncompressed 1080p30 HD video via the 10X-G3's USB 3.0 port. When not using a quad-core, the 10X-G3 can provide 720p30 via USB 2.0. The 10X-G3 has a VISCA-in port for hard-wired RC using a joystick (not included) and a VISCA-out port for daisy-chaining multiple cameras. - 10x optical Sony zoom (4.7-47mm)
- Plug-and-play USB interface, PC and Mac compatibility
- Up to 1080p30 uncompressed video via USB 3.0 (requires quad-core processor) or 720p30 via USB 2.0
- 6.4-56.3° field of view suitable for medium to large conference rooms
- Compatible with most VC software programs
- Illuminated blue/orange LED lights for in-use/standby modes
- Auto/manual/outdoor/indoor/one-push/ATW white-balance options for aligning color-temperature
- Choose up to 64 preset movements with the included IR remote control
- RS-232 input/output can be converted to USB for computer-based control
UPC: 737993159537 In the Box HuddleCamHD 10X-WH-G3 PTZ Camera (White) 12 VDC, 2A Power Adapter Installation Bracket & Screws IR Remote Control USB 3.0 Cable (9.8') RS-232 Serial Control Cable RS-485 Serial Control Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 10X-WH-G3 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC10X Specs | System Compatibility | PC and Mac | | Image Sensor | 1/3" CMOS 2.0 MP | | Video Resolution | 1080p30, 720p30 | | Optical Zoom Lens | 10x, 4.7-47mm | | Angle of View | 6.4-56.3° | | Minimum Illumination | 0.1 lux | | Pan / Tilt | Pan: 0-355°

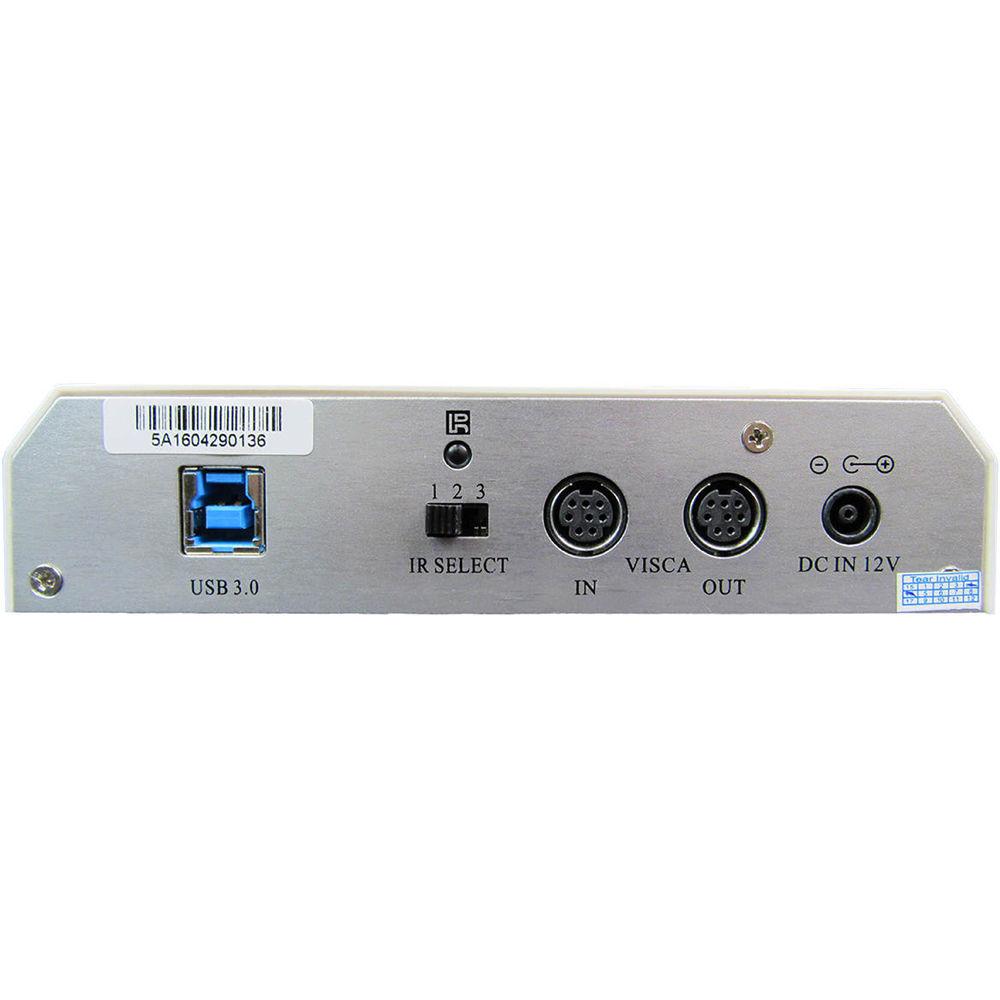

Tilt: 90° up, 45° down | | Connectors | Video Interface: USB 3.0
Control Signal Interface: Mini DIN-8 (VISCA input, VISCA/RS-485 output)
Control Signal Configuration: 7-pin DIP switch, TTL signal | | Baud Rate | 9600 bps | | Power Specifications | Power Supply Adapter: 12 VDC, 2A
Input Voltage: 12 VDC (10.5-14 VDC)
Maximum Input Power: 24 W | | Working Environment | Indoor | | Material of Construction | Aluminum, plastic | | Dimensions (WxHxD) | With Tilt Level: 5.7 x 6.4 x 5.8" (14.5 x 16.3 x 14.7 cm)
With Tilt Up: 5.7 x 7.2 x 5.8" (14.5 x 18.3 x 14.7 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 12.1 x 9.5 x 9.1" |
