Product description - HuddleCamHD USB 3.0 Camera Setup Video

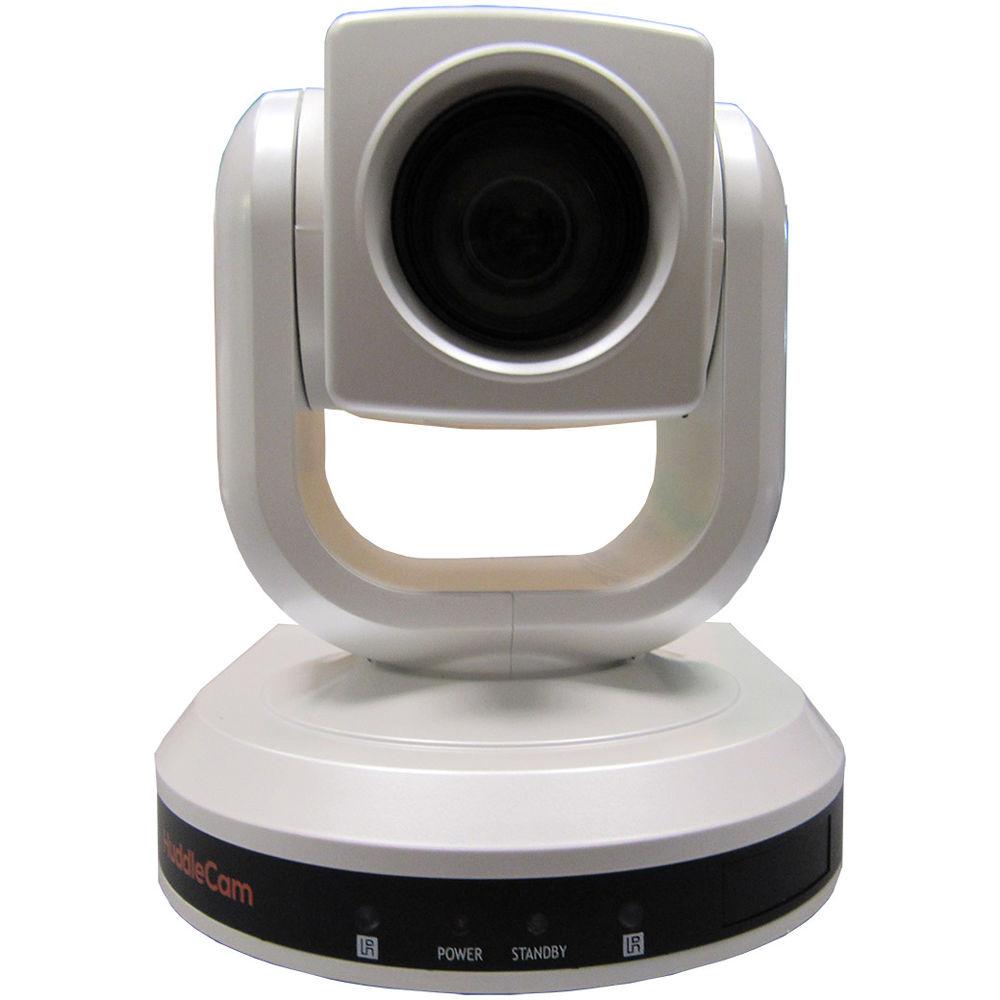

The white HuddleCamHD 20x Full HD USB 3.0 PTZ Camera incorporates a 1/2.8" CMOS sensor that captures clear images up to a resolution of 1920 x 1080 at a frame rate of 30 fps. The camera is ideal for medium to large-sized meeting rooms. The camera is equipped with a Sony 4.7 to 90mm varifocal lens, and comes with a built-in 20x optical and 12x digital zoom - Certified Sony lens captures images with a 58° field of view and 20x optical zoom
- Captures video up to a resolution of 1920 x 1080 at 30 fps

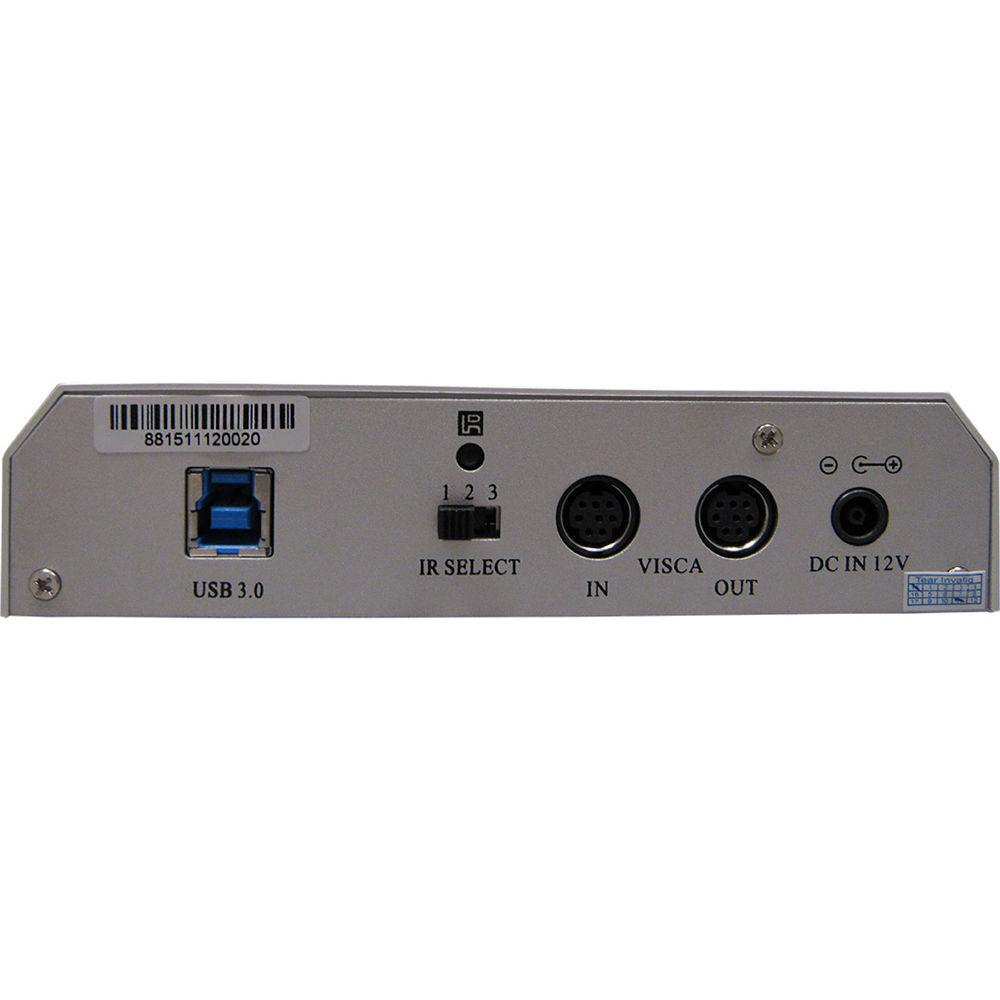

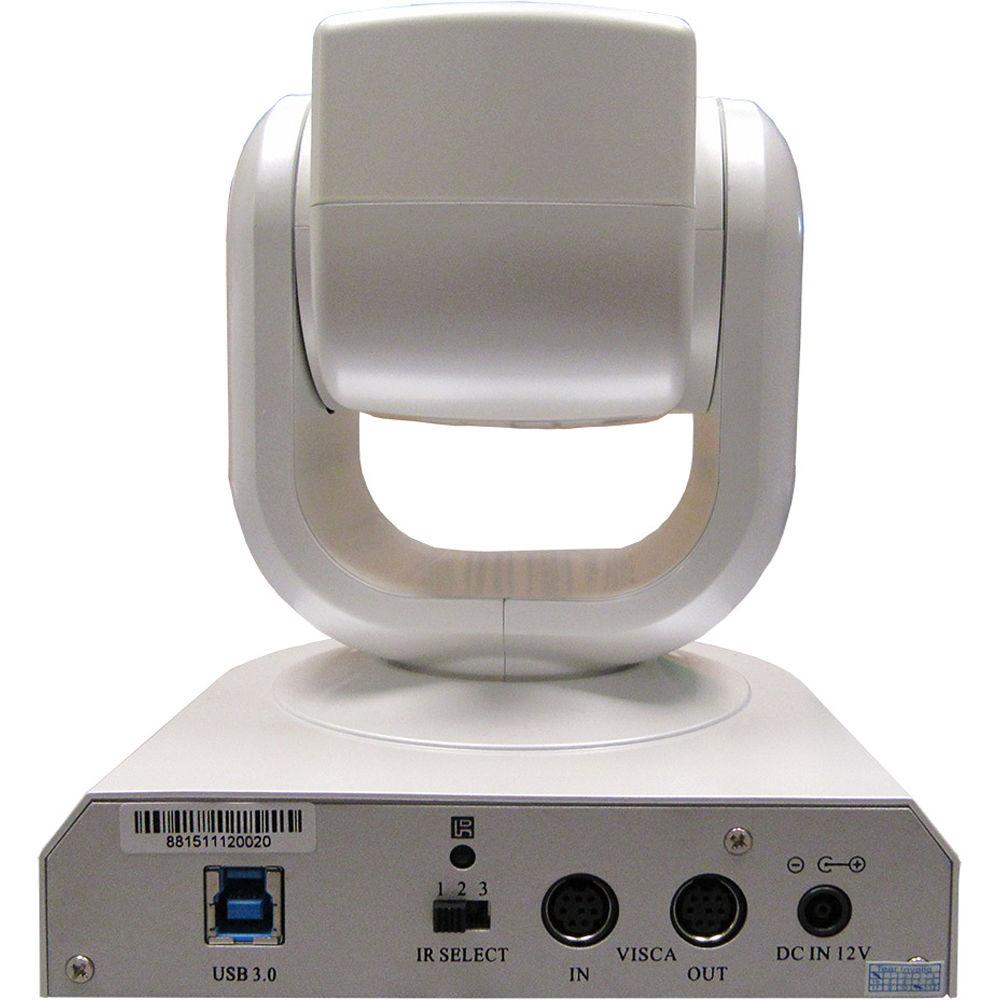

- Connectivity includes USB 3.0 and RS-232
- Infrared remote with 64 camera presets
UPC: 737993157830 In the Box HuddleCamHD 20x Full HD USB 3.1 Gen 1 PTZ Camera (White) 12V 2A DC Power Adapter Installation Bracket and Screw USB 3.0 Data Cable (9') Serial Control Cable RS-232C to RS-485 Cable IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 20x Full HD USB 3.1 Gen 1 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC20X Specs | Image Sensor | 1/2.8" CMOS, 3.27 MP | Frame Rate | 1920 x 1080 @ 30 fps 1280 x 720 @ 60 fps | Zoom | Optical: 20x Digital: 12x | Focal Length | 4.7 to 90mm | Field of View | 5 to 58° | Minimum Illumination | 0.1 Lux | White Balance | Auto / sunlight / shade / fluorescence | | Pan Movement | 0 to 355° | Tilt Rotation | Up: 45° Down: 45° | Presets | 64, Four patrol lines | | Power Supply | 12 VDC, 2 A | Input Voltage | 12 VDC (10.5 to 14 VDC) | Input Power | 24 W Maximum | | USB | USB 3.0 | Controller Interface | Mini DIN-8 (VISCA in/out, RS-485) | Controller Configuration | Dip-switch pin 7 / TTL signal | Baud Rate | 9600 bds | Power Supply | 12 VDC, 2 A | | Compatible With | Windows 7 & 8 Mac OS X Adobe Connect, BlueJeans, Cisco Jabber, Cisco WebEx, Easymeeting, Facetime, Fuzebox, Google Hangout, GoToMeeting, Lifesize, Microsoft Lync, Polycom RealPresence, Radavision, Spontania, Skype, TurboMeeting.US, Vidyo, Vsee, Zoom.US | Material of Construction | Aluminum, plastic | Temperature | 32 to 113°F (0 to 45°C) | Dimensions (W x H x D) | 5.7 x 5.6 x 5.9" (14.4 x 14.3 x 14.9 cm) 7" (17.8 cm) Height extension | Weight | 2.5 lb (1.1 kg) | | Package Weight | 6.45 lb | Box Dimensions (LxWxH) | 12.0 x 9.5 x 9.3" |
