Product description - HuddleCamHD USB 3.0 Camera Setup Video

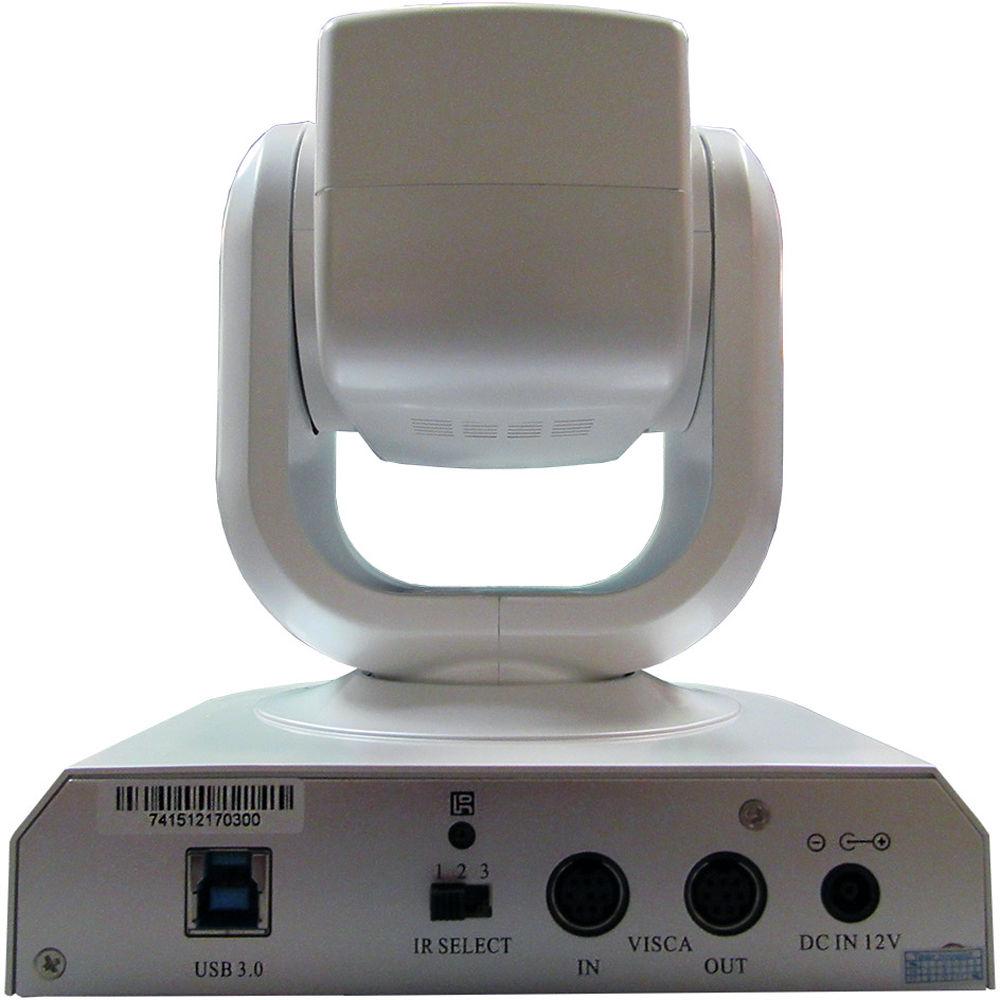

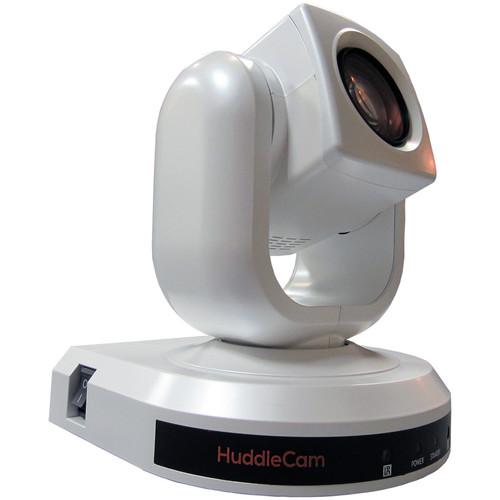

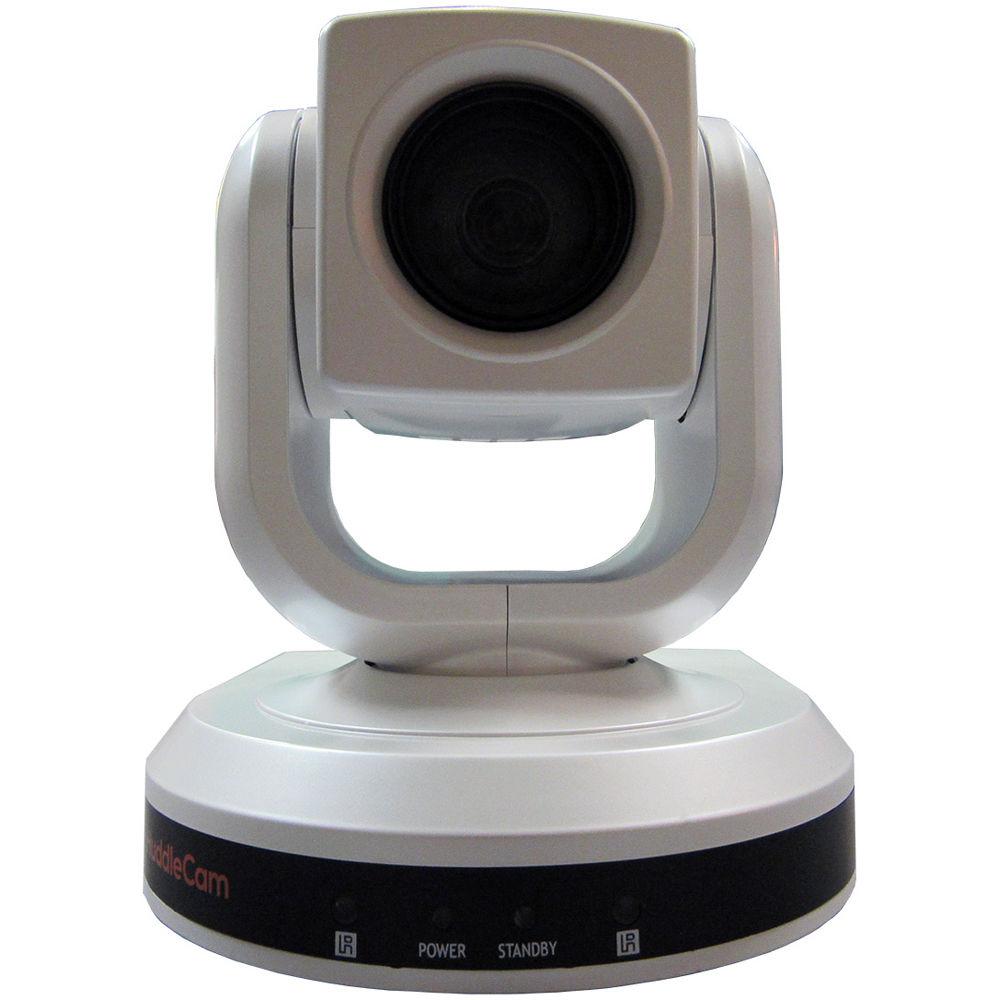

The white HuddleCamHD 30x Full HD USB 3.0 PTZ Camera incorporates a 1/2.8" CMOS sensor that captures clear images up to a resolution of 1920 x 1080 at a frame rate of 30 fps. The camera is suitable for use in large to auditorium-sized meeting rooms. The camera is equipped with a Sony 4.6 to 138.3mm varifocal lens, and comes with a built-in 30x optical and 12x digital zoom. - Certified Sony lens captures images with a 63° field of view and 30x optical zoom
- Captures video up to a resolution of 1920 x 1080 up to 30 fps

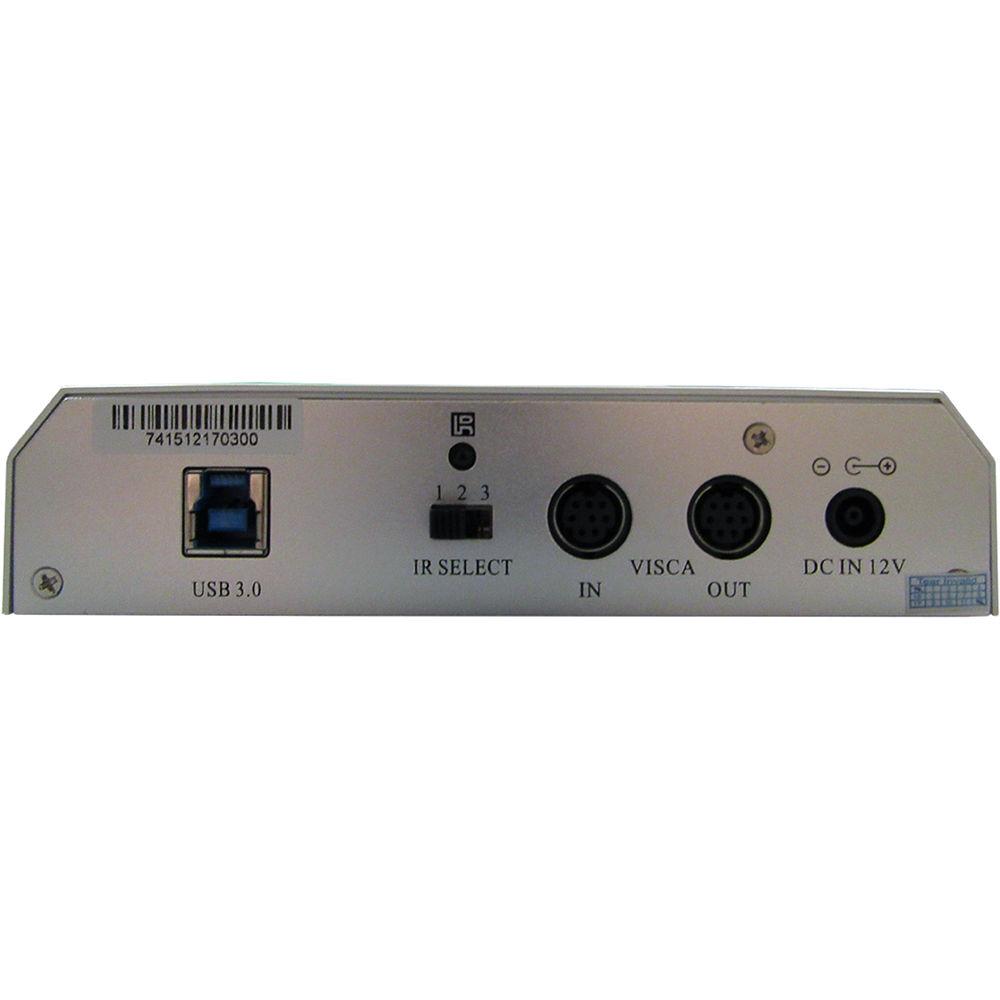

- Connectivity includes USB 3.0 and RS-232
- Infrared remote with 64 camera presets
UPC: 737993157847 In the Box HuddleCamHD 30x Full HD USB 3.1 Gen 1 PTZ Camera (White) 12V 2A DC Power Adapter Installation Bracket and Screw USB 3.0 Data Cable (9') Serial Control Cable RS-232C to RS-485 Cable IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 30x Full HD USB 3.1 Gen 1 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC30X Specs | | | Image Sensor | 1/2.8" CMOS, 3.27 MP | | Frame Rate | 1920 x 1080 @ 30 fps
1280 x 720 @ 60 fps | | Zoom | Optical: 30x
Digital: 12x | | Focal Length | 4.6 to 138.3mm | | Field of View | 3 to 63° | | Minimum Illumination | 1.4 Lux | | White Balance | Auto / sunlight / shade / fluorescence | | | | Pan Movement | 0 to 355° | | Tilt Rotation | 125° | | Presets | 64 | | | | Power Supply | 12 VDC, 2 A | | Input Voltage | 12 VDC (10.5 to 14 VDC) | | Input Power | 24 W Maximum | | | | USB | USB 3.0 | | Controller Interface | Mini DIN-8 (VISCA in/out, RS-485) | | Controller Configuration | Dip-switch pin 7 / TTL signal | | Baud Rate | 9600 bds | | Power Supply | 12 VDC, 2 A | | | | Compatible With | Windows 7 & 8
Mac OS X
Adobe Connect, BlueJeans, Cisco Jabber, Cisco WebEx, Easymeeting, Facetime, Fuzebox, Google Hangout, GoToMeeting, Lifesize, Microsoft Lync, Polycom RealPresence, Radavision, Spontania, Skype, TurboMeeting.US, Vidyo, Vsee, Zoom.US | | Material of Construction | Aluminum, plastic | | Temperature | 32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 5.7 x 5.6 x 5.9" (14.4 x 14.3 x 14.9 cm)
7" (17.8 cm) Height extension | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 12.0 x 9.4 x 9.3" |
