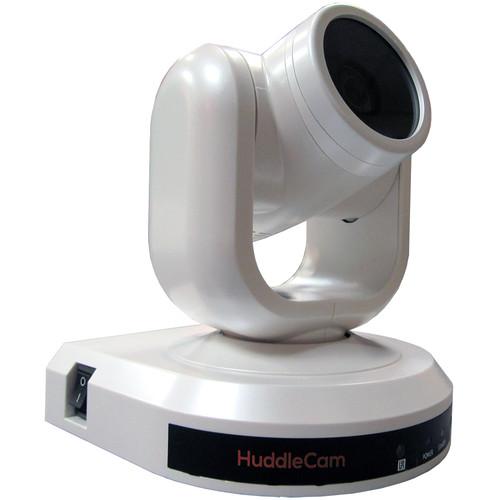

User Manual for HuddleCamHD 3x Full HD USB 3.1 Gen 1 PTZ Camera Click to enlarge the picture
Contents of the user manual for the HuddleCamHD 3x Full HD USB 3.1
- Product category: PTZ Cameras HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD PTZ Cameras
 |
User manual for the HuddleCamHD 3x Full HD USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description - HuddleCamHD USB 3.0 Camera Setup Video

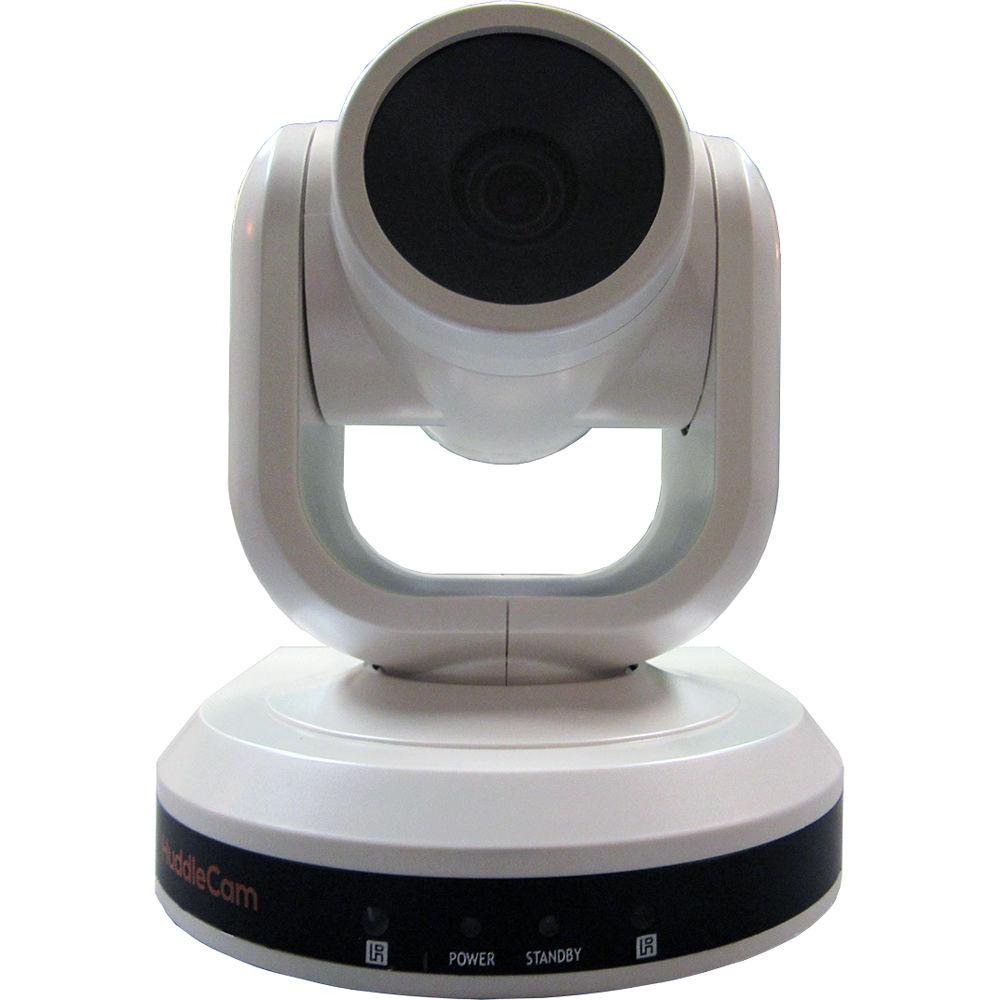

The white HuddleCamHD 3x Full HD USB 3.0 PTZ Camera incorporates a 1/2.8" CMOS sensor that captures clear images up to a resolution of 1920 x 1080 at a frame rate of 30 fps. The camera is suitable for use in small to medium-sized meeting rooms. The camera is equipped with a Sony 3 to 9mm varifocal lens, and comes with a built-in 3x optical and 12x digital zoom. - Certified Sony lens captures with a 90° field of view and 3x optical zoom
- Captures video up to a resolution of 1920 x 1080 at 30 fps

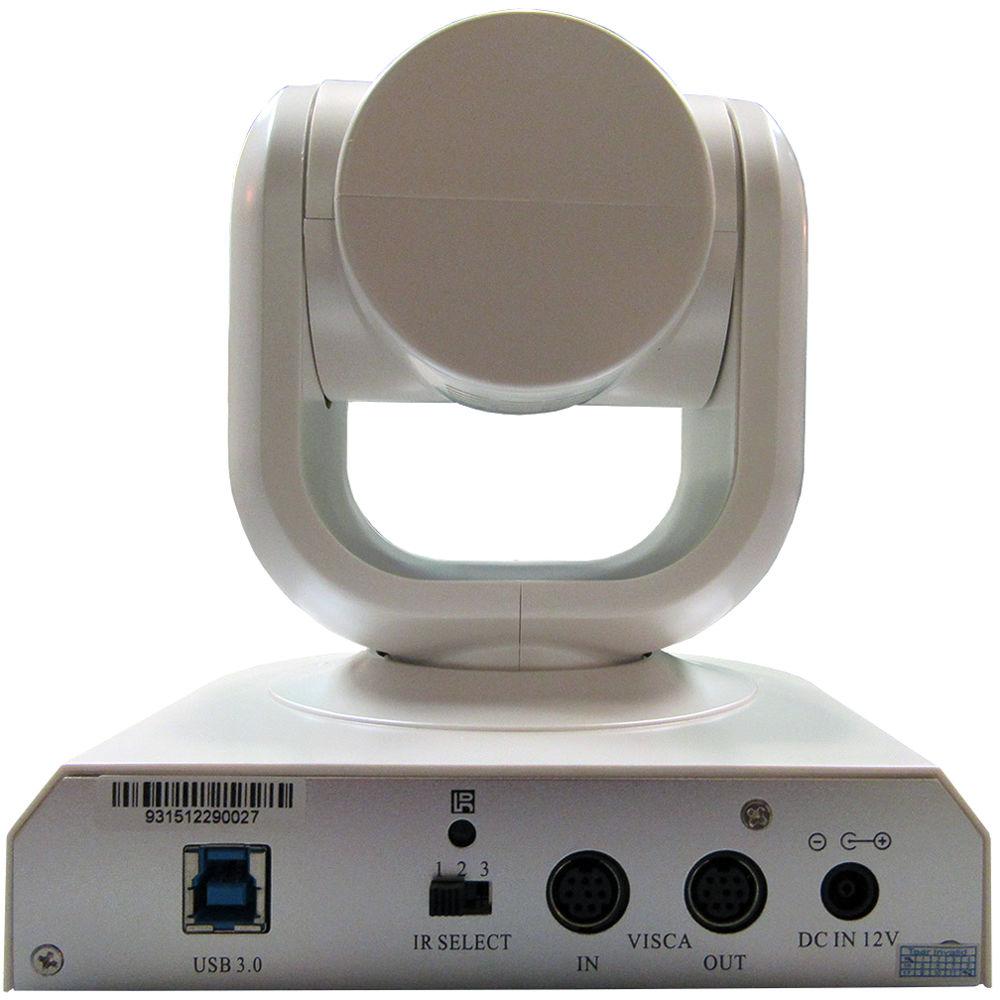

- Connectivity includes USB 3.0 and RS-232
- Infrared remote with 64 camera presets
UPC: 737993157854 In the Box HuddleCamHD 3x Full HD USB 3.1 Gen 1 PTZ Camera (White) 12V 2A DC Power Adapter Installation Bracket and Screw USB 3.0 Data Cable (9') Serial Control Cable RS-232C to RS-485 Cable IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 3x Full HD USB 3.1 Gen 1 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC3XW Specs | | | Image Sensor | 1/2.8" CMOS, 2 MP | | Frame Rate | 1920 x 1080 @ 30 fps
1280 x 720 @ 60 fps | | Zoom | Optical: 3x

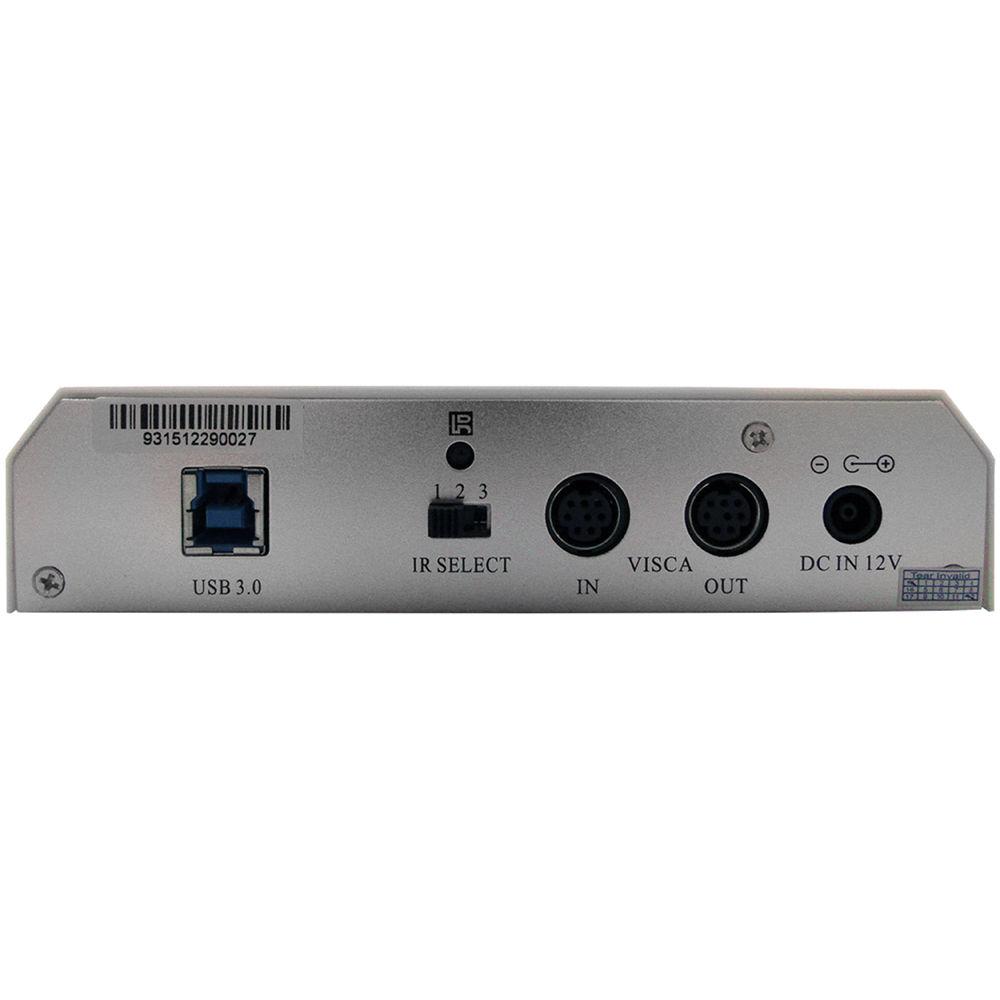

Digital: 12x | | Focal Length | 3 to 9mm | | Field of View | 90° | | Minimum Illumination | 1.0 Lux @ f/1.2 | | | | Pan Movement | ±355° | | Tilt Rotation | 125° | | Presets | 64 | | | | Power Supply | 12 VDC, 2 A | | Input Voltage | 12 VDC (10.5 to 14 VDC) | | Input Power | 24 W Maximum | | Power Supply | Maximum Temperature: -14 to 140°F (-25 to 60°C) | | | | USB | USB 3.0 | | Controller Interface | Mini DIN-8 (VISCA in/out, RS-485) | | Controller Configuration | Dip-switch pin 7 / TTL signal | | Baud Rate | 9600 bds | | Power Supply | 12 VDC, 2 A | | | | Compatible With | Windows 7 & 8
Mac OS X
Adobe Connect, BlueJeans, Cisco Jabber, Cisco WebEx, Easymeeting, Facetime, Fuzebox, Google Hangout, GoToMeeting, Lifesize, Microsoft Lync, Polycom RealPresence, Radavision, Spontania, Skype, TurboMeeting.US, Vidyo, Vsee, Zoom.US | | Material of Construction | Aluminum, plastic | | Temperature | 32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 5.7 x 6.4 x 5.9" (14.4 x 16.2 x 14.9 cm)
7.1" (18.1 cm) Height extension | | Weight | 2.1 lb (0.9 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 12.0 x 9.4 x 9.4" |
