Product description - HuddleCamHD USB 3.0 Camera Setup Video

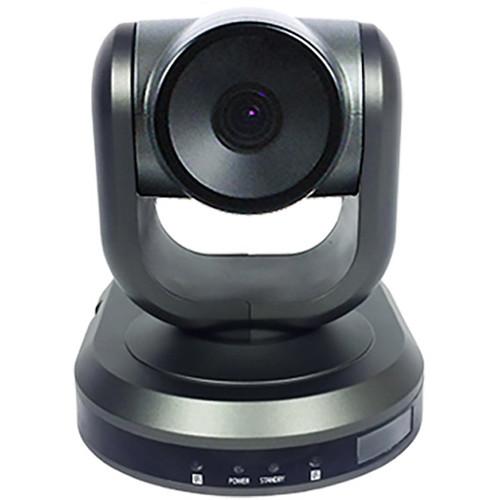

The silver gray HuddleCamHD 3x Wide USB 3.0 PTZ Conferencing Camera incorporates a 1/2.8" CMOS sensor that captures clear images up to 1920 x 1080 resolution at a frame rate of 30 fps. The camera's 3-9mm Sony lens offers 3x optical zoom and 90° wide field of view. The camera is suited for small to medium sized meeting rooms. It is compatible with any system that accepts USB cameras. - 3-9mm Sony lens with 3x optical zoom
- Supports up to 1080p resolution
- Frame rate of up to 30 fps at 1080p and 60 fps at 720p
- USB 3.0 interface for connection to PC with USB 3.0 port 1
Please Note: Backward compatible with USB 2.0 port close - Includes an IR remote control
- IR selective switch to use one remote control to control more than one camera
- LED indicators for power and standby

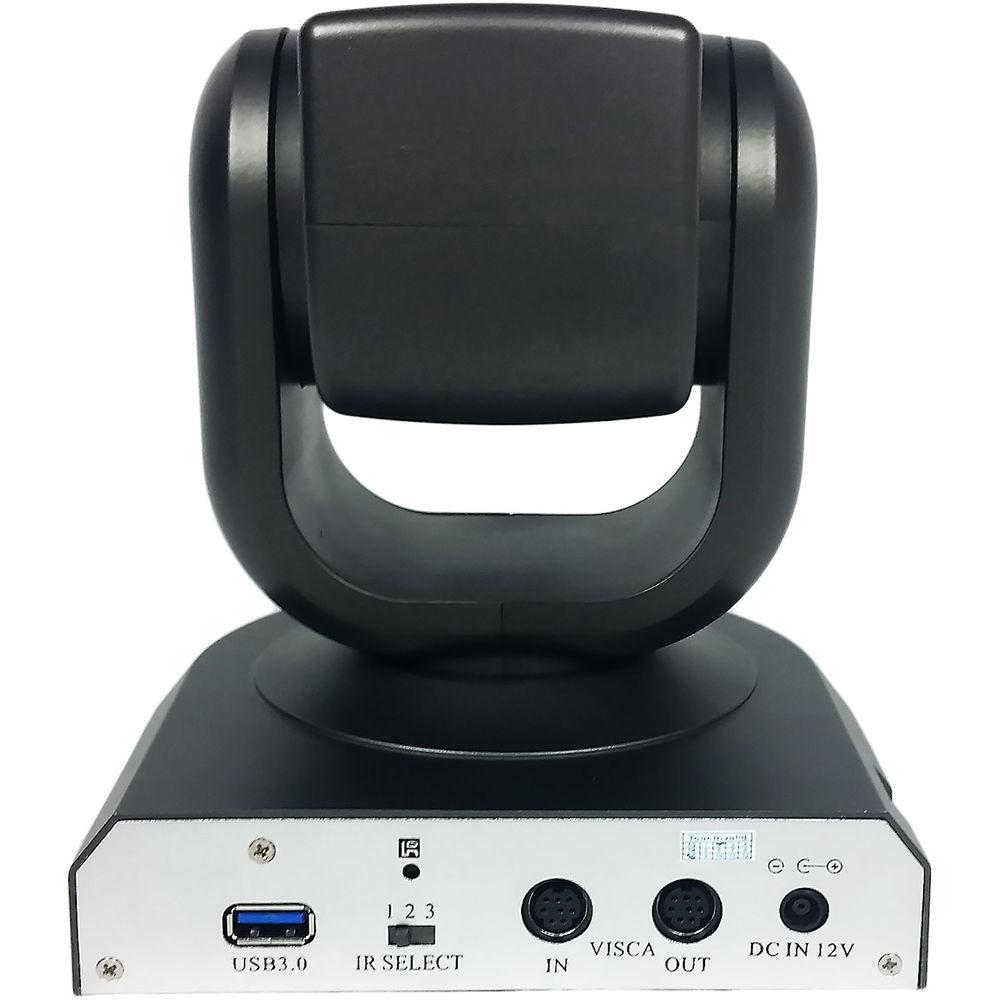

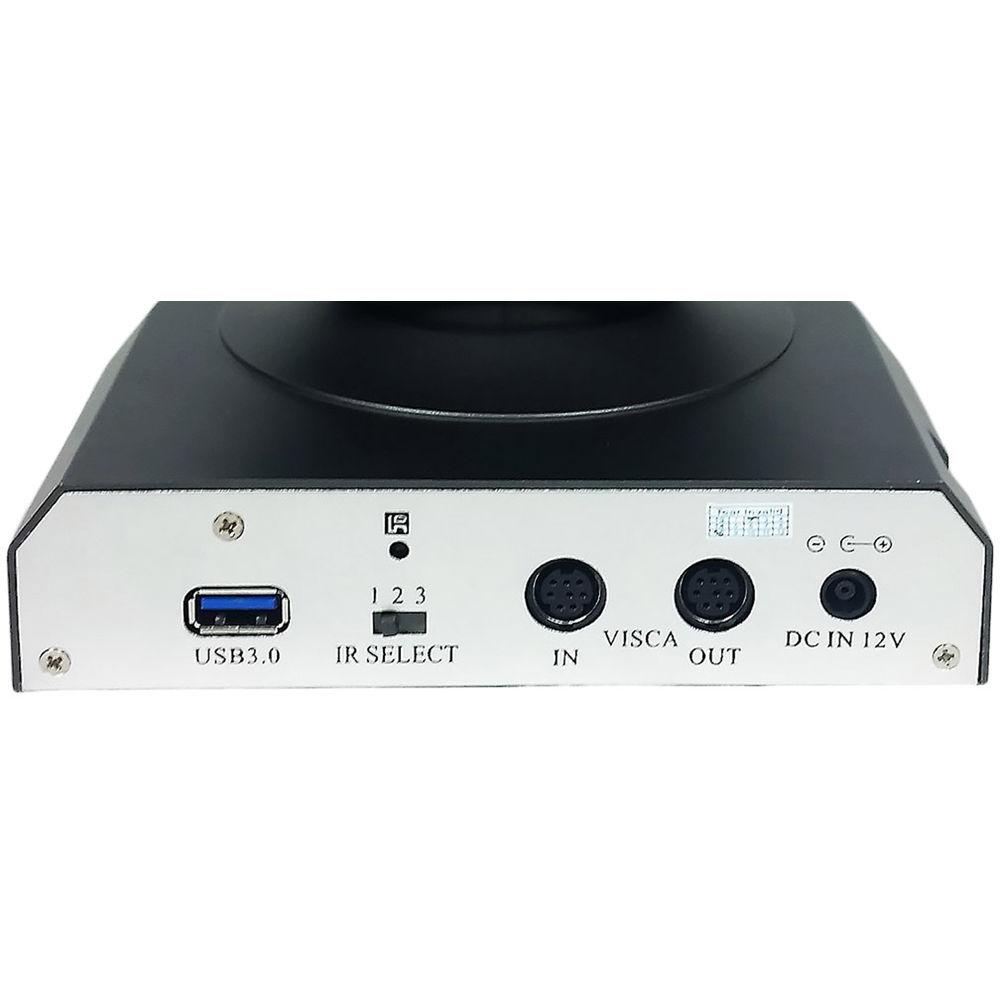

- VISCA in port for hardwired remote control from a third-party joystick or PC
- VISCA out port for daisy chaining multiple cameras for RS-232/485 control
- Powered by a 12 VDC power adapter (included)
UPC: 615953137446 In the Box HuddleCamHD 3x Wide 1080p Indoor USB 3.1 Gen 1 PTZ Conferencing Camera (Silver Gray) 12 VDC / 2A Power Adapter Installation Bracket & Screw USB 3.0 Data Cable 9' Serial Control Cable RS-232C to RS-485 Cable IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD 3x Wide 1080p Indoor USB 3.1 Gen 1 PTZ Conferencing Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC3XW Specs | | | Image Sensor | 1/2.8" CMOS, 2 MP | | Frame Rate | 30 fps @ 1080p, 60 fps @ 720p | | Zoom | 3x optical zoom, 12x digital zoom | | Focal Length | 3 to 9mm | | Field of View | 90° | | Minimum Illumination | 1 lux @ f/1.2 | | | | Pan Movement | ±355° | | Tilt Rotation | +125° | | Presets | 9 | | | | Power Supply | 12 VDC, 2 A | | Input Voltage | 12 VDC (10.5 to 14 VDC) | | Input Power | 24 W maximum | | | | USB | 1 x USB 3.0 | | Controller Interface | 1 x Mini DIN-8 VISCA In
1 x Mini DIN-8 VISCA Out | | Controller Configuration | IDip-sSwitch pin 7/TTL signal | | Baud Rate | 9600 bds | | | | Material of Construction | Aluminum, plastic | | Environment | Indoor | | Temperature | 32 to +113°F (0 to 45°C)
Power Supply: -14 to 140°F (-25.5 to 60°C) | | Compatibility | Windows 7 & 8, Mac OS X, Adobe Connect, BlueJeans, Cisco Jabber, Cisco WebEx, Easy Meeting, Facetime, Fuzebox ,Google Hangout, GoToMeeting, Lifesize, Microsoft Lync, Polycom RealPresence, Radavision, Spontania, Skype, TurboMeeting.US, Vidyo, Vsee, Zoom.US | | Dimensions (W x H x D) | 9.84 x 5.51 x 6.06" (250 x 140 x 145 mm) | | Weight | 2.84 lb (1.29 kg) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 8.8 x 8.7 x 6.9" |
