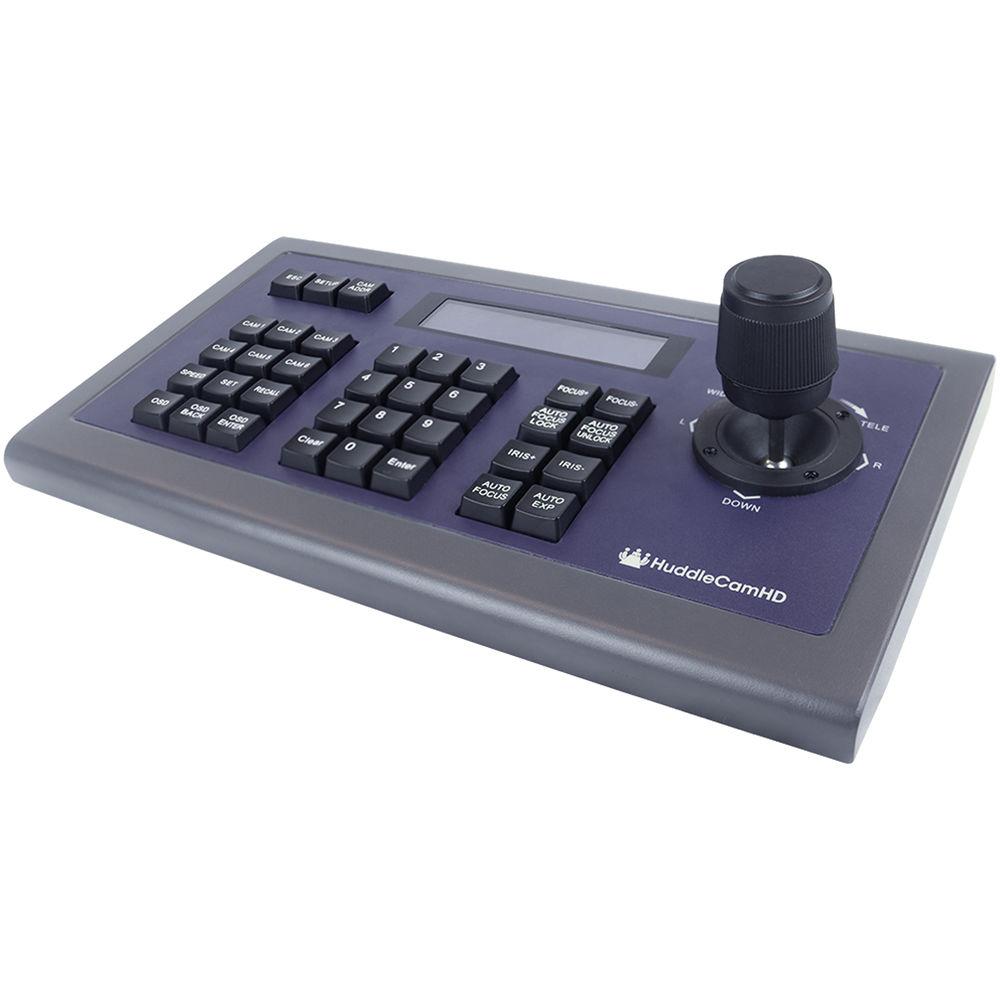

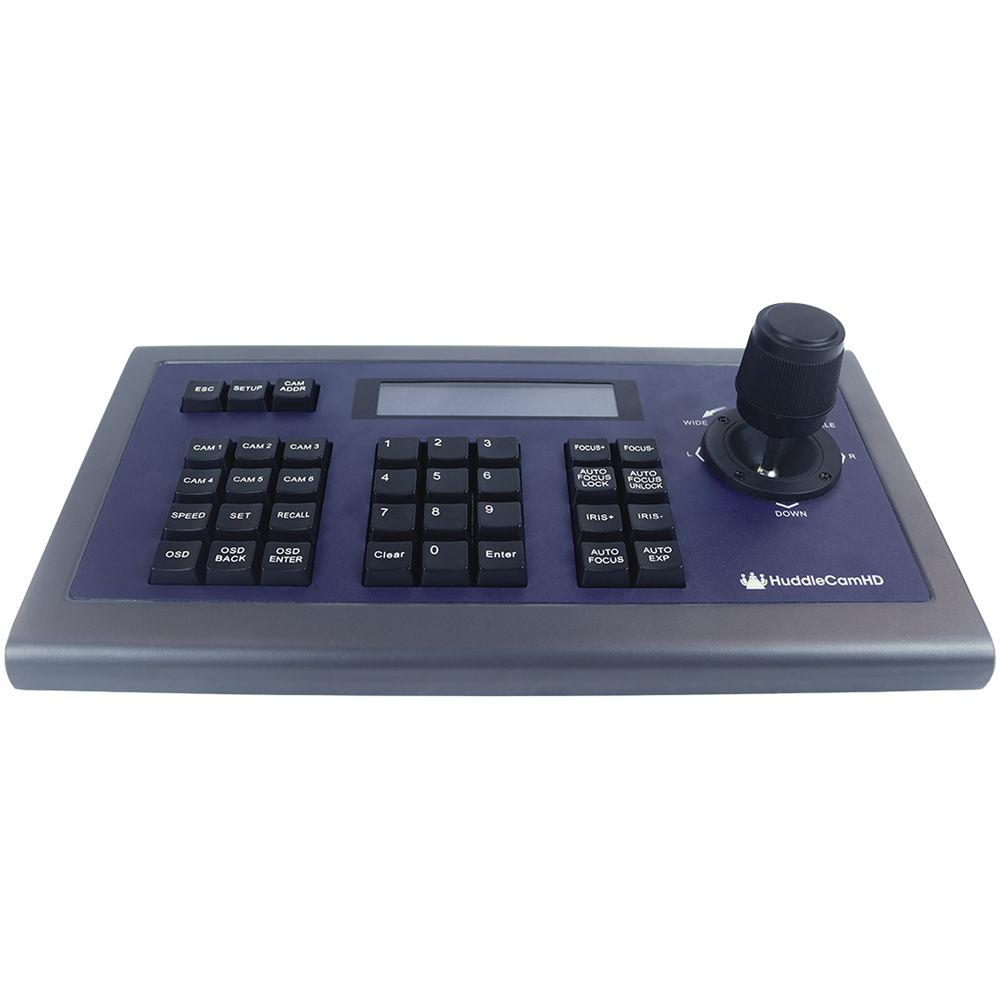

Product description - NEW HuddleCamHD Joystick G3
The HuddleCamHD HC-JOY-G3 3rd Generation Serial PTZ Joystick is a universal PTZ controller for any VISCA, Pelco-D, and Pelco-P protocol camera. You can control up to 255 cameras, with up to six assignable to "Quick Keys."
This all-metal controller, designed robust to withstand the rigors of daily production, provides zero latency control over RS-232, RS-422, and RS-485 cabling. It does not require a connection to an Ethernet-based network. The maximum communication distance is 3937' over RS-485 using a 24 AWG twisted pair cable. Note: Some camera control options are only available using the VISCA protocol. Pelco-P and Pelco-D do not support Main Exposure and Main Focus joystick buttons. - Key Features
-
- All-metal housing
- PTZ control for any VISCA, Pelco-D, and Pelco-P protocol camera
- Zero-latency control over RS-232, RS-422, and RS-485 cabling

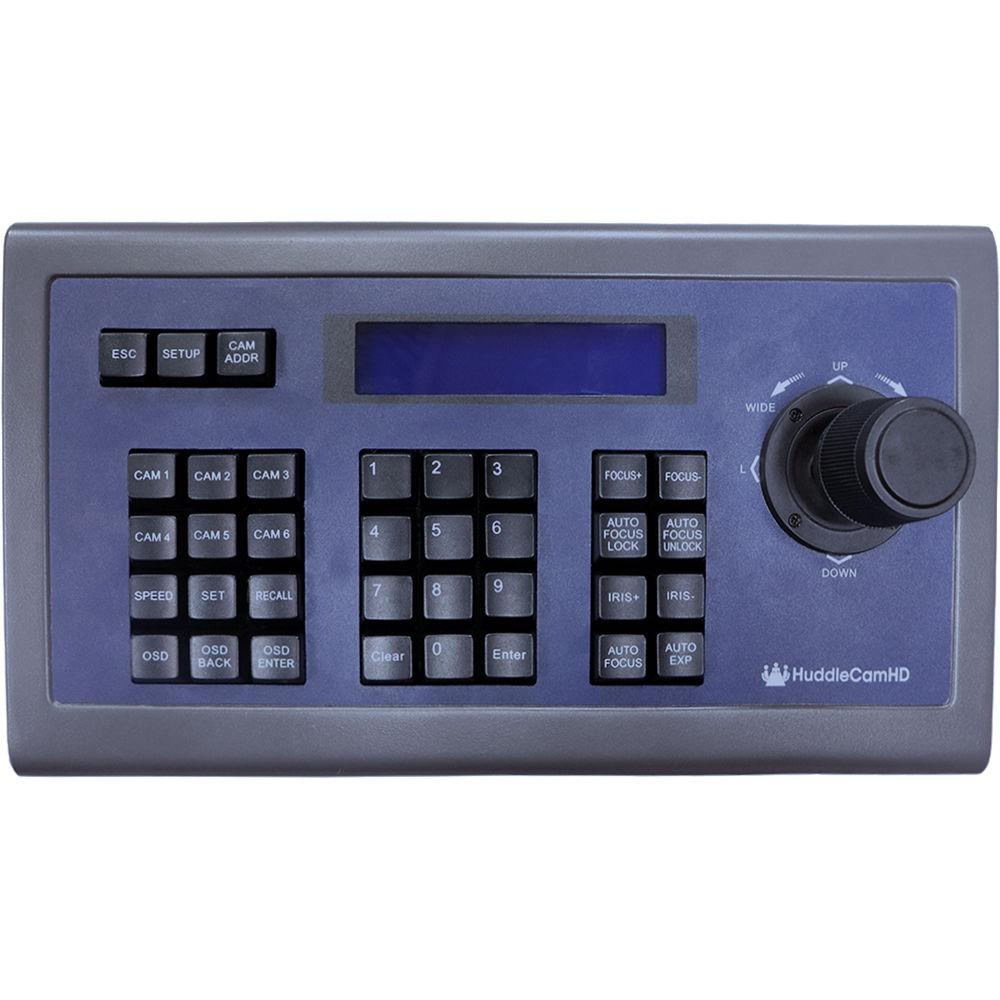

- Three-axis joystick controller with "twist" for zoom control
- Large LCD menu display
- Key-press sound ("beep") confirmation (can be turned on or off)
- Pan, tilt, zoom, iris, and focus control
- Preset, speed, and OSD control
- Auto/manual focus and iris
- Up to six assignable "Quick Key" cameras
- Real-time display of the current status
- Short circuit and overcurrent protection
- Automatic recovery program for the communication ports
UPC: 737993161325 In the Box HuddleCamHD HC-JOY-G3 3rd Generation Serial PTZ Joystick RS-232 Cable (9') 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD HC-JOY-G3 3rd Generation Serial PTZ Joystick in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC-JOY-G3 Specs | Connections | 1 x RS-232 on DB9

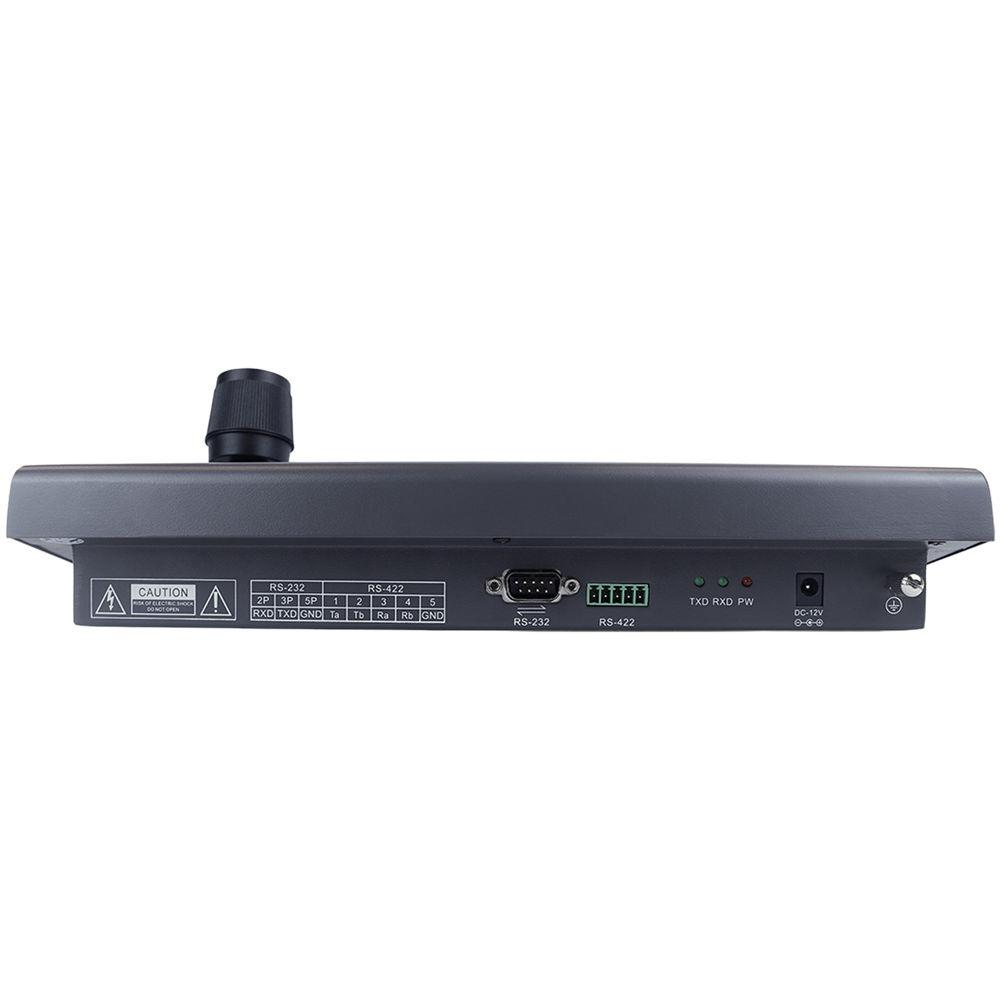

1 x RS-422 / RS-485 on Phoenix | | Baud Rate | 1200 to 19200 bps | | Cameras Supported | 255 | | Presets | 255 | | Maximum Cable Distance | 3937' / 1200 m (Using 24 AWG Twisted Pair) | | Power | 6 W, 12 VDC | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Humidity (Non-Condensing) | 10 to 90% | | Dimensions | 12.6 x 7.1 x 4.3" / 32 x 18 x 11 cm | | Weight | 3.4 lb / 1.6 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.7 x 10.5 x 6.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to HuddleCamHD HC-JOY-G3 3rd Generation Serial PTZ Joystick
| Subject: shutting down | | Date: 19.04.2022 02:40:32 | Name: Kari Tschetter | Huddle is working fine, then suddenly it will not light up or allow any selected presets work. Only the current camera and preset last used. we have to unplug quickly, plug cord back in, then it will work. This happens during livestream.
How can we fix it? | | Post reply |
| Subject: adjusting speed | | Date: 28.01.2021 02:53:09 | Name: Butch Miller | | how do you adjust the speed going from one setting to another? Some seem nice and smooth while others seem to fly. | | Post reply |
| Subject: How to remove recall ok message using the Huddlecamhd HC-JOY-G3 Keyboard controller | | Date: 10.12.2020 20:00:38 | Name: Ian Rock | Hello. When we switch from one camera position to another, we get a message Recall (the number of the preset): OK (for example Recall 6: OK) This message shows up on our live stream. How can we remove this?
PS. We use it with the Blackmagicdesign ATEM Mini Pro. | | Post reply |
