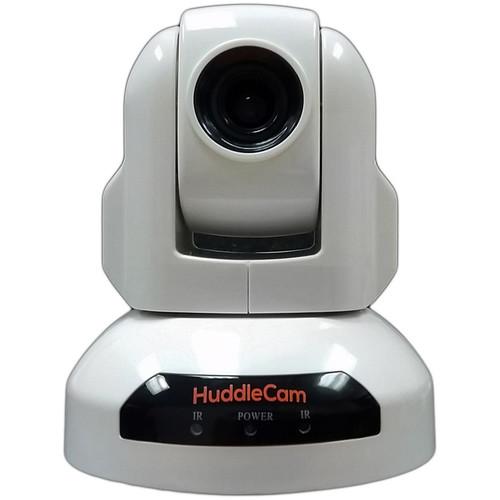

User Manual for HuddleCamHD HC3X-WH-G2 2.1MP 1080p 3x Gen2 USB2.0 Conferencing Camera Click to enlarge the picture
Contents of the user manual for the HuddleCamHD HC3X-WH-G2 2.1MP 1080p 3x Gen2
- Product category: PTZ Cameras HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD PTZ Cameras
|
User manual for the HuddleCamHD HC3X-WH-G2 2.1MP 1080p 3x Gen2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description - HuddleCamHD 3X - 2nd Generation Conferencing Camera
- HuddleCamHD 3X Overview
The white HC3X-WH-G2 2.1MP 1080p 3x Gen2 USB2.0 Conferencing Camera from HuddleCamHD incorporates a 1/2.7" CMOS image sensor that captures clear Full HD (1920 x 1080) video, letting you get up close and interact with your team. The camera features an ideal field of view which is wide enough to capture your entire table, yet narrow enough to zoom across the room onto a white board or area of interest. This small USB 2.0 camera is suitable for use in small to medium-sized meeting rooms. - Crystal clear 1080p video with lossless 10x optical zoom lets you get up close and interact with your team
- Simply plugging your camera into your PC, Mac, or Chromebox's USB port lets you start your video conference
- 81° Field of view is wide enough to capture your entire table, yet narrow enough to zoom across the room onto a white board or area of interest
- Works with virtually every online video conferencing software without the need for additional drivers or proprietary connections
- Access the camera presets with the included IR remote control. Easily control your camera's pan, tilt, zoom, and other fine-tuning functions from your remote
- Easily invert the camera's image for installation on the ceiling. Use the included tripod adapter to fasten the camera to a standard tripod or wall mount
- Integrate the camera into larger control systems such as Crestron or AMX, or convert RS-232 to USB and control from your computer
UPC: 053176516301 In the Box HuddleCamHD HC3X-WH-G2 2.1MP 1080p 3x Gen2 USB2.0 Conferencing Camera (White) IR Remote Control 12 VDC, 2A Power Adapter Tripod Mount 9' USB 2.0 Data Cable Serial Control Cable RS-232C to RS-485 Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD HC3X-WH-G2 2.1MP 1080p 3x Gen2 USB2.0 Conferencing Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC3X Specs | | | Sensor | 1/2.7" CMOS, 2.1 MP | | Frame Rate | 30 fps @ 1920 x 1080 | | Optical Zoom | 3x optical zoom | | Focal Length | 3-10mm, f/1.4 | | Field of View | 36° (tele) to 81° (wide) | | | | Pan Movement | ±360° | | Tilt Rotation | Up: 90°, Down: 45° | | Presets | 64 presets | | | | Interface | USB 2.0 | | Controller Interface | Mini DIN-8 (VISCA in, VISCA out/RS-485) | | Configuration | DIP switch pin 7/TTL signal | | Baud Rate | 9600 bps | | Power Supply | 12 VDC, 2 A | | | | Power Adapter | 12 VDC, 2 A | | Input Voltage | 12 VDC (10.5-14 VDC) | | Input Power | 24 W (maximum) | | Environment | Indoor | | Certifications | ISO9001:2008 | | | | Material | Aluminum & plastic | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 4.88 x 5.50 x 4.75" (12.4 x 13.9 x 12 cm)
6" (15.2 cm) height with tilt up | | Weight | 1.66 lb (0.75 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 8.9 x 8.8 x 7.0" |
