User Manual for HuddleCamHD HC3XA USB 2.0 PTZ Conferencing Camera with 3x Optical Zoom, 1920 x 1080p, 74° FOV Lens Click to enlarge the picture
Contents of the user manual for the HuddleCamHD HC3XA USB 2.0 PTZ Conferencing
- Product category: PTZ Cameras HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD PTZ Cameras
 |
User manual for the HuddleCamHD HC3XA USB 2.0 PTZ Conferencing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description - HuddleCamHD USB 2.0 Camera Setup

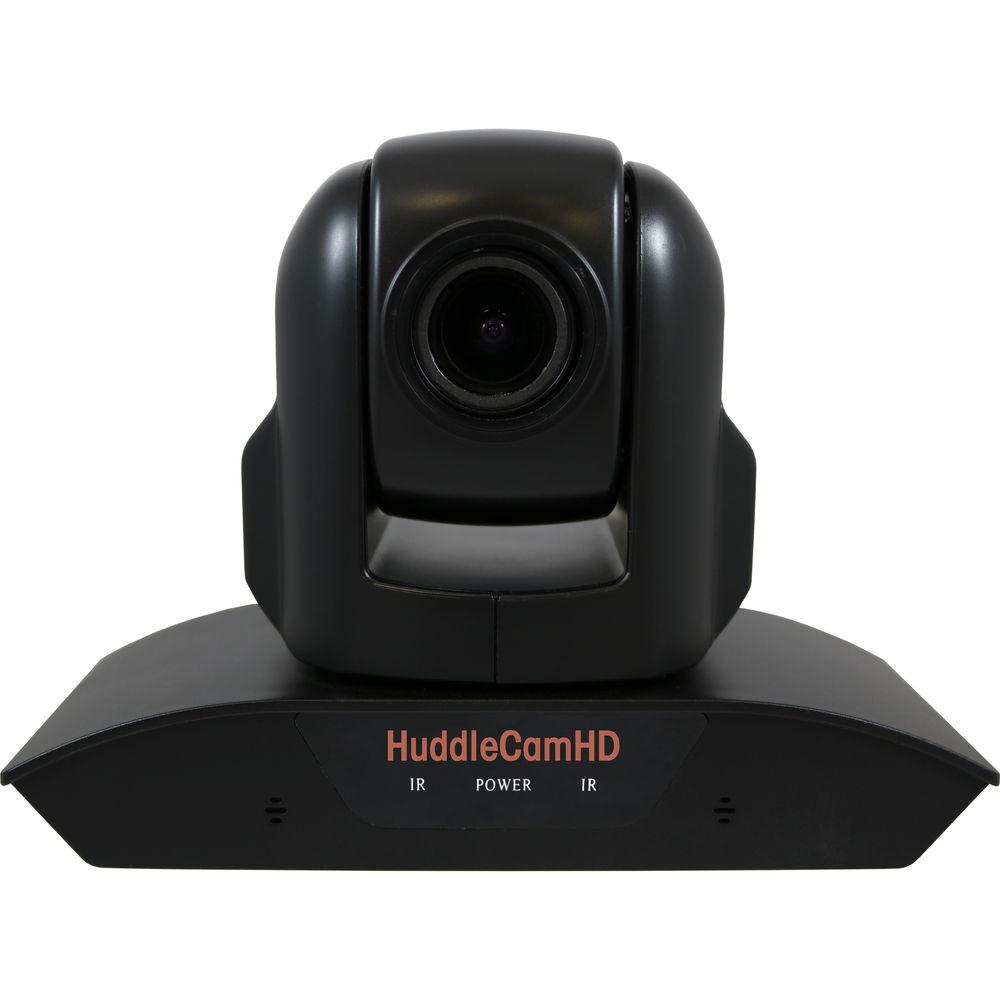

This black HC3XA USB 2.0 PTZ Conferencing Camera with 3x Optical Zoom from HuddleCamHD is suitable for small to medium sized meeting rooms. It incorporates a 1/2.7" CMOS image sensor that captures clear Full HD (1920 x 1080) video at 30 or 25 fps in 1920 x 1080p, 720p, SVGA, and VGA resolutions. The 3x optical zoom allows you to get close to your speaker, or pull out wide showing the room.
Two built-in front mounted microphones pick up the sound in the room, so you don't need to bring an external mic system to pick up the people in the room up to 16.5' away from the camera. 64 position presets allow you to quickly reframe to commonly used positions. An included IR remote enables control of the camera, or you can also control the camera via the USB interface. - 1080p video with lossless 3x optical zoom

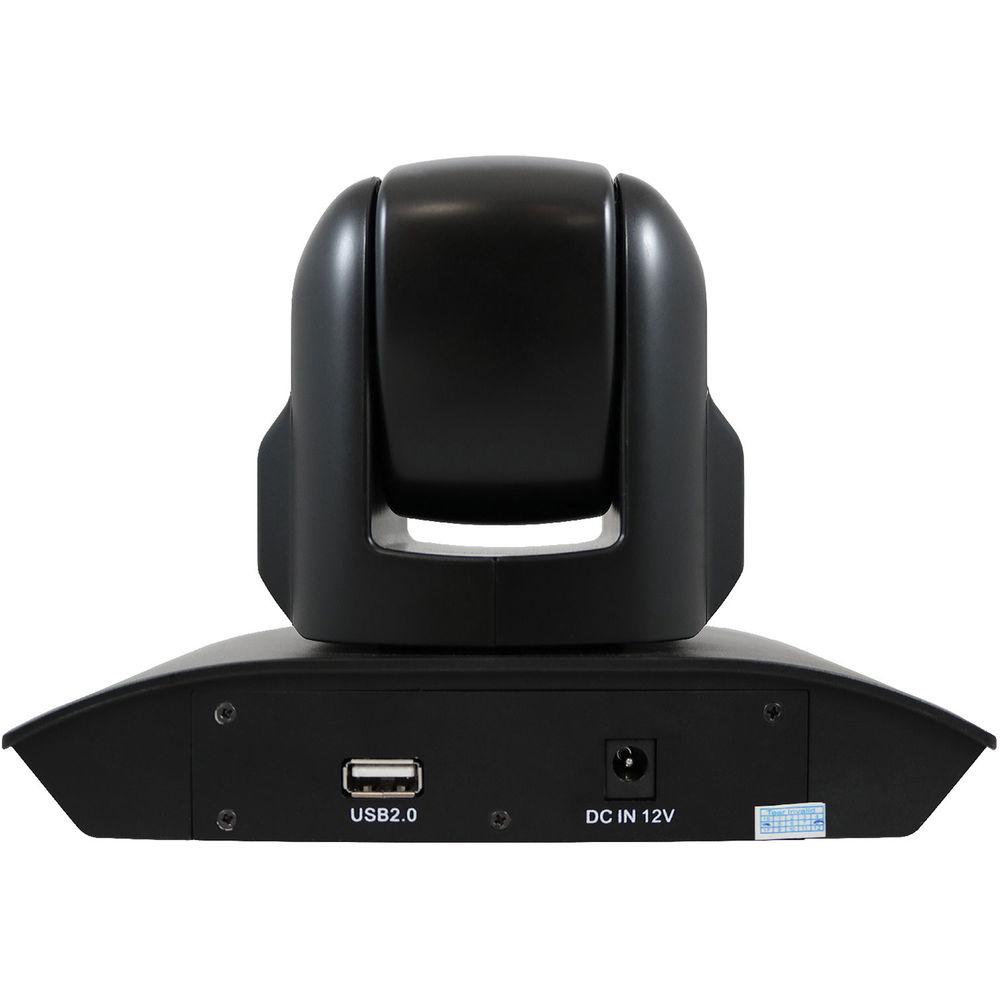

- Plug your camera into your computer's USB port to start your video conference
- 74° field of view is wide enough to capture your entire table, yet narrow enough to zoom across the room onto a white board or area of interest
- Works with virtually every online video conferencing software without the need for additional drivers or proprietary connections
- Access the camera presets with the included IR remote to control your camera's pan, tilt, zoom, and other fine-tuning functions
UPC: 737993159872 In the Box HuddleCamHD HC3XA USB 2.0 PTZ Conferencing Camera with 3x Optical Zoom, 1920 x 1080p, 74° FOV Lens (Black) 12 VDC, 2.0 A Power Supply Tripod Mount USB Cable IR Remote Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD HC3XA USB 2.0 PTZ Conferencing Camera with 3x Optical Zoom, 1920 x 1080p, 74° FOV Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC3XA Specs | | | Sensor | 1/2.7" CMOS, 2.1 MP | | Frame Rate | Max: 30 fps @ 1920 x 1080 | | Optical Zoom | 3x optical zoom | | Focal Length | 3-10mm, f/1.4 | | Field of View | 36° (tele) to 74° (wide) | | | | Pan Movement | ±340° | | Tilt Rotation | Up: 90°, Down: 30° | | Presets | 64 presets | | | | Microphone | Dual front-mounted microphone array | | Pickup Pattern | 360° up to 16.5' / 5 m | | Processing | Advanced auto gain and noise control | | | | Interface | USB 2.0 | | Control | IR remote
RS-232 over USB
Baud rate: 9600, 38400 bps | | Power Supply | 12 VDC, 2 A | | | | Power Adapter | 12 VDC, 2 A | | Input Voltage | 12 VDC (10.5-14 VDC) | | Input Power | 15 W (maximum) | | Environment | Indoor | | Certifications | ISO9001: 2008 | | | | OS Compatibility | Windows 7/8/8.1/10
Mac OSX | | Software Compatibility | Acano
Adobe Connect
Blue Jeans
Cisco Jabber
Cisco Webex
Easy Meeting
Facetime
Fuzebox
Google Hangouts
GoToMeeting
Lifesize
Skype for Business (Lync)
Polycom Real Presence
Radavision
Spontania
Skype
TurboMeeting US
Vidyo
Zoom.US
Google Hangouts on Air
YouTube Live
Any app that supports the UVC camera interface | | | | Material | Aluminum & plastic | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | Max Tilt: 7.1 x 5.5 x 3.1" / 18.03 x 14.00 x 7.87 cm | | Weight | 1.41 lb / 0.64 kg | | | | Package Weight | 3.075 lb | | Box Dimensions (LxWxH) | 8.95 x 8.75 x 7.05" |
