User Manual for HuddleCamHD HuddlePod Air Wireless USB Speakerphone Click to enlarge the picture
Contents of the user manual for the HuddleCamHD HuddlePod Air Wireless USB Speakerphone
- Product category: Audio Conferencing HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD Audio Conferencing
 |
User manual for the HuddleCamHD HuddlePod Air Wireless USB Speakerphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description Videoconferencing with Confidence: HuddlecamHD Cameras and Audio Read More - HuddlePod Air Wireless USB Audio Chat Pod Setup Video

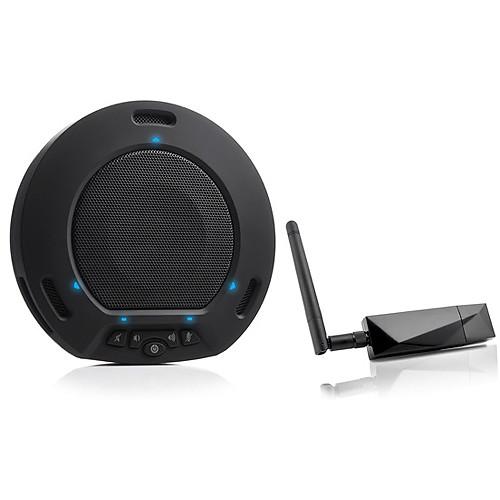

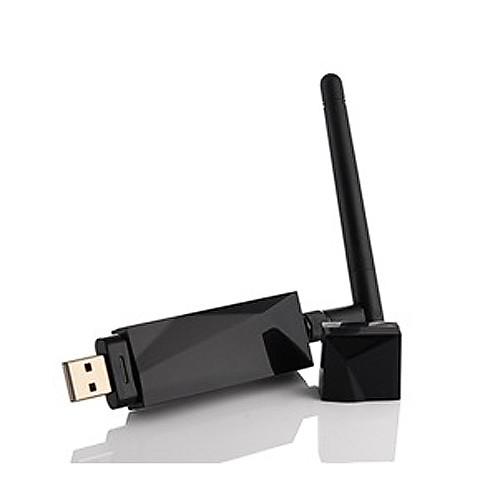

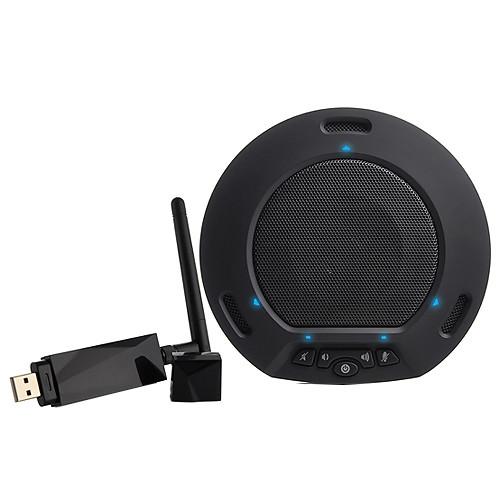

The black HuddleCamHD HuddlePod Air is a wireless USB speakerphone system that provides a reliable wireless connection directly to your Mac or Windows computer, for online meetings with your favorite video-conferencing software such as Skype, GoToMeeting, WebEX, Zoom.US, and more. The system comes with a speakerphone unit and a wireless receiver, which simply plugs into your computer's USB port so you can start conferencing right away, with full-duplex capability and no cable cluttering your workspace. The speakerphone features a built-in microphone with an omnidirectional pattern, which picks up the participant's voices in a 360° circle at a distance up to 12'. Automatic DSP with EQ, auto-level control, up to 16 dB of noise cancellation, and 256 channels of acoustic echo cancellation ensure calls with crystal-clear audio quality and intelligible speech. The built-in rechargeable battery provides up to seven hours of talk time on a full charge. The HuddlePod Air can also operate while powered via USB. A 3.5mm audio output jack gives you the option to connect a set of headphones or an external amplification system. The unit ships with a neoprene travel case and a USB charging cable. Key Features - Wireless USB Connection
-

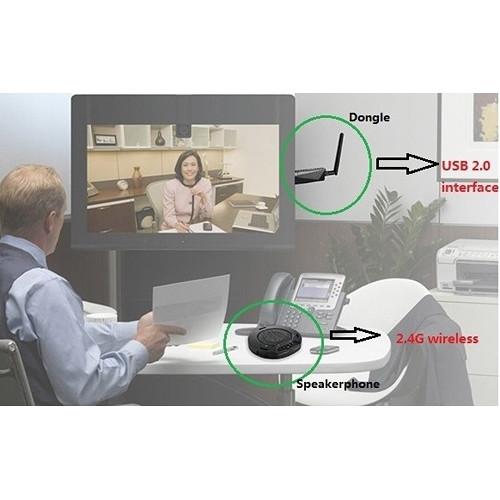

- Completely wireless USB 2.0 connection with a 30′ range over 2.4 GHz
- Up to 10 times more bandwidth than with Bluetooth
- Broad Software Compatibility
-
- Works with virtually every online video conferencing software
- No need for additional drivers or proprietary connections
- Easy Set Up
-
- Plug-and-play compatibility with all UAC-compatible, web-based video-conferencing software including Skype, GoToMeeting, WebEX, Zoom.US, and more
- Simply plug the receiver into your computer's USB port and start your video conference
- Echo Cancellation
-
- 256 channels of echo cancellation to improve voice quality
- Clear Audio
-
- Built-in automatic DSP offers intelligent noise cancellation, digital EQ, and auto-level control for a clear sound
- Long-Lasting Rechargeable Battery
-
- Talk for up to 7 hours on a single charge
- USB port for charging of battery or for powered operation
- Microphone
-
- 360°, omnidirectional polar pattern
- Pick up your entire table with a 12 x 12' range
- Full duplex operation
- Other
-
- 3.5mm audio output jack for headphones or to connect unit to external powered speakers
- Easy mute LED indication lights
- Includes neoprene travel case
UPC: 053176516271 In the Box HuddleCamHD HuddlePod Air Wireless USB Speakerphone (Black) HuddlePod Air Speakerphone Wireless Receiver with Removable Wireless Antenna and Protection Cap Neoprene Travel Case USB 2.0 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD HuddlePod Air Wireless USB Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HP-AIR-BK Specs | | | System Requirements | Windows 7/8/8.1/10
Mac OS 10.5 and later
ChromeOS
Android 4.4 and later | | Compatibility | Any UAC-compatible software:
Acano
Adobe Connect
Blue Jeans
Cisco Jabber
Cisco WebEX
EasyMeeting.net
Facetime
Fuzebox
Google Hangout
GoToMeeting
Lifesize
Microsoft Lync
MeetFree.US
Polycom RealPresence
Radavision
Spontania
Skype
TurboMeeting.US
Vidyo
VSee
Zoom.US | | Wireless USB | USB 2.0 connection
Range: 30' / 9 m | | Battery | Rechargeable
Up to 7 hours of talk time | | RF Frequency Range | 2.4 to 2.4835 GHz | | Audio Output | Maximum 18 dB with auto-level control | | Interface | USB 2.0 port for charging of battery or for powered operation
1/8" / 3.5 mm audio out | | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C
Humidity: 20 to 85% | | Certifications | CE Mark (R & TTE Directive) | | Dimensions | Diameter: 7" / 17.8 cm
Height: 1.5" / 3.8 cm | | Weight | 12.8 oz / 362.9 g | | | | Polar Pattern | 360°, omnidirectional | | Pick Up Range | 12' / 3.6 m | | Echo Cancellation | 256 channel echo cancellation | | Noise Cancellation | Intelligent NC up to 16 dB | | Digital Equalization | Built-in Digital EQ | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.9 x 9.2 x 3.4" |
