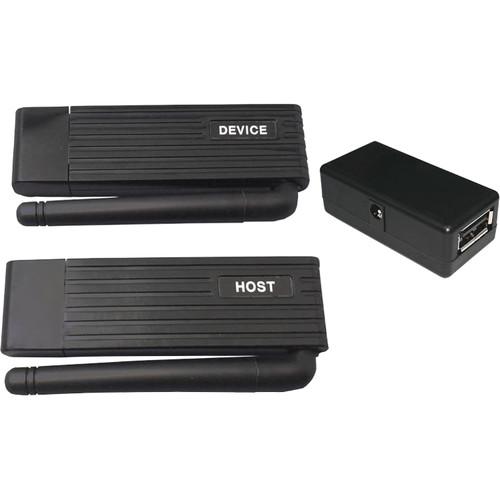

User Manual for HuddleCamHD USB2AIR Wireless USB 2.0 Link Click to enlarge the picture
Contents of the user manual for the HuddleCamHD USB2AIR Wireless USB 2.0 Link
- Product category: Projector Accessories HuddleCamHD
- Brand: HuddleCamHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HuddleCamHD Projector Accessories
 |
User manual for the HuddleCamHD USB2AIR Wireless USB 2.0 Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HuddleCamHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HuddleCamHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HuddleCamHD product will considerably shorten its lifespan!
|
Product description Connect USB devices to your computer without wires using the HuddleCamHD USB2AIR Wireless USB 2.0 Link. Leveraging the 2.4 GHz spectrum, this dual transceiver set includes units for connecting one host to a single USB 2.0 device. Though, with a separately available hub, up to four devices can be connected simultaneously. Once connected, you have up to 25' of wireless freedom between your computer and the connected device. Since the USB standard is not converted or otherwise tampered with, no additional drivers are required. Video, audio, and data are transmitted and received with minimal latency of 1-2 milliseconds for a nearly seamless I/O experience. - Quick Features
-
- Completely wireless USB 2.0 connection with a range up to 25' over 2.4 GHz
- Works with virtually every software that uses USB inputs, with no need for additional drivers or proprietary connections
- 30 Mbps bandwidth, shareable between multiple devices
- Compatible with Windows 7 and newer
- Precludes cable clutter across meeting rooms and workspaces

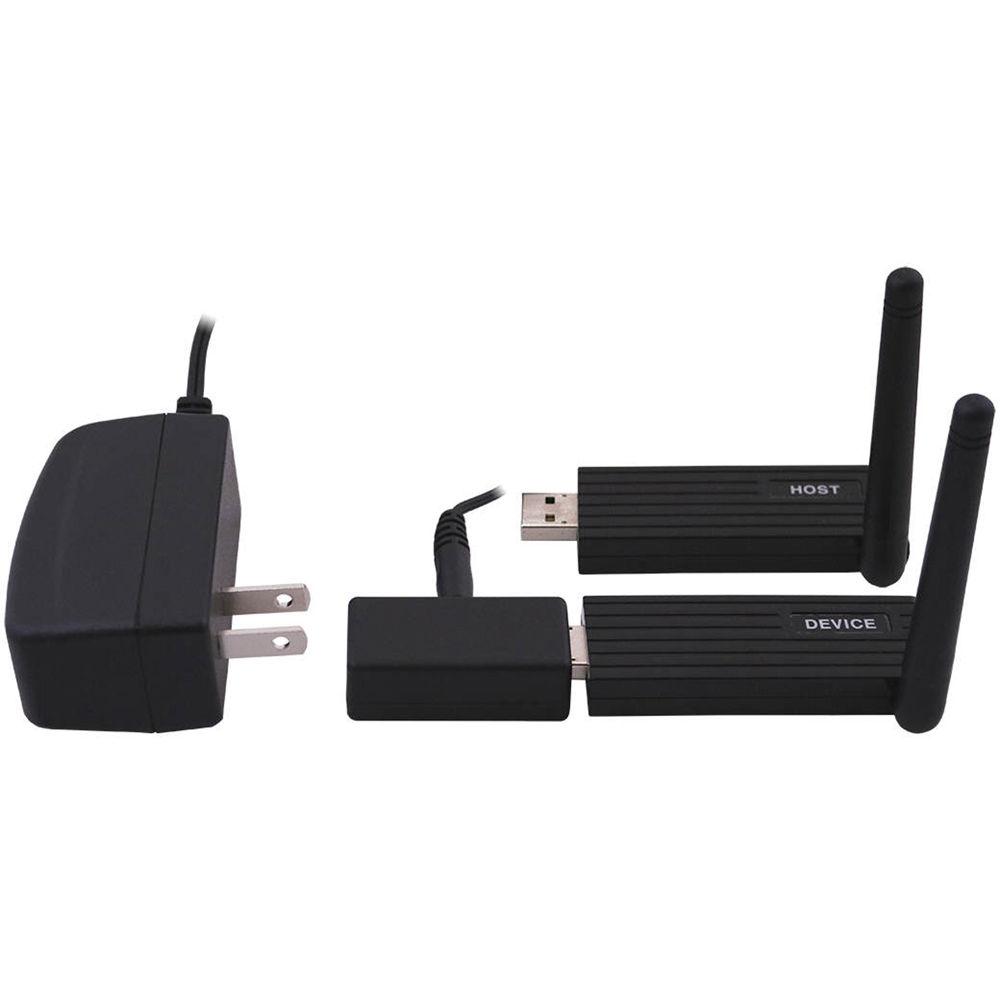

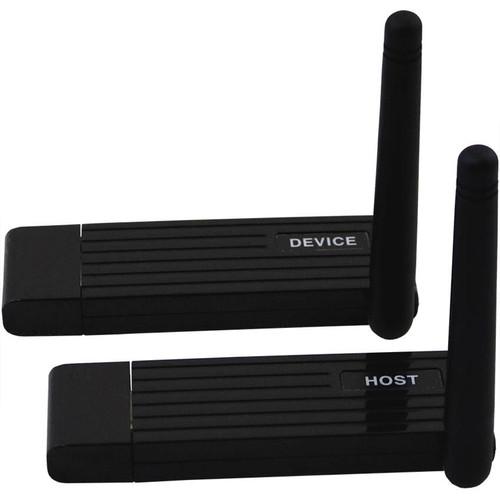

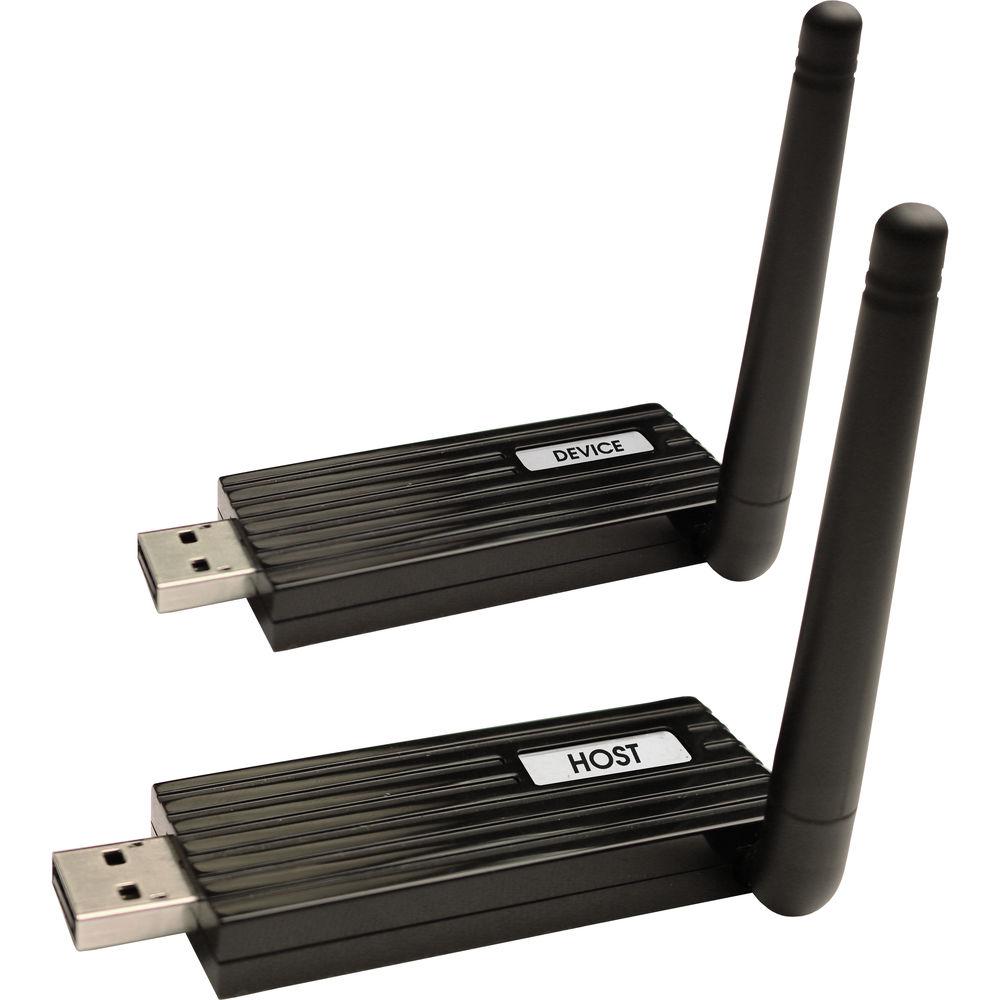

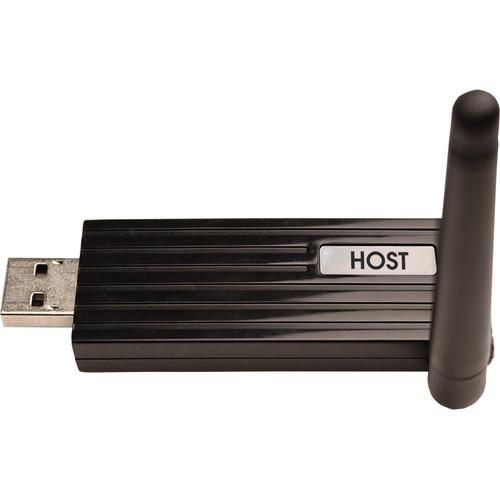

UPC: 737993160151 In the Box HuddleCamHD USB2AIR Wireless USB 2.0 Link Host Transceiver Device Transceiver USB-FF Power Adapter USB 2.0 Cable (6') Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HuddleCamHD USB2AIR Wireless USB 2.0 Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuddleCamHD HC-USB2-AIR Specs | Standards | WiMedia PHY v1.1
USB 2.0 | | Bandwidth | 30 Mbps (practical) | | Maximum Transmission Distance | 25' / 7.6 m | | USB Device Support | Up to 4 per link (via separately available hub) | | Max Links | Up to 8 links per working area | | Operating Frequency | WiMedia Bands: 1, 3, 6 (3.1-9 GHz)
Band Group and Frequency: Band 1, 3168 - 4572 MHz | | Latency | 1-2 milliseconds | | OS Support | Microsoft Windows 7 and newer | | Power | Index: 5 VDC
Transmitter: <1 w
Receiver: <1.15 W | | Receiver Sensitivity | Minimum: (dBm)
53.3 Mbps, PER <8%: -61
106.7 Mbps, PER <8%: -68
200 Mbps, PER <8%: -65
320 Mbps, PER <8%: -63
400 Mbps, PER <8%: -62
480 Mbps, PER <8%: -60
Typical: (dBm)
53.3 Mbps, PER <8%: -78
106.7 Mbps, PER <8%: -76
200 Mbps, PER <8%: -72
320 Mbps, PER <8%: -70
400 Mbps, PER <8%: -68
480 Mbps, PER <8%: -67
Transmitted signal PSD: Max -41.3 dBm/MHz | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | 3.25 x 1.9 x 3.25" / 8.3 x 5 x 8.3 cm (each unit, antenna extended) | | Weight | 0.7 oz / 20 g (each unit) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.4 x 3.9 x 2.9" |
