User Manual for Hudson Spider Redback 36" Octagon Parabolic LED Deluxe Kit Click to enlarge the picture
Contents of the user manual for the Hudson Spider Redback 36" Octagon Parabolic
- Product category: LED Lights Hudson Spider
- Brand: Hudson Spider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hudson Spider LED Lights
 |
User manual for the Hudson Spider Redback 36" Octagon Parabolic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hudson Spider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hudson Spider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hudson Spider product will considerably shorten its lifespan!
|

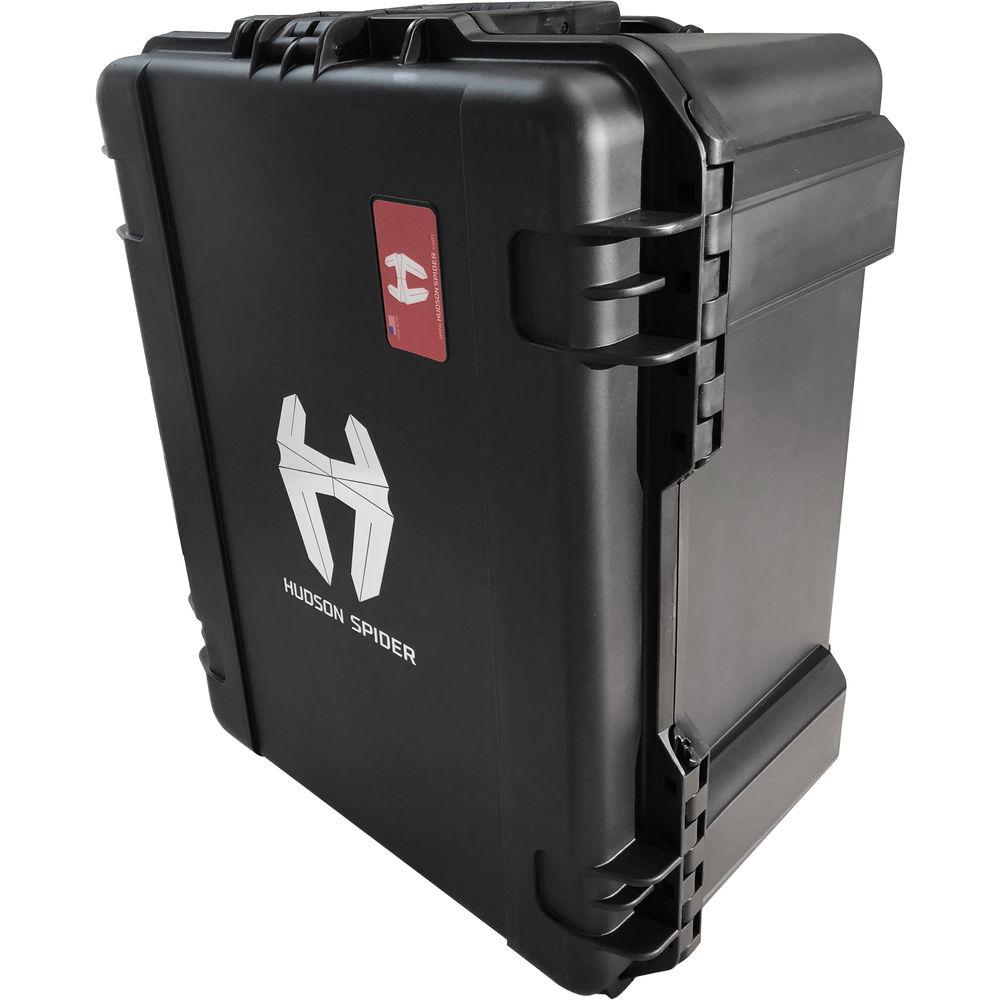

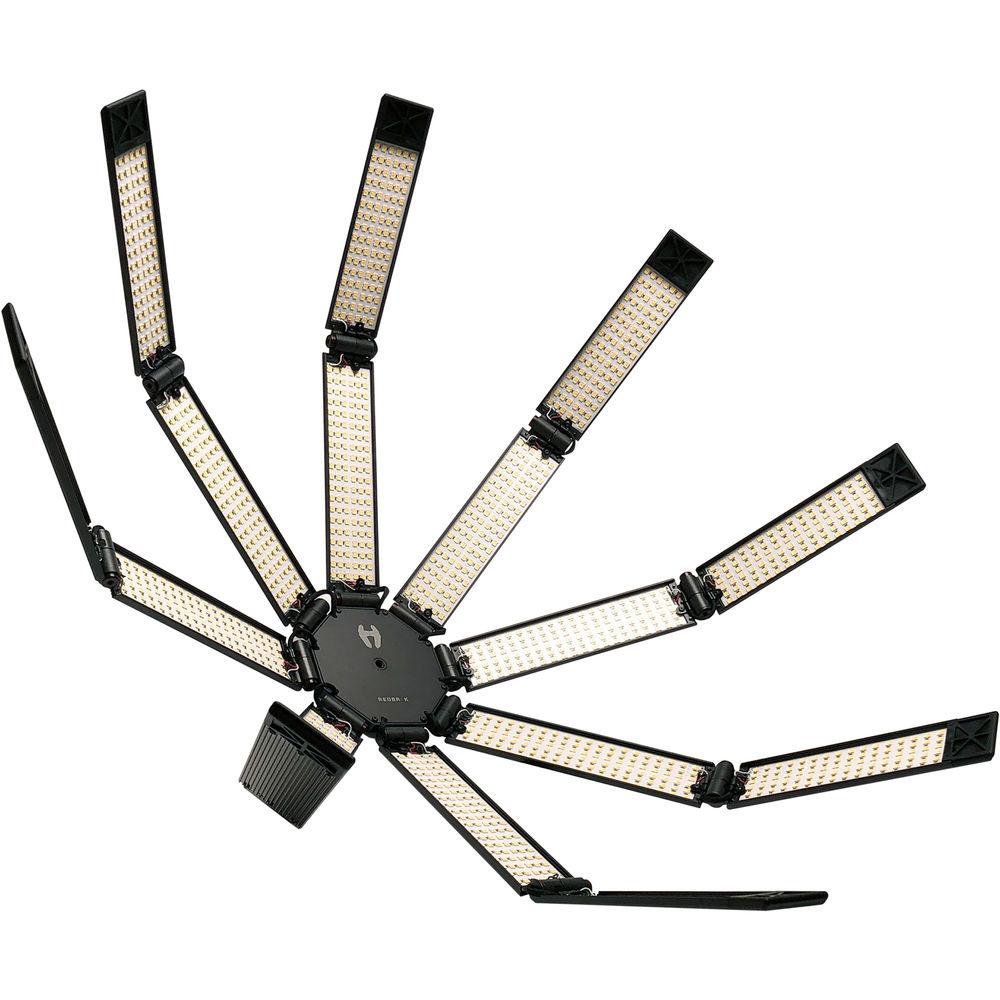

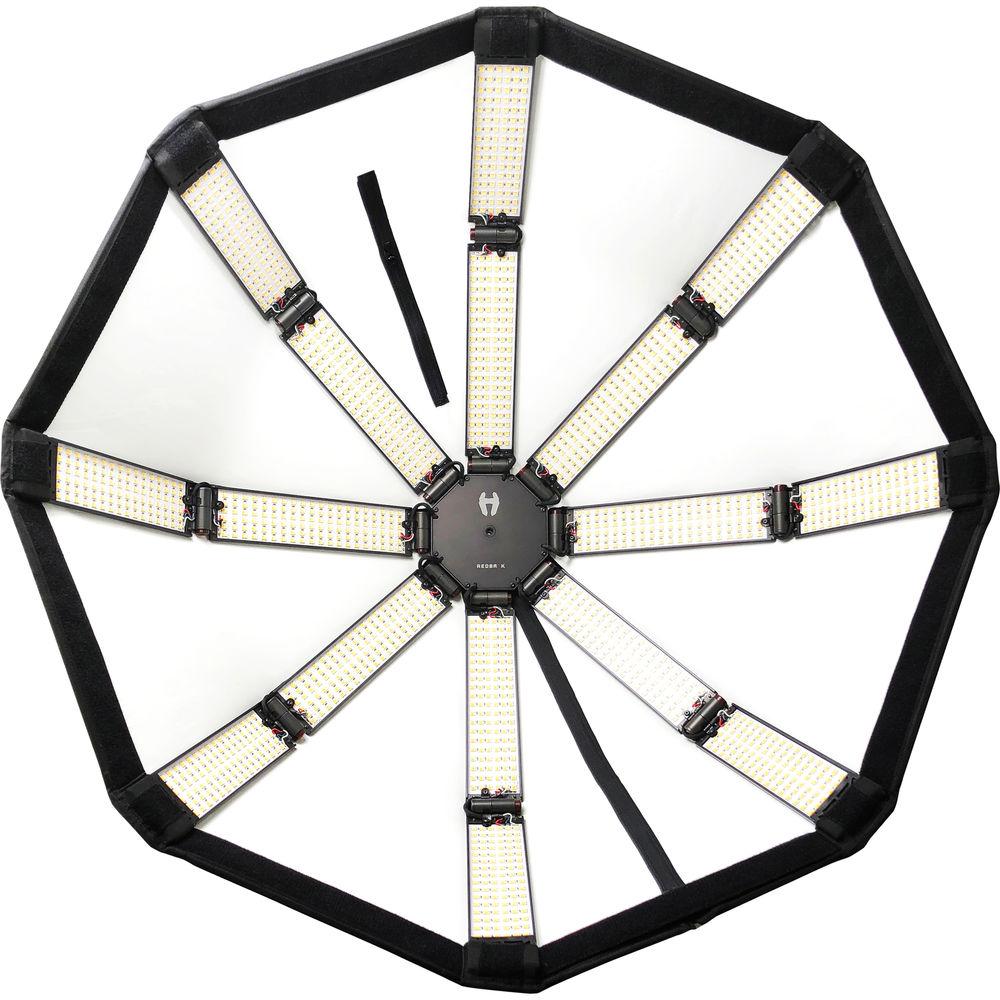

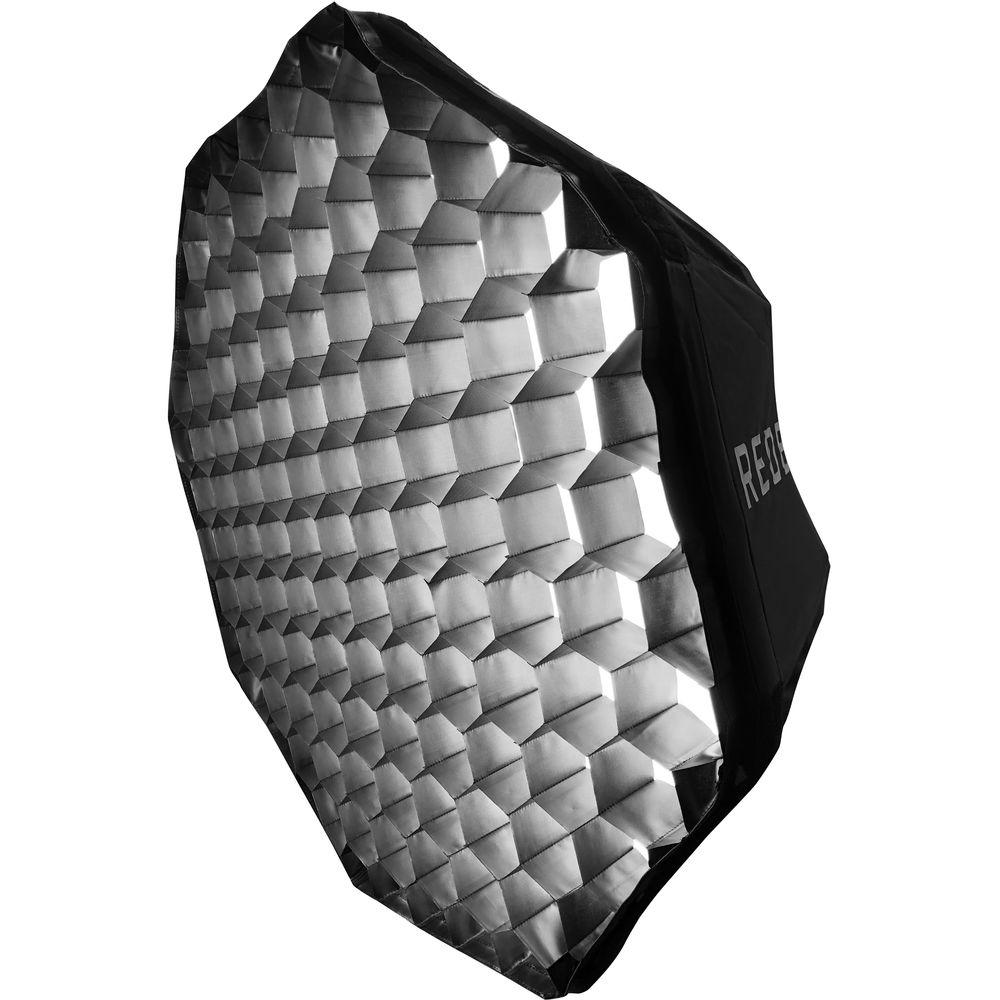

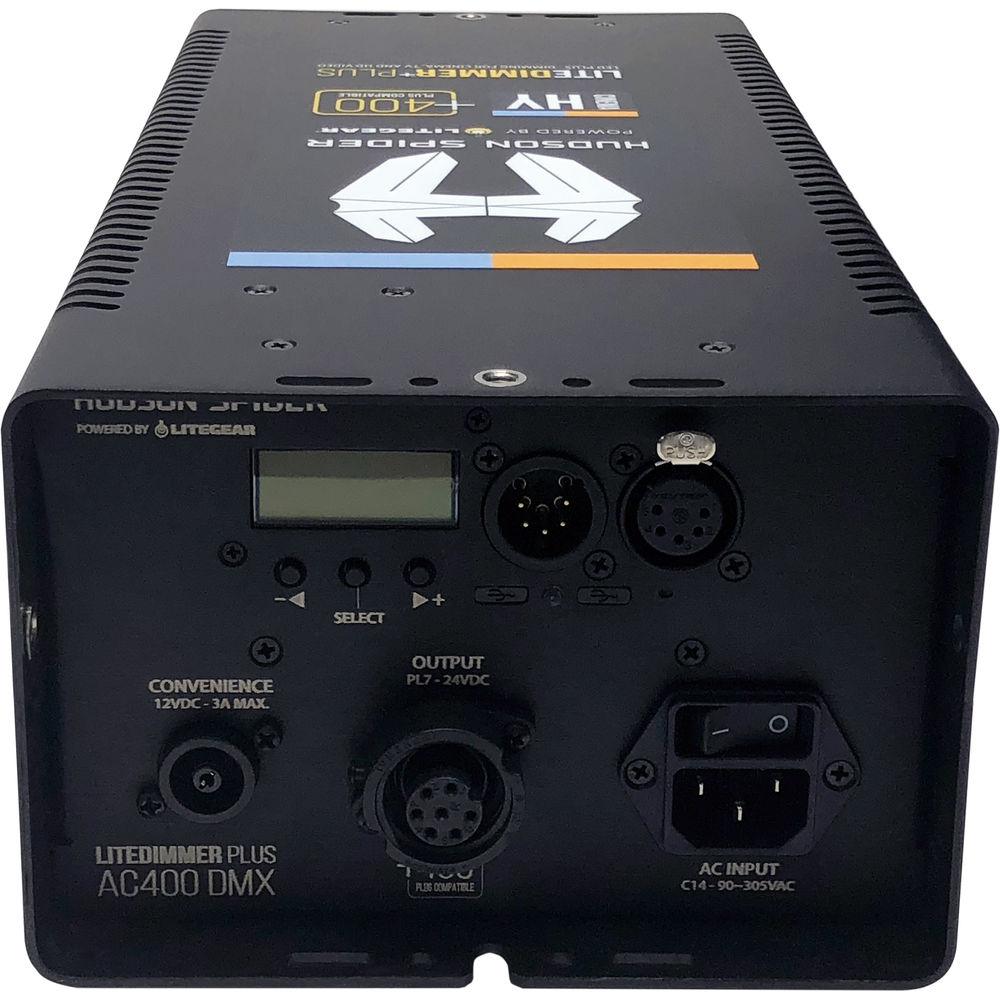

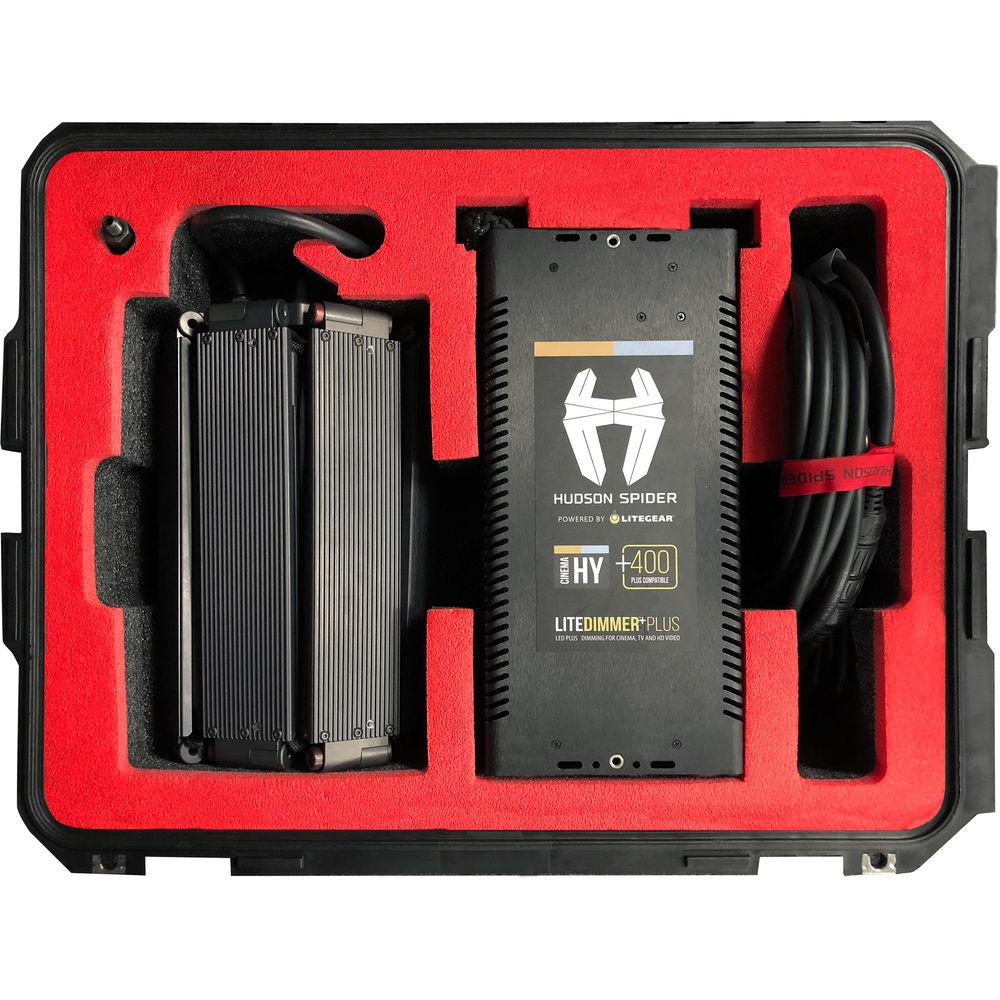

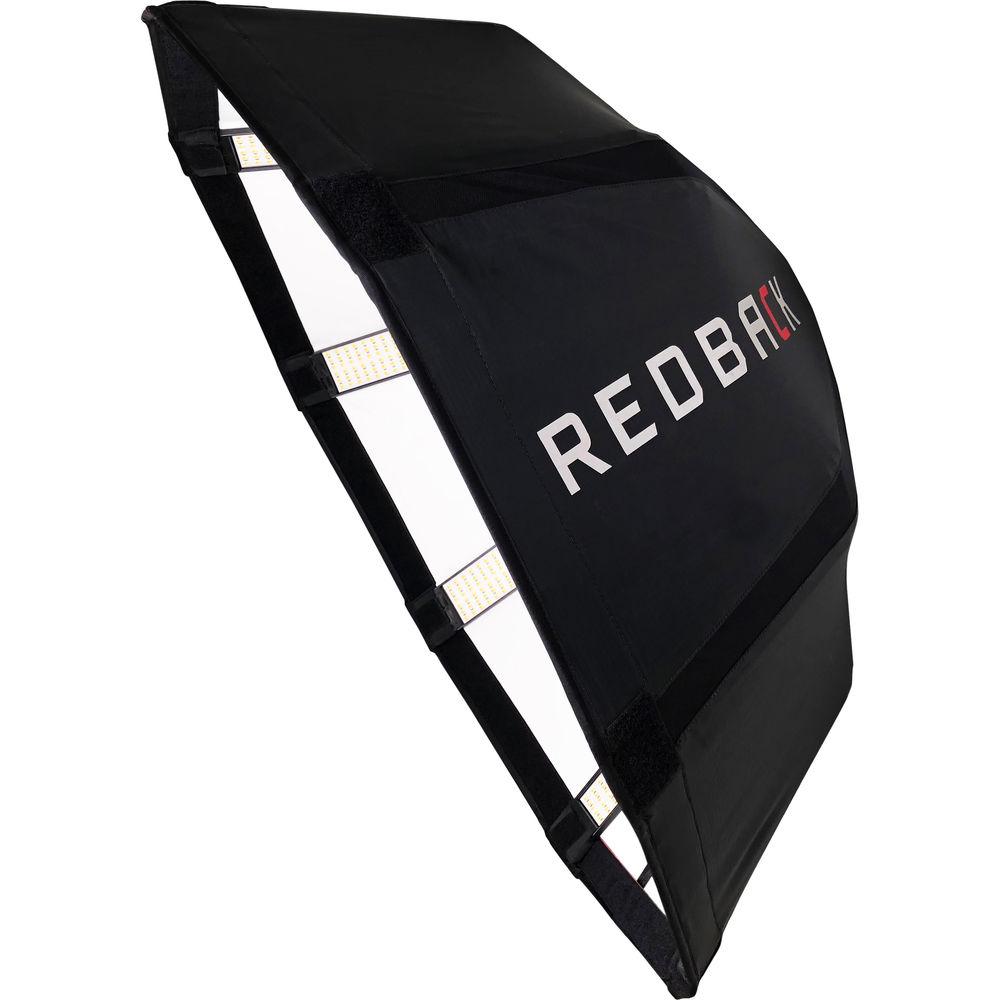

Product description Developed by cinematographers, gaffers and grips, the Redback 36" Octagon Parabolic LED Deluxe Kit from Hudson Spider includes a 36" diameter fixture with eight hinged aluminum and steel arms that can be formed into a parabolic shape with a total of 3456 closely-spaced LEDs that combine to create a soft continuous source. The included 90-305 VAC Litegear power supply/dimmer provides color temperature with a wide range of 2600 to 6500K and is dimmable from 0 to 100% locally or remotely via onboard DMX. For those requiring softness options, this kit also comes with a Redback Parabolic Reflector that includes a silver-interior Ultrabounce fitted cover, Magic Cloth diffuser, and full and 1/2 grid cloth diffusers. The provided 180-degree Teaser (basically a large barndoor) allows selective lighting, while the kit's 40-degree fabric grid imparts directional control. Also included are an IEC power cord, 24' header cable, and a 5/8" Baby pin with 3/8" threads. It all fits in the kit's water and shockproof rolling case. UPC: 850002175004 In the Box Hudson Spider Redback 36" Octagon Parabolic LED Deluxe Kit Redback 36" Octagon Parabolic LED Basic Kit 180-Degree Teaser 40-Degree Fabric Grid Limited 1-Year Warranty on Fixture Limited 90-Day Warranty on Fabrics Table of Contents
|
Upload User Manual
Have you got an user manual for the Hudson Spider Redback 36" Octagon Parabolic LED Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHudson Spider Redback Specs | | | Color Temperature | 2600 to 6500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum, Plastic, Steel | | Lumens | 12280 | | Number of LEDs | 3456 | | Circular Panel Size | 37" / 93.98 cm Diameter (Circle) | | Fixture Weight | 7.28 lb / 3.3 kg | | | | Battery Plate | None | | DMX Connector | 5-Pin XLR | | Service Connector | USB Type-A | | | | Lens Diameter | 36" / 91.44 cm | | | | Fixture Mount | 3/8"-16 Female Thread | | Accessory Mount | None | | | | AC Input Power | 90 to 305 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 400 W | | | | Cable Length | 24' / 7.32 m | | | | Power Supply Output | 24 VDC | | Power Supply Dimensions | 14.0 x 5.0 x 7.0" / 35.6 x 12.7 x 17.8 cm | | Power Supply Weight | 11.68 lb / 5.3 kg | | | | Package Weight | 48.465 lb | | Box Dimensions (LxWxH) | 25.2 x 19.7 x 12.8" |
