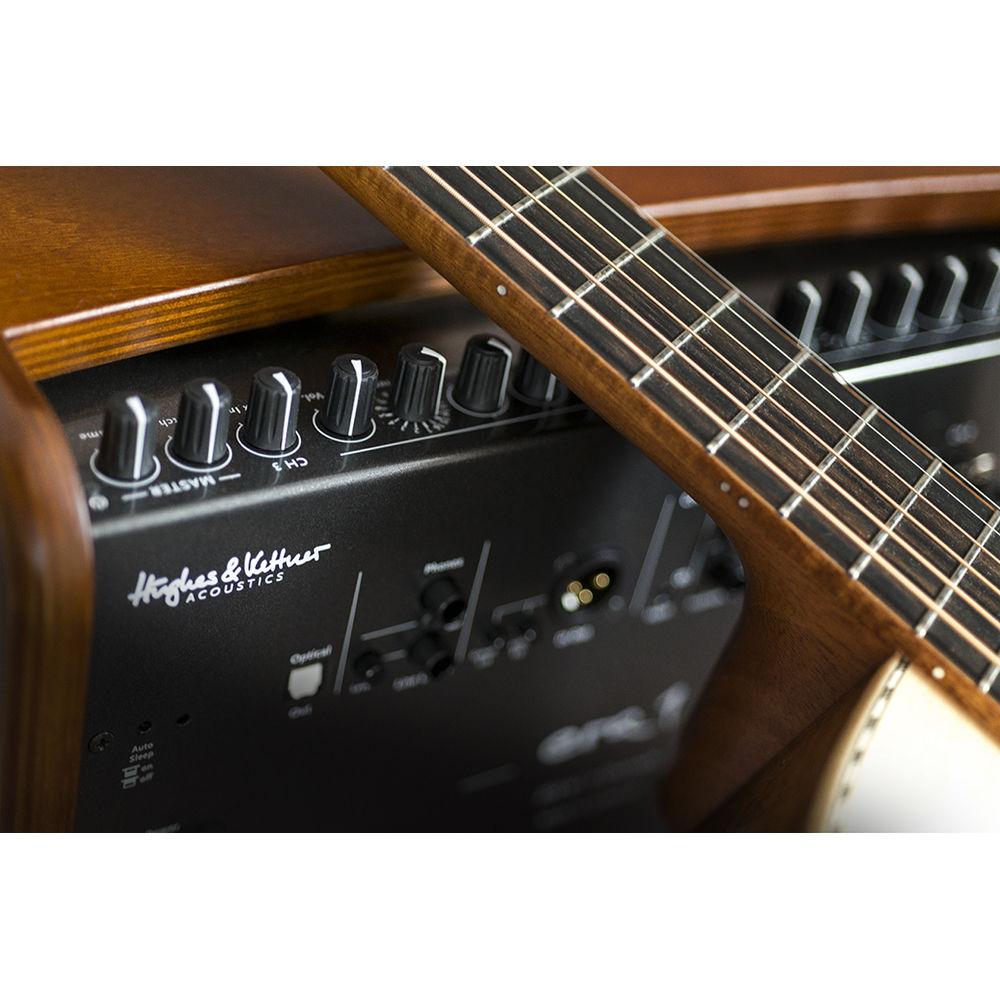

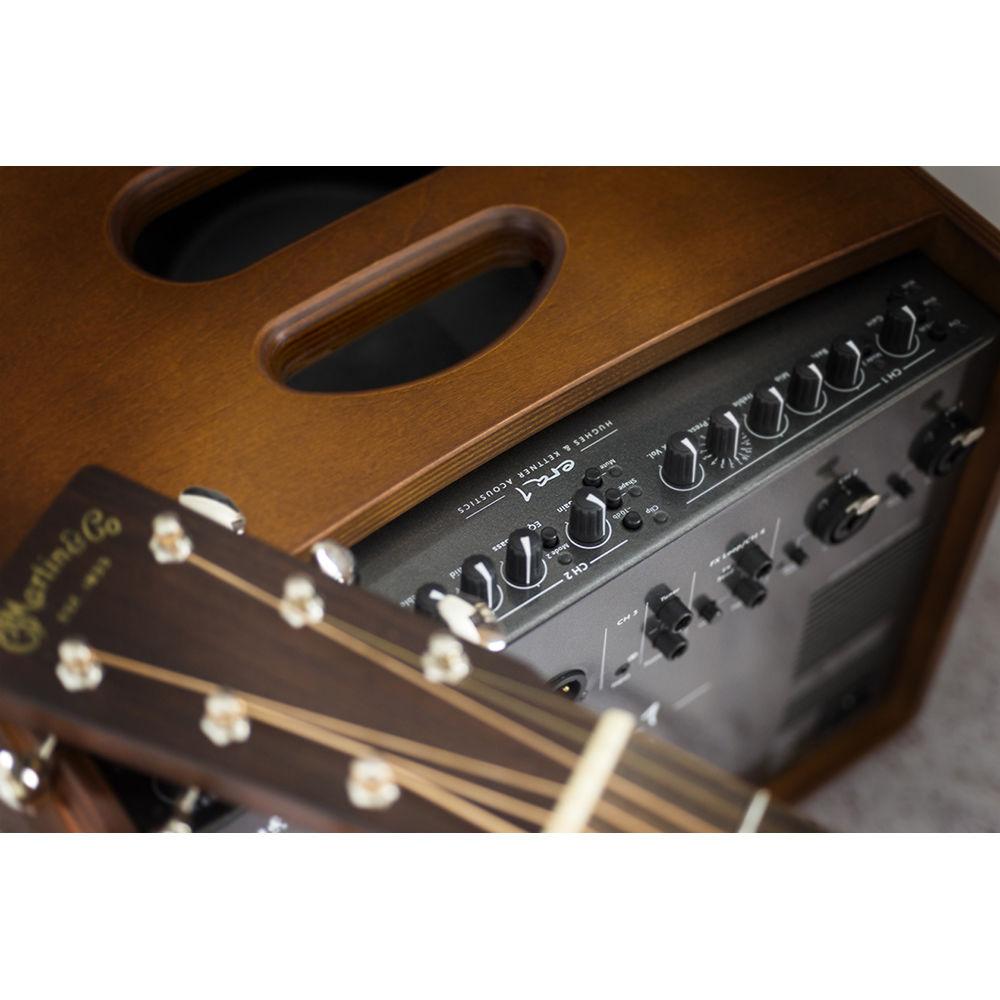

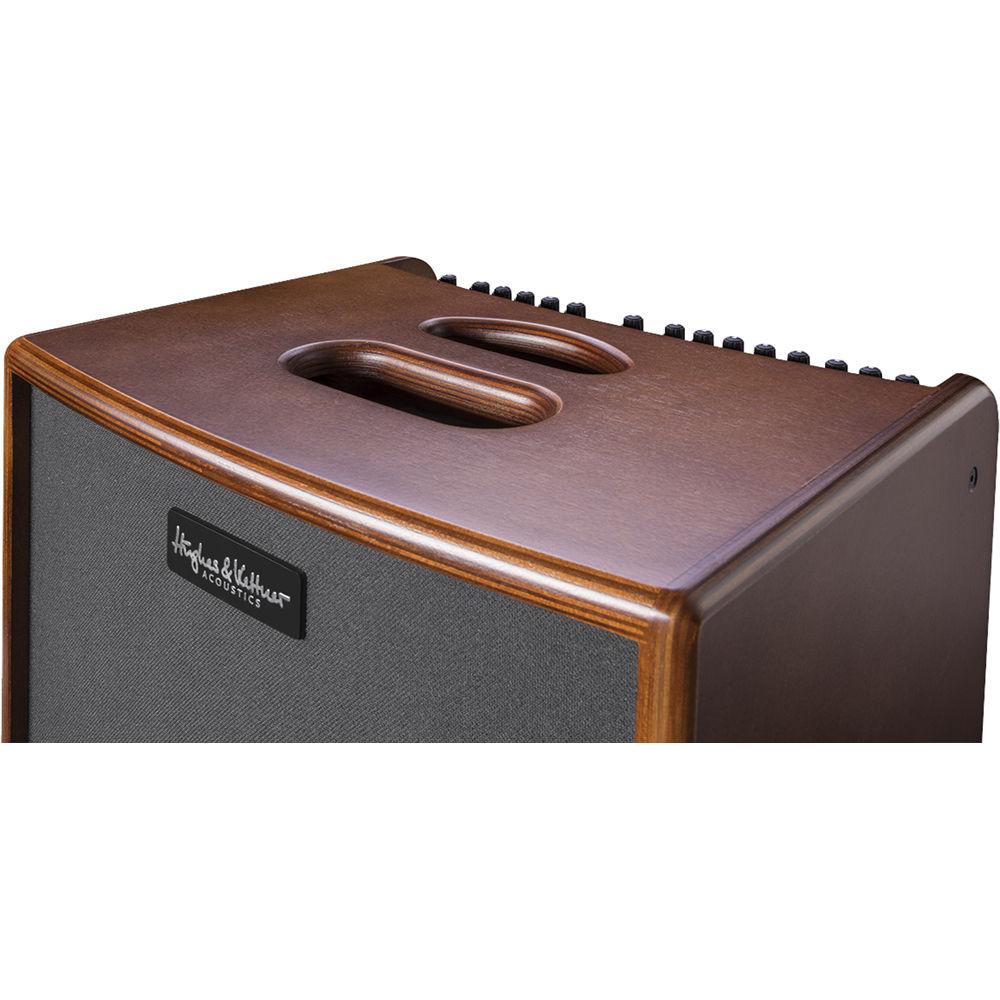

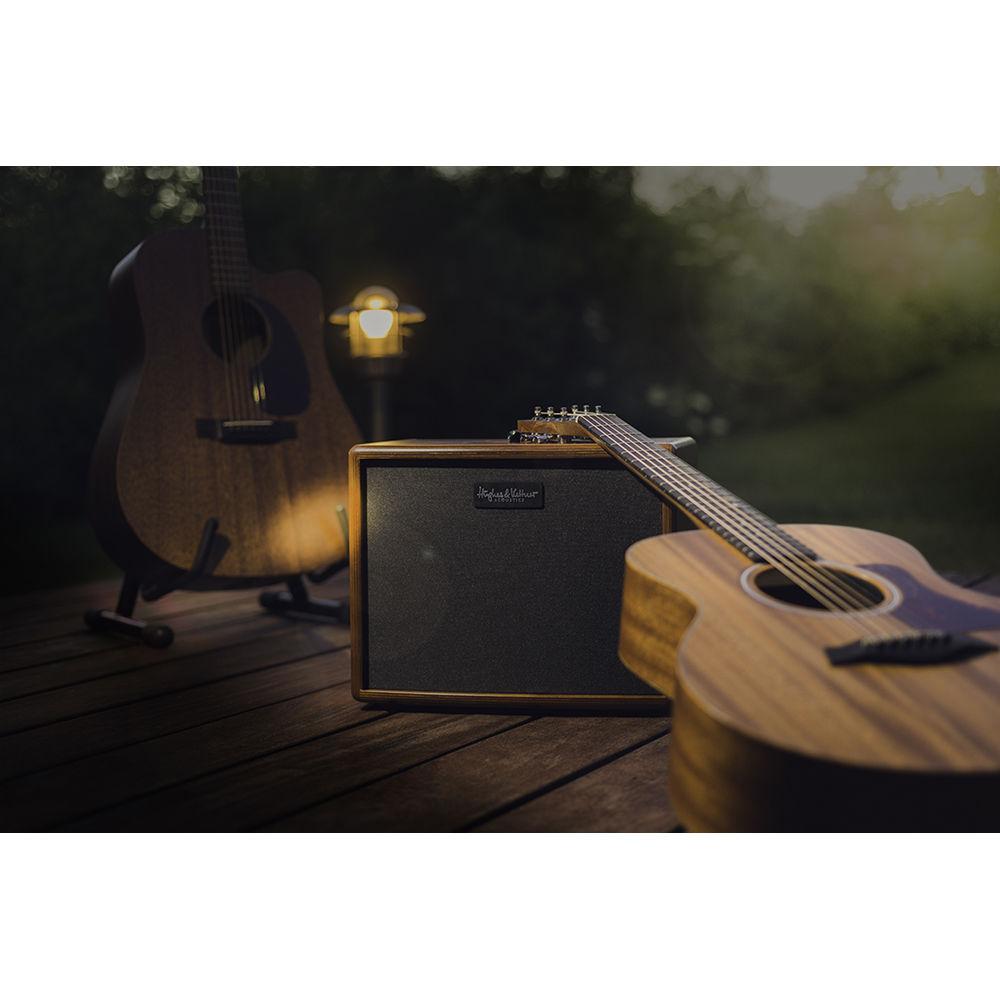

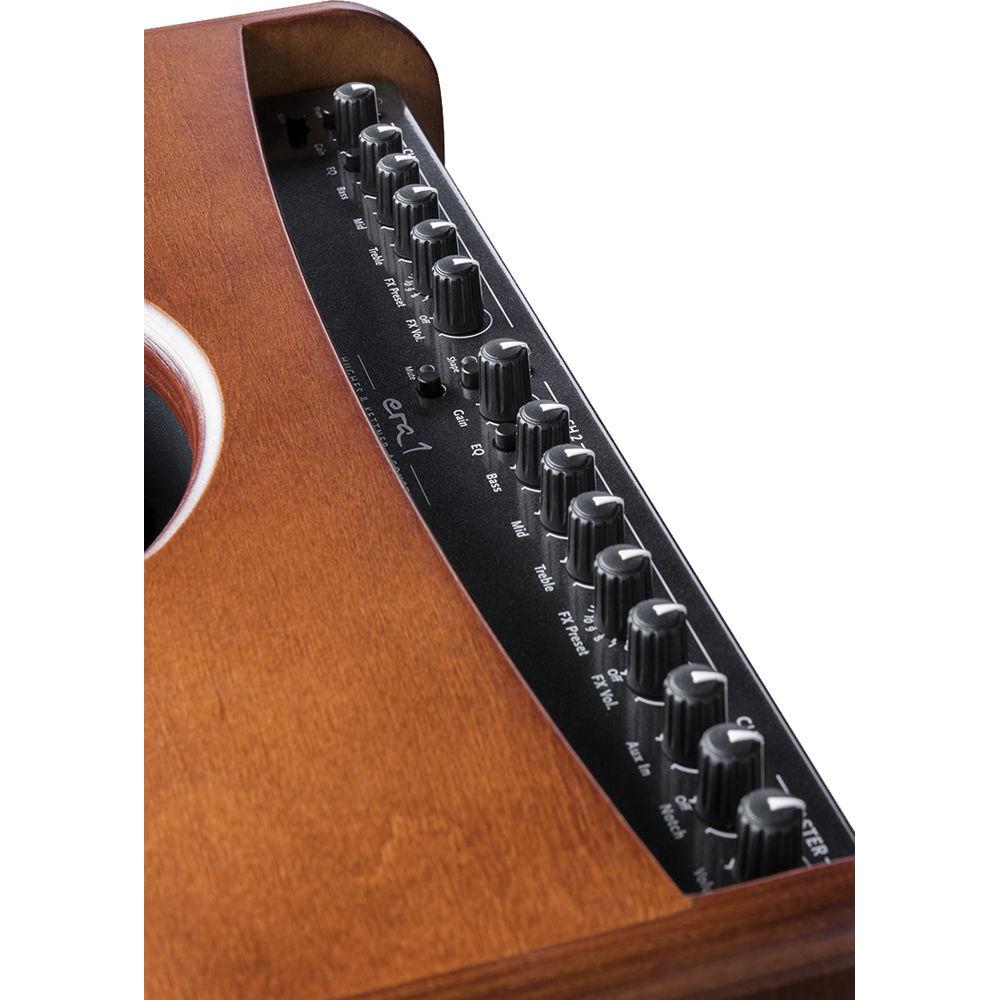

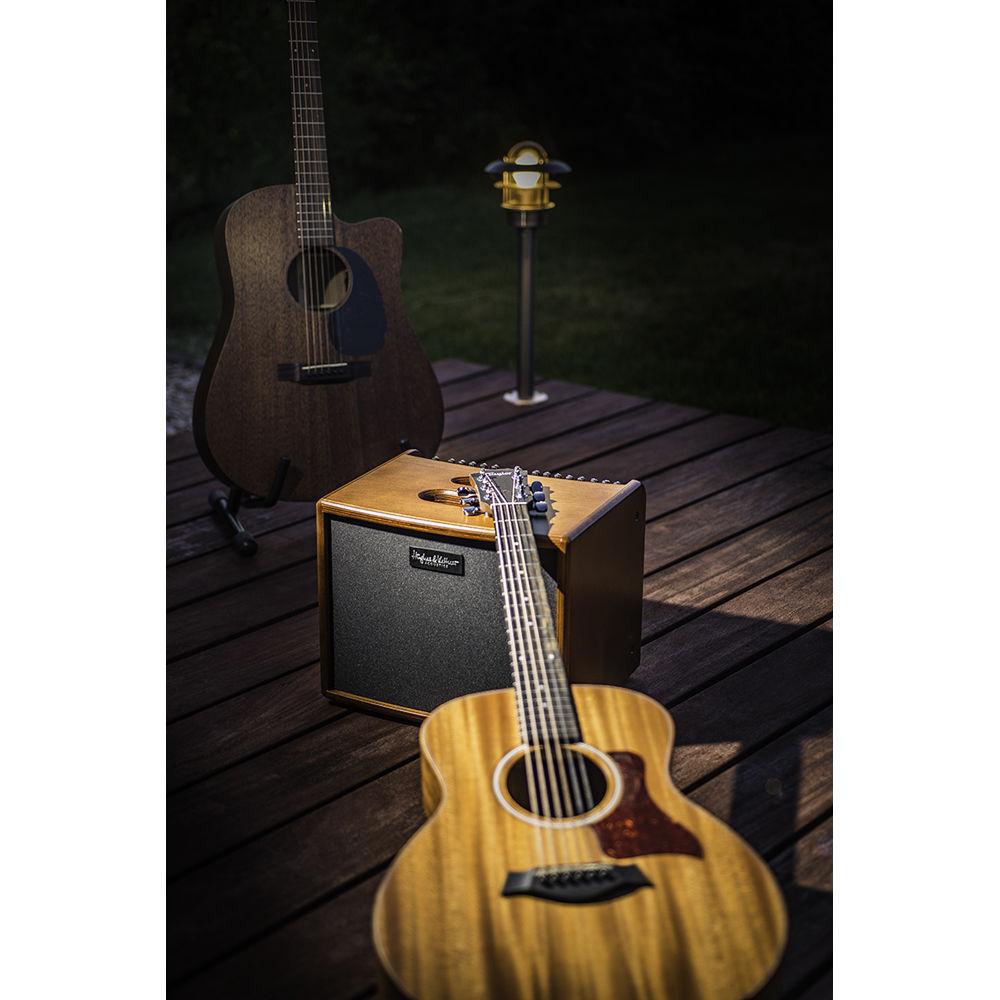

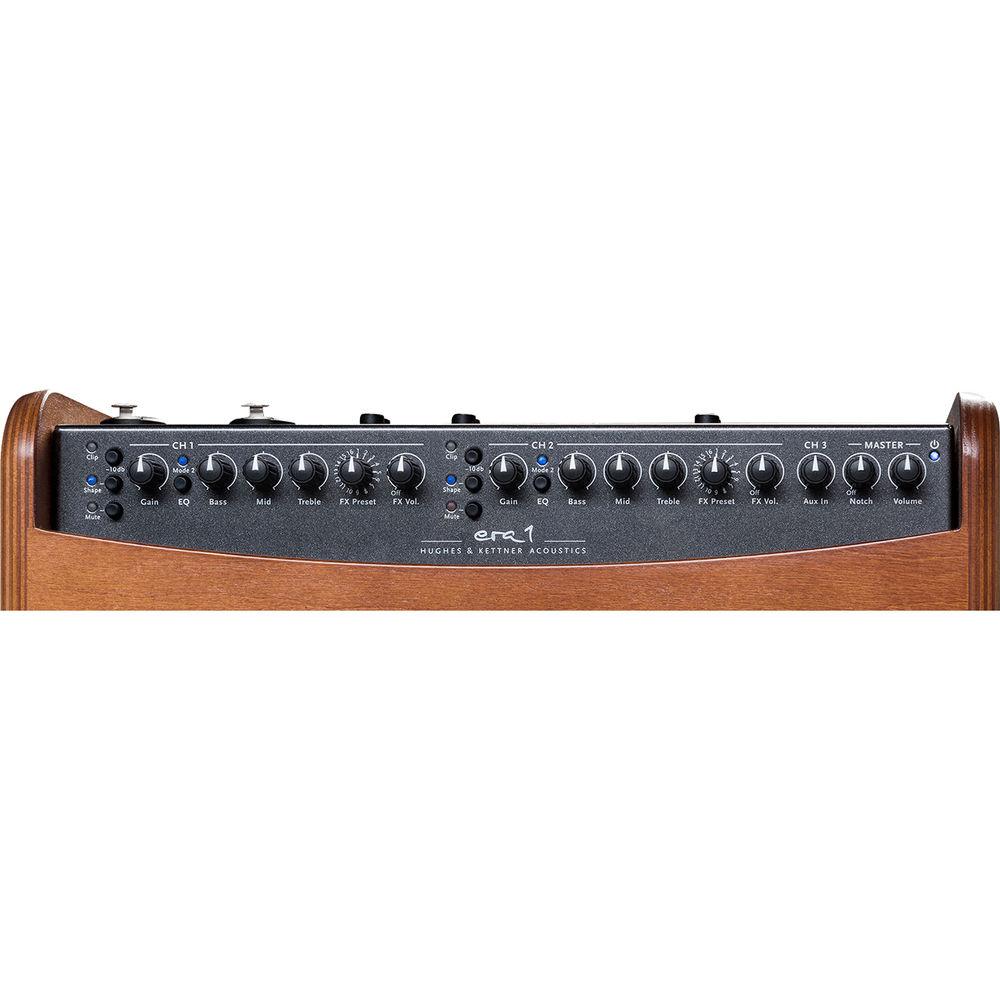

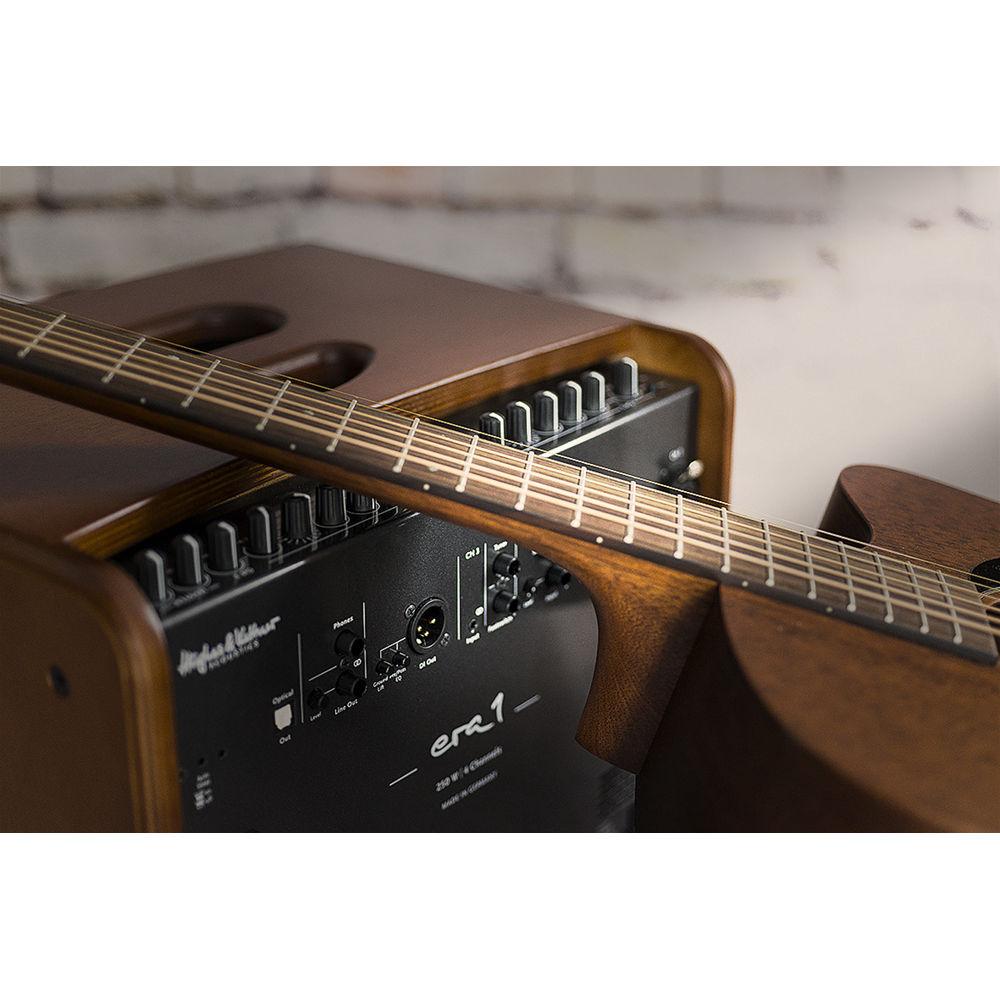

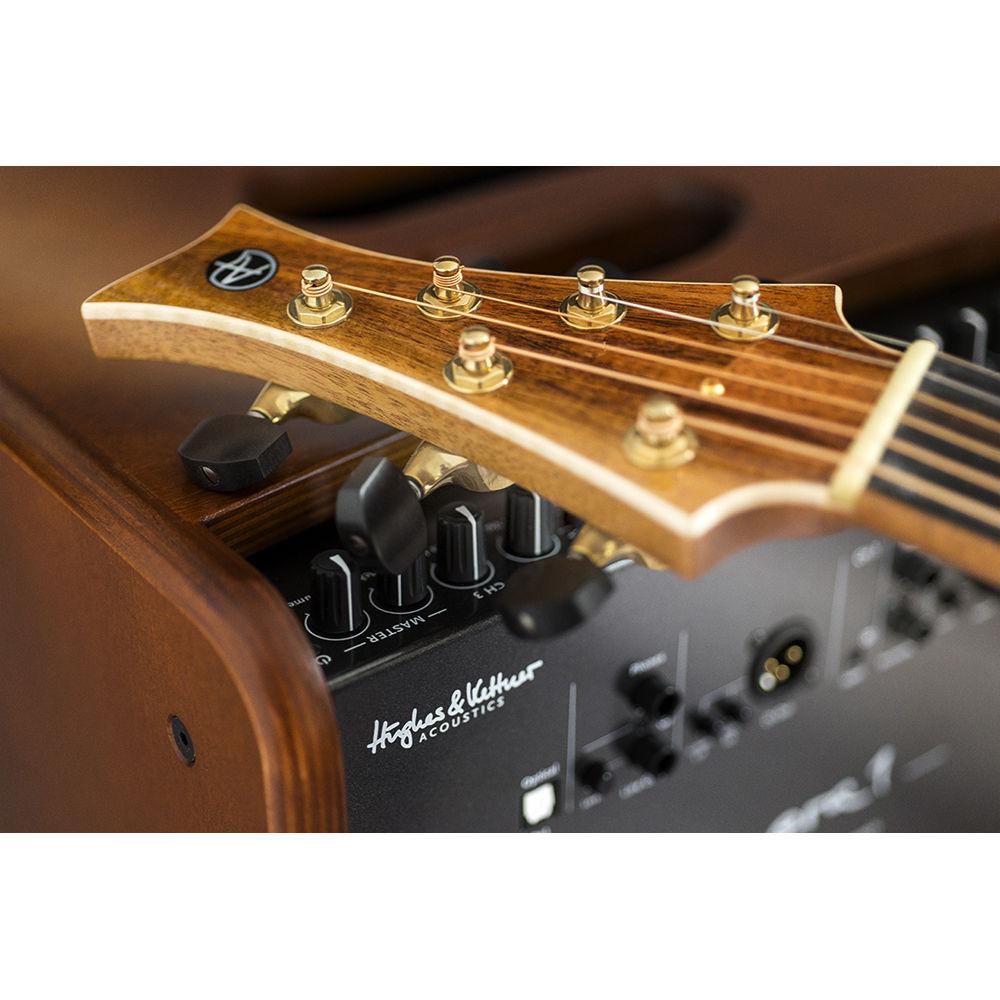

User Manual for Hughes & Kettner ERA 1 Acoustic Instrument and Vocal 250W Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Hughes & Kettner ERA 1 Acoustic
- Product category: Guitar Amplifiers Hughes & Kettner
- Brand: Hughes & Kettner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hughes & Kettner Guitar Amplifiers
 |
User manual for the Hughes & Kettner ERA 1 Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hughes & Kettner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hughes & Kettner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hughes & Kettner product will considerably shorten its lifespan!
|
Product description The wood ERA 1 Acoustics Guitar Amplifier from Hughes & Kettner is a two-channel combo amp with 250W of power and two XLR/1/4" combo mic/instrument inputs, and is equipped with an effects engine with 16 programs (reverbs, delays, choruses, and flanger). Built with one 8" mid/low speaker, and a single 1" tweeter, the amplifier can be used to reproduce audio for electric/acoustic instruments and vocals in sound reinforcement applications.Designed by Michael Eisenmann in a joint effort with the Hughes & Kettner team, the ERA 1 gives you rich detail and offers a tonal brilliance to make every performance sound natural. A 3-band EQ and a 40 to 80 Hz notch filter allows you to tailor your sound. Other features include: optical recording out, headphones out, tuner out, stereo 3.5mm aux input, and 1/4" stereo input effects return. In addition, a tilt stand and a protective cover are also included. - Painstakingly selected, top-drawer components
- Premium-quality AD/DA converters
- Custom-made power amp offering massive headroom
- Two fully featured, identical channels
- Independent effects engine for each channel with 16 programs
- Preshape and mode buttons to voice channels to suit different instruments and vocal registers
- Compact and light as conventional combos
- Choice materials, handpicked for durability and ruggedness
- Developed by acoustic amp designer Michael Eisenmann in a joint effort with Hughes & Kettner
In the Box Hughes & Kettner ERA 1 Acoustic Instrument and Vocal 250W Combo Amplifier (Wood) Protective Cover Tilt Stand Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hughes & Kettner ERA 1 Acoustic Instrument and Vocal 250W Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHughes & Kettner ERA1WD Specs | | | Amplifier Type | Solid-State | | Output Power | 250 W RMS | | Channels | 2 | | Effects Loop | Yes, Parallel | | Built-In Effects | Chorus, Delay, Flanger, Spring Reverb | | Presets & Storage | Factory Presets: 16 | | Master Volume | Yes | | Inputs | 2 x XLR / 1/4" Mono Mic / Line Level
1 x 1/8" Stereo Aux
1 x 1/4" Series Effects Return
1 x 1/4" Mono Footswitch | | Outputs | 1 x XLR Mono DI
1 x 1/4" Stereo Line Level
1 x 1/4" Stereo Effects Send
1 x 1/4" Stereo Headphone
1 x 1/4" Mono Tuner
1 x RCA Stereo Digital Output | | EQ | 3-Band Baxandall | | | | Configuration | 1 x 8" Speaker(s)
1 x 1" Speaker(s) | | | | Dimensions (WxHxD) | 13.8 x 11.2 x 11.4" / 350.0 x 285.0 x 290.0 mm Combo | | Weight | 21.7 lb / 9.84 kg Combo
23.7 lb / 10.75 kg Combo Wood 21.7 lb, Black 23.7 lb |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
