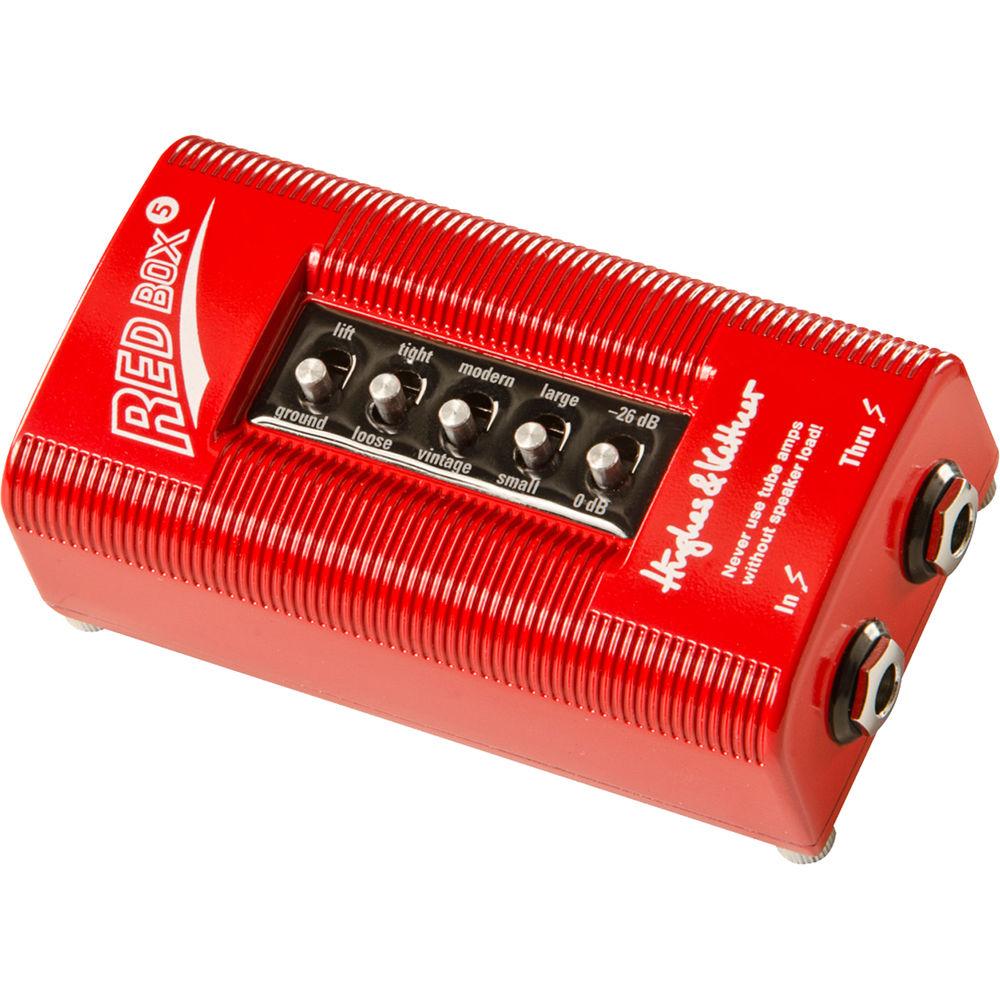

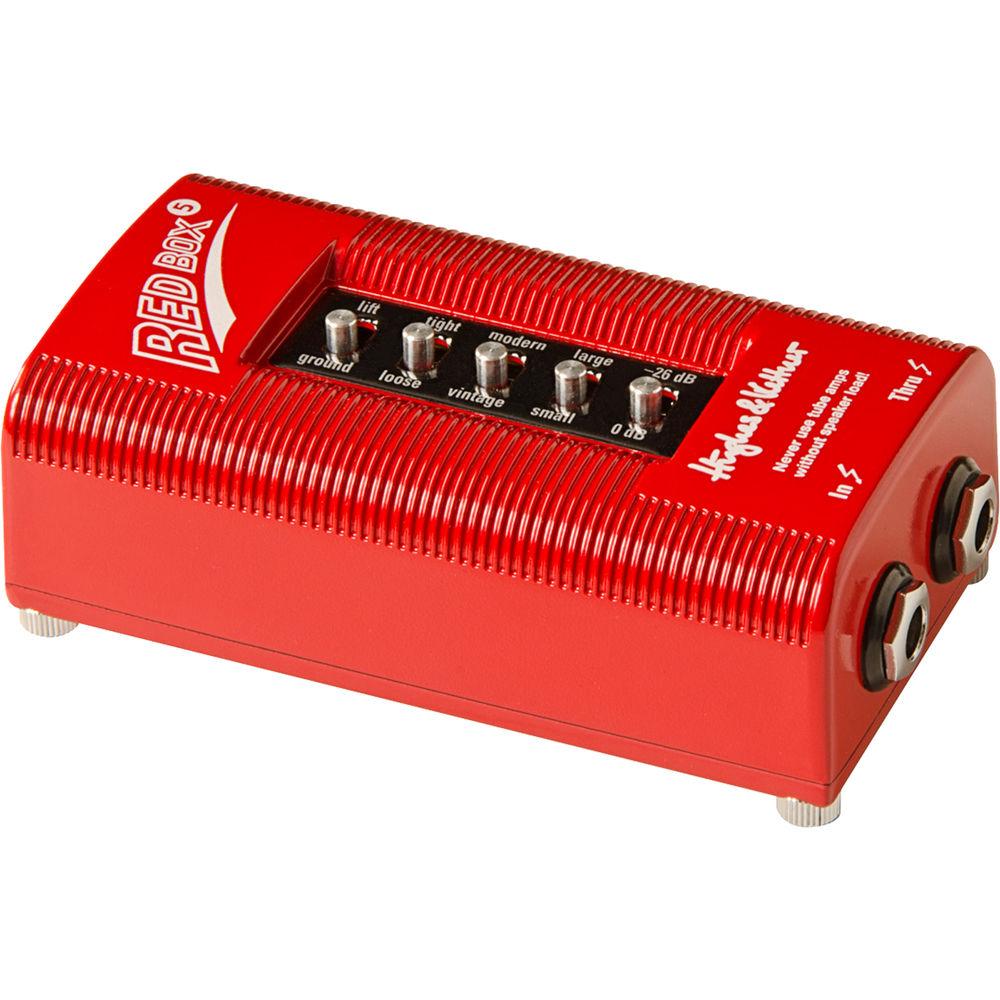

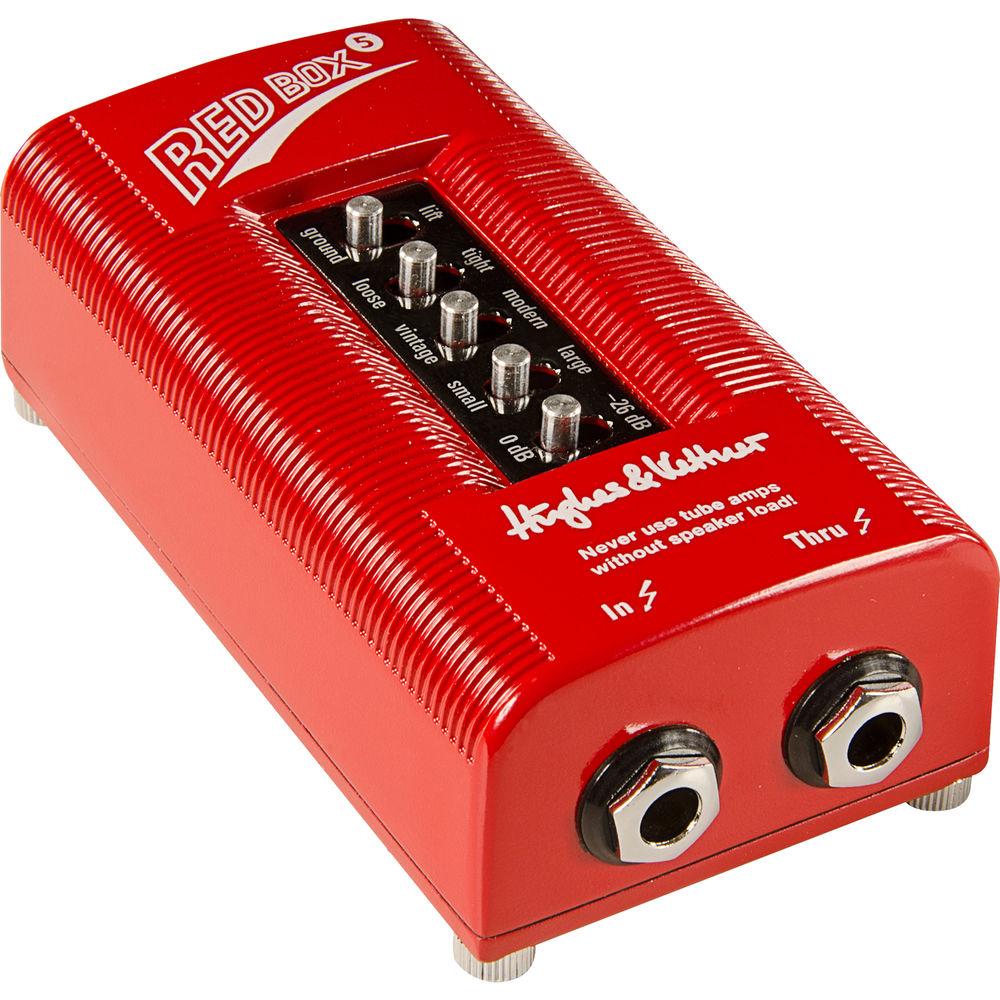

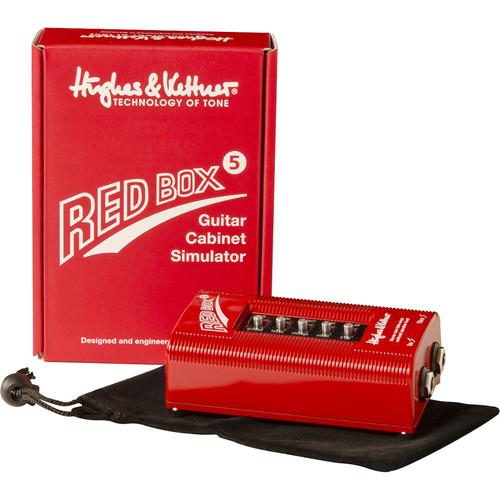

Product description Designed for electric guitarists, the Hughes & Kettner Red Box 5 is a compact enclosure in a DI form factor that mimics the tone of speaker cabinets. Thanks to its -26-dB pad switch, it can be used with both line-level signals and speaker signals, making it suitable for implementation with tube amplifiers, solid-state amplifiers, and combo amps of all sorts. Other switches afford you the ability to filter the sound of the cab. The Loose/Tight selector allows you to switch between a more chunky, hefty sound and a timbre that's more diffuse and airy. Likewise, you can choose between aggressive or warmer tonalities with the Vintage/Modern switch. The Small/Large switch selects between emulations of small and large cabinets, while the remaining selector is a more utilitarian ground/lift switch for mitigating the noise associated with ground loops. The Red Box 5 has three connection points. Two 1/4" jacks are on hand—one input and one thru; this allows you to place the box in-line between your amp and your cabinet, which is one way to route signal through the box. You can also feed the Red Box 5 with signal from your amp's FX send jack, should the amp have one. A single XLR jack is provided for sending signal to mixers, recording interfaces, or the house PA. You can power the Red Box with a 9V battery, through 48V phantom power over the output, or by means of a power supply, which is available separately. Note: Tube-amp users, please take note: The RED BOX 5 taps the signal between the power amp and speaker; it does not replace the speaker or provide a dummy load. It is not a load box. In the Box Hughes & Kettner Red Box 5 Guitar Cabinet Simulator Limited 3-Year Warranty (Upon Registration within 30 Days of Purchase) Table of Contents
|
Upload User Manual
Have you got an user manual for the Hughes & Kettner Red Box 5 Guitar Cabinet Simulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHughes & Kettner REDBOX5 Specs | Controls | 5 x switches | | I/O | 1 x 1/4" input, phone type
1 x 1/4" thru-put, phone type
1 x XLR output, balanced | | Impedance | Input, 0 dB Position: 10 kOhms
Input, -26 dB Position: 4.5 kOhms
Output, 0 dB Position: 880 Ohms
Output, -26 dB Position: 440 Ohms | | Maximum Input Gain | 0 dB Position: 18 dBV (48 V phantom power)
-26 dB Position: 44 dBV (48 V phantom power) | | Maximum Level (Output) | Balanced
0 dB Position, at 10 dBV: -12 dBV / 500 Hz
-26 dB Position, at 36 dBV (500 W / 8 Ohms): -12 dBV / 500 Hz
Unbalanced
0 dB Position, at 10 dBV: -18 dBV / 500 Hz
-26 dB Position, at 36 dBV (500 W / 8 Ohms): -18 dBV / 500 Hz | | External Power Supply | 9 to 15 VAC or 9 to 24 VDC, minimum 10 mA, available separately | | Phantom Power | 48 VDC via balanced output | | Battery | 9 V | | Power Consumption | 2 mA at 9 V | | Temperature Range | 32 to 95°F / 0 to 35°C | | Dimensions | 4.4 x 1.5 x 2.4" / 113.0 x 38.0 x 60.0 mm | | Weight | 0.4 lb / 0.2 kg |
