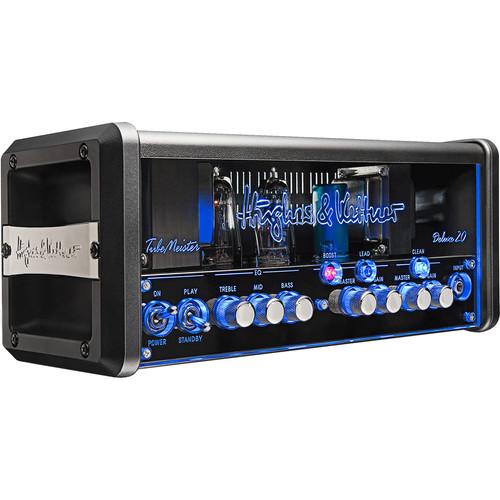

User Manual for Hughes & Kettner TubeMeister Deluxe 20 - 20W Tube Amplifier Head for Electric Guitar Click to enlarge the picture
Contents of the user manual for the Hughes & Kettner TubeMeister Deluxe 20
- Product category: Guitar Amplifiers Hughes & Kettner
- Brand: Hughes & Kettner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hughes & Kettner Guitar Amplifiers
 |
User manual for the Hughes & Kettner TubeMeister Deluxe 20 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hughes & Kettner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hughes & Kettner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hughes & Kettner product will considerably shorten its lifespan!
|

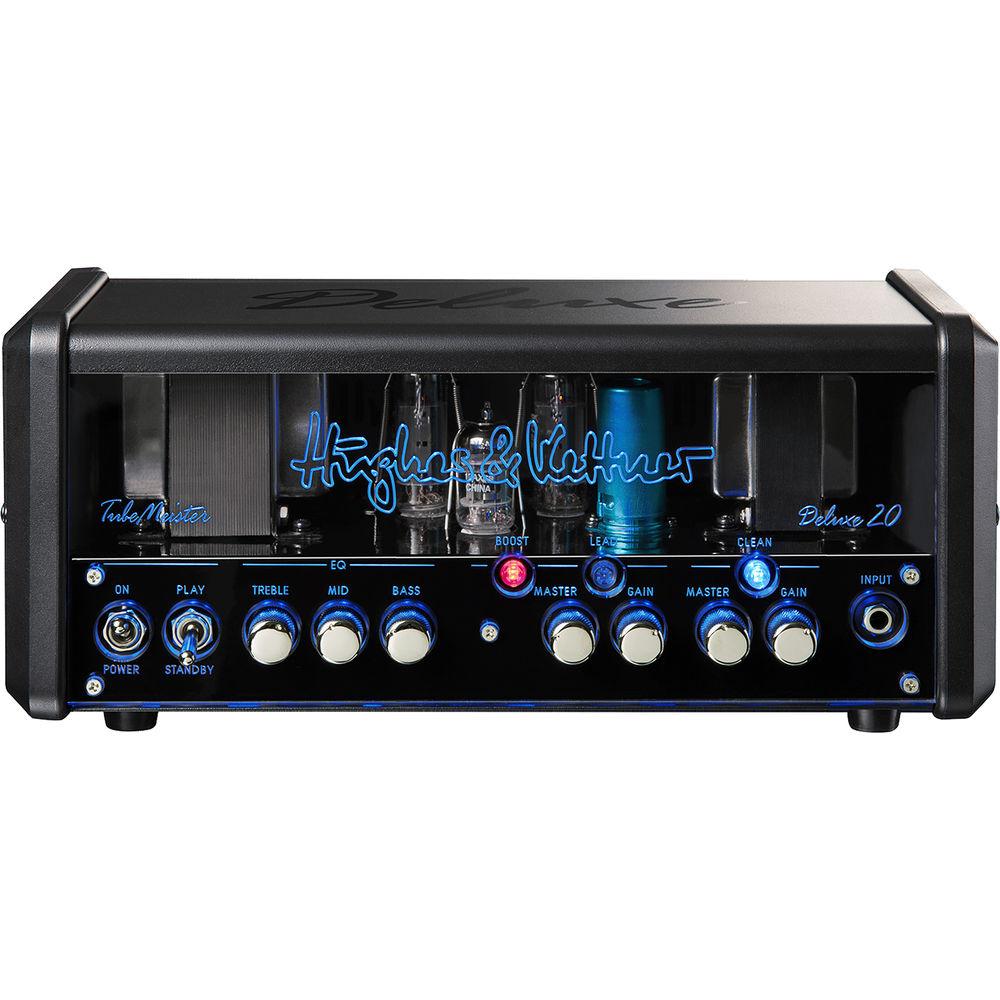

Product description The Hughes & Kettner TubeMeister Deluxe 20 is a 20W tube amplifier head designed to provide versatile tones and selectable power output for guitarists in rehearsals, recording sessions, and live performances. It features two 12AX7 preamp tubes and two EL84 power tubes capable of driving an 8 to 16 Ohms speaker cabinet via a 1/4" speaker output. Front-panel switches allow easy toggling of clean or lead channel selection and boost for the lead channel.Power output is selectable thanks to a power soak switch with four positions—20W, 5W, 1W, and speaker off. Use the treble, mid, and bass equalization controls to sculpt your sound and integrate stompboxes via the 1/4" serial effects loop. An XLR 3-pin output delivers a balanced DI output for direct connection to a mixing console or audio interface. Red Box AE (ambience emulation) brings configurable cabinet emulation with choices including vintage, modern, small, large, line, and mic.Integrated TSC (Tube Safety Control) keeps the tubes biased properly and shows tube status via two rear-panel LEDs. For increased protection during transport and storage, the TubeMeister Deluxe 20 is supplied with a protective carry bag. - Two 12AX7 preamp tubes and two EL84 power tubes
- Clean channel and lead channel with selectable boost
- Power soak switch with four positions—20W, 5W, 1W, and speaker off
- Master and gain controls per channel
- Treble, mid, and bass controls

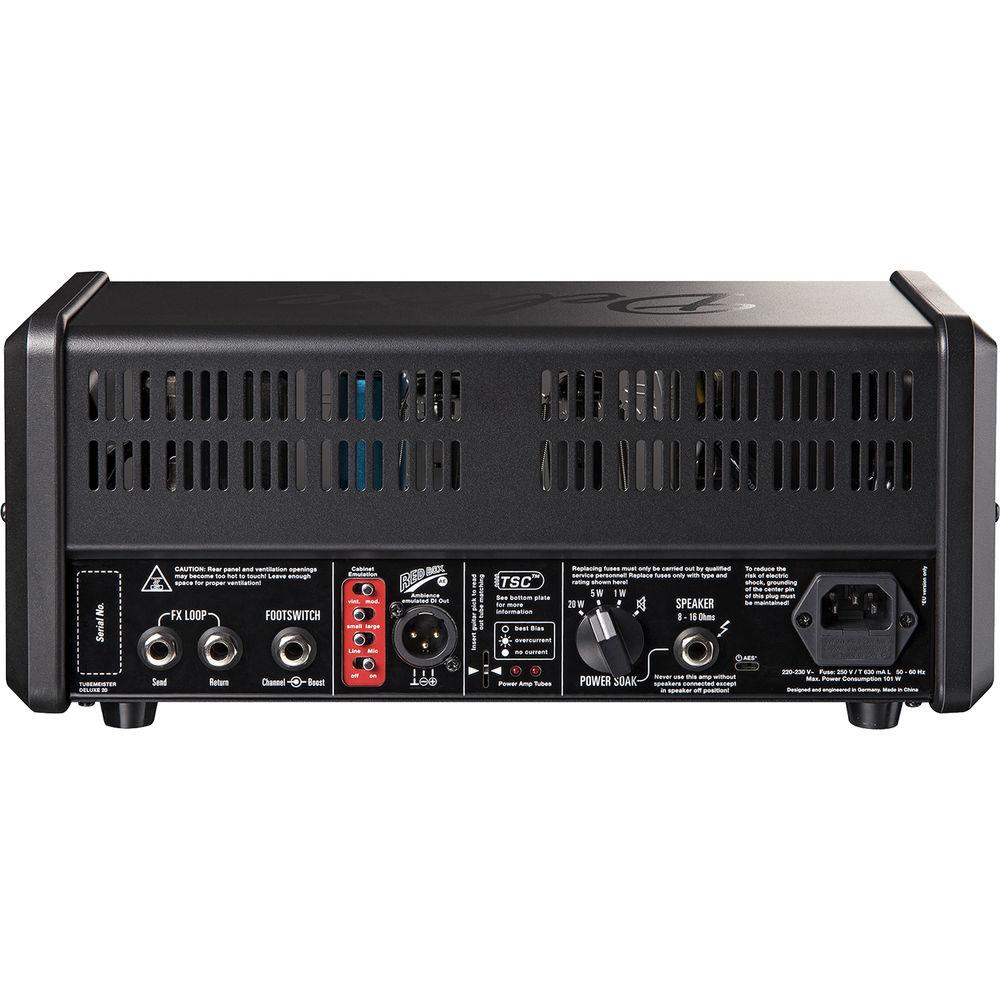

- Integrated TSC (Tube Safety Control) automatically adjusts tube bias and indicates tube status via two LEDs
- Rear-panel XLR DI output with Red Box AE customizable cabinet emulation
- 8-16 Ohms 1/4" speaker output
- Supports footswitch control of channel and boost switching (FS-2 footswitch available separately)
In the Box Hughes & Kettner TubeMeister Deluxe 20 - 20W Tube Amplifier Head for Electric Guitar Protective Carry Bag Limited 3-Year Warranty upon Online Registration within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Hughes & Kettner TubeMeister Deluxe 20 - 20W Tube Amplifier Head for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHughes & Kettner TubeMeister Deluxe 20 Specs | | | Amplifier Type | Tube | | Output Power | 20 W | | Channels | 2 | | Tube Types | 2 x Preamp 12AX7/ECC83
2 x Power EL84/6BQ5 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series | | Built-In Effects | None | | Presets & Storage | None | | Master Volume | No | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/4" Series Effects Return
1 x 1/4" Hi Footswitch | | Outputs | 1 x 1/4" Mono Speaker
1 x 1/4" Series Effects Send
1 x XLR Mono DI | | Tone Section | Bass, Mid, Treble
Channel 1: Channel Volume, Gain
Channel 2: Channel Volume, Gain | | EQ | None | | | | Dimensions (WxHxD) | 14.0 x 6.1 x 5.9" / 355.0 x 155.0 x 150.0 mm Amplifier | | Weight | 11.02 lb / 5 kg Amplifier |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
