User Manual for Huion KAMVAS Pro 20 Pen Display Click to enlarge the picture
Contents of the user manual for the Huion KAMVAS Pro 20 Pen Display
- Product category: Graphic Tablets & Digital Pens Huion
- Brand: Huion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Huion Graphic Tablets & Digital Pens
 |
User manual for the Huion KAMVAS Pro 20 Pen Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Huion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Huion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Huion product will considerably shorten its lifespan!
|

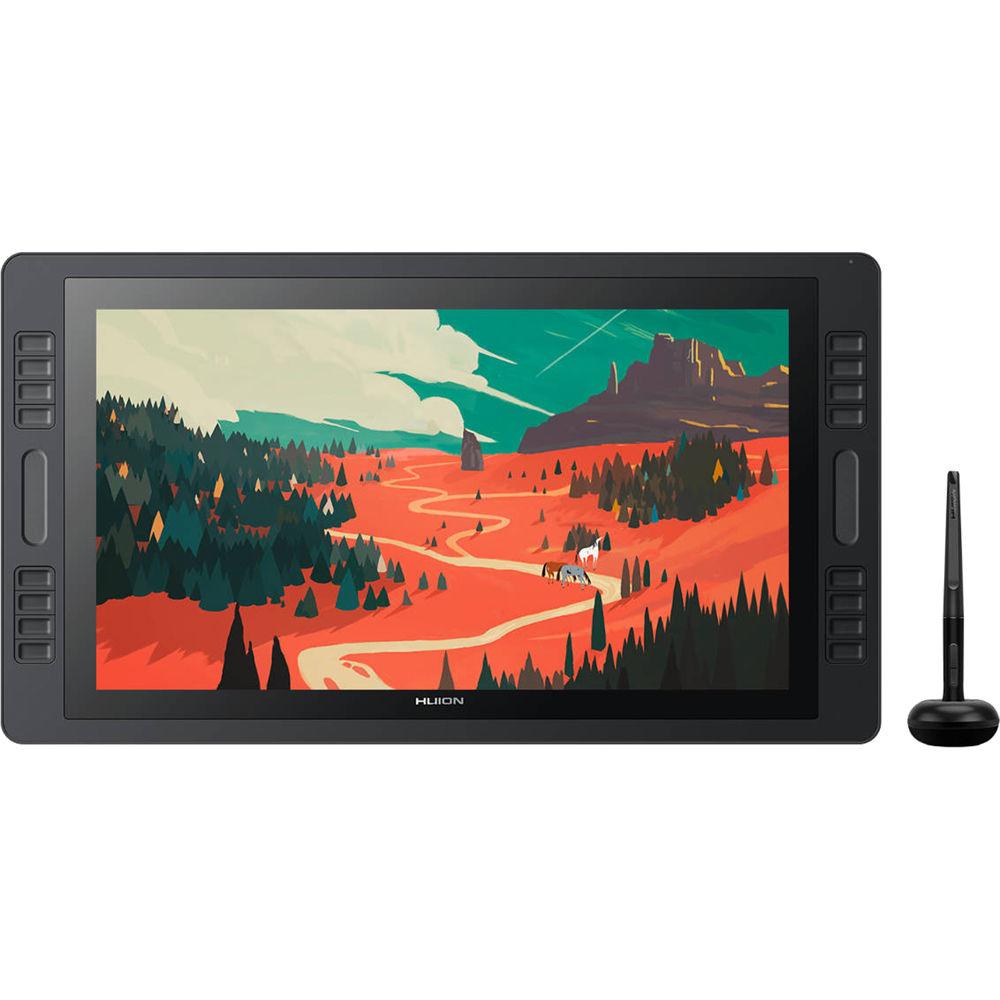

Product description The KAMVAS Pro 20 Pen Display from Huion is a drawing tablet that features a 19.5" IPS display with a Full HD 1920 x 1080 resolution. For color accuracy, it covers 100% of the sRGB color gamut and supports 16.7 million colors for a vibrant view. Moreover, it has a 17.1 x 9.4" active area, a 1000:1 contrast ratio, and a laminated anti-glare glass panel.
This tablet comes with an included stylus that features 8192 levels of pressure sensitivity. It also has a battery-free pen design that provides an accurate drawing experience. Furthermore, it has a built-in touch bar and 8 customizable express keys and 1 touch bar on each side to help you work more efficiently. This tablet is compatible with Windows and Mac operating systems and it comes an assortment of accessories. - More Space for Creation

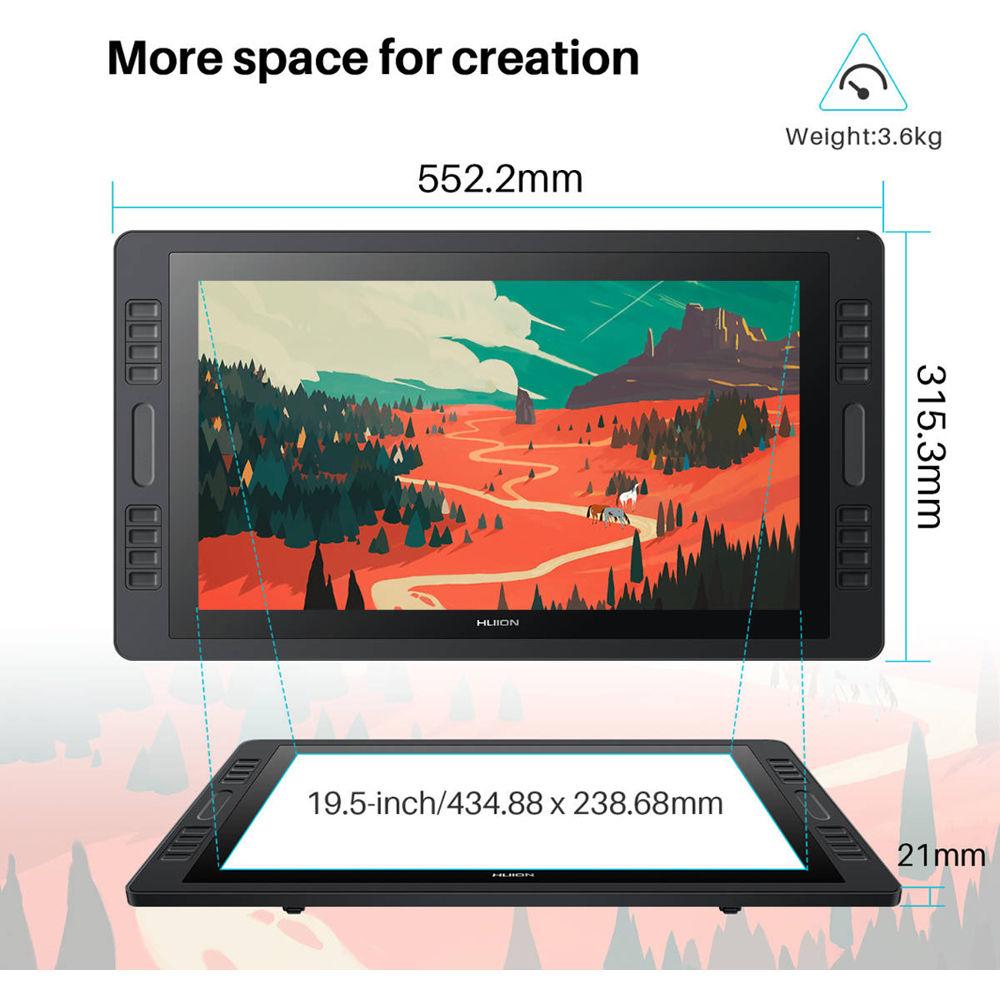

- The working area on the 19.5" display of the KAMVAS Pro 20 provides space for you to get your work done.
- More Care for Your Eyes
- An anti-glare etching glass and multi-layer filter membrane is built into the KAMVAS Pro 20's display, which minimizes glare and visual fatigue.
- Battery-Free Stylus
- The Huion stylus has adopted a battery-free technology along with a flexible pen core. The report rate can meet up to 266 pps.
- Grasp Every Subtlety
- The pen has a 8192-level pressure sensitivity that provides support for detailed creations.
- Gorgeous Colors
- The 100% sRGB wide color gamut can present 16.7 million colors, which provide users a wide field of view and color gamut.
- Wide Viewing Angle
- The 178° wide viewing angle allows you to work from a different angle.
- Express Keys and Touch Bar
- There are 8 express keys and 1 touch bar on each sides, so you can easily access to the most commonly used shortcuts. The 266 pps report rate and 5080 lpi resolution ensures you have a fast response and clear imagery.
- Anti-Glare Glass
- Covered by an anti-glare etched glass, this device can reduce some harmful glares. In addition, the screen surface was handled by exquisite frosted surface treatment technology, which allows the user to have a paper-like feel when working.
- Multi-Angle Adjustable Stand
- The multi-angle adjustable stand is built to be sturdy and reliable with a range between 20 and 80°, which makes drawing comfortable.
- Ambidextrous Design
- Access your personalized settings via the 8 customized express keys and 1 touch bar on each side, so it works with right- and left-handed use.
- Compatibility
- KAMVAS Pro 20 is compatible with Windows 7 or later as well as macOS 10.11 or later. It is also compatible with mainstream art programs.
UPC: 738956414694 In the Box Huion KAMVAS Pro 20 Pen Display Digital Stylus Pen USB Cable HDMI Cable Power Cable Power Adapter 10 x Pen Nibs with Pen Holder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Huion KAMVAS Pro 20 Pen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHuion GT-192 Specs | | | Panel Type | IPS | | Size | 19.5" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Video Ports | 1 x VGA
1 x DVI-I
1 x HDMI | | Contrast Ratio | 1000:1 | | Color Gamut | 100% sRGB | | Brightness | 250 cd/m² | | Response Time | 25 ms | | | | Active Area | 17.12 x 9.40" / 434.9 x 238.7 mm | | Dimensions (W x H x D) | 18.7 x 11.7 x 1.4" / 475.0 x 298.0 x 35.0 mm | | | | Pressure Levels | 8192 | | Report Rate | 266 pps | | Resolution | 5080 lpi | | | | Operating System Support | Windows, macOS/OS X | | Adjustments | Tilt | | Multi-Touch | Yes | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 A | | Power Consumption | 18 W | | Weight | 7.9 lb / 3.6 kg | | | | Package Weight | 15.15 lb | | Box Dimensions (LxWxH) | 26.7 x 17.7 x 5.7" |
