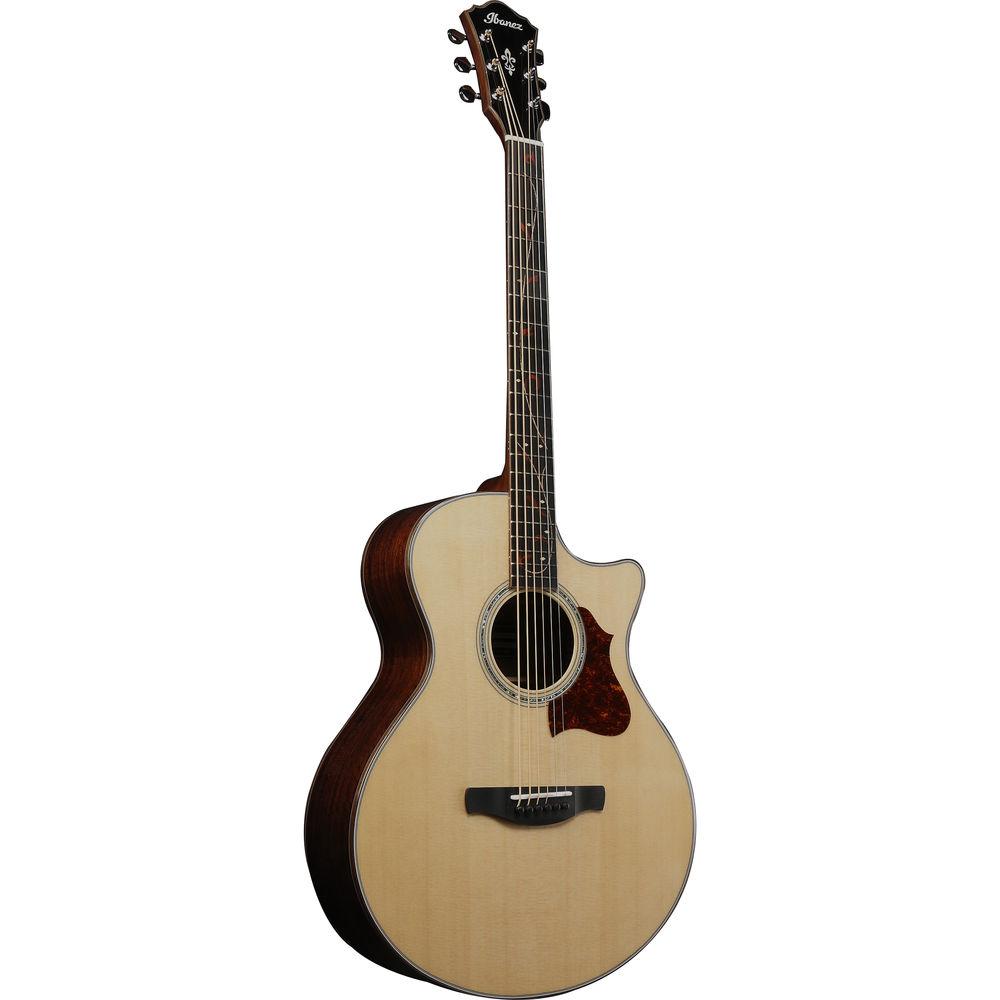

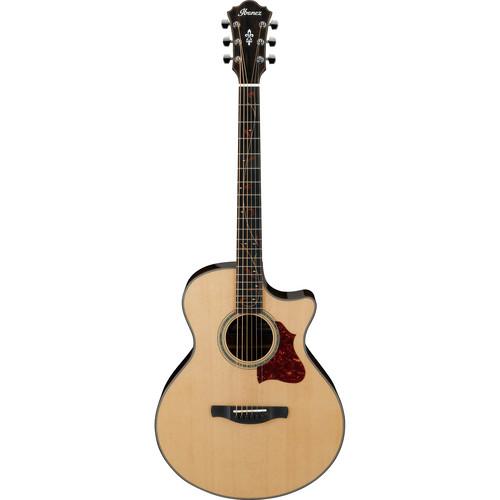

Product description The Ibanez AE Series AE255BT is a baritone acoustic/electric guitar with a natural high-gloss finish and a single cutaway design. The instrument employs a solid Sitka spruce top and ovangkol back and sides. A set-in mahogany neck measuring 27.0" in scale is fit with a cultured maple fingerboard and a specially designed wooden inlay with a floral pattern.
For electronics, this guitar sports an undersaddle T-bar pickup and Ibanez custom electronics. The electronics have been streamlined, offering no tonal controls, in order not to interfere with the instrument's acoustic resonance and to work better with external preamps such as the separately-available Ibanez AGP10.Strings are affixed to the headstock with chrome die-cast tuners and are secured to the body with a cultured maple bridge. Ornamental touches include walnut body binding and a sound hole rosette made of maple and abalone. This instrument is designed for the baritone range, which typically extends from B1 to B3. This range of instrument is particularly suited to roots and Americana genres. - AE Body Shape
- Designed for projection, balance, and comfort, the AE's contemporary body shape offers a pleasing sonic experience.
- Scallop X Bracing
- The AE features bracing designed to project the guitar's complete sonic spectrum. Robust lows, pronounced mids, and articulate highs—the scallop X bracing helps the guitar deliver all these qualities, as well as complex overtones.
- Bone Nut & Bone 4mm Saddle
- The bone nut was chosen for its ability to transfer string vibration naturally. The 4mm bone saddle improves intonation accuracy.
- Key Features
-
- Body Shape: AE
- Top: Solid Sitka spruce

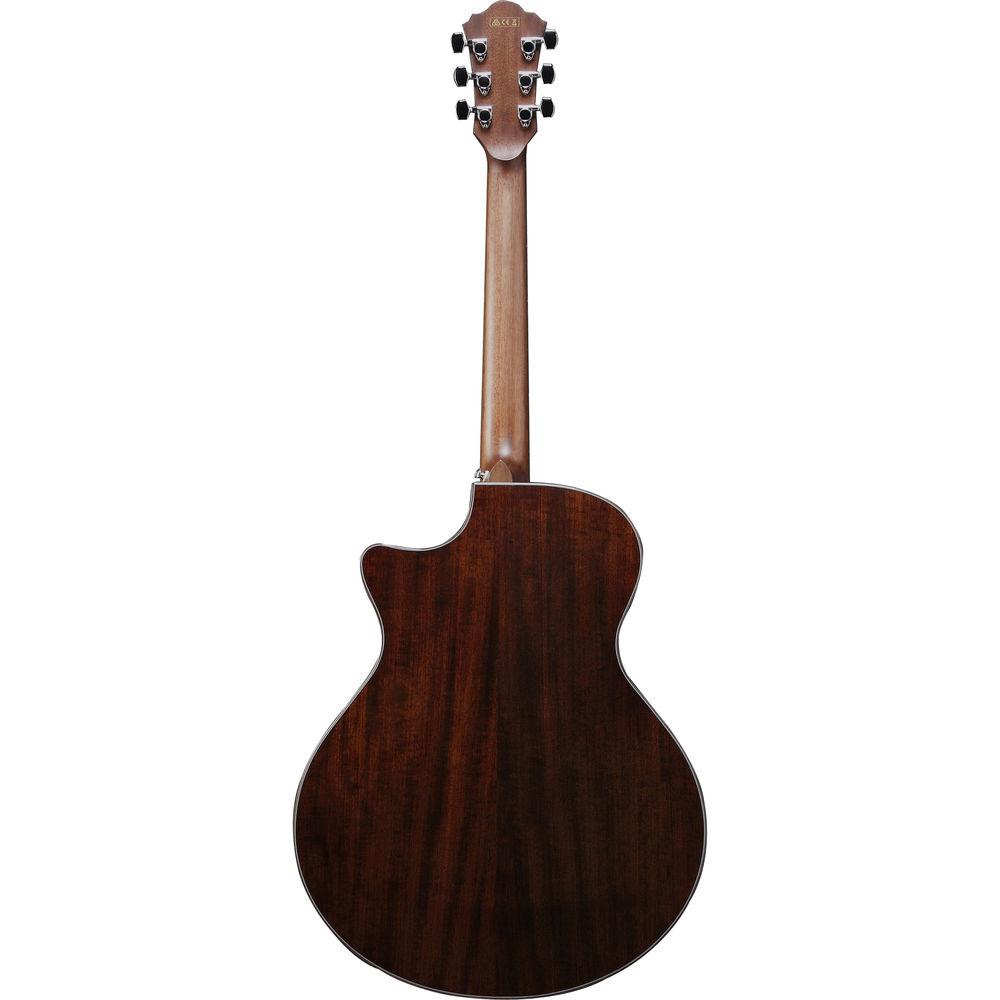

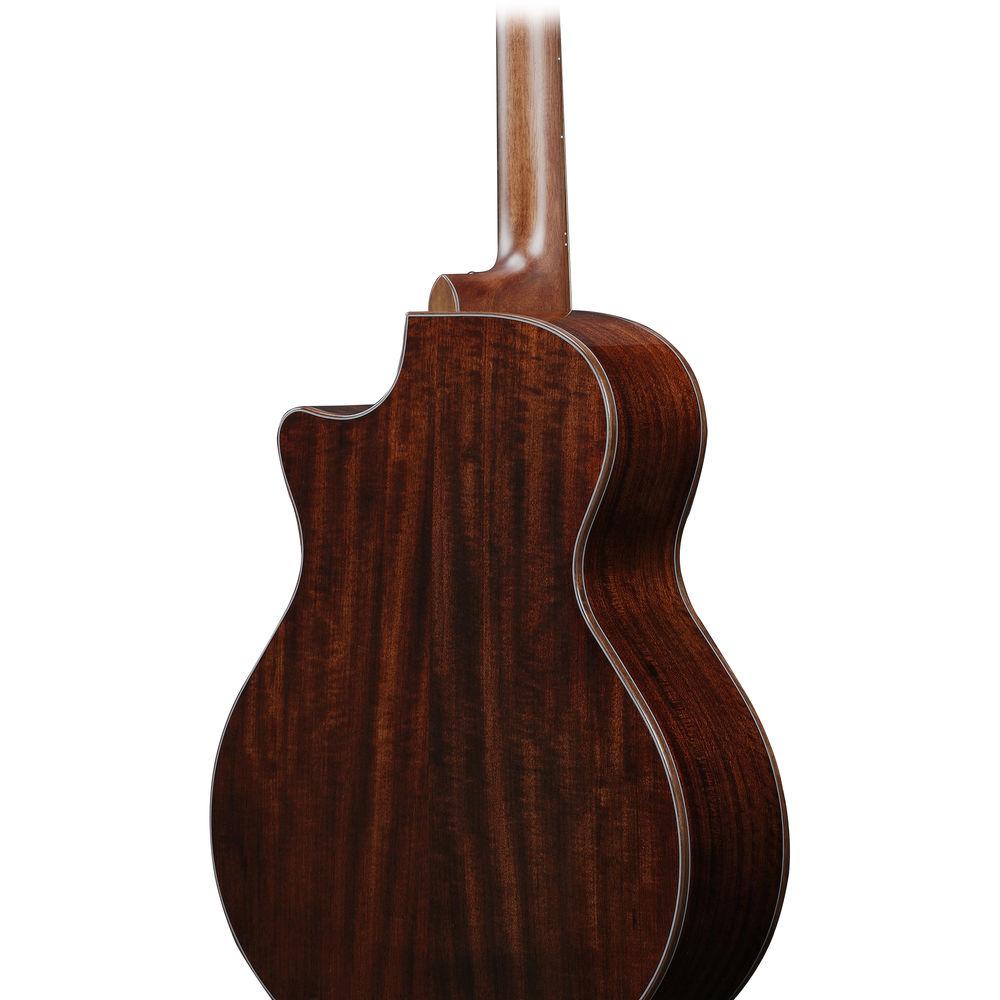

- Back and Sides: Ovangkol
- Bracing: Scalloped X
- Neck: Mahogany
- Fingerboard: Cultured Maple
- Bridge: Cultured Maple
- Body binding: Walnut

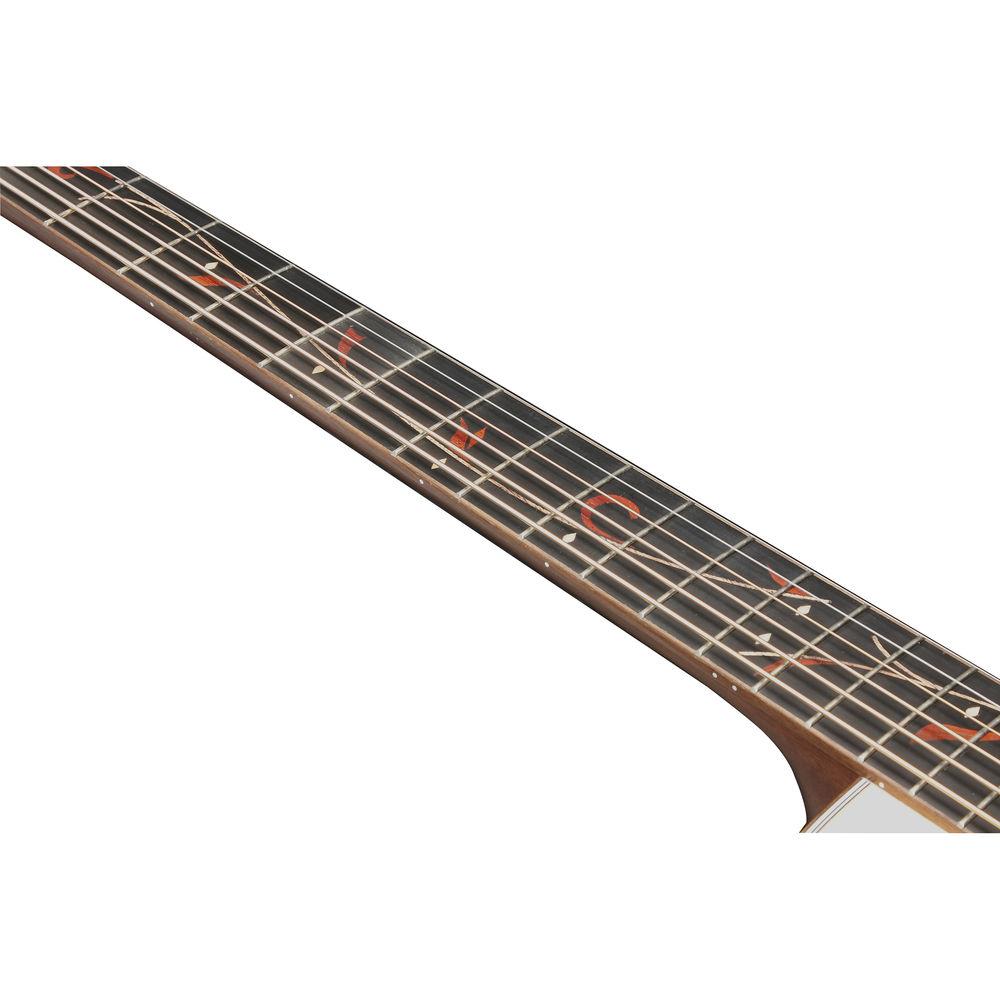

- Inlay: Specially designed wooden inlay
- Soundhole Rosette: Abalone and maple

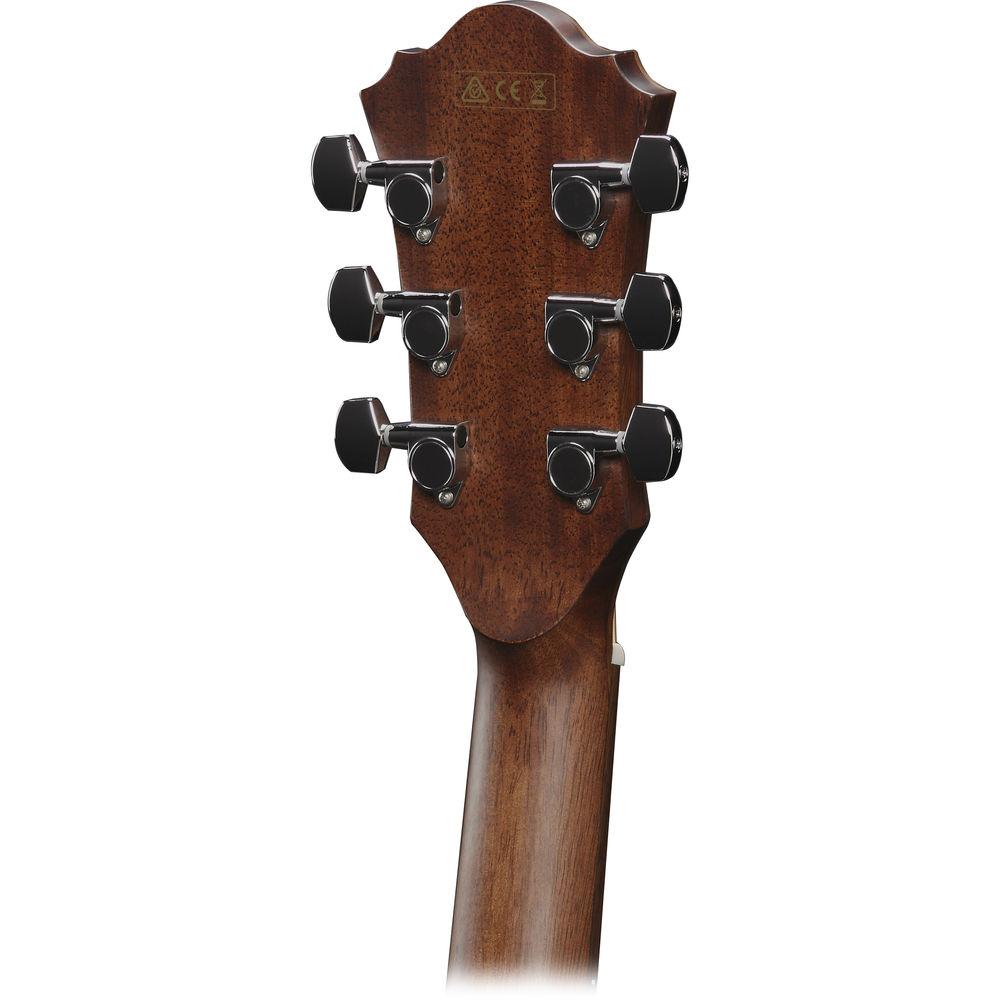

- Tuning Machines: Chrome die-cast tuners
- Gear Ratio: 18:1
- Nut Material: Bone
- Number of Frets: 20
- Saddle Material: Compensated Bone, 4mm thick
- Bridge Pins: Ibanez Advantage bridge pins
- Pickup: Ibanez T-bar undersaddle
- Preamp: Ibanez custom electronics

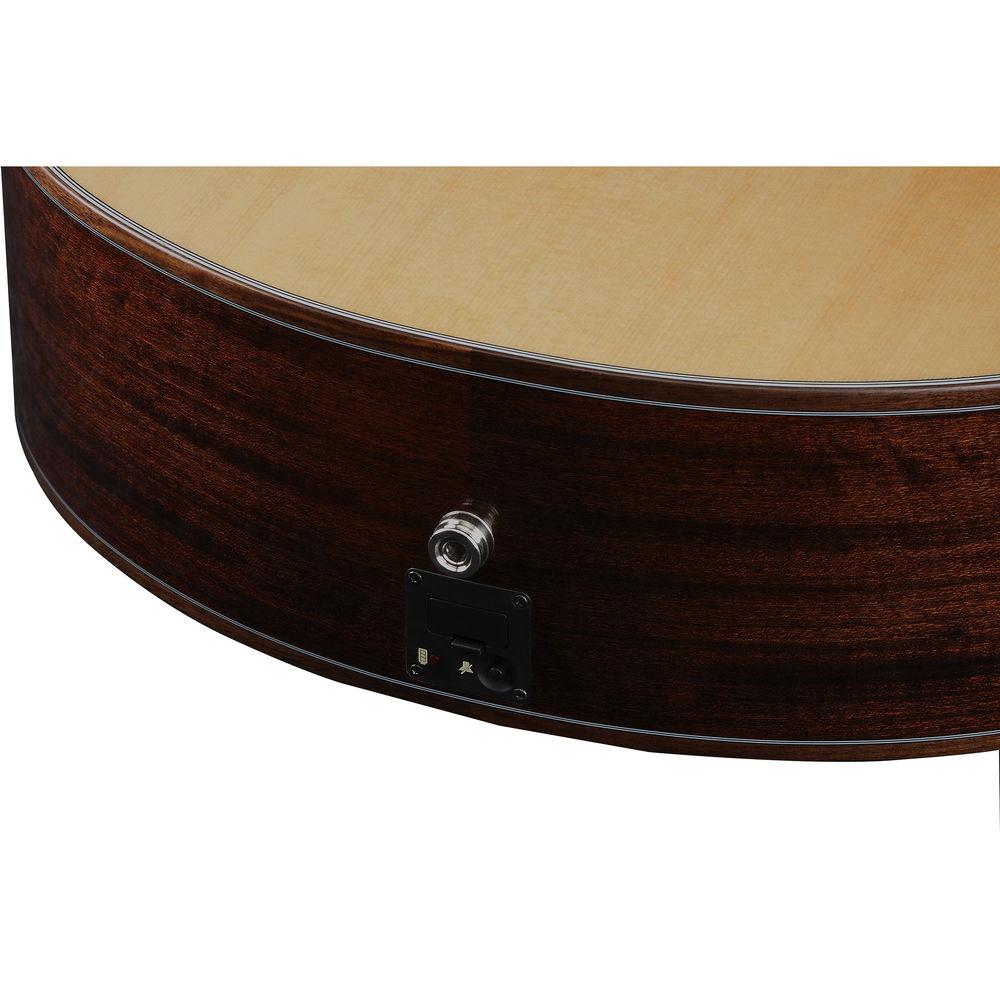

- Output Jack: 1/4" endpin jack
- Body Finish: Gloss
- Neck Finish: Satin
- Neck Dimensions
-
- Scale: 27.0" / 686.0mm
- Width at Nut: 1.8" / 45.0mm
- Width at 14th Fret: 2.2" / 56.0mm
- Thickness at First Fret: 0.8" / 21.0mm
- Thickness at Seventh Fret: 0.9" / 22.0mm
- Radius: 15.7" / 400mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 16.1" / 409.6mm
- Max Depth: 4.5" / 114.3mm
In the Box Ibanez AE255BT AE Series Baritone Acoustic/Electric Guitar (Natural High Gloss) Limited Lifetime Warranty on Wood Limited 1-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AE255BT AE Series Baritone Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AE255BT Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Auditorium | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Pau Ferro | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Pau Ferro | | Number of Frets | 20 | | Scale Length | 651.00 mil / | | Radius | 400 mil | | Nut Width | 44 mm | | Bridge Type | Pau Ferro | | Pickguard | No | | Pickups | Undersaddle | | Controls | None |
