User Manual for Ibanez AE315 AE Series Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AE315 AE Series Acoustic Electric
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez AE315 AE Series Acoustic Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

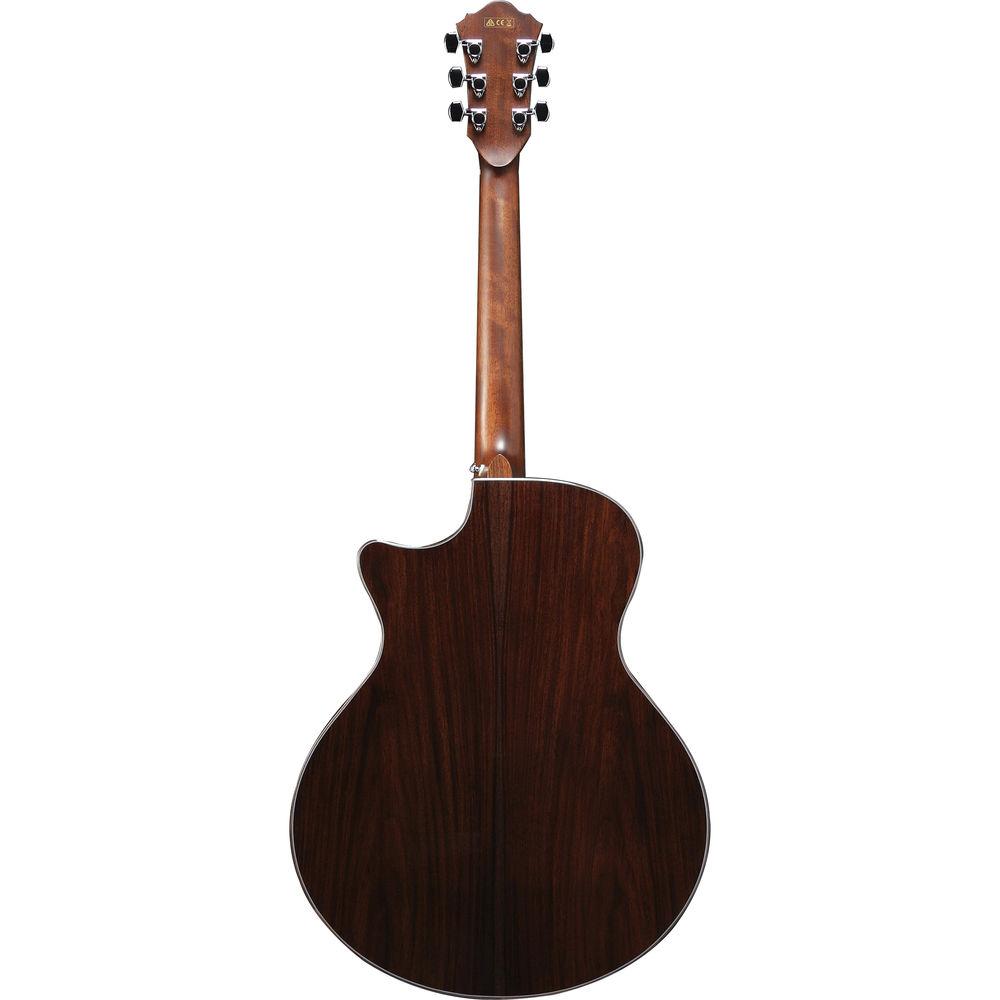

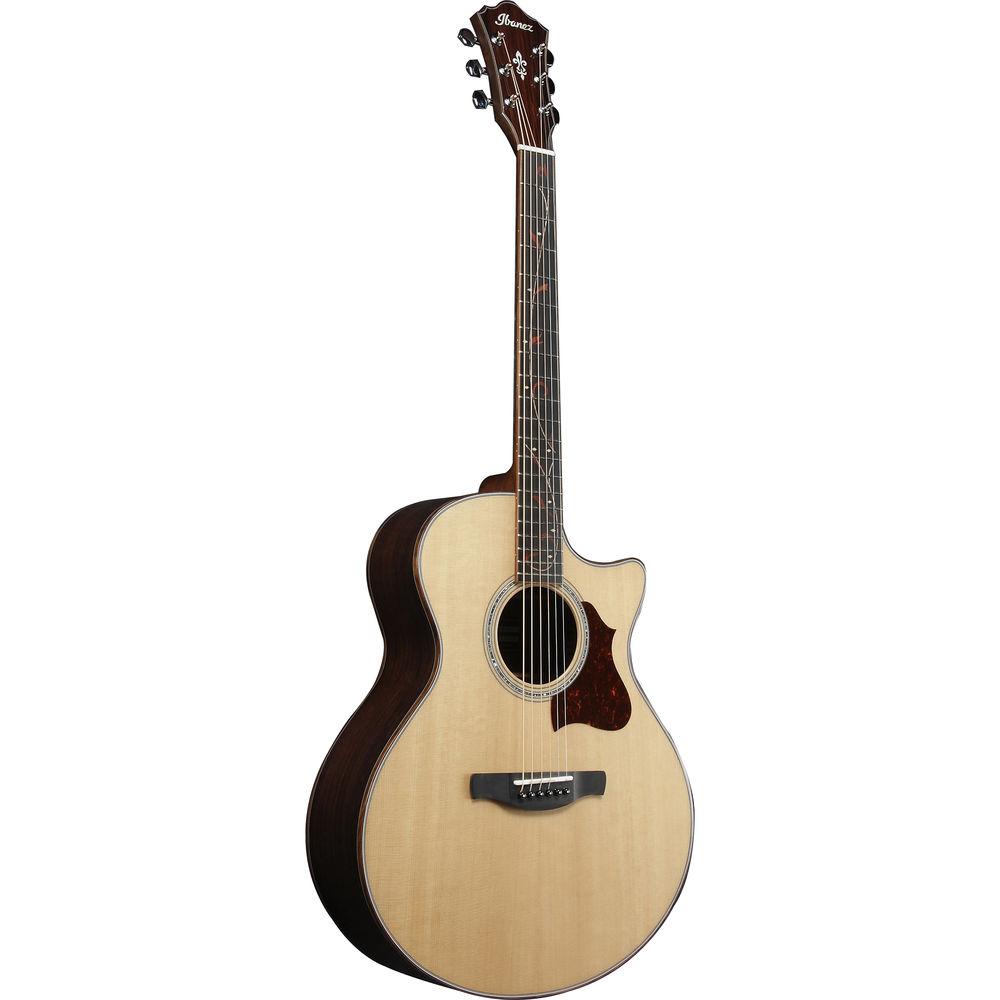

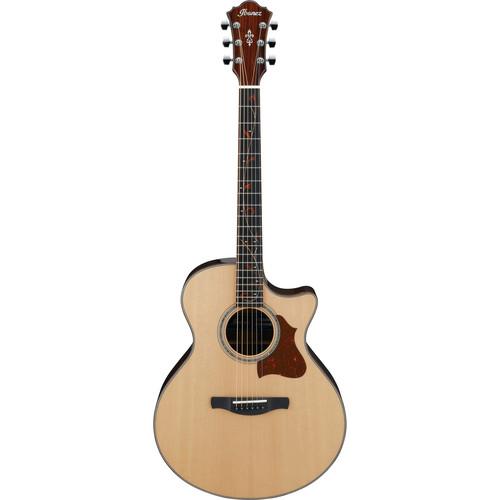

Product description The Ibanez AE Series AE315 is an acoustic/electric guitar with a natural high-gloss finish and a single cutaway design. The instrument employs a solid Sitka spruce top and pau ferro back and sides. A set-in mahogany neck, measuring 25.6" in scale, is outfitted with a cultured maple fingerboard and a specially designed wooden fingerboard inlay with a distinct floral design.
For electronics, this guitar sports an undersaddle T-bar pickup and Ibanez custom electronics. The electronics have been streamlined, offering no tonal controls in order not to interfere with the instrument's acoustic resonance, and to work better with external preamps such as the Ibanez AGP10, which is a separately-available accessory with this guitar. Strings are affixed to the headstock with chrome die-cast tuners and secured to the body with a cultured maple bridge. Ornamental touches include pau ferro body binding and a sound hole rosette made of maple and abalone. - Key Features
-
- Body Shape: AE
- Top: Solid Sitka spruce

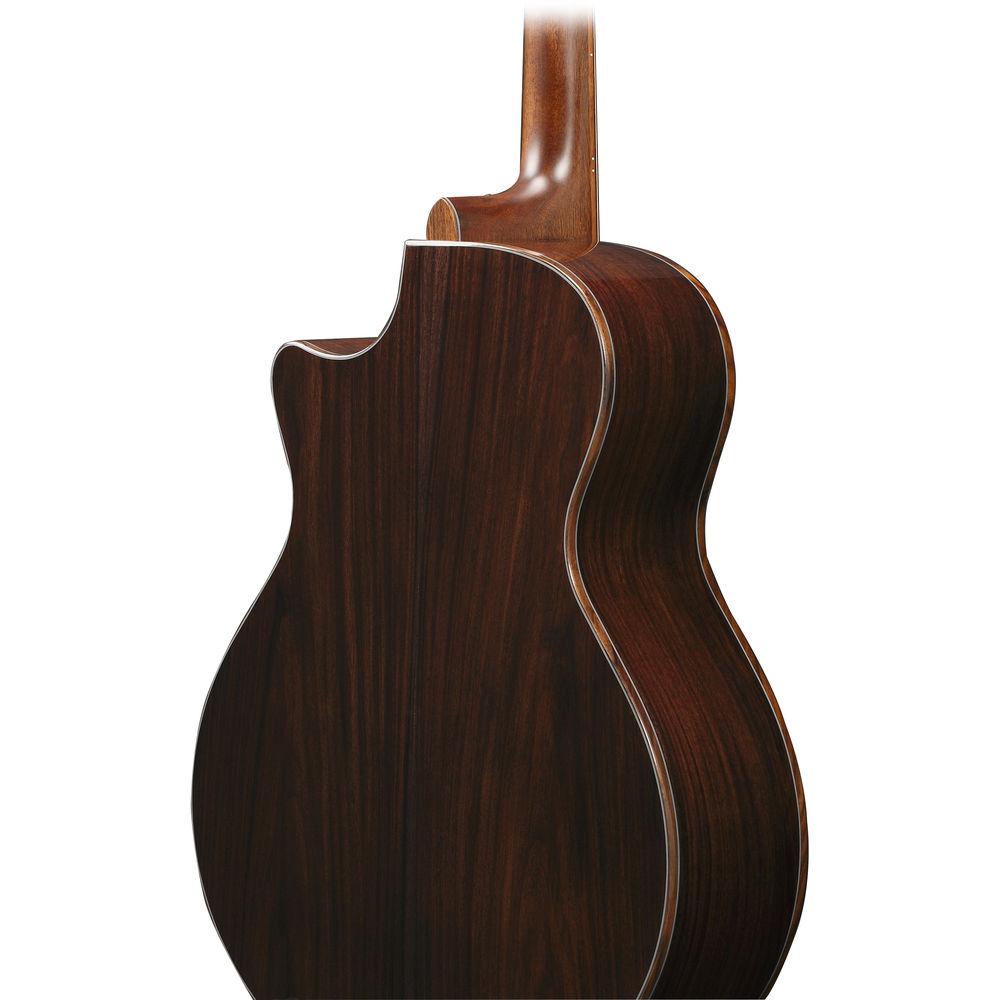

- Back and Sides: Pau ferro
- Bracing: Scalloped X
- Neck: Mahogany
- Fingerboard: Cultured maple
- Bridge: Cultured maple
- Body binding: Pau ferro
- Inlay: Specially designed wood
- Soundhole Rosette: Abalone and maple

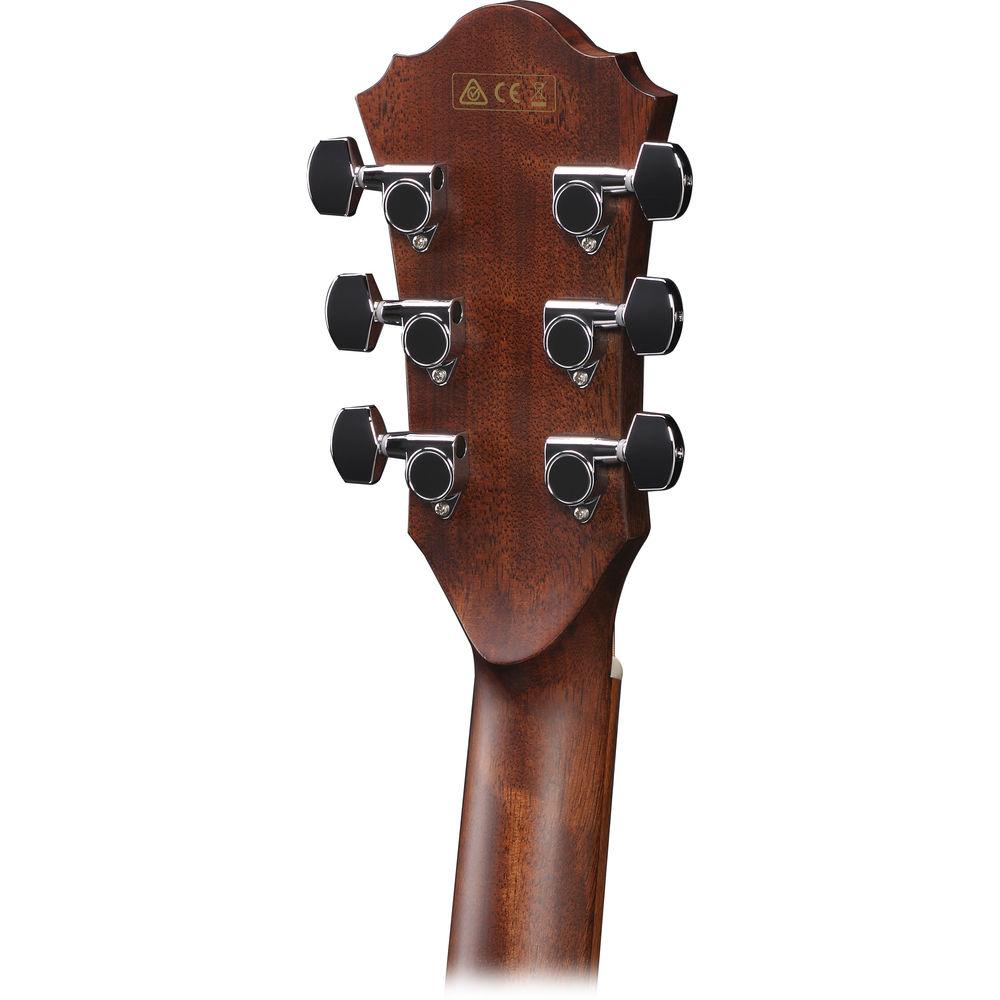

- Tuning Machines: Chrome die-cast tuners
- Gear Ratio: 18:1
- Nut Material: Bone
- Number of Frets: 20
- Saddle Material: Compensated Bone, 4mm
- Bridge Pins: Ibanez Advantage bridge pins
- Pickup: Ibanez T-bar undersaddle
- Preamp: Ibanez custom electronics
- Output Jack: 1/4" endpin jack
- Body Finish: Gloss
- Neck Finish: Satin
- Neck Dimensions
-
- Scale: 25.6" / 651mm
- Width at Nut: 1.7" / 44mm
- Width at 14th Fret: 2.2" / 55mm
- Thickness at First Fret: 0.8" / 20mm
- Thickness at Seventh Fret: 0.8" / 21mm
- Radius: 15.7" / 400mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 16.1" / 409.6mm
- Max Depth: 4.5" / 114.3mm
In the Box Ibanez AE315 AE Series Acoustic/Electric Guitar (Natural High Gloss) Limited Lifetime Warranty on Wood Limited 1-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AE315 AE Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AE315 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Auditorium | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Pau Ferro | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Maple | | Number of Frets | 20 | | Scale Length | 651.00 mil / | | Radius | 400 mil | | Nut Width | 44 mm | | Bridge Type | Maple | | Pickguard | No | | Pickups | Undersaddle | | Controls | None |
