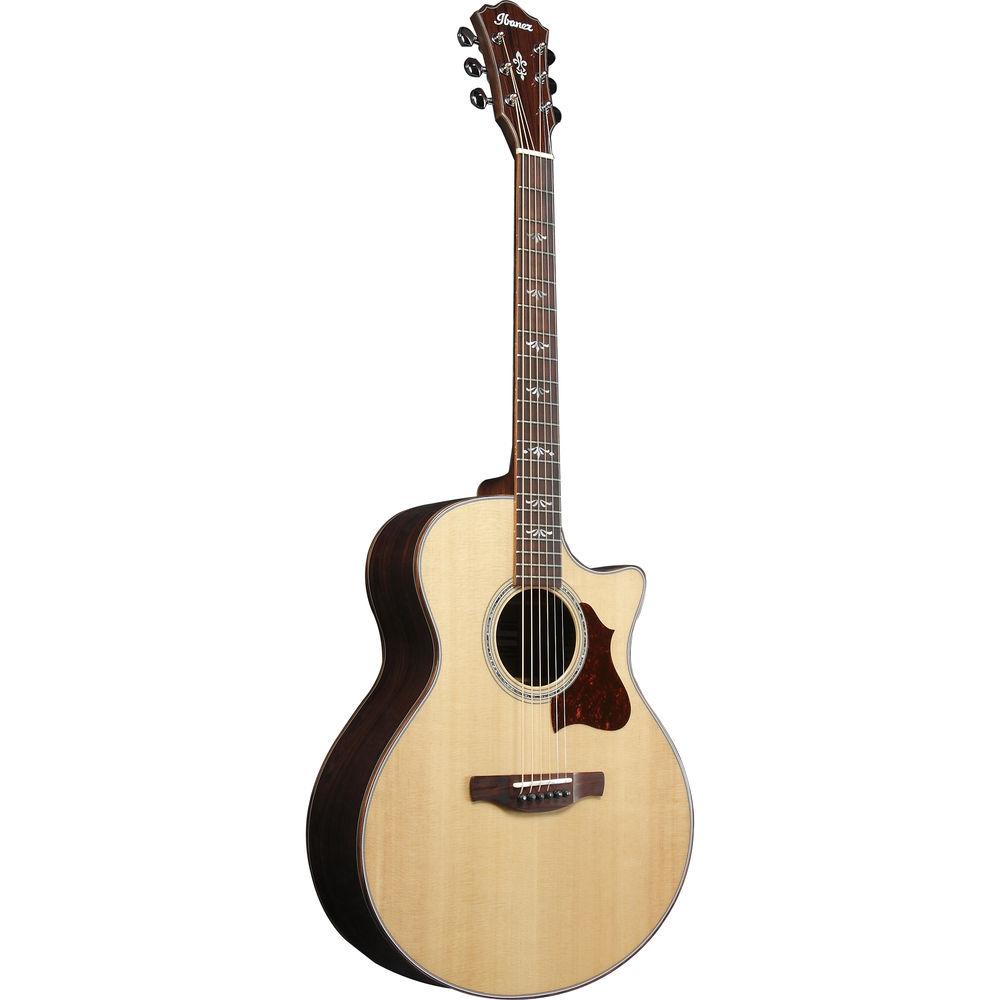

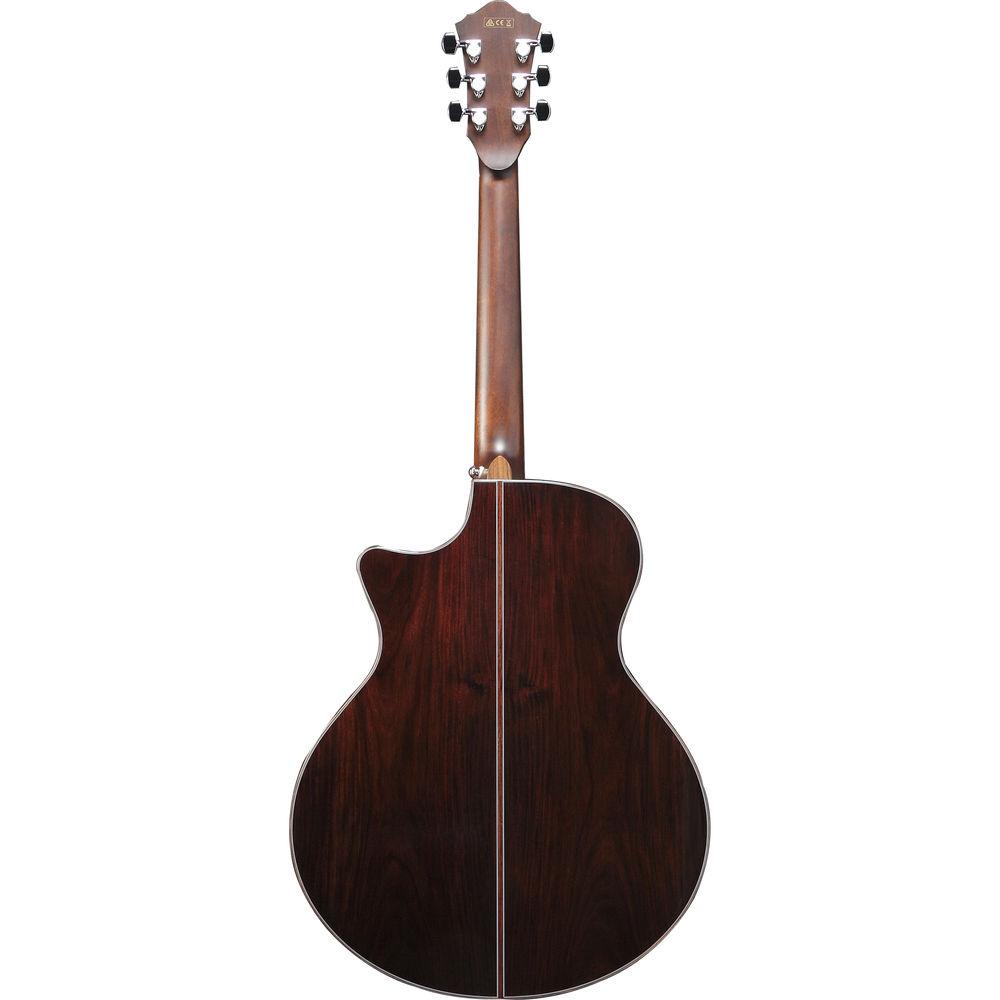

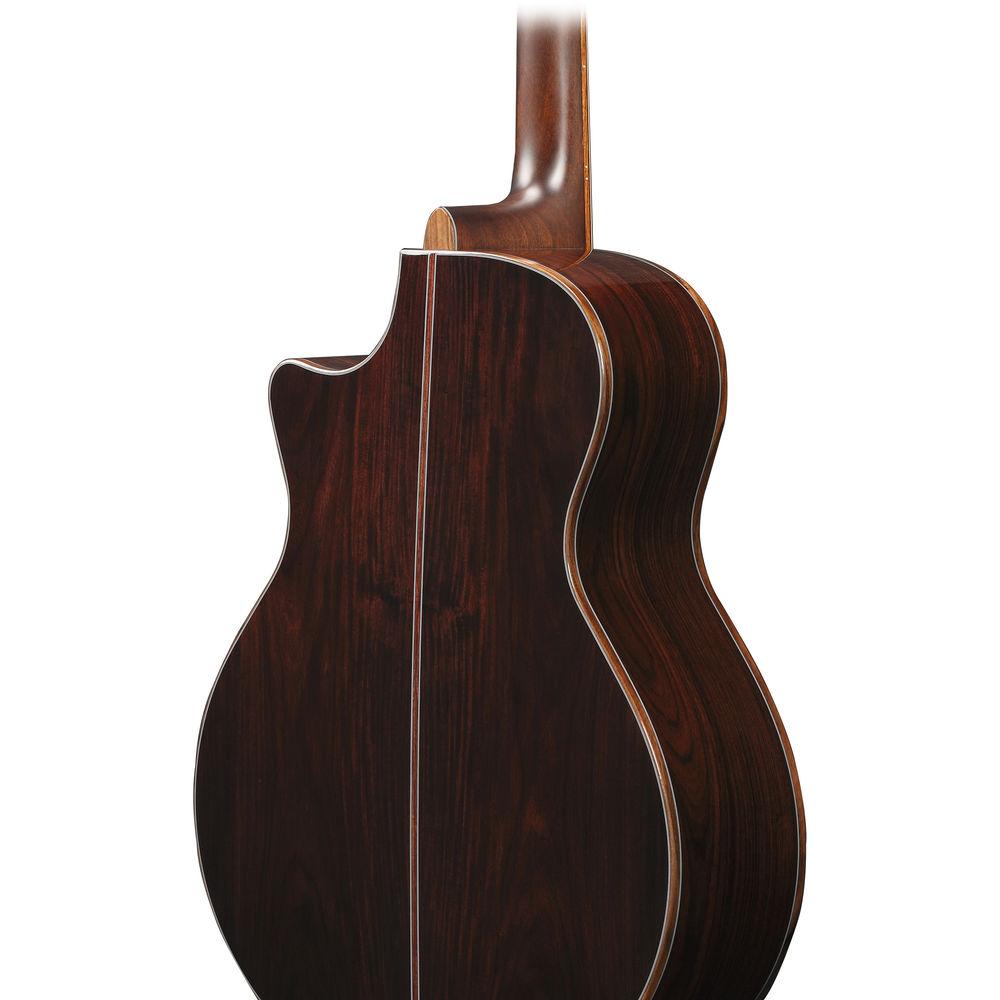

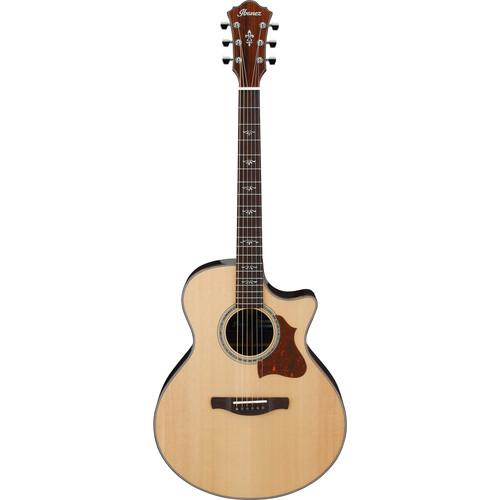

Product description The Ibanez AE Series AE510 is an acoustic/electric guitar with a natural high-gloss finish and a single cutaway design. The instrument employs a solid Sitka spruce top and solid pau ferro back and sides. A set-in mahogany neck measuring 25.6" in scale is outfitted with a pau ferro fingerboard and a specially designed mother-of-pearl inlay.
For electronics, this guitar sports an undersaddle T-bar pickup and Ibanez custom electronics. The electronics have been streamlined, offering no tonal controls—in order not to interfere with the instrument's acoustic resonance—and to work better with external preamps, such as the Ibanez AGP10. This unit is included with the AE510.

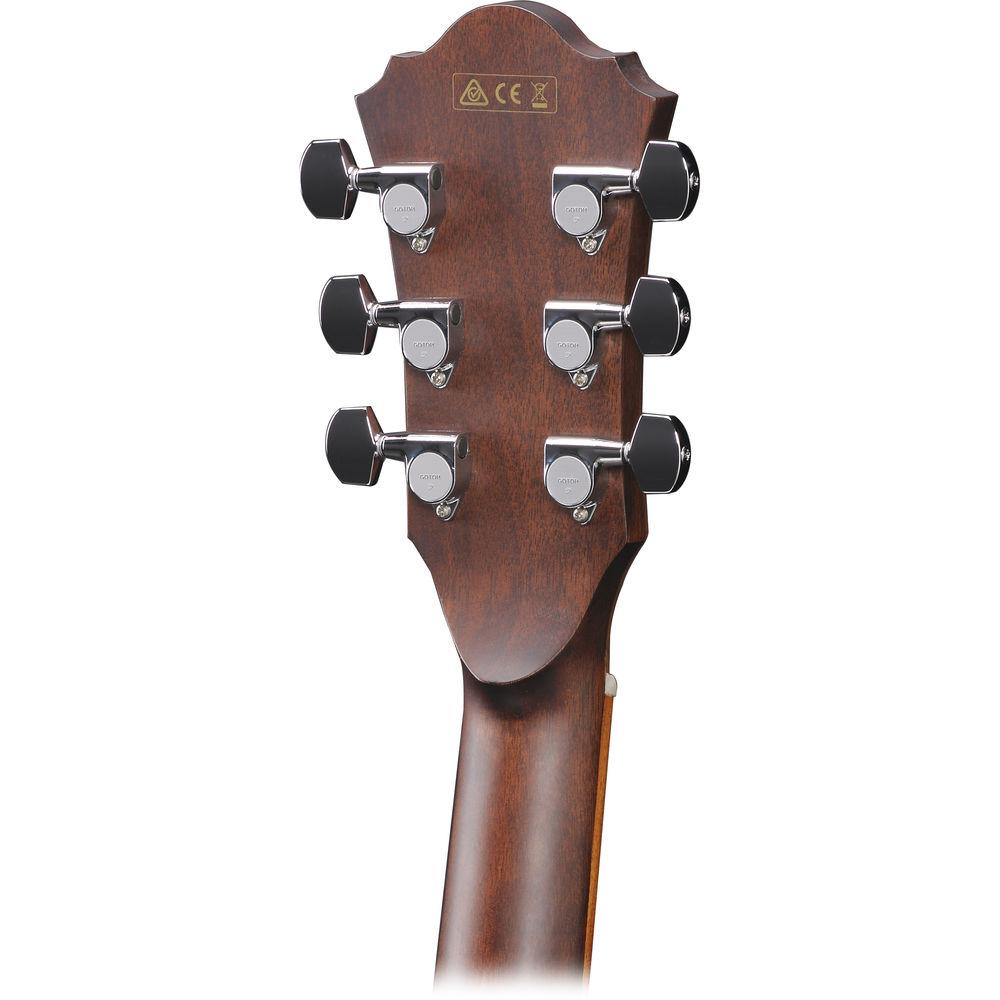

Strings are affixed to the headstock with Gotoh SG301 tuners, and are secured to the body with a pau ferro bridge. Ornamental touches include pau ferro body binding, a pau ferro multi-wood back strip inlay, and a sound hole rosette made of maple and abalone. A hardshell case is included. - AE Body Shape
- Designed for projection, balance, and comfort, the AE's contemporary body shape offers the best of all worlds.
- Scallop X Bracing
- The AE features bracing designed to project the guitar's complete sonic spectrum. Including robust lows, pronounced mids, and articulate highs, the scalloped X bracing helps the guitar deliver all these qualities as well as complex overtones.
- Bone Nut & Bone 4mm Saddle
- The bone nut was chosen for its ability to transfer string vibration naturally. The 4mm bone saddle improves intonation accuracy.
- Included AGP10 Preamp
- Designed in collaboration with artists and sound engineers, the AGP10 is a standalone unit. In contrast with onboard electronics, this preamp preserves the guitar's integrity, both acoustically and structurally, while still providing the performer with easy access for on-the-fly adjustments. You'll note controls for bass, low-mids, mids, high-mids, treble, feedback frequencies, phase reverse, and overall level.
- Key Features
-
- Body Shape: AE
- Top: Solid Sitka spruce
- Back and Sides: Solid pau ferro
- Bracing: Scalloped X
- Neck: Mahogany
- Fingerboard: Pau ferro
- Bridge: Pau ferro
- Body Binding: Pau ferro
- Inlay: Specially designed mother of pearl
- Back Inlay: Pau ferro multi-wood
- Soundhole Rosette: Abalone and maple
- Tuning Machines: Gotoh SG301 tuners
- Gear Ratio: 18:1
- Nut Material: Bone
- Number of Frets: 20
- Saddle Material: Compensated bone, 4mm
- Bridge Pins: Ebony bridge pins with abalone dot
- Pickup: Ibanez T-bar undersaddle
- Preamp: Ibanez custom electronics
- Output Jack: 1/4" endpin jack
- Body Finish: Gloss
- Neck Finish: Satin
- Neck Dimensions
-
- Scale: 25.6" / 651mm
- Width at Nut: 1.7" / 44mm
- Width at 14th Fret: 2.2" / 55mm
- Thickness at First Fret: 0.8" / 20mm
- Thickness at Seventh Fret: 0.8" / 21mm
- Radius: 15.7" / 400mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 16.2" / 409.6mm
- Max Depth: 4.5" / 114.3mm
In the Box Ibanez AE510 AE Series Acoustic/Electric Guitar (Natural High Gloss) AGP10 External Preamp Hardshell Case Limited Lifetime Warranty on Wood Limited 1-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AE510 AE Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AE510 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Auditorium | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Pau Ferro | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Pau Ferro | | Number of Frets | 20 | | Scale Length | 651.00 mil / | | Radius | 400 mil | | Nut Width | 44 mm | | Bridge Type | Pau Ferro | | Pickguard | Yes | | Pickups | Undersaddle | | Controls | None | | Switching | 0-Way Pickup Selector Switch |
