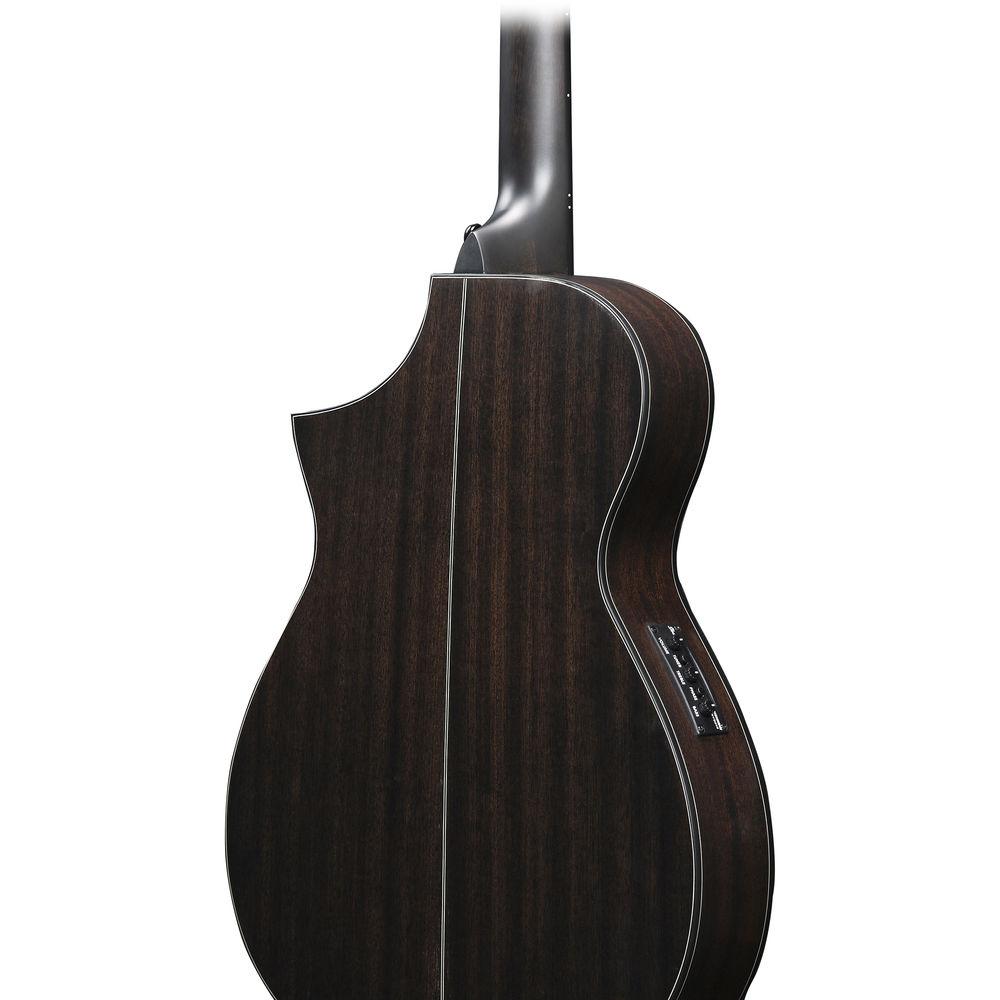

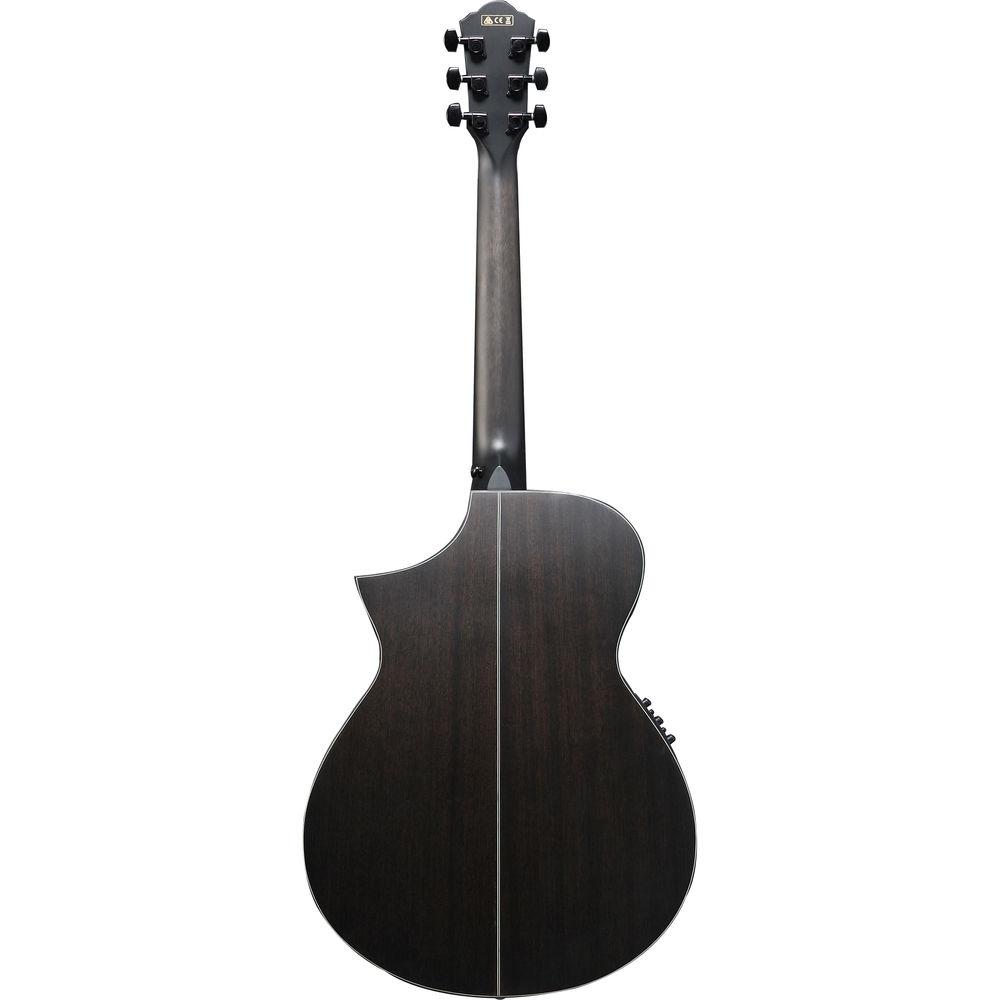

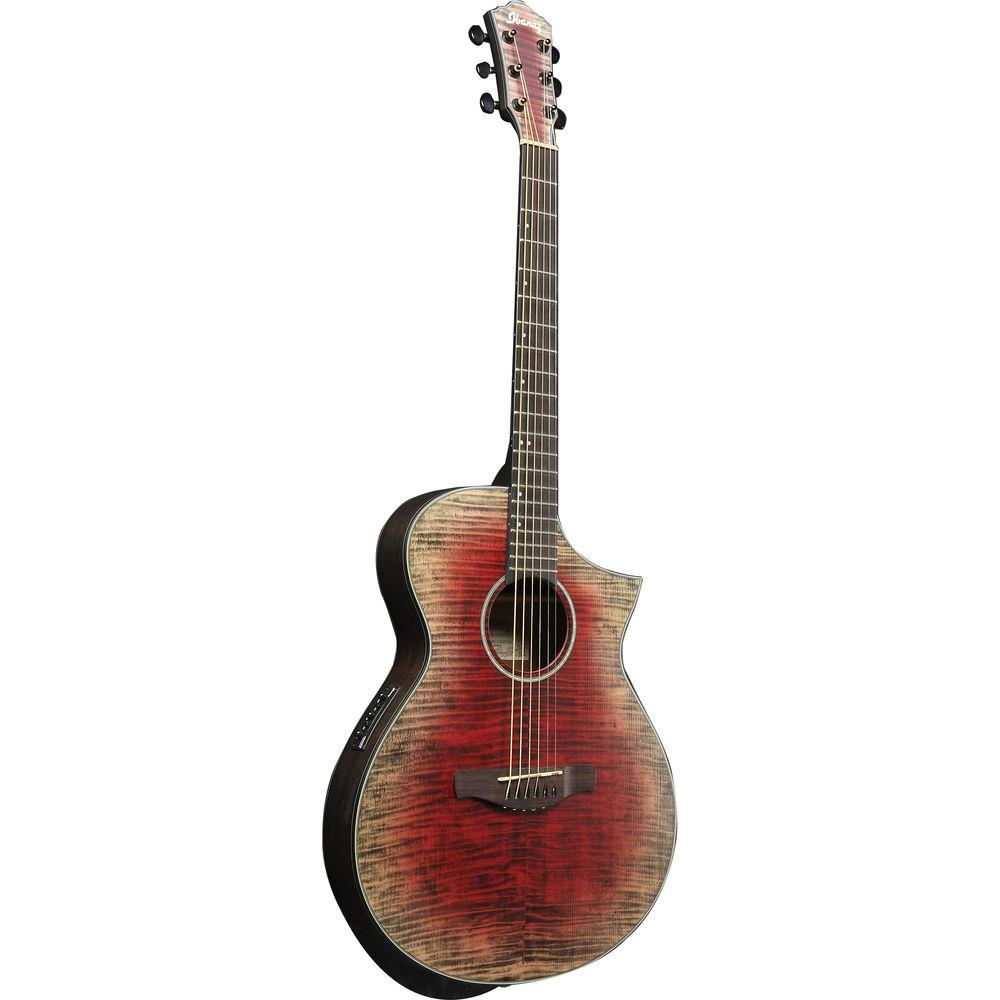

Product description The Ibanez AEW Series AEWC32FM is a full-sized acoustic/electric guitar with a glacier red, low gloss top finish. Its single-cutaway AEWC body delivers a powerful and balanced acoustic sound, well suited for solo performance or playing with a full band.The AEWC32FM is constructed with a flamed maple top, sapele back and sides, and a 25" scale nyatoh neck with 20 frets. The fingerboard and bridge are both made of laurel. Other features include black die-cast tuners and an acrylic rosette.For electronics, the guitar is equipped with a Fishman Sonicore pickup and an Ibanez AEQ210TF preamp, which has a 2-band EQ, an onboard tuner, a phase switch, and a 1/4" output jack. - General Features
-
- Body Shape: Cutaway, AEWC body
- Top: Flamed maple
- Back and Sides: Sapele
- Neck: Nyatoh
- Fingerboard: Laurel
- Bridge: Laurel
- Soundhole Rosette: Acrylic

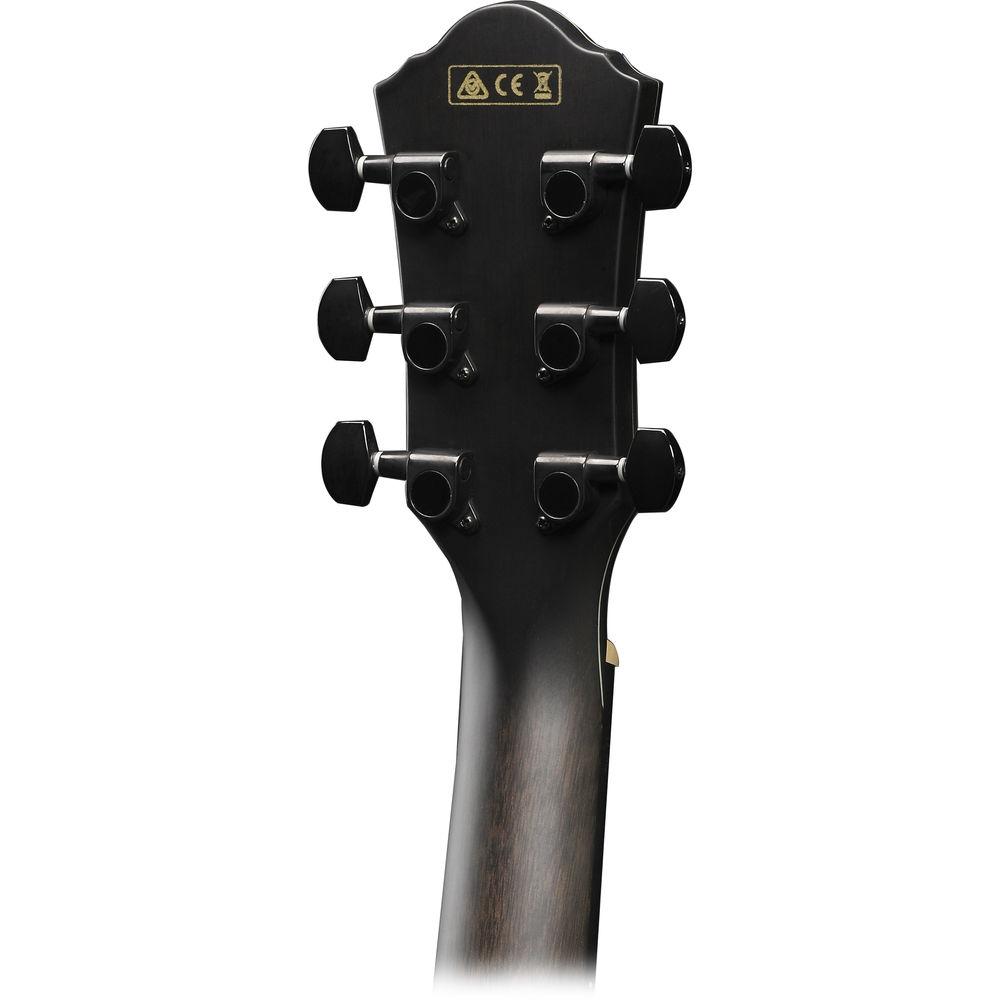

- Tuning Machines: Black die-cast tuners
- Number of Frets: 20
- Pickup: Fishman Sonicore
- Preamp: Ibanez AEQ210TF preamp with onboard tuner, 2-band EQ, phase switch
- Output Jack: 1/4"
- Neck Dimensions
-
- Scale: 25.0" / 634.0mm
- Width at Nut: 1.69" / 43.0mm
- Width at 14th Fret: 2.17" / 55.0mm
- Thickness at 1st Fret: 0.79" / 20.0mm
- Thickness at 7th Fret: 0.83" / 21.0mm
- Radius: 15.7" / 400.0mm
- Body Dimensions
-
- Length: 19.25" / 489.0mm
- Width: 15.0" / 381.0mm
- Max Depth: 2.75" / 69.9mm
In the Box Ibanez AEWC32FM AEW Series Acoustic/Electric Guitar (Glacier Red, Low Gloss) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware & Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AEWC32FM AEW Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AEWC32FM Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Cutaway | Single-Cutaway | | Body Wood | Top: Maple
Back, Sides: Sapele | | Neck Wood | Nyatoh | | Fingerboard | Laurel | | Number of Frets | 20 | | Scale Length | 24.96" / 634 mm | | Radius | 400 mil | | Nut Width | 43 mm | | Bridge Type | Laurel | | Pickguard | No | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 Phase Switch and Onboard Tuner |
