User Manual for Ibanez AEWC4012FM AEW Series 12-String Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AEWC4012FM AEW Series 12-String Acoustic
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez AEWC4012FM AEW Series 12-String Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

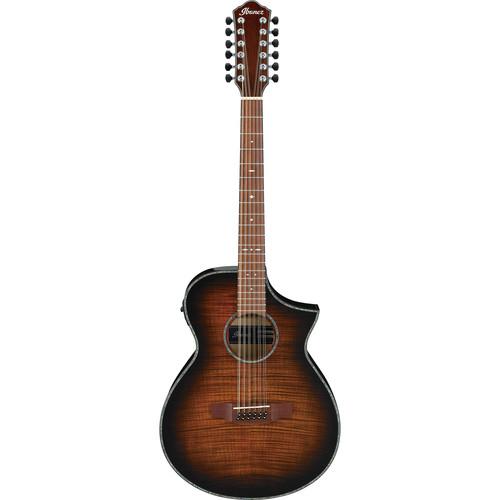

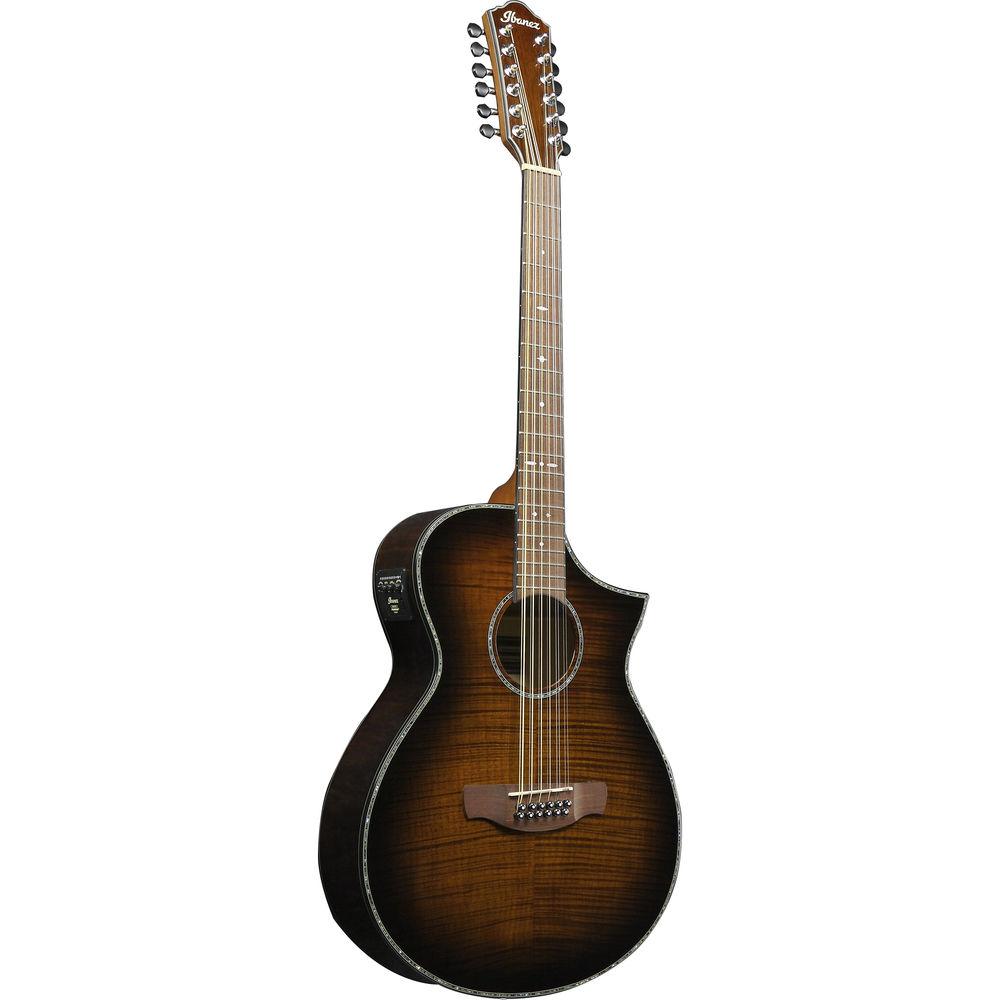

Product description Styled in a tiger burst high gloss finish, the Ibanez AEW Series AEWC4012FM is a 12-string acoustic/electric guitar with a soft, Florentine-style cutaway that allows you to easily reach up to the 17th fret. The guitar boasts a flamed maple top, flamed maple back and sides, and a mahogany neck. Unplugged or amplified, the instrument is well suited for solo performance or playing with a full band. The neck features a 24.95" scale with a 20-fret rosewood fingerboard. The bridge is also fashioned from rosewood, and utilizes Ibanez Advantage bridge pins to secure all 12 strings. For electronics, the instrument offers a Fishman Sonicore pickup with an AEQ-SP2 preamp from Ibanez. In addition to its volume and tone controls, the preamp comes with a built-in tuner. Use the standard 1/4" output to plug into any acoustic amplifier, or utilize the balanced XLR output to plug straight into the house PA without need for an external DI.
You'll note flourishes throughout the instrument, such as black body binding and abalone top-board purfling. The soundhole rosette is also in abalone, and the chrome die-cast tuners have been outfitted with black knobs for a matching look. - General Features
-
- Flamed maple top

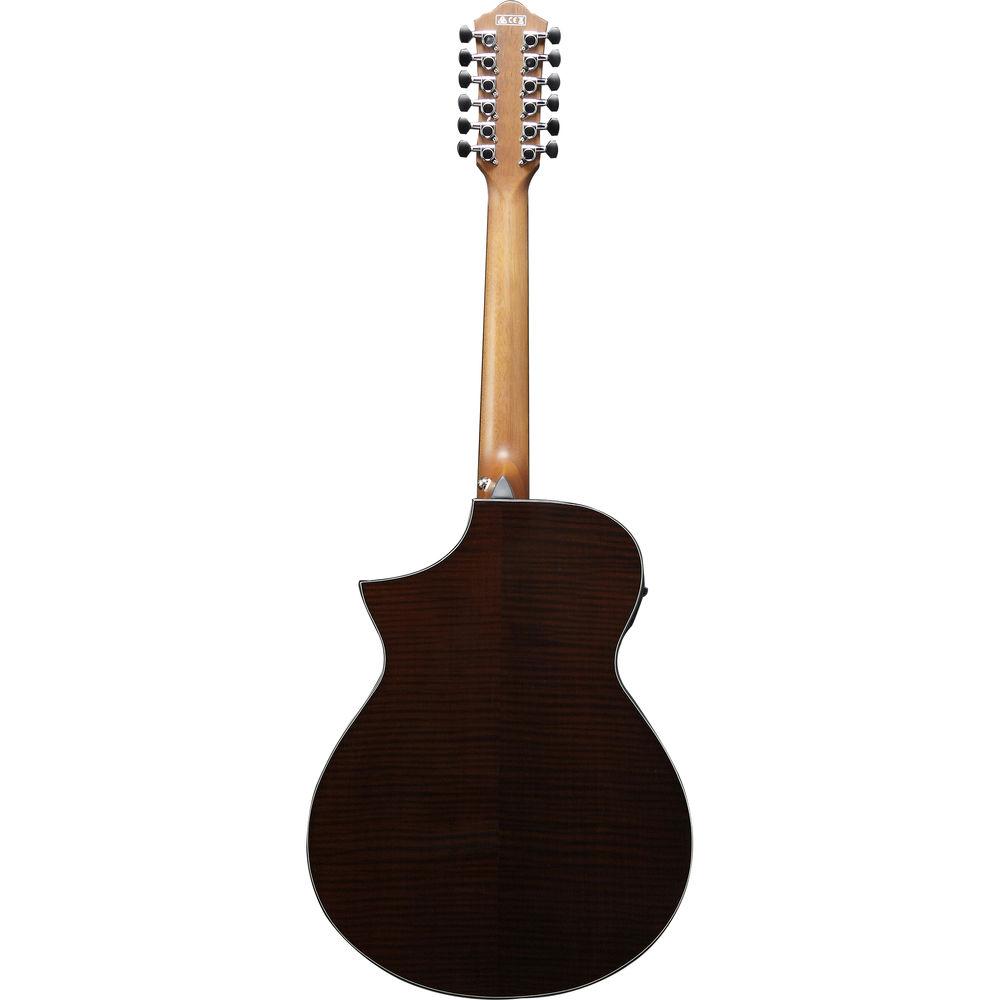

- Flamed maple back and sides
- Mahogany neck

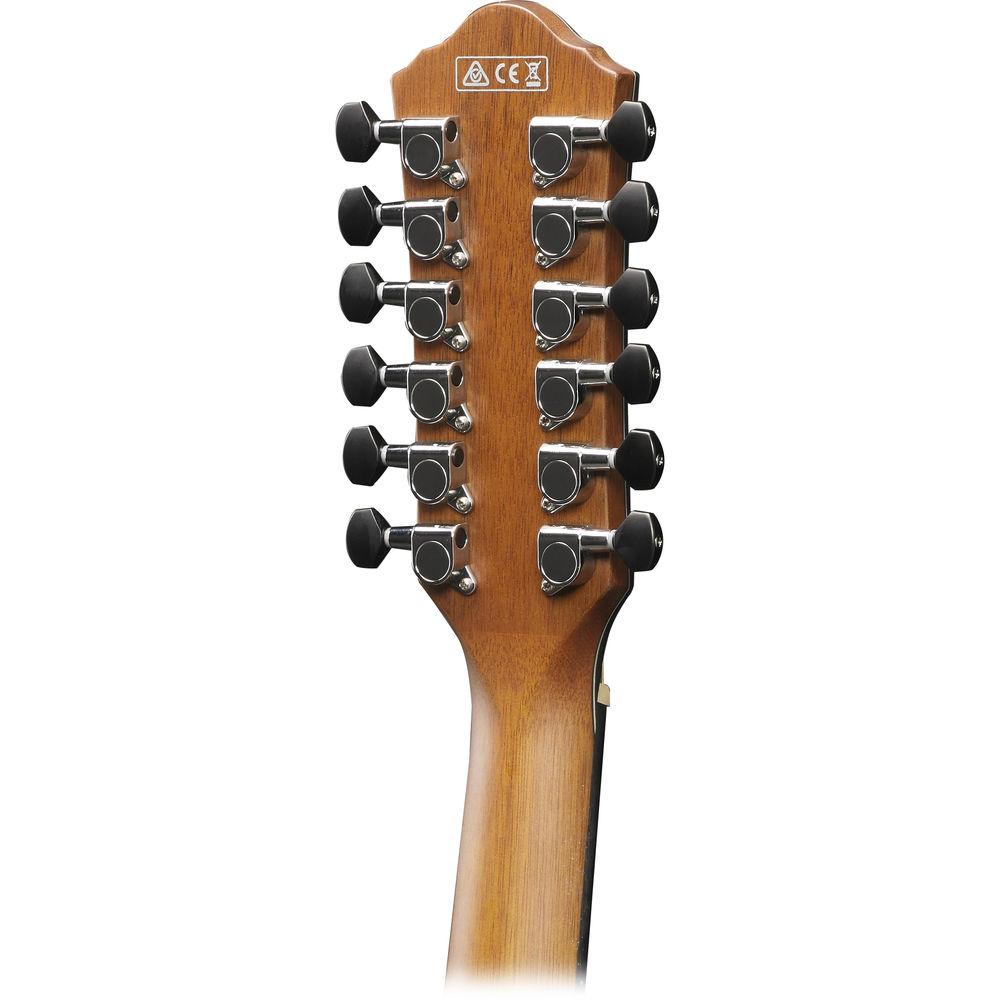

- Chrome die-cast tuners with black knobs
- Black body binding
- Abalone top-board purfling and rosette

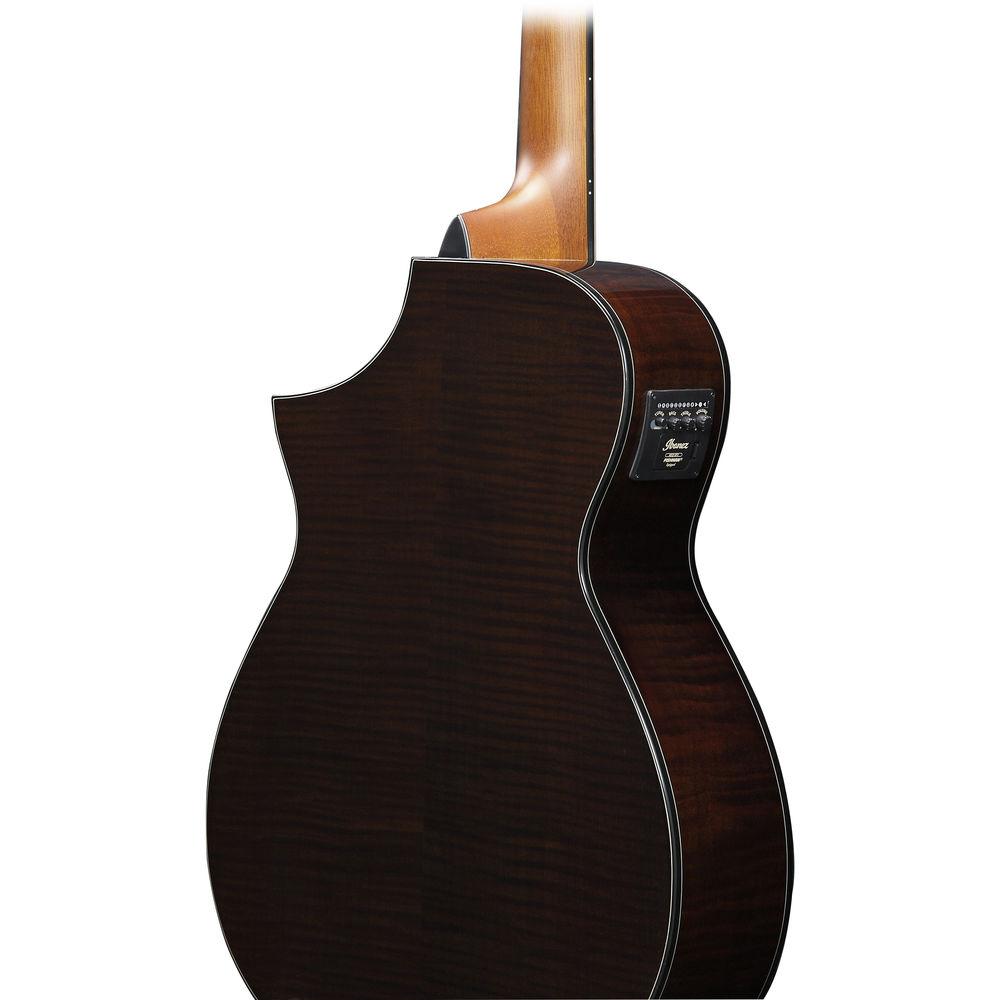

- Ibanez AEQ-SP2 preamp with built-in tuner
- Preamp utilizes a single 9V battery
- Fishman Sonicore pickup
- Ibanez Advantage bridge pins
- Balanced XLR and 1/4" instrument output jacks
- High gloss tiger burst finish on top, back, and sides
- Satin finish on neck back
- Neck Dimensions
-
- Scale: 24.95" / 634.0mm
- Width at Nut:1.8" / 45.0mm
- Width at 14th Fret: 2.2" / 57.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 7th: 0.9" / 22.0mm
- Radius: 15.7" / 400.0mm
- Body Dimensions
-
- Length: 19.8" / 501.7mm
- Width: 15.0" / 381.0mm
- Max Depth: 4.0" / 101.6mm
In the Box Ibanez AEWC4012FM AEW Series 12-String Acoustic/Electric Guitar (Tiger Burst High Gloss) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware & Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AEWC4012FM AEW Series 12-String Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AEWC4012FM Specs | Right/Left Handed | Right-Handed | | Number of Strings | 12 | | Cutaway | Single-Cutaway | | Body Wood | Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 24.96" / | | Radius | 15.75" OR | | Nut Width | 45 mm | | Bridge Type | Rosewood | | Pickguard | No | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 |
