User Manual for Ibanez AF55 Artcore Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AF55 Artcore Series Hollow-Body Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AF55 Artcore Series Hollow-Body Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

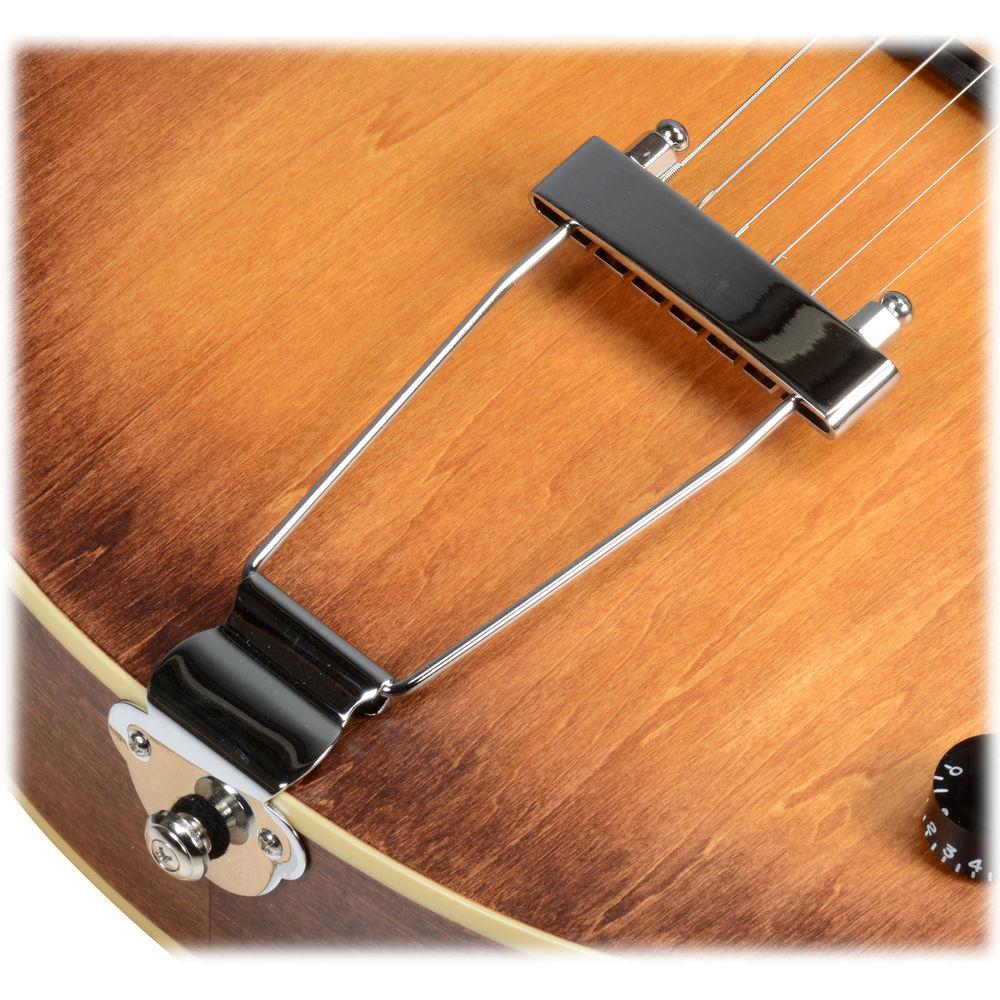

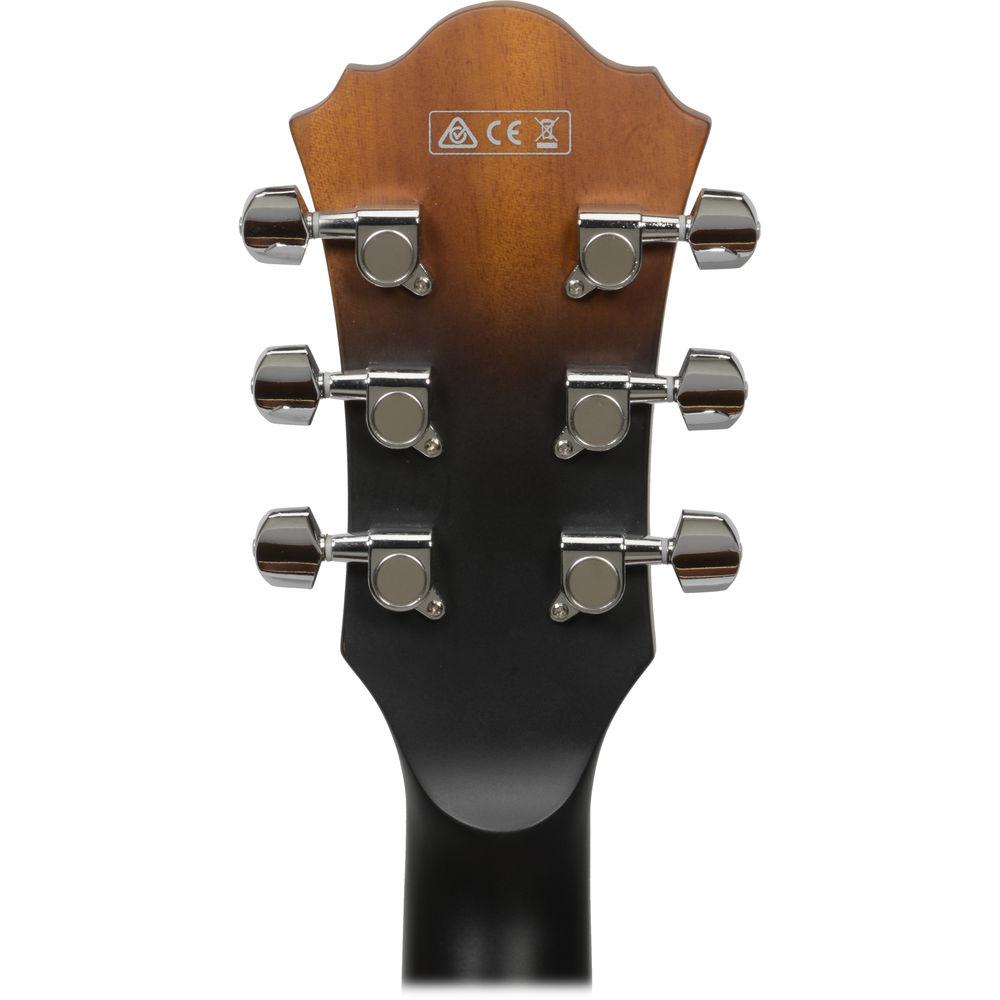

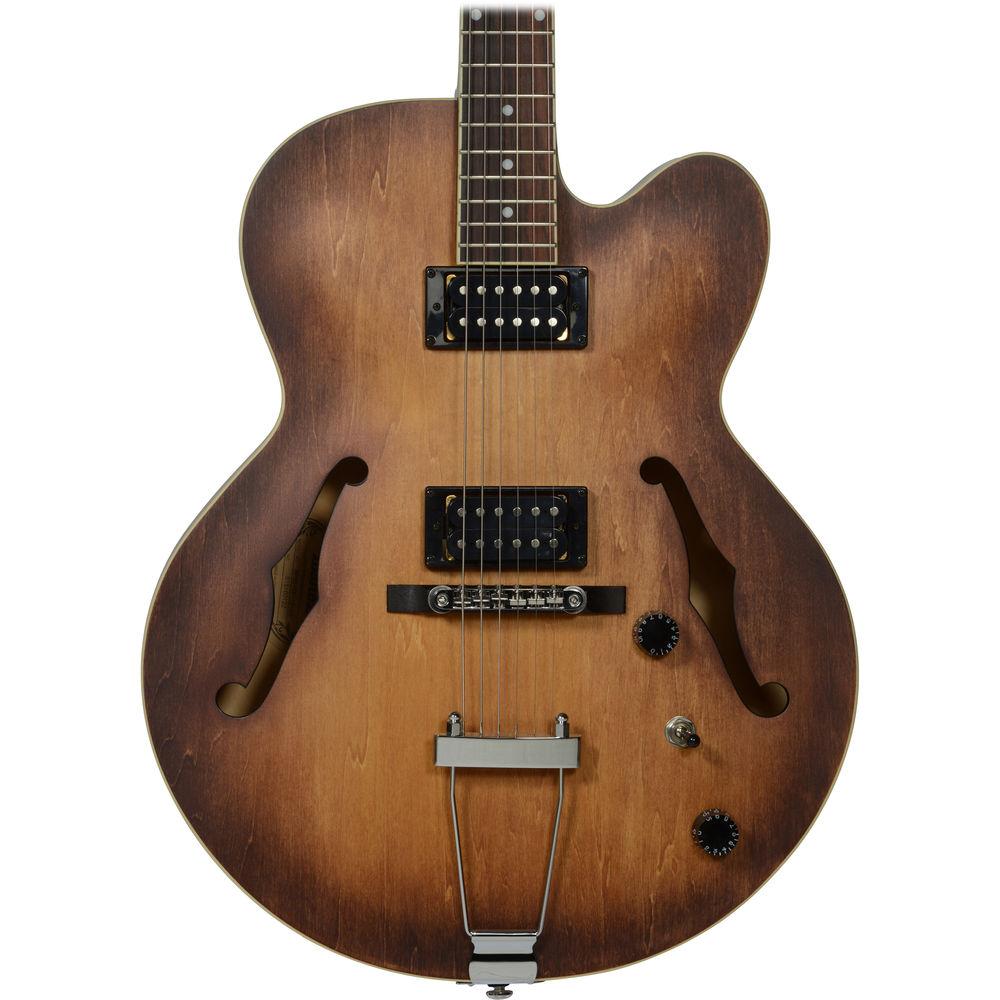

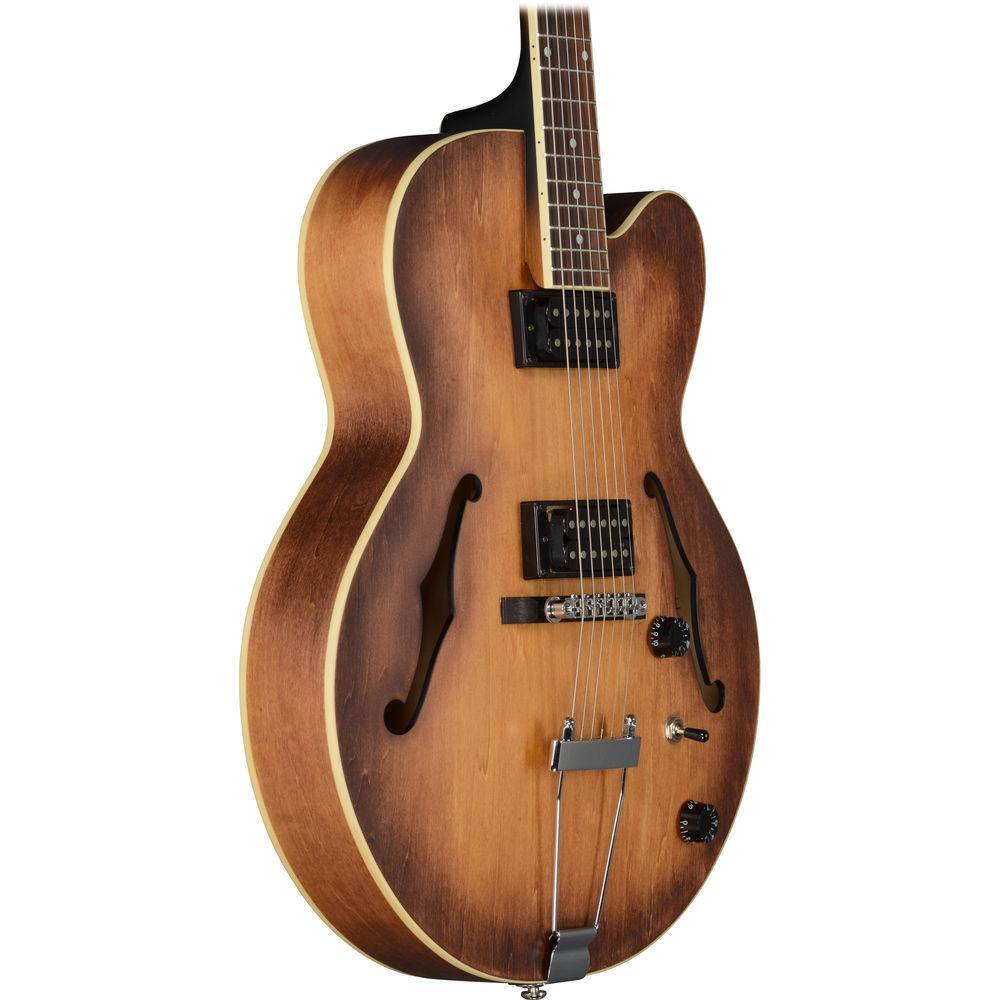

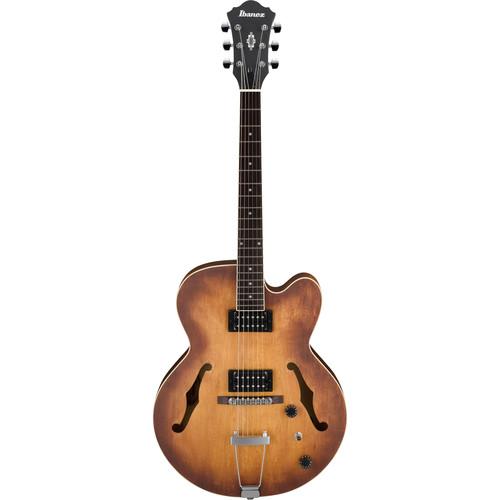

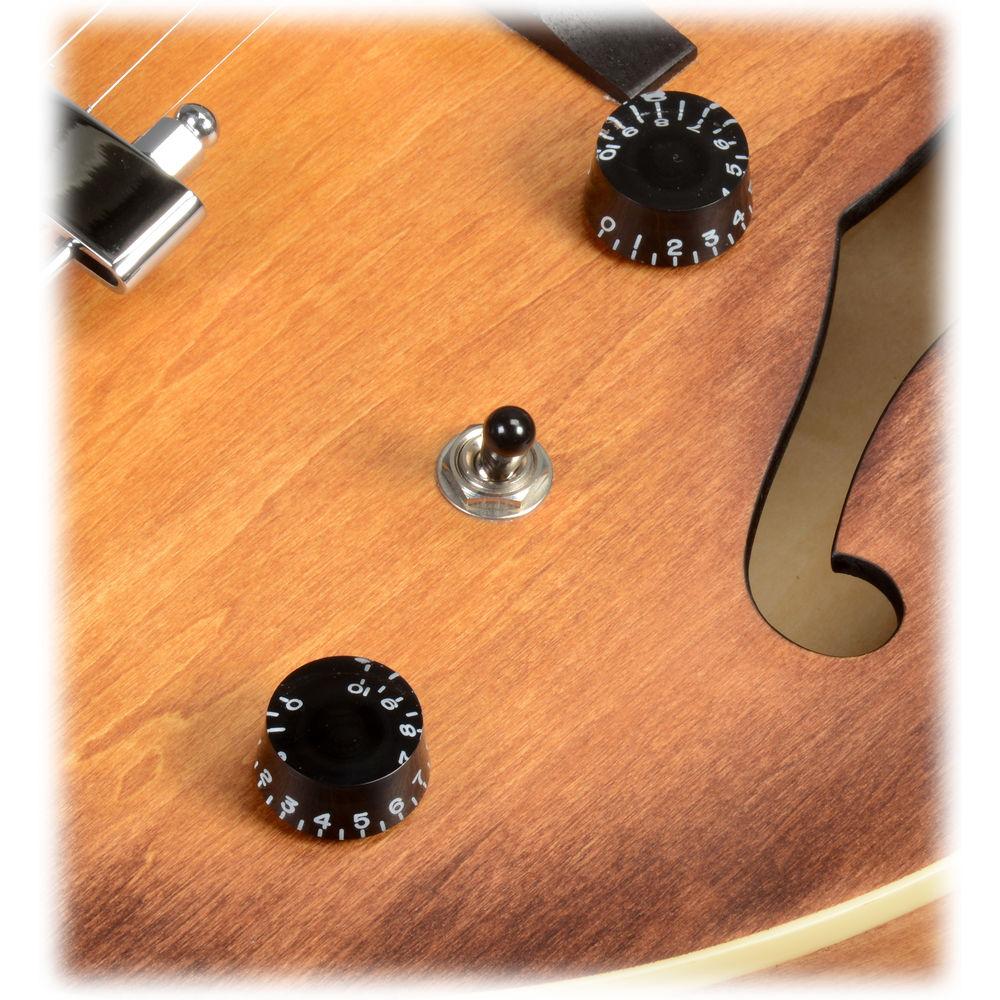

Product description The Artcore Series AF55 from Ibanez is a hollow-body electric guitar which has a body constructed with a maple top, a maple back and sides, and a set-in mahogany neck with a tobacco flat finish. The single-cutaway hollow body delivers a warm, resonant sound that is well suited for blues, country, rock, and jazz. The neck is fitted with a 20-fret bound rosewood fingerboard which has white dot inlays and chrome tuners. The strings are anchored by an ART-ST Tune-O-Matic bridge and VT06 trapeze tailpiece.For electronics, the AF55 is equipped with a pair of Infinity R humbucking pickups in the neck and bridge positions, along with a 3-way pickup selector switch, and master volume and tone controls. - General Features
-
- Neck Type: Artcore mahogany set-in neck

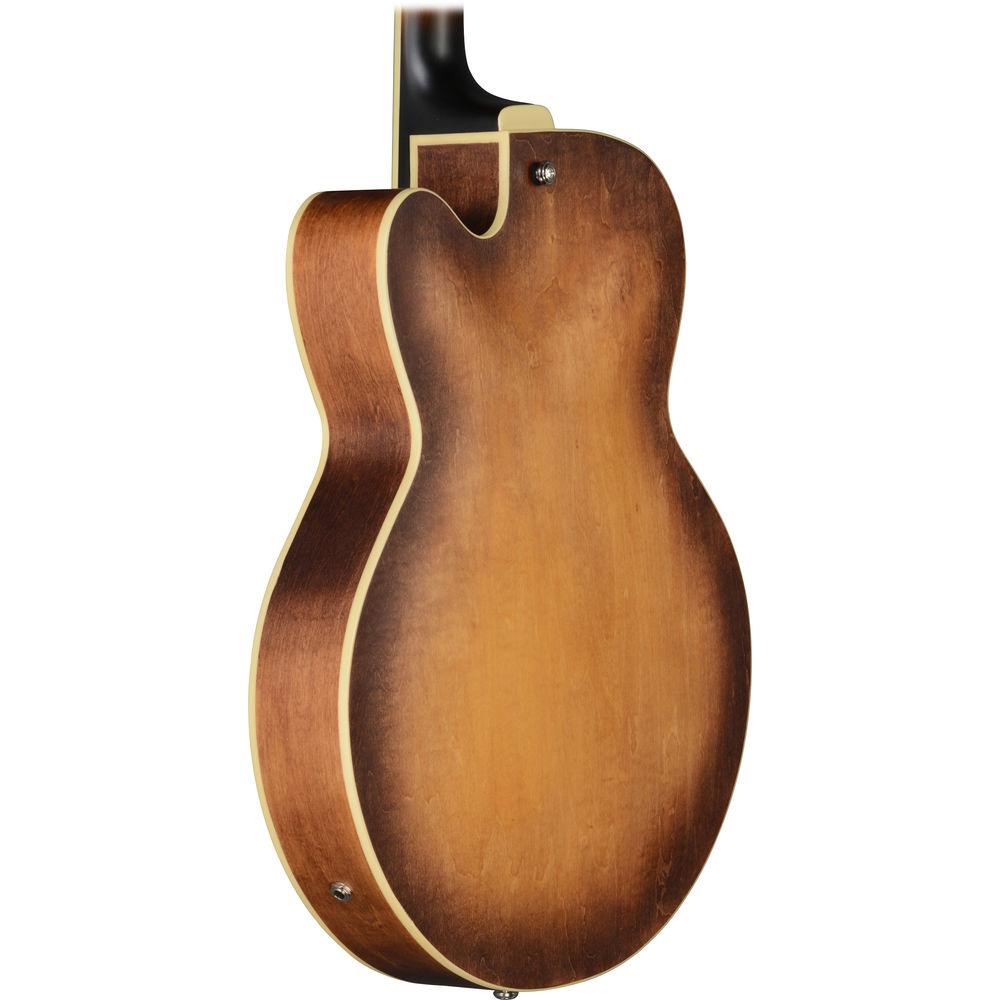

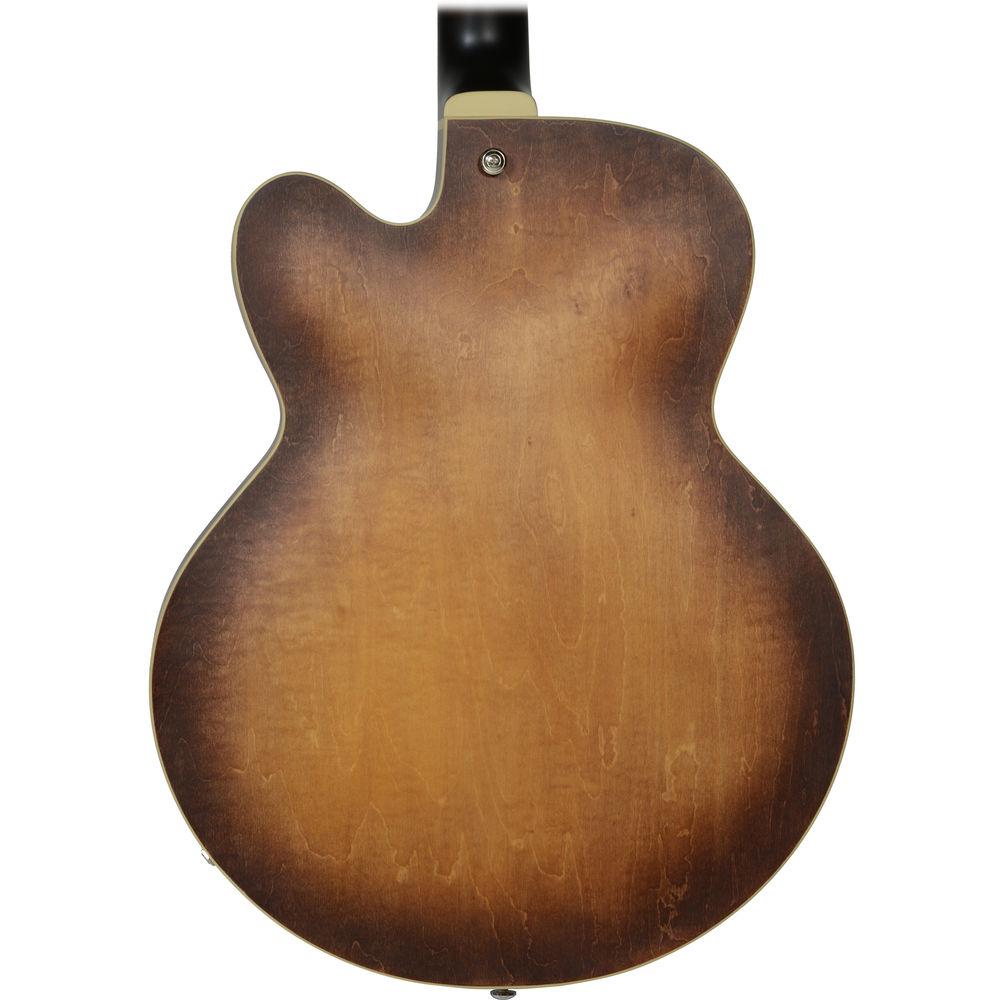

- Body: Maple top/back/sides

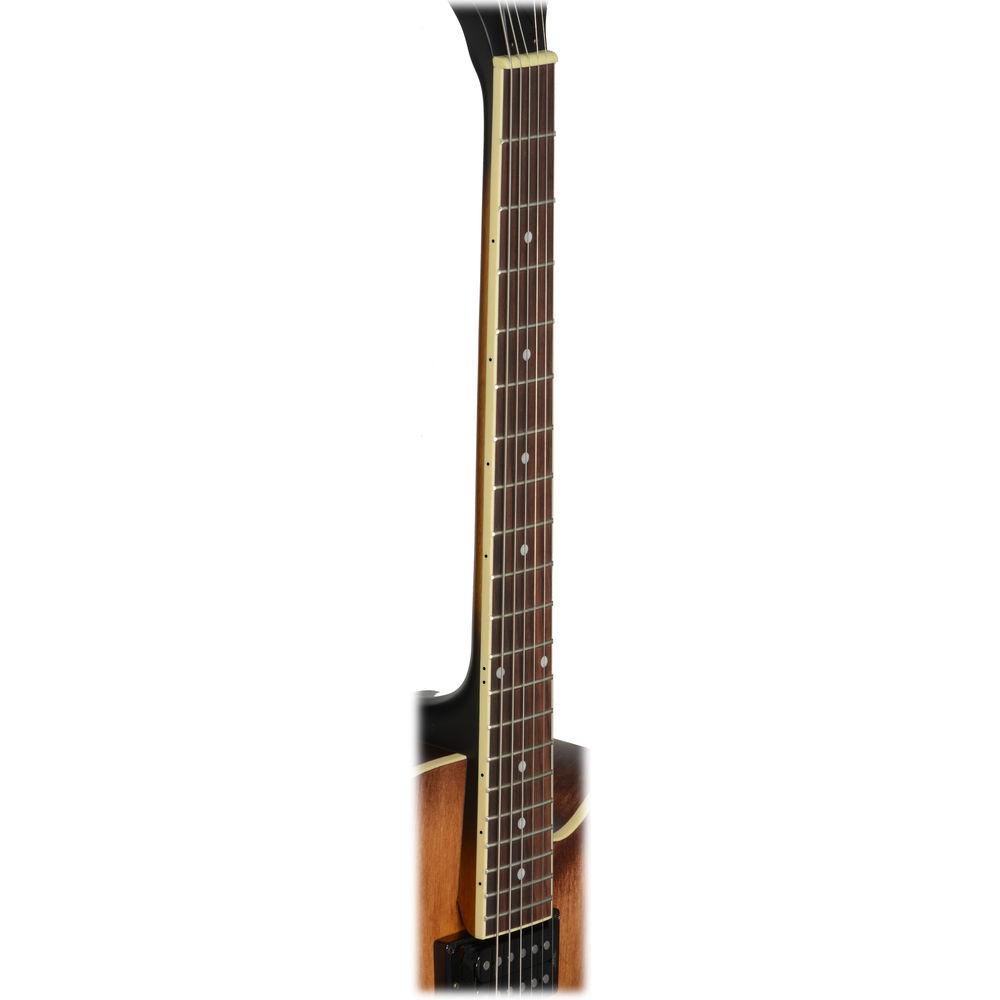

- Fingerboard: Bound rosewood fingerboard with white dot inlay
- Frets: 20, Medium frets
- Bridge: ART-ST
- Tailpiece: VT06
- Neck Pickup: Infinity R (Humbucker, passive/ceramic)
- Bridge Pickup: Infinity R (Humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 56.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 9th: 0.9" / 24.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 19.5" / 495.3mm
- Width: 15.8" / 400.1mm
- Max Depth: 3.6" / 92.1mm
UPC: 606559745326 In the Box Ibanez AF55 Artcore Series Hollow-Body Electric Guitar (Tobacco) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AF55 Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AF55 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Single-Cutaway | | Body Wood | Top: Maple
Back: Maple
Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 12" | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 45.0 x 20.85 x 6.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Ibanez AF55 Artcore Series Hollow-Body Electric Guitar
| Subject: Ibanez AF55 | | Date: 08.01.2022 23:02:29 | Name: Brian Enright | Hello,

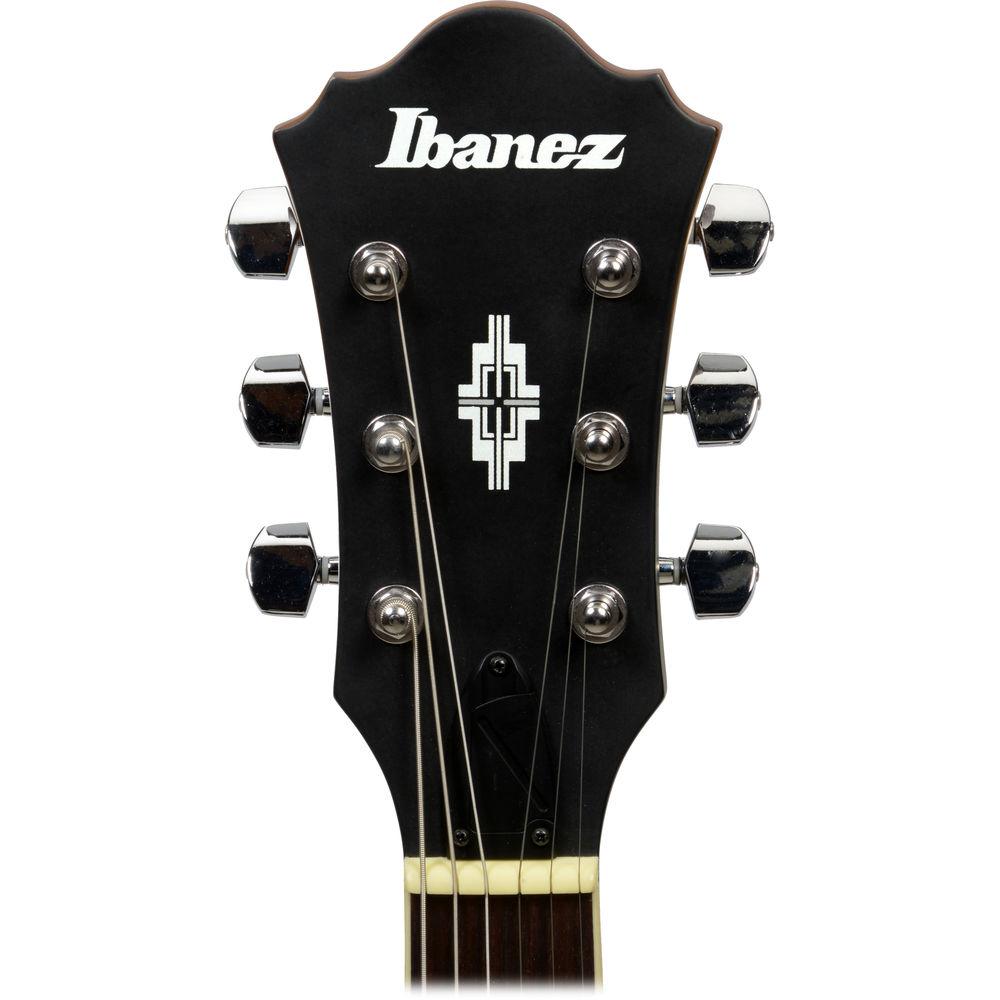

I’m wondering about the headstock inlays. One is a mor floral and one is something of a cross. Is this indicating a model year or place of origin? Also is the AF55 an archtop?
Thank you. | | Post reply |
