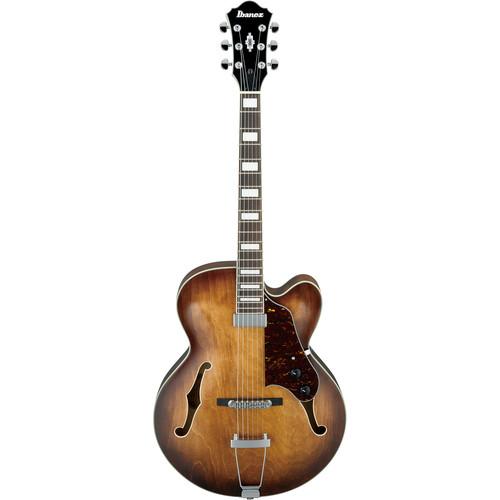

User Manual for Ibanez AF71F Artcore Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AF71F Artcore Series Hollow-Body Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AF71F Artcore Series Hollow-Body Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

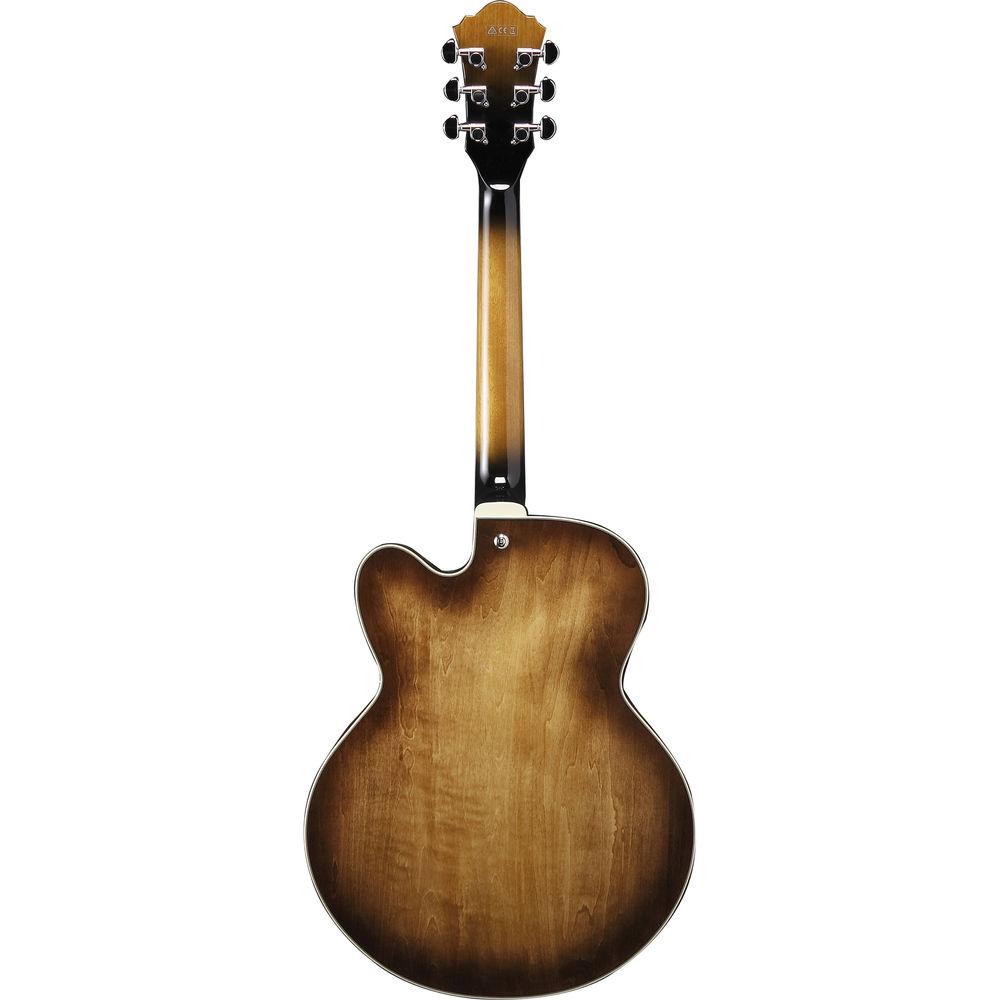

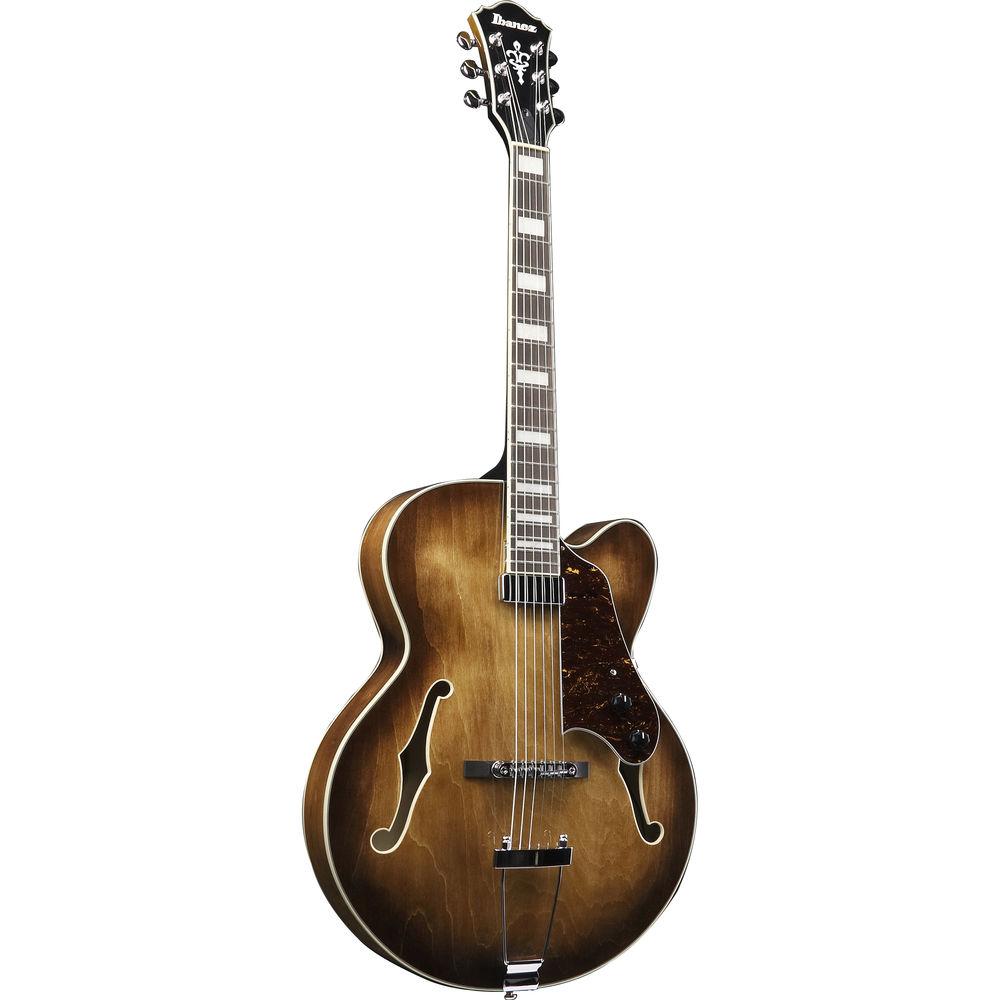

Product description Styled in tobacco brown finish, the Artcore Series AF71F from Ibanez is a hollow-body electric guitar. It features a maple top, back, and sides, and boasts a set-in mahogany neck. The hollow single-cutaway body delivers a warm, resonant sound that is well suited for playing jazz.The neck is fitted with a 20-fret bound-rosewood fingerboard with acrylic block inlays and chrome tuners. The strings are anchored by an ART-1 Tune-O-Matic bridge for sustain and tuning stability, as well as a VT06 tailpiece.For electronics, the AF71F is equipped with a single Classic Elite humbucking pickup in the neck position, perfectly positioned for mainstream, straight-ahead jazz playing. A volume knob and tone knob are provided. Use this to let in some high end, or to dial down the treble for more of that woody, Wes Montgomery sound. The pickup itself offers a rich, nuanced tone with fat low end, which nicely complements the wood's inherent tonal qualities. - Classic Elite Pickups
-
- The Classic Elite pickups offer rich, nuanced tone with fat low end
- General Features
-
- Neck Type: Artcore AF mahogany set-in neck
- Body: Maple top/back/sides
- Fingerboard: Bound rosewood fingerboard with acrylic block inlay
- Frets: 20, Medium frets
- Bridge: ART-1
- Tailpiece: VT06
- Neck Pickup: Classic Elite (humbucker, passive/alnico)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628mm
- Width at Nut: 1.7" / 43mm
- Width at Last Fret: 2.2" / 56mm
- Thickness at 1st Fret: 0.8" / 21mm
- Thickness at 9th Fret: 0.9" / 24mm
- Radius: 12" / 305mm
- Body Dimensions
-
- Length: 19.5" / 495.3mm
- Width: 15.8" / 400.1mm
- Max Depth: 3.6" / 92.1mm
In the Box Ibanez AF71F Artcore Series Hollow-Body Electric Guitar (Tobacco Brown) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AF71F Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AF71F Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Single-Cutaway | | Body Wood | Top: Maple
Back: Maple
Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 12" | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | Yes | | Pickups | Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 3-Way Pickup Selector Switch |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
