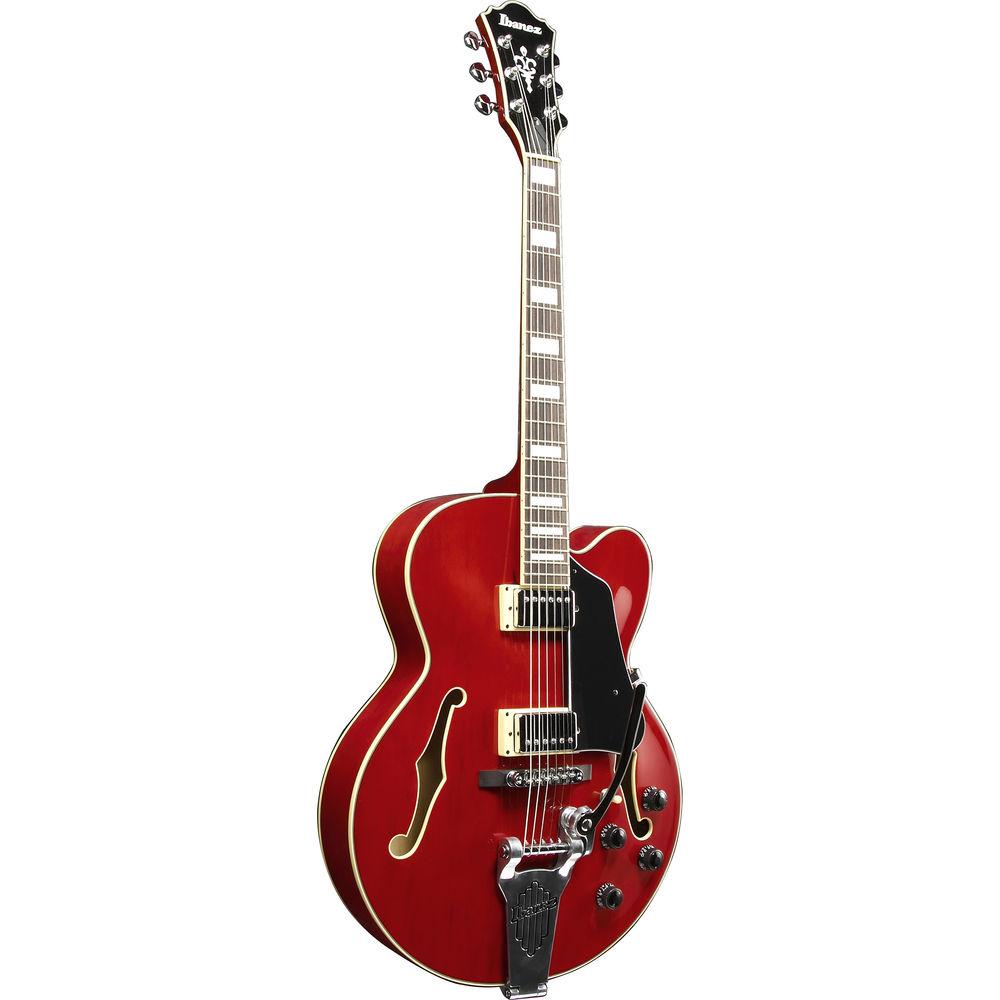

User Manual for Ibanez AF75T Artcore Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AF75T Artcore Series Hollow-Body Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AF75T Artcore Series Hollow-Body Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

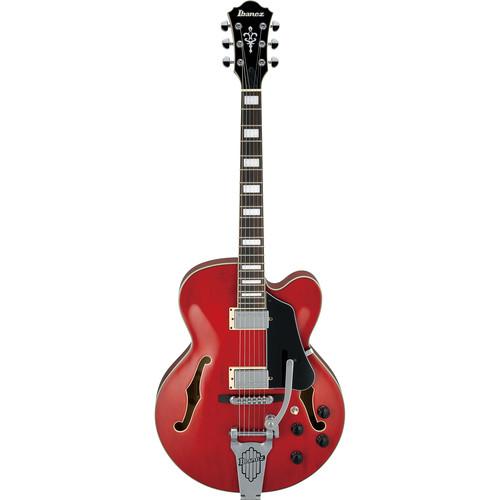

Product description Get to the Core of Your Art with these Ibanez Guitars Read More The Artcore Series AF75T from Ibanez is a hollow-body electric guitar made of maple for the top, back, and sides, and has a set-in mahogany neck with a transparent cherry red gloss finish. The hollow single-cutaway body delivers a warm, resonant sound that is well suited for playing jazz, blues, country, and rock. The neck is fitted with a 20-fret bound rosewood fingerboard which has acrylic block inlays and chrome tuners. The strings are anchored by an ART-2 roller bridge and VBF70 vibrato tailpiece. For electronics, the AF75T is equipped with a pair of Classic Elite humbucking neck and bridge pickups, along with a 3-way pickup selector switch, and individual volume and tone controls for each pickup. The pickups offer a rich, nuanced tone with fat lows which nicely complements the wood's inherent tonal qualities. This affordably priced instrument is highly respected for its tone, sustain, and ability to hold its tuning, making it an ideal choice for players of all levels. - Classic Elite Pickups
-
- The Classic Elite pickups offer rich, nuanced tone with fat low end
- Sure Grip Knobs
-
- Designed for precise control of knobs with non-slip functionality, while offering a classic look
- General Features
-
- Neck Type: Artcore mahogany set-in neck

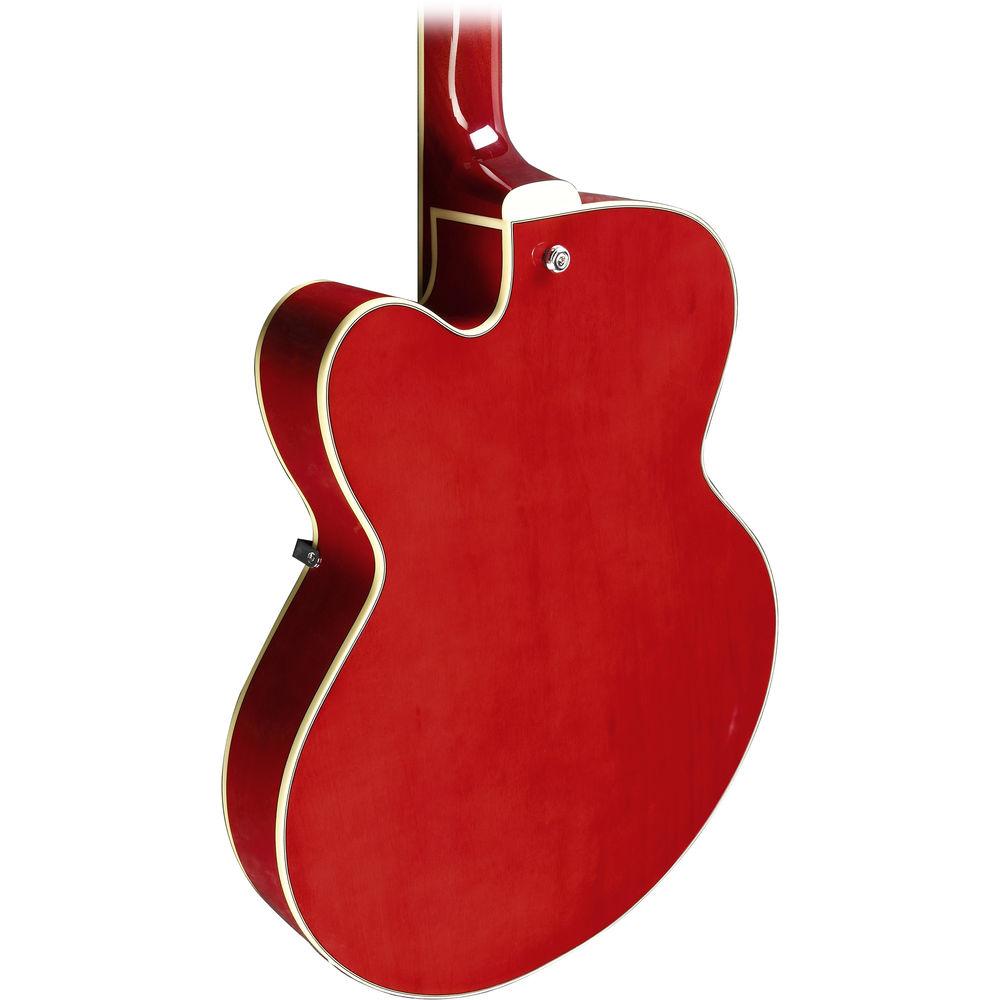

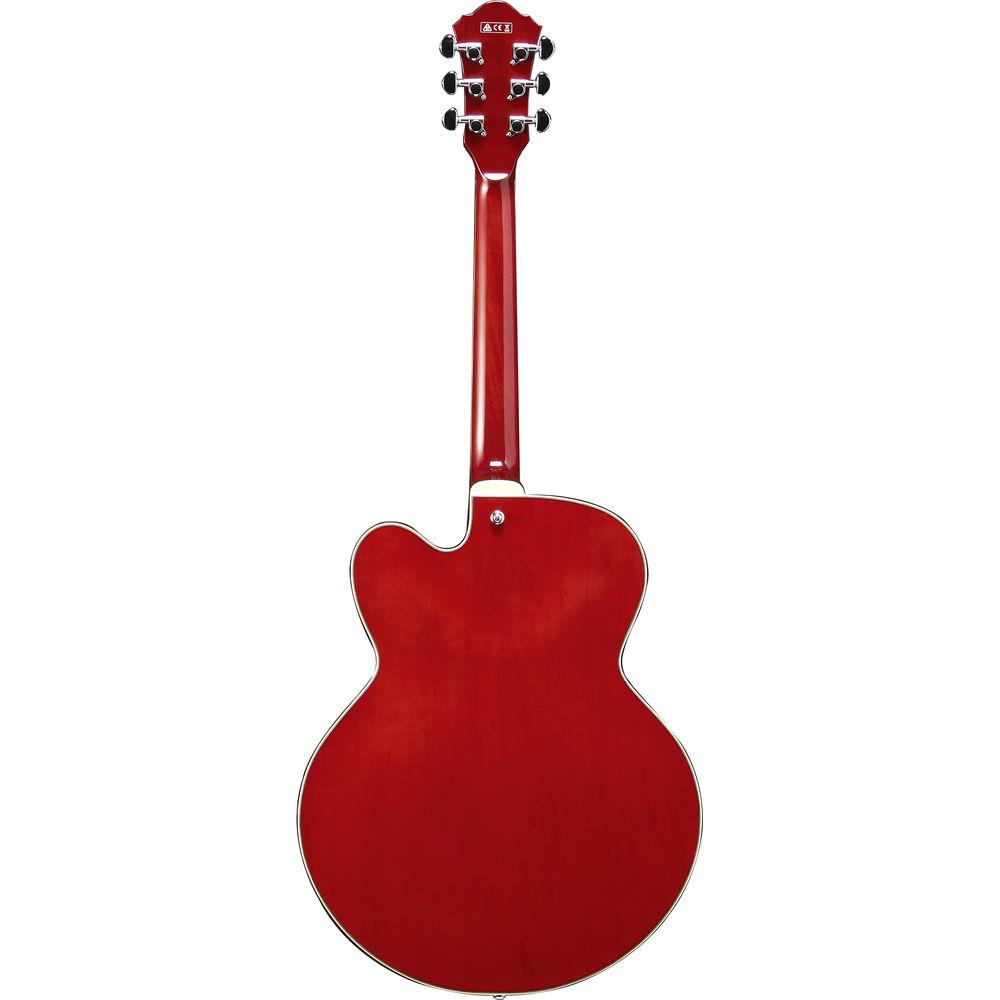

- Body: Maple top/back/sides
- Fingerboard: Bound rosewood fingerboard with acrylic block inlay
- Frets: 20, Medium frets
- Bridge: ART-2 roller bridge
- Tailpiece: VBF70
- Neck Pickup: Classic Elite (Humbucker, passive/ceramic)
- Bridge Pickup: Classic Elite (Humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 56.0mm
- Thickness at 1st Fret: 0.8" / 21.0mm
- Thickness at 9th Fret: 0.9" / 24.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 19.5" / 495.3mm
- Width: 15.7" / 400.0mm
- Max Depth: 3.6" / 92.1mm
In the Box Ibanez AF75T Artcore Series Hollow-Body Electric Guitar (Transparent Cherry Red) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AF75T Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AF75T Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Single-Cutaway | | Body Wood | Top: Maple
Back: Maple
Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 12" OR | | Nut Width | 43 mm | | Bridge Type | Tremolo | | Pickguard | Yes | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 45.4 x 21.0 x 6.2" |
