User Manual for Ibanez AGS73FM Artcore 6-String Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AGS73FM Artcore 6-String Electric Guitar
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AGS73FM Artcore 6-String Electric Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

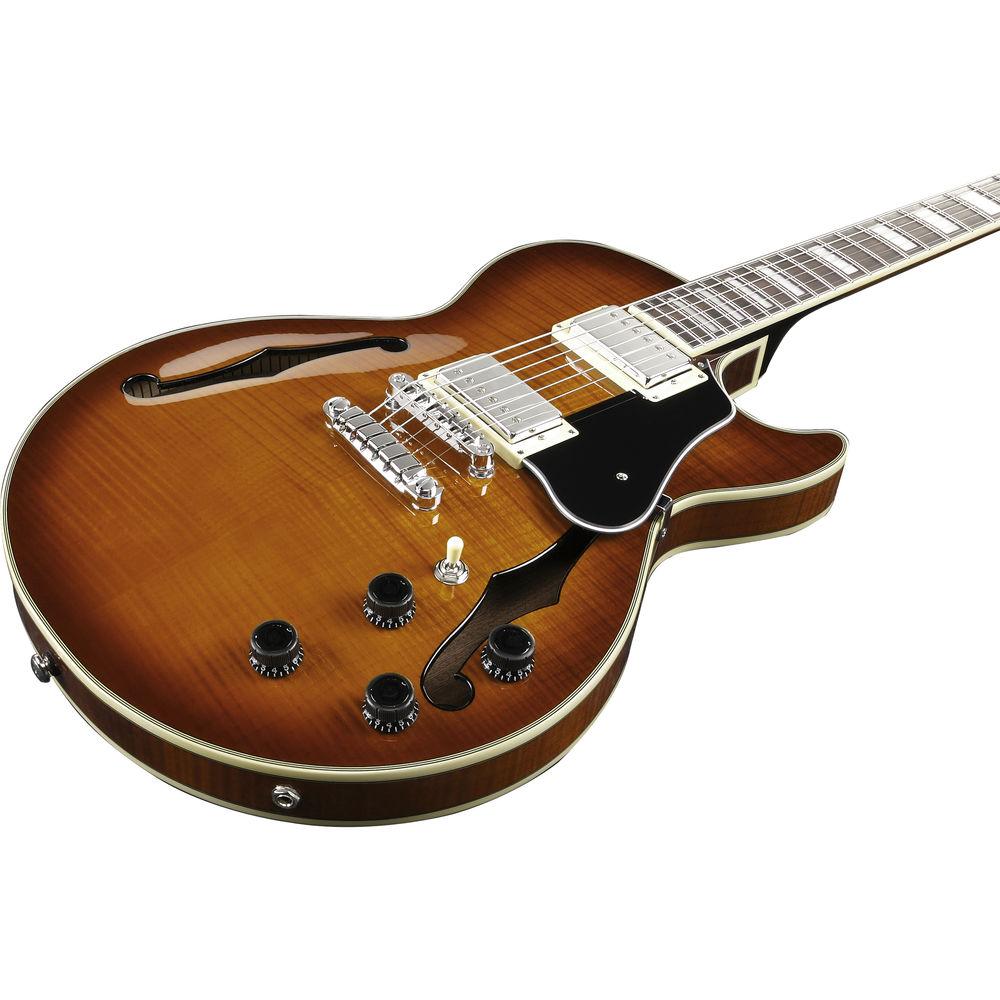

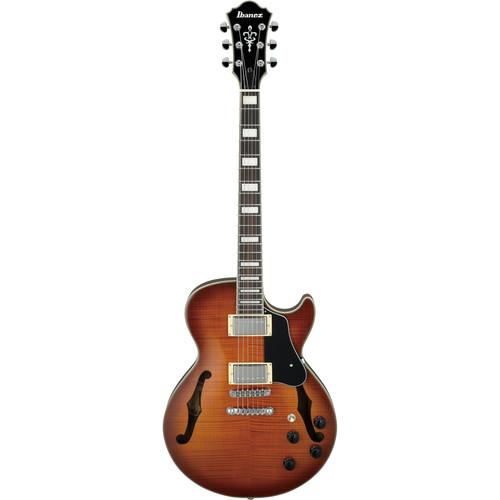

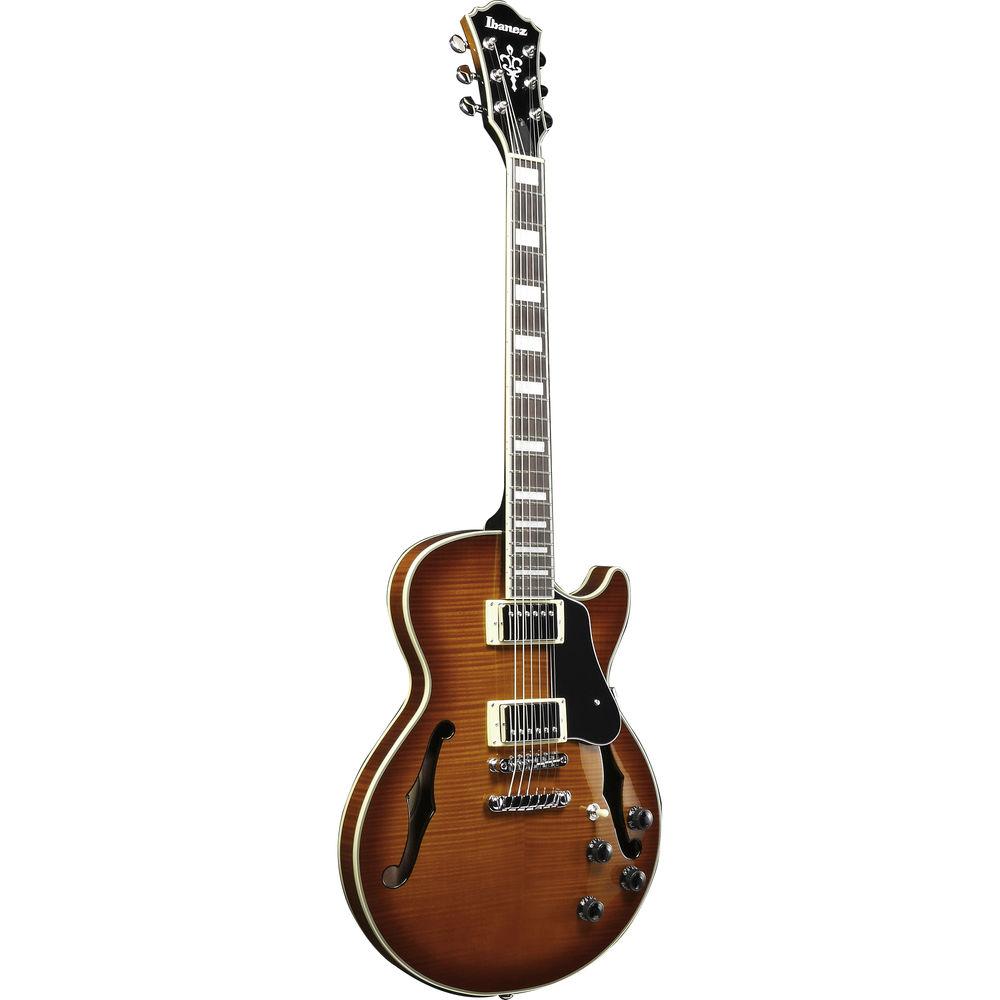

Product description Styled in a violin sunburst finish, the Ibanez Artcore Series AGS73FM is a hollow-body electric guitar which has a body constructed with a flamed maple top, flamed maple back and sides, and a set-in mahogany neck. The single-cutaway hollow body delivers a warm, resonant sound that is well suited for blues, country, rock, and jazz. The 27.5" scale neck sports a bound rosewood fingerboard with 22 frets and acrylic block inlays. The strings are anchored by an ART-1 tune-o-matic bridge and a Quik Change III tailpiece. For electronics, this guitar is outfitted with a pair of Classic Elite humbucking pickups courtesy of Ibanez. Dedicated volume and tone knobs are provided for each humbucker, giving you the ability to dial in specific timbres for each pickup. You can then switch or blend between the humbuckers with a three-position toggle switch. - General Features
-
- Neck Type: Artcore AGS mahogany set-in neck
- Body: Flamed maple top, back, and sides
- Fingerboard: Bound rosewood fingerboard with acrylic block inlays
- Frets: 22, Medium frets
- Bridge: ART-1
- Tailpiece: Quik Change III tailpiece
- Neck Pickup: Classic Elite (Humbucker, passive/ceramic)
- Bridge Pickup: Classic Elite (Humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 57.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 9th: 0.9" / 24.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 18.9" / 479.4mm
- Width: 14.5" / 368.3mm
- Max Depth: 2.9" / 73.0mm
In the Box Ibanez AGS73FM Artcore 6-String Electric Guitar (Violin Sunburst) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AGS73FM Artcore 6-String Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AGS73FM Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Single-Cutaway | | Body Wood | Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 305 mil | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch |
