User Manual for Ibanez AM153QA Artstar Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AM153QA Artstar Hollow-Body Electric Guitar
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AM153QA Artstar Hollow-Body Electric Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

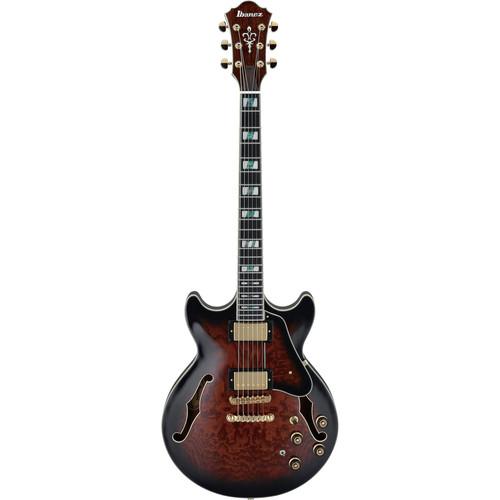

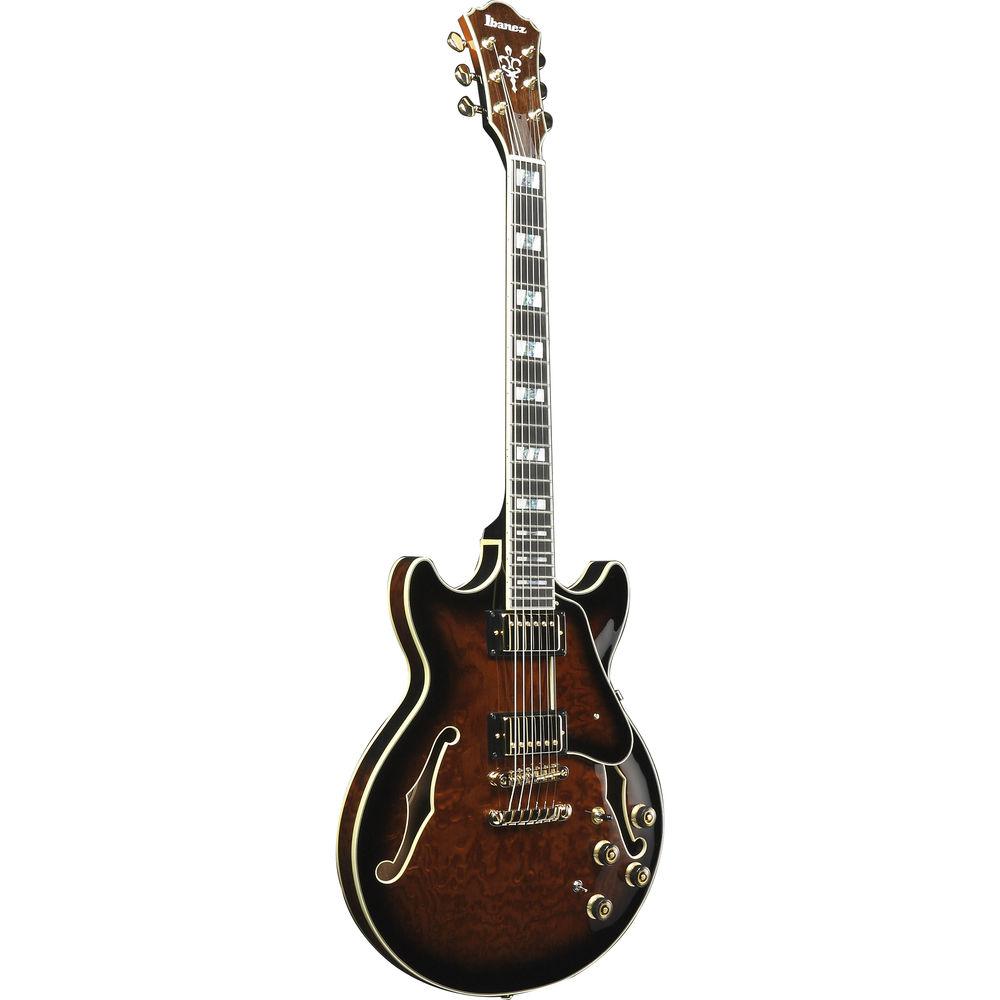

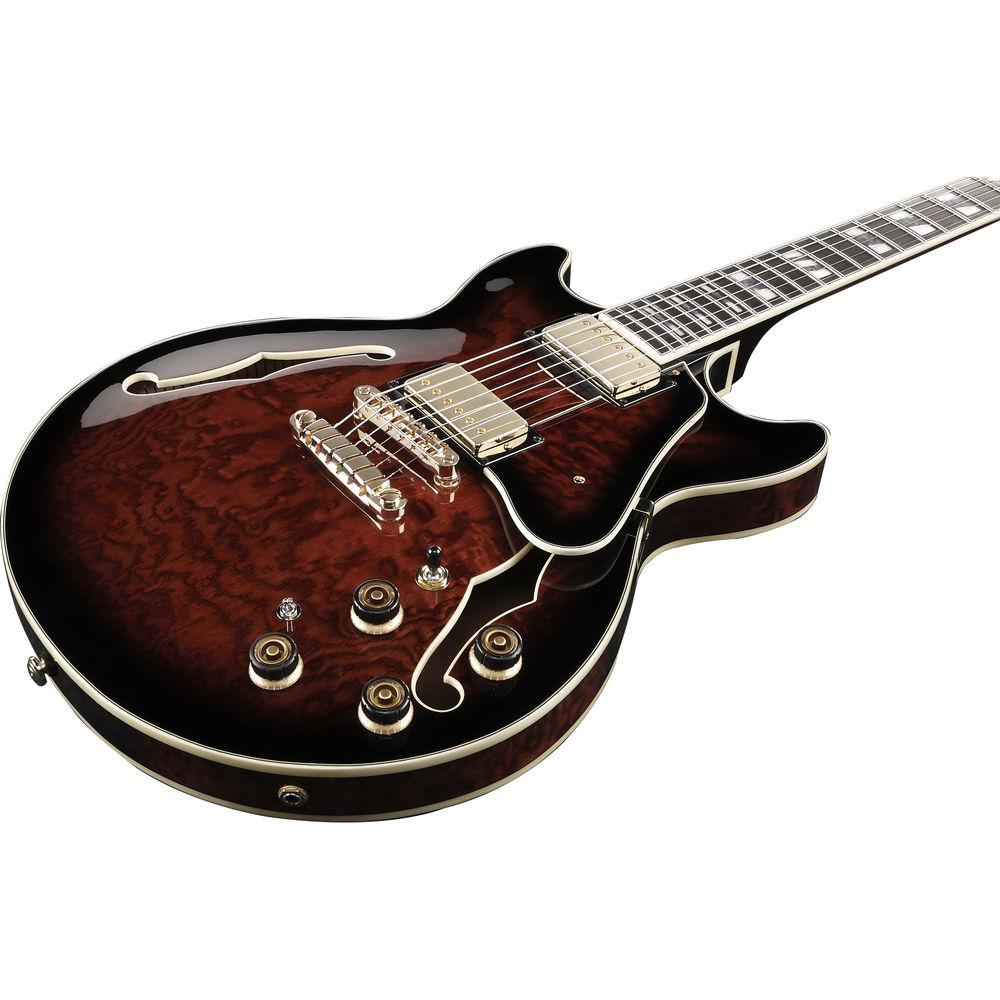

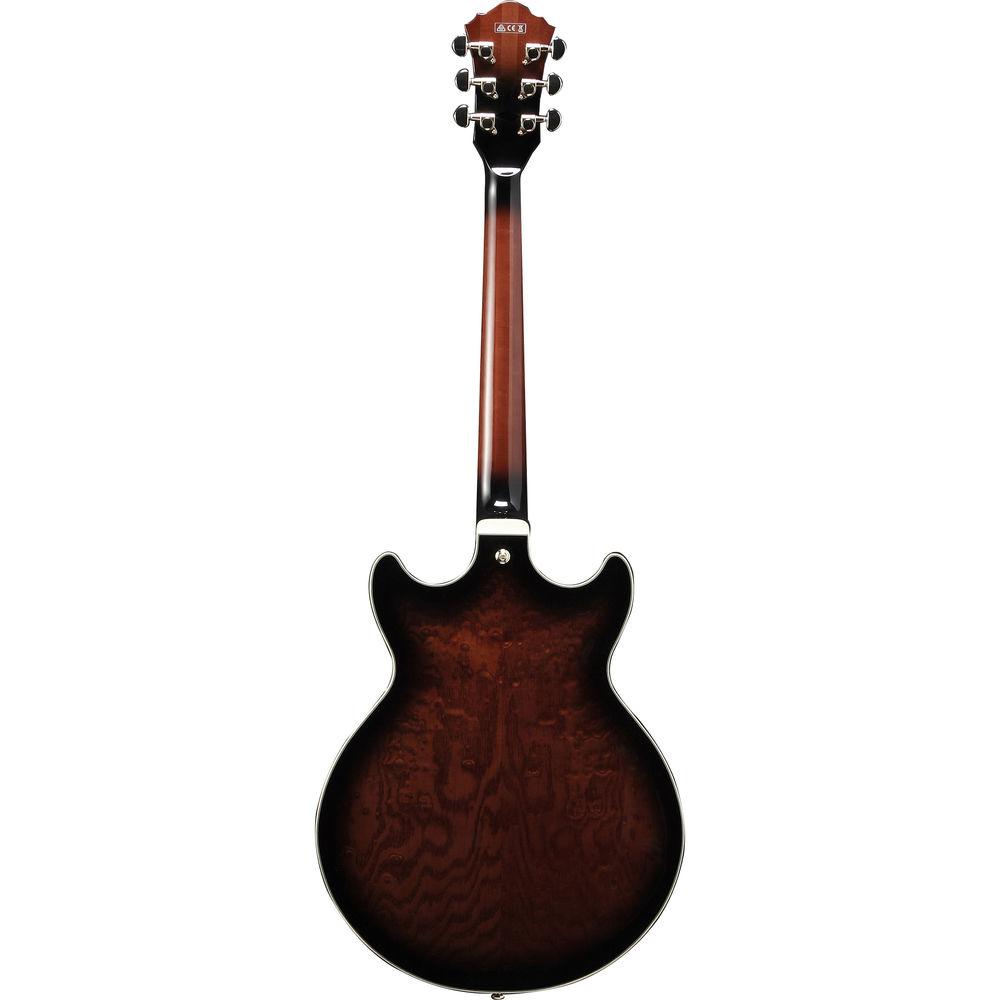

Product description Styled in a dark brown sunburst finish, the Ibanez Arstar Series AM153QA is a hollow-body electric guitar with a double cutaway design. It sports a set-in, three-piece maple/mahogany neck measuring 24.7" in scale and offering a bound ebony fingerboard with 22 medium frets, a 305mm radius, and acrylic and abalone block inlays. The body is fashioned entirely out of quilted ash.
For electronics, the instrument boasts two Super 58 humbucking pickups. The neck pickup can be split into a parallel wiring configuration by means of a Tri-Sound switch. Otherwise, you're offered two volume knobs and two tone knobs—one for each pickup—and a three-way pickup selector for accessing the instrument's various timbres. Gold hardware is employed throughout, and strings are anchored to the body by means of an ART-1 bridge and Quik Change III tailpiece. A hardshell case is included. - Super 58 Pickups
- The Super 58 pickups deliver smooth, nuanced tones, as well as a biting growl suitable for blues music.
- ART-1 Bridge
- The ART-1 bridge bolsters sustain and tuning stability.
- Quik Change III Tailpiece
- The Quik Change III tailpiece enables quick and easy string changing.
- Ebony Fingerboard with Artstar Fret Edge Treatment
- The Ebony fingerboard with Artstar fret edge treatment produces a tight low end and midrange, as well as a noticeable attack in the treble register. The fingerboard also reinforces a quick response and rich sustain.
- Tri-Sound Switch for Neck Pickup
- This instrument sports a Tri-Sound switch for the neck pickup. Choose from series and parallel wiring configuration for tonal variety.
- Ebony Fingeboard with Prestige Fret Edge Treatment
- Ebony produces a tight bass and midrange response with an iconic attack on the high end. It also features a quick response and rich sustain.
- Sure Grip III Knobs
- The Sure Grip III knobs are designed for precise control with nonslip functionality along with smooth and classic looks.
- Bone Nut
- The Bone nut provides a balanced, rich tone.
- General Features
-
- Artstar AM three-piece mahogany/maple set-in neck
- Quilted ash top, back, and sides
- Bound ebony fingerboard with acrylic and abalone block inlays
- Medium frets with Artstar Fret Edge Treatment
- ART-1 tune-o-matic style bridge
- Quik Change III tailpiece
- Neck Pickup: Super 58 humbucking pickup (passive/alnico)
- Neck Pickup: Super 58 humbucking pickup (passive/alnico)
- Bone nut
- Gold hardware
- Included hardshell case
- Neck Dimensions
-
- Scale: 24.7" / 628mm
- Width at Nut: 1.7" / 43mm
- Width at Last Fret: 2.2" / 57mm
- Thickness at 1st Fret: 0.8" / 21mm
- Thickness at 12th Fret: 0.9" / 24mm
- Radius: 12" / 305mm
- Body Dimensions
-
- Body Length: 17.6" / 447.7 mm
- Width Length: 14.5" / 368.3mm
- Max Depth: 2.6" / 66.7mm
In the Box Ibanez AM153QA Artstar Hollow-Body Electric Guitar (Dark Brown Sunburst) Limited 1-Year Warranty Hardshell Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AM153QA Artstar Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AM153QA Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Ash | | Neck Type | Set Neck | | Neck Wood | Mahogany, Maple | | Fingerboard | Ebony | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.72" / 628 mm | | Radius | 305 mil | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | Yes | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch 1 x Tri-Sound Switch for Parallel & Coil-Tap Wirings |
