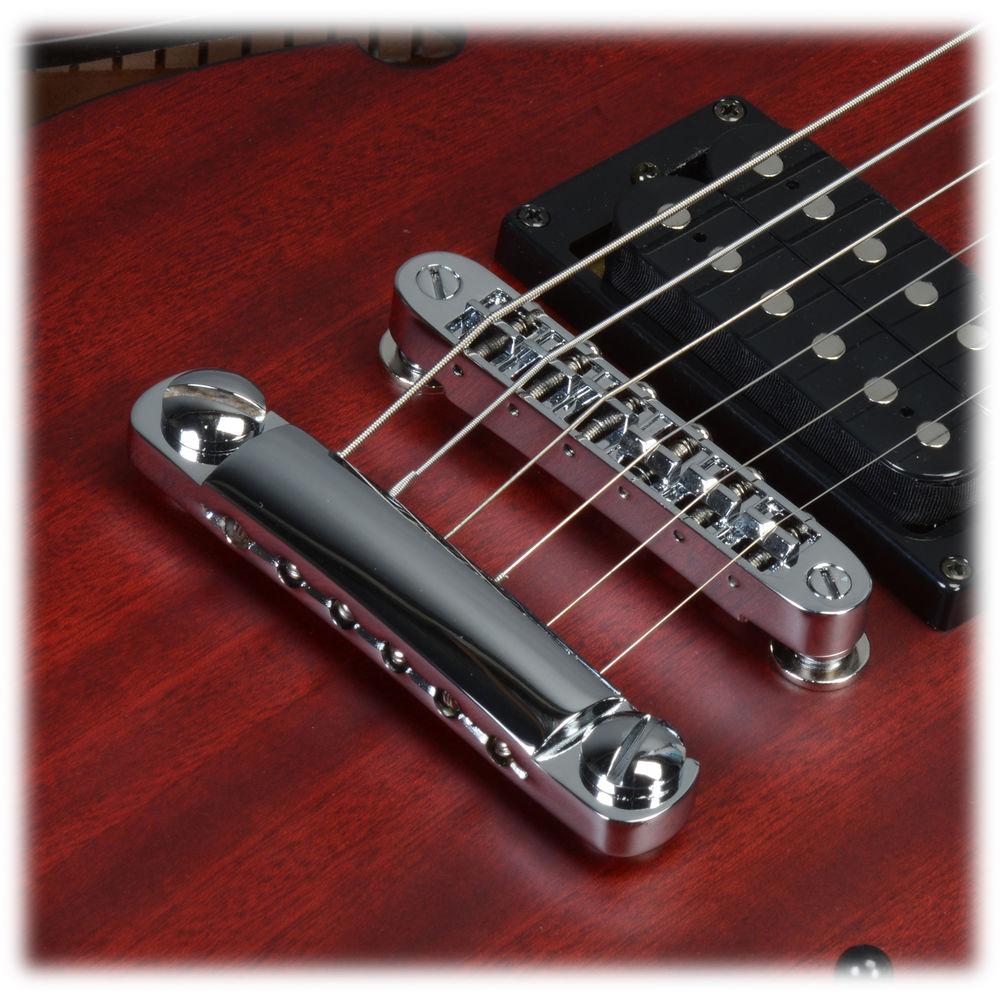

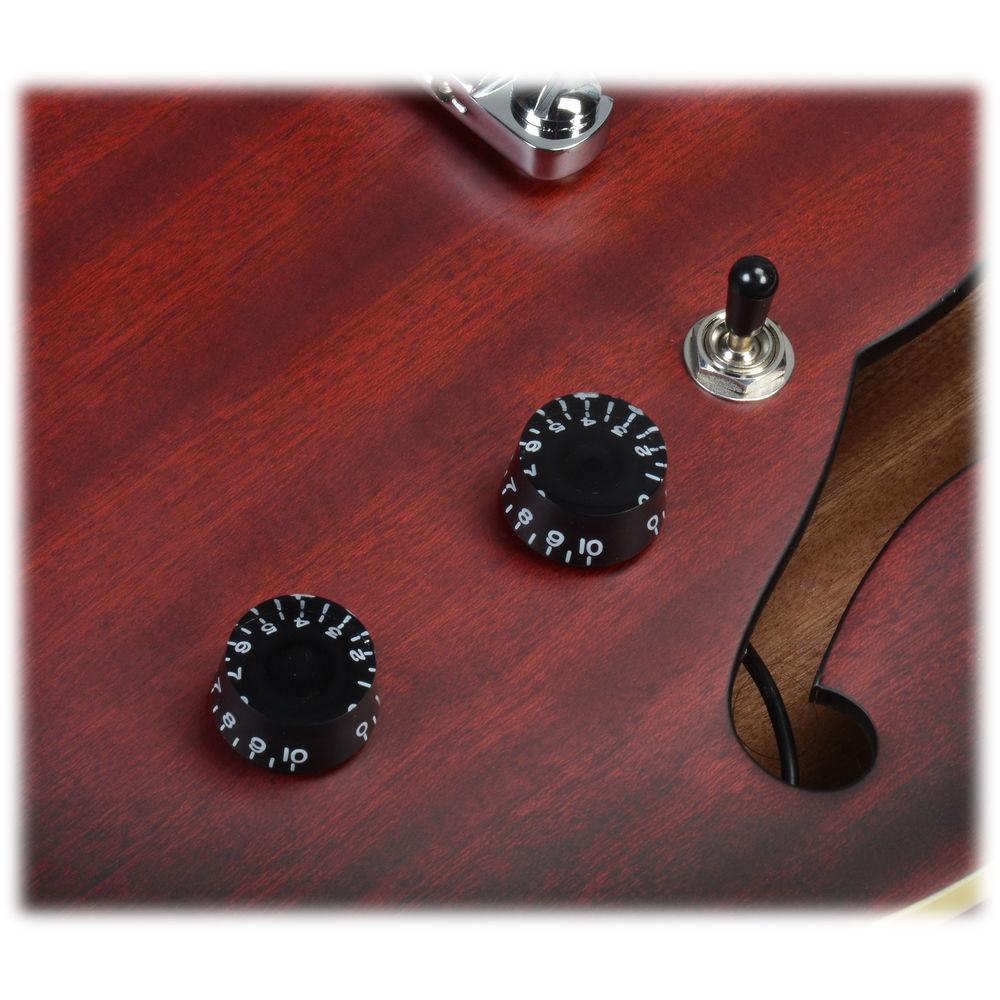

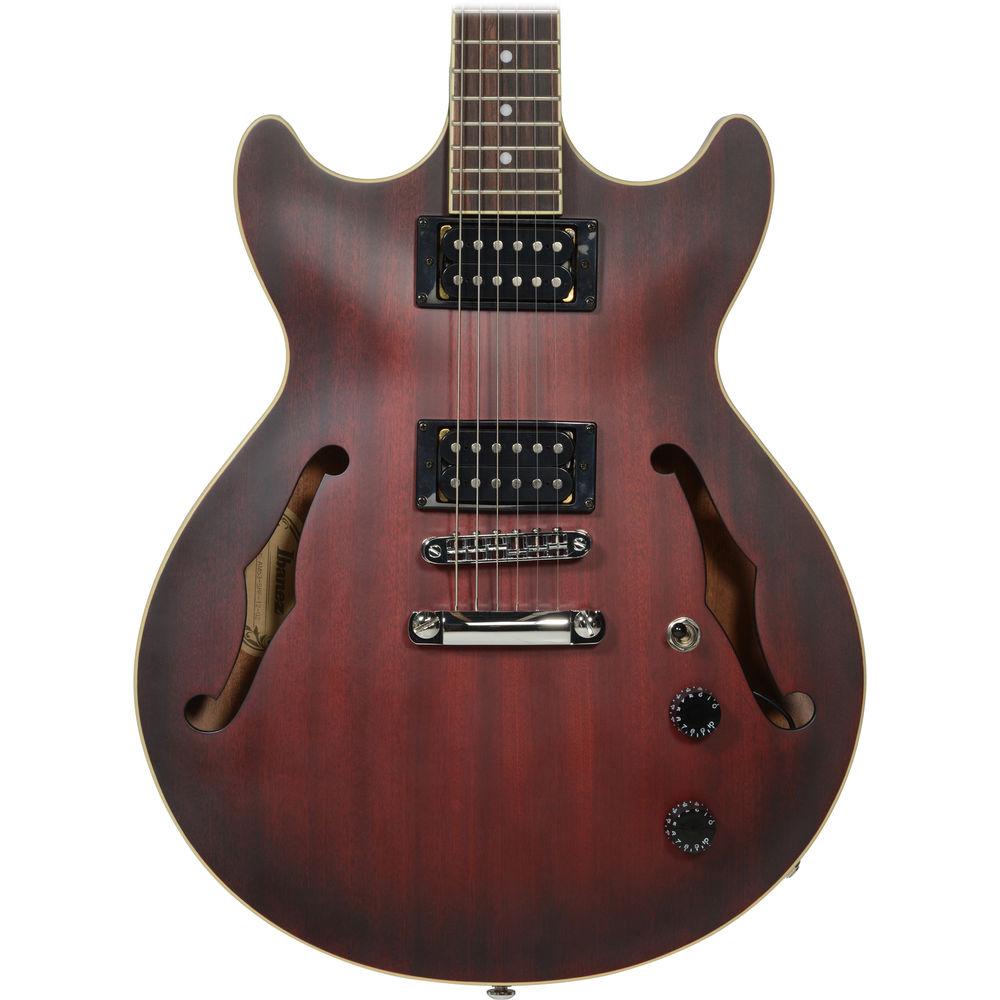

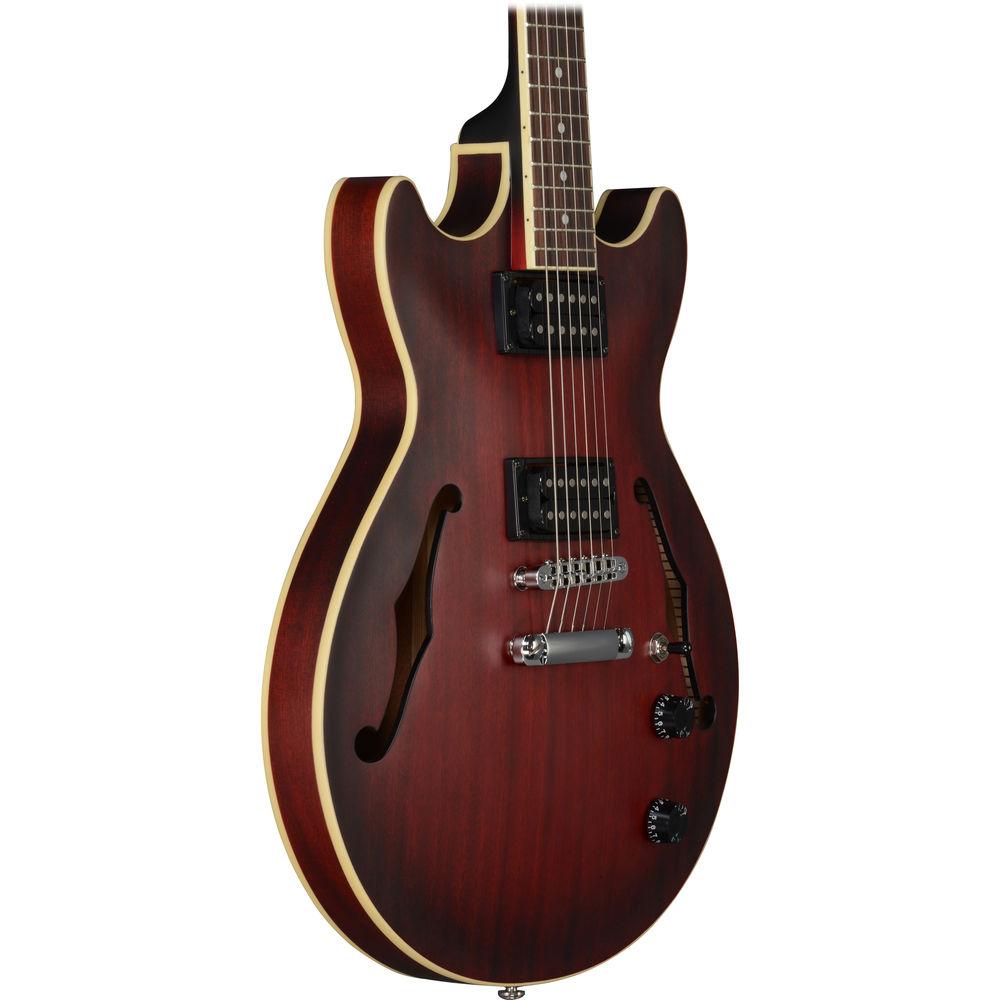

Product description The Artcore Series AM53 from Ibanez is a hollow-body electric guitar made with sapele for the top, back, and sides in a flat sunburst red finish. The body is fitted with a mahogany set-in neck which has a bound 22-fret rosewood fingerboard and white dot inlay. The double-cutaway hollow body delivers a warm sound that is well suited for a wide variety of musical styles, including jazz, blues, rock, and country. For electronics, the AM53 is equipped with a pair of Infinity R humbucking pickups in the neck and bridge positions, along with a 3-way pickup selector switch, and master volume and tone controls. The pickups offer a smooth tone with plenty of sustain, which is enhanced by the ART-ST tuneomatic-style bridge and stop tailpiece. This affordably priced instrument is highly respected for its tone, sustain, and ability to hold its tuning, making it an ideal choice for players of all levels. - General Features
-
- Neck Type: Artcore mahogany set-in neck

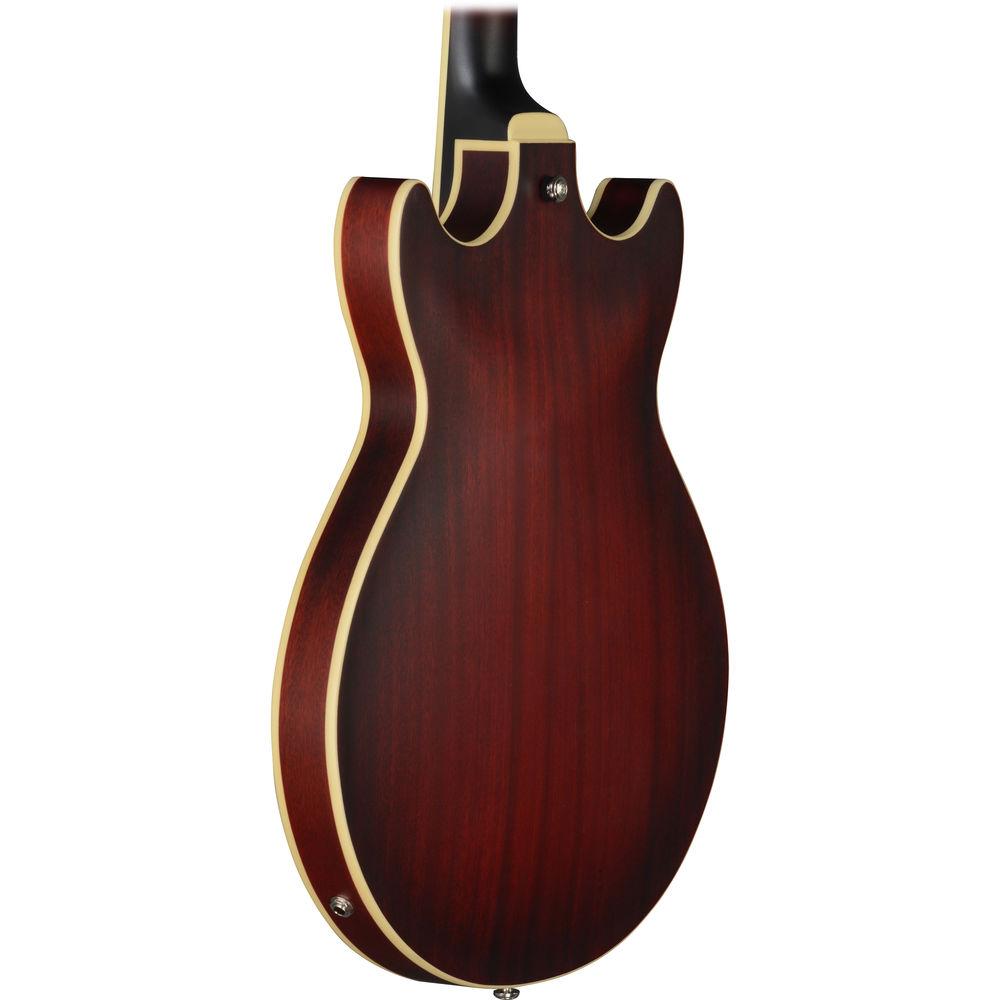

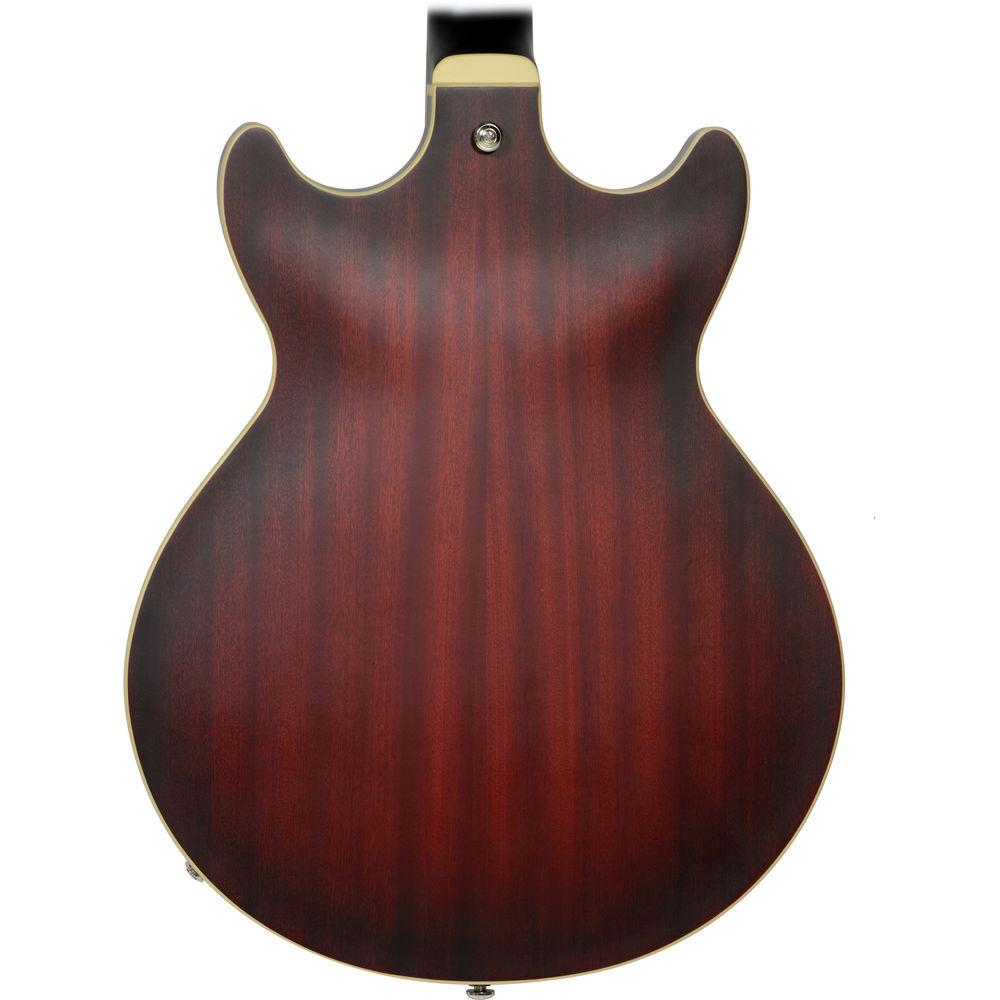

- Body: Sapele top/back/sides

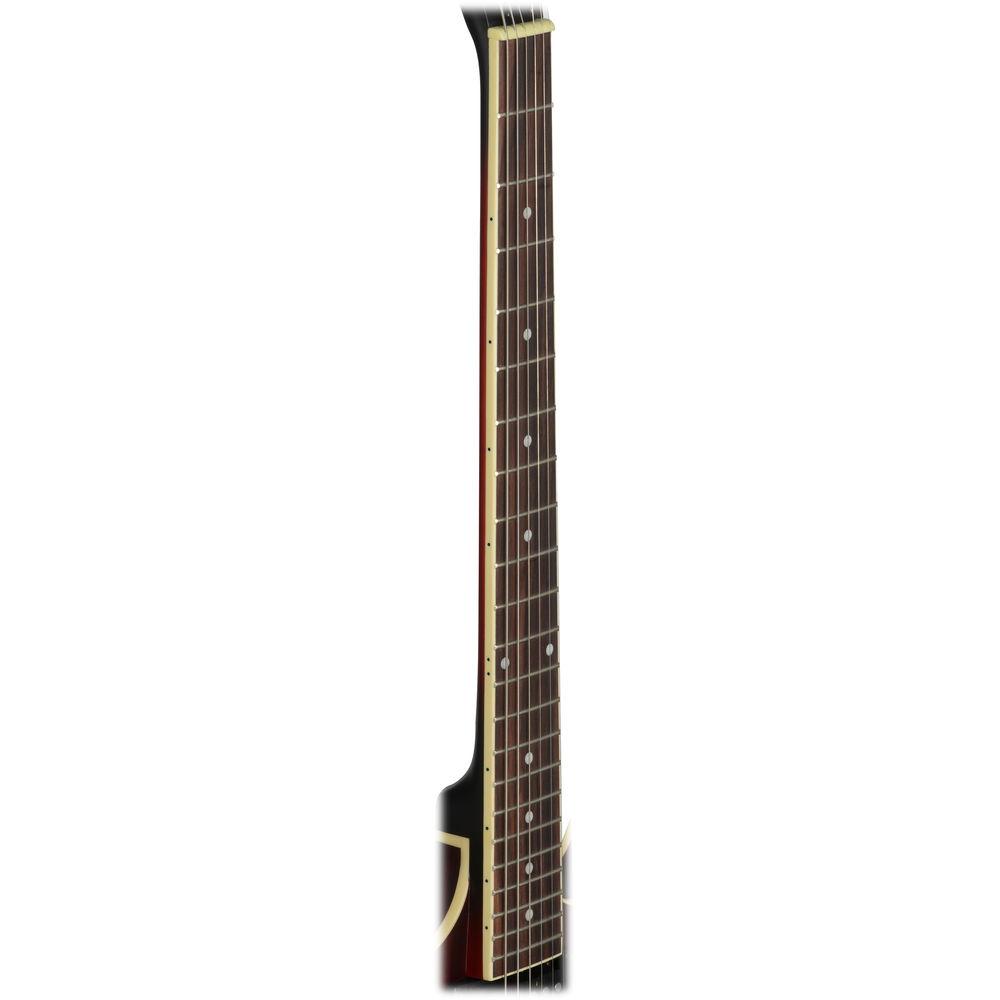

- Fingerboard: Bound rosewood fingerboard with white dot inlay
- Frets: 22, Medium frets
- Bridge: ART-ST
- Tailpiece: ART-ST
- Neck Pickup: Infinity R (Humbucker, passive/ceramic)
- Bridge Pickup: Infinity R (Humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 57.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 12th: 0.9" / 24.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 17.6" / 447.5mm
- Width: 14.5" / 368.3mm
- Max Depth: 2.6" / 66.7mm
UPC: 887802056608 In the Box Ibanez AM53 Artcore Series Hollow-Body Electric Guitar (Sunburst Red) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AM53 Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AM53 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Double-Cutaway | | Body Wood | Top: Sapele
Back: Sapele
Sides: Sapele | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 12" | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 45.5 x 19.25 x 5.5" |
