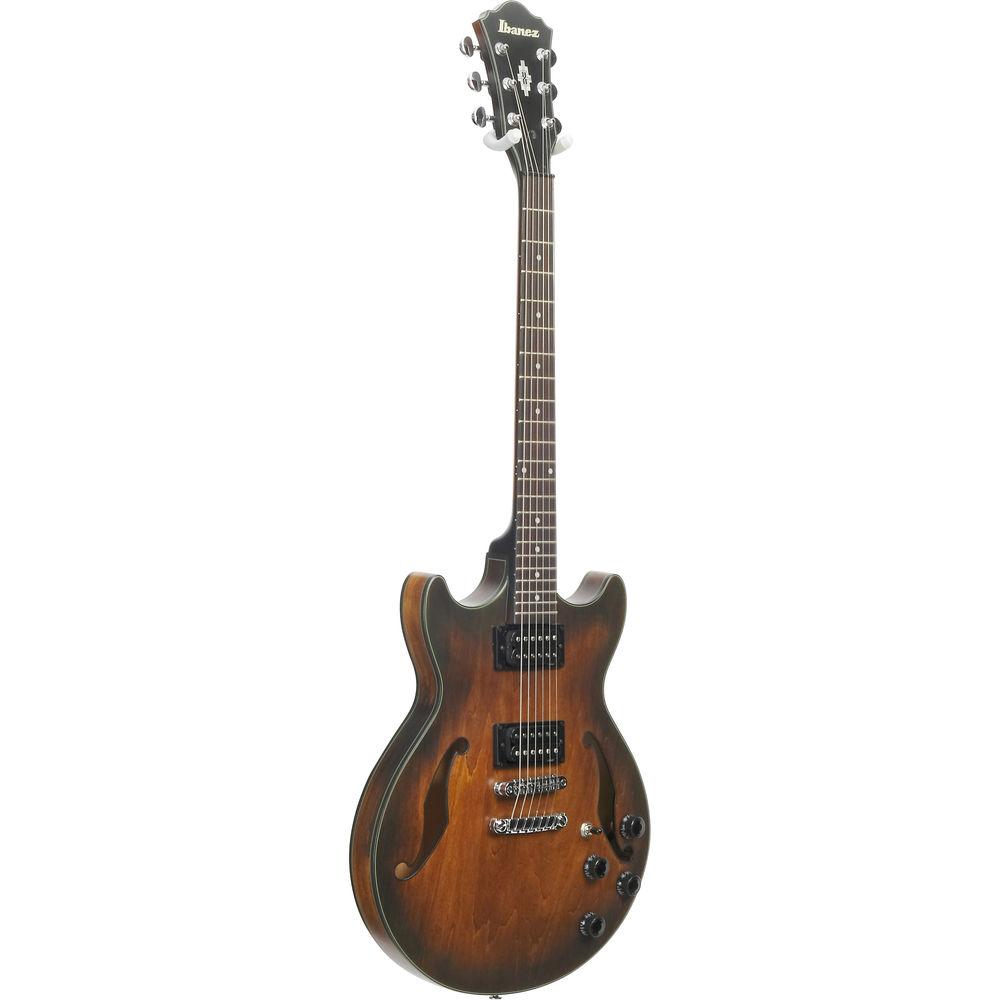

User Manual for Ibanez AM73B Artcore Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AM73B Artcore Series Hollow-Body Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AM73B Artcore Series Hollow-Body Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

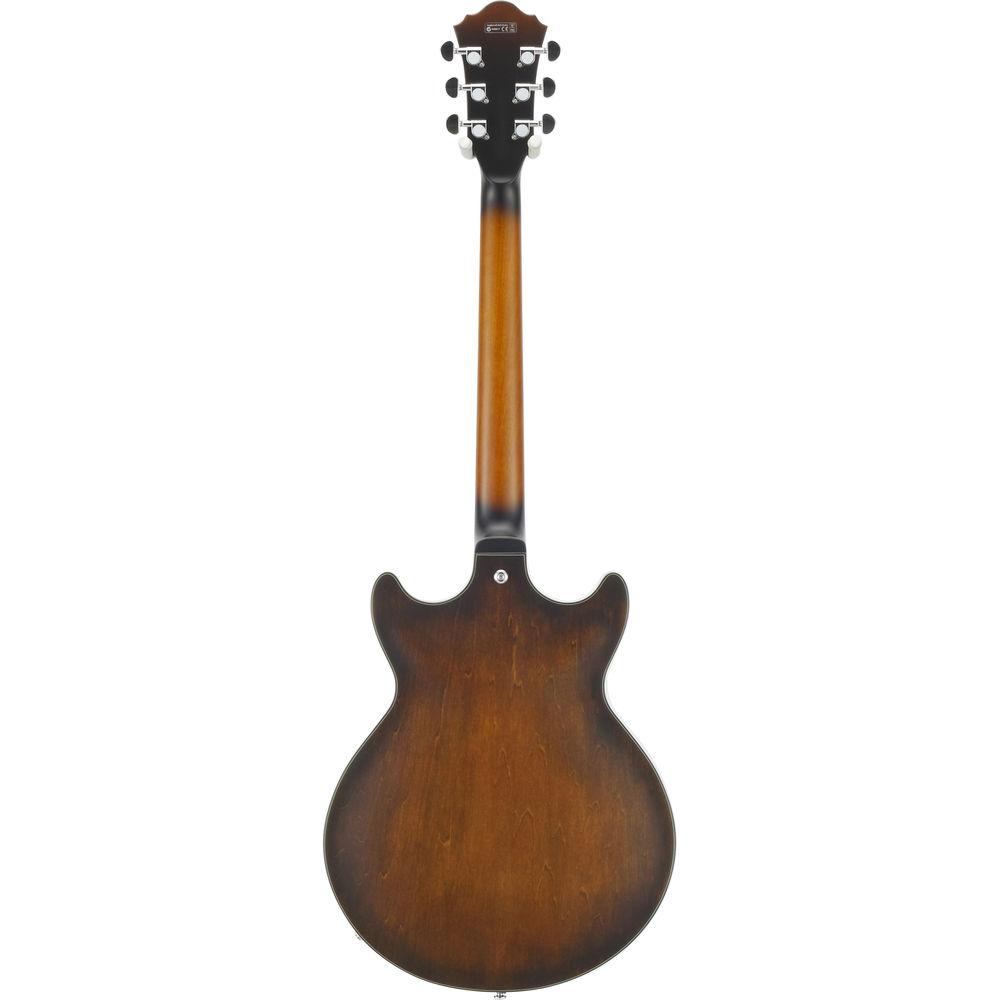

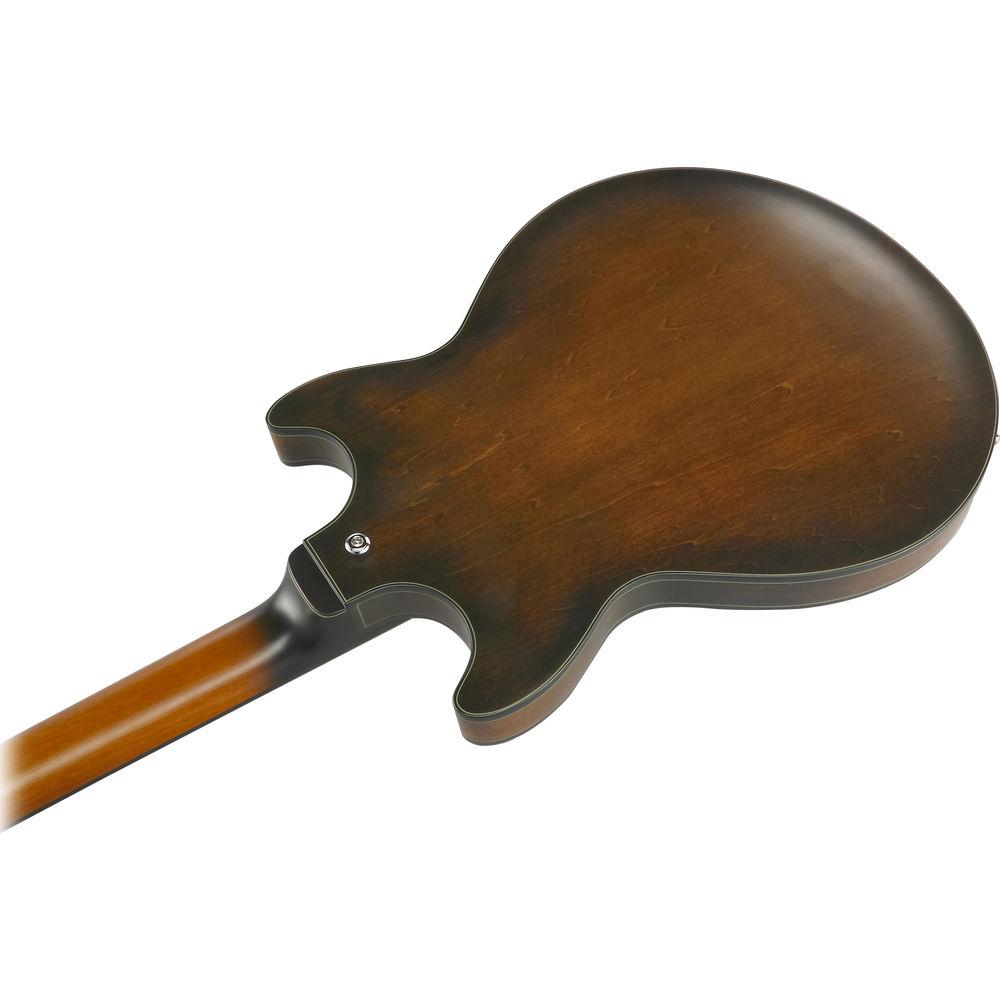

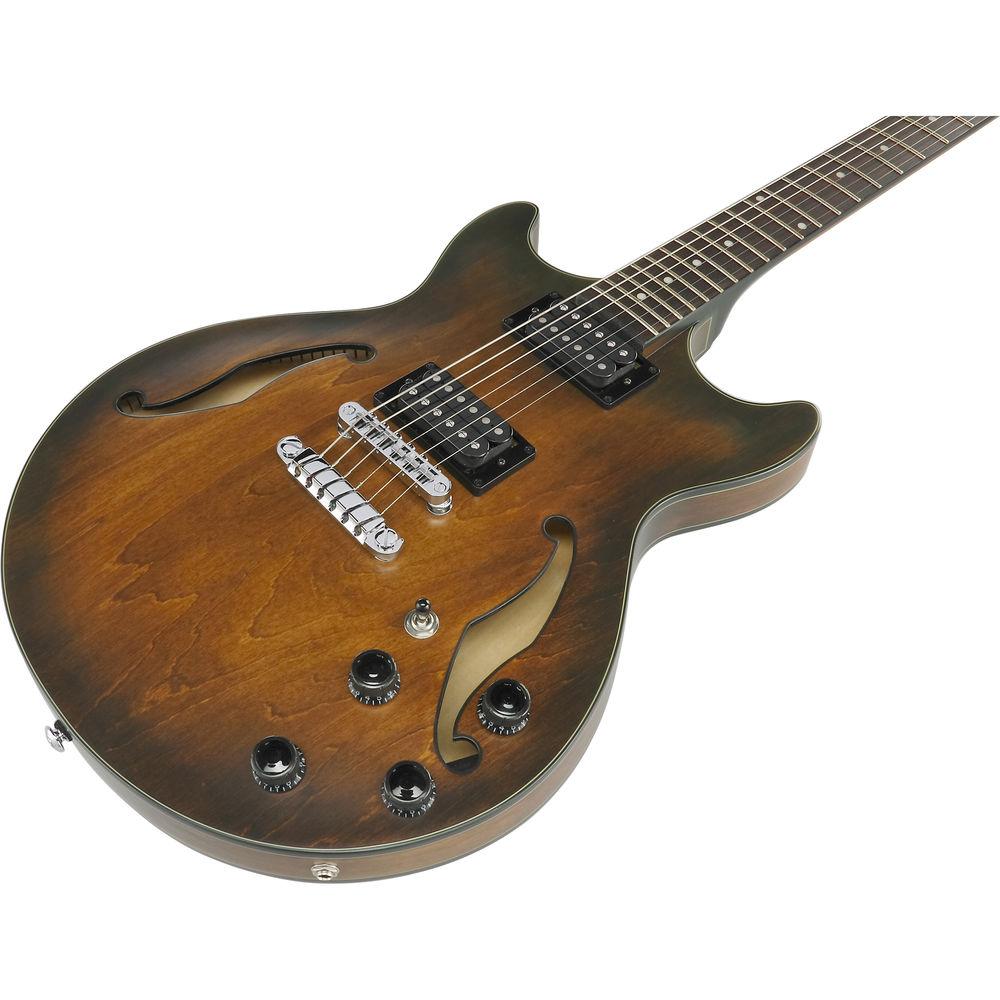

Product description Styled in a tobacco flat finish, the Ibanez Artcore Series AM73B is a hollow-body electric guitar with a maple body and a mahogany set-in neck. The hollow double-cutaway body delivers a warm, resonant sound that is well suited for playing jazz, blues, country, and rock. The neck is fitted with a 22-fret bound rosewood fingerboard which has acrylic block inlays. The strings are intonated by an ART-1 bridge and secured with a Quik Change III tailpiece.For electronics, the AM73B is equipped with a pair of Infinity R humbucking neck and bridge pickups, along with a 3-way pickup selector switch, and individual volume and tone controls for each pickup. The pickups offer a warm, balanced tone that is appropriate for many genres.This affordably priced instrument is highly respected for its tone, sustain, and ability to hold its tuning, making it an ideal choice for players of all levels. - Key Features
-
- Infinity R pickups provide a warm, balanced articulation and are suited to many different genres
- The ART-1 bridge provides improved sustain and tuning stability
- The Quik Change III tailpiece enables fast and easy string changeovers
- The Sure Grip III knobs are designed for precise control with nonslip functionality, along with a smooth, classic look
- General Features
-
- Neck Type: Artcore mahogany set-in neck
- Body: Maple top/back/sides
- Fingerboard: Bound rosewood fingerboard with acrylic block inlay
- Frets: 22, Medium frets
- Bridge: ART-1 bridge
- Tailpiece: Quik Change III
- Neck Pickup: Infinity R (humbucker, passive/ceramic)
- Bridge Pickup: Infinity R (humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 57.0mm
- Thickness at 1st Fret: 0.8" / 21.0mm
- Thickness at 9th Fret: 0.9" / 24.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 17.6" / 447.7mm
- Width: 14.5" / 368.3mm
- Max Depth: 2.6" / 66.7mm
UPC: 606559692132 In the Box Ibanez AM73B Artcore Series Hollow-Body Electric Guitar (Tobacco Flat) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AM73B Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AM73B Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Double-Cutaway | | Body Wood | Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 305 mil | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch |
