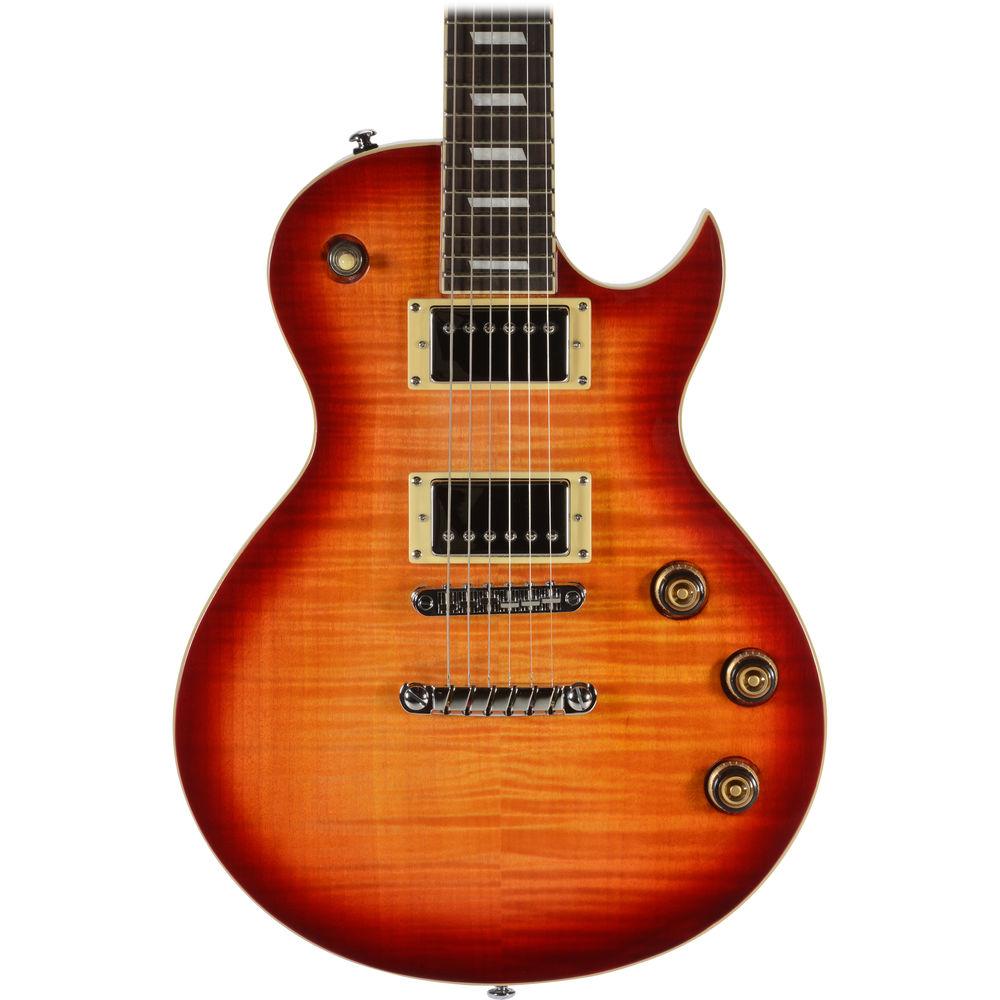

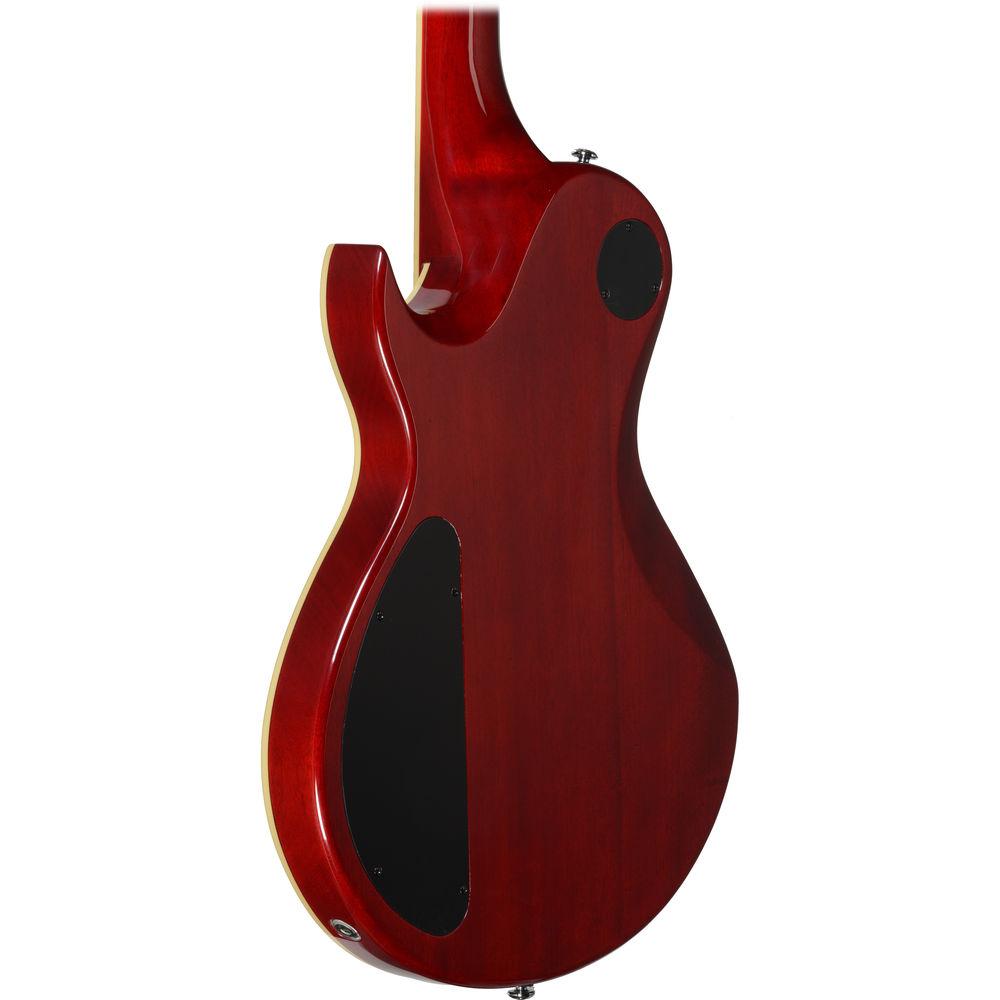

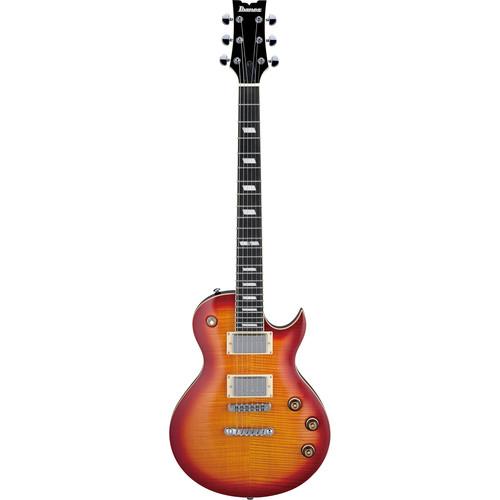

Product description The ARZ Standard Series ARZ200FM electric guitar from Ibanez is constructed with a mahogany body and Flamed maple top, and has a cherry sunburst finish. The ARZ mahogany set-in neck features a smooth heel and a 24-fret bound rosewood fingerboard with white block inlay. The solid single-cutaway body delivers maximum resonance and sustain, while the smooth neck heel provides ease of play, and the longer neck scale makes the ARZ ideal for standard and drop-tune players.

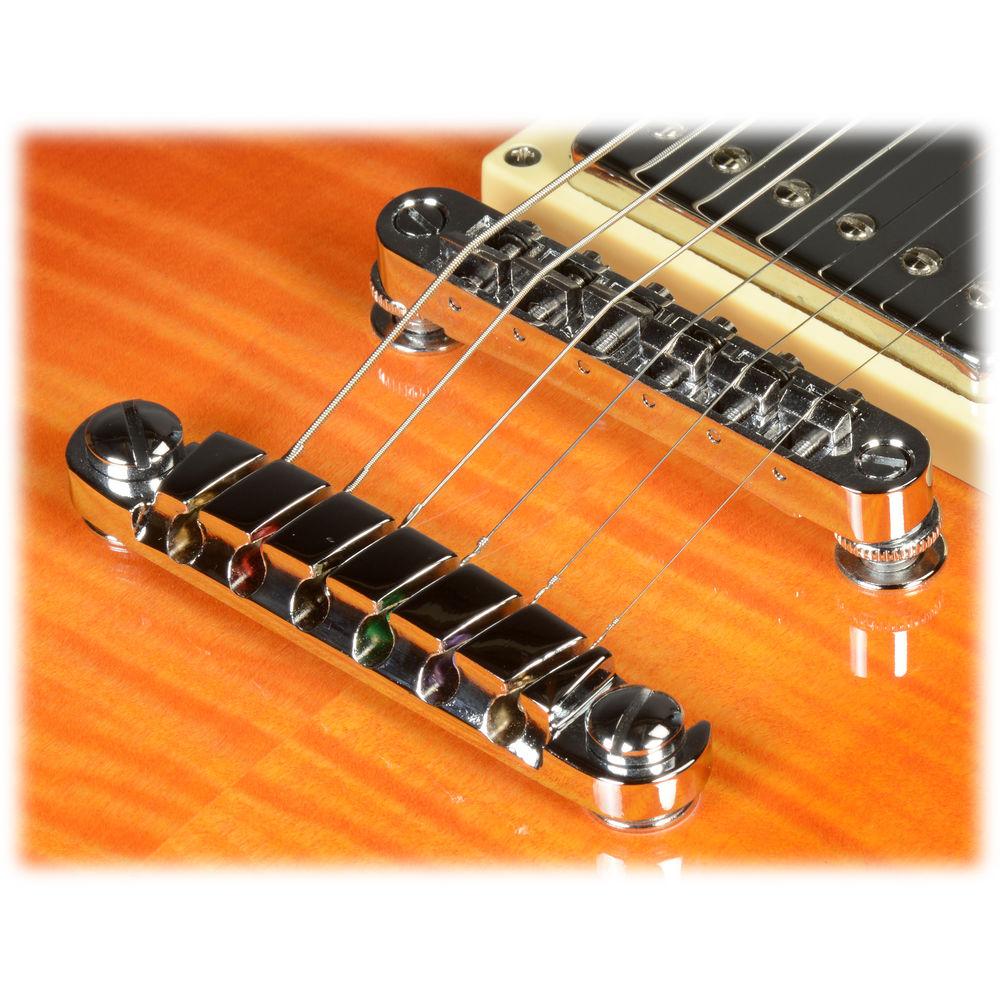

The guitar is fitted with a pair of Classic Elite humbucking pickups in the neck and bridge positions. The pickups offer a variety of rich, nuanced tones with fat low end, and are regulated by a 3-way selector switch with dedicated volume controls for each pickup, and a shared master tone control. The strings are anchored by an ART-1 tune-o-matic style bridge and a Quik Change III stop tailpiece, which provides optimal transfer of each string's vibration, and helps to increase sustain. - General Features
-
- Neck Type: ARZ mahogany set-in with smooth heel
- Body: Flamed maple top / mahogany

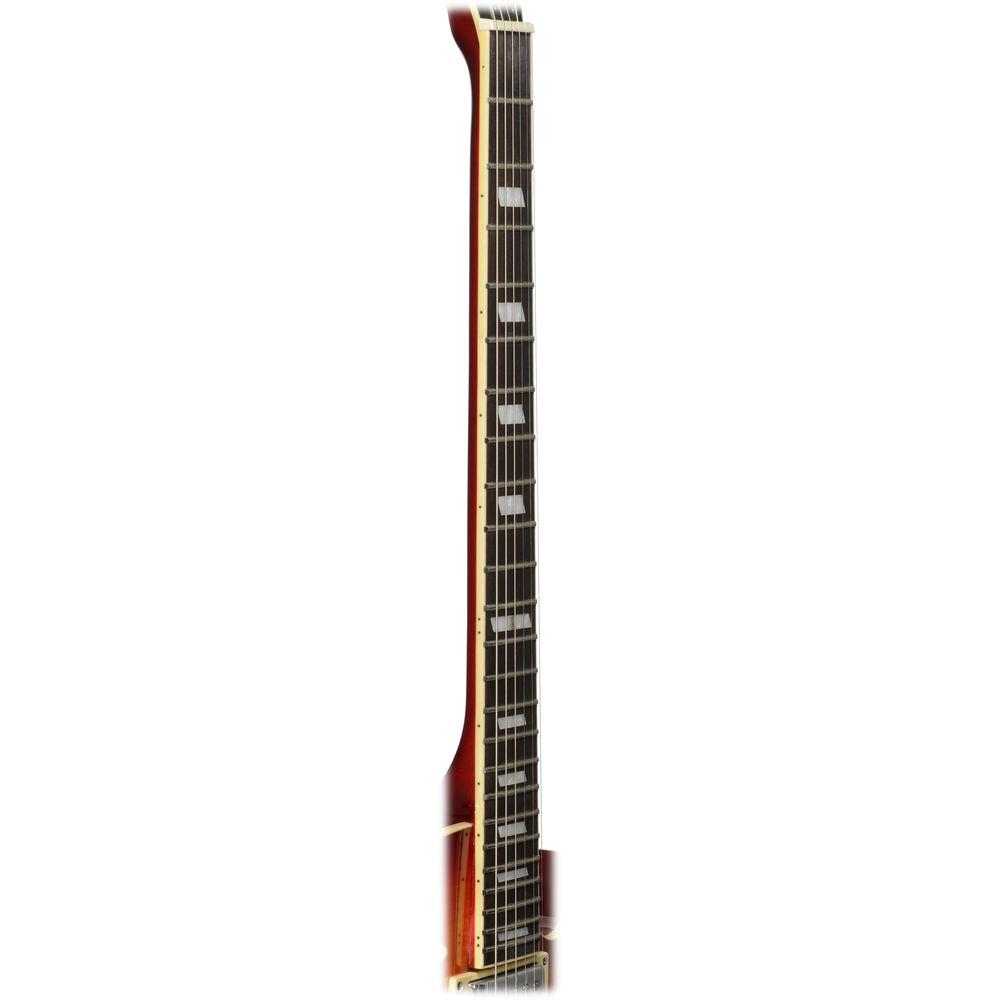

- Fingerboard: Bound rosewood with white block inlay
- Frets: 24, medium frets
- Bridge: ART-1
- Neck Pickup: Classic Elite Humbucker (Passive/Ceramic)
- Bridge Pickup: Classic Elite Humbucker (Passive/Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- String Gauge: .010/.013/.017/.026/.036/.046
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 25.0" / 635.0mm
- Width at Nut: 2.2" / 43.0mm
- Width at 24th Fret: 2.3" / 58.0mm
- Thickness at 1st Fret: 0.8" / 20.0mm
- Thickness at 12th Fret: 0.9" / 22.0mm
- Radius: 12.0" / 305.0mm
UPC: 887802202289 In the Box Ibanez ARZ200FM ARZ Standard Series Electric Guitar (Cherry Sunburst) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez ARZ200FM ARZ Standard Series Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez ARZ200FM Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Single-Cutaway | | Body Wood | Mahogany
Top: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 25.00" / | | Radius | 12.0" OR | | Nut Width | 43 mm | | Bridge Type | Tune-o-matic | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 43.54 x 16.0 x 4.0" |
