User Manual for Ibanez AS73 Artcore Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AS73 Artcore Series Hollow-Body Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez AS73 Artcore Series Hollow-Body Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

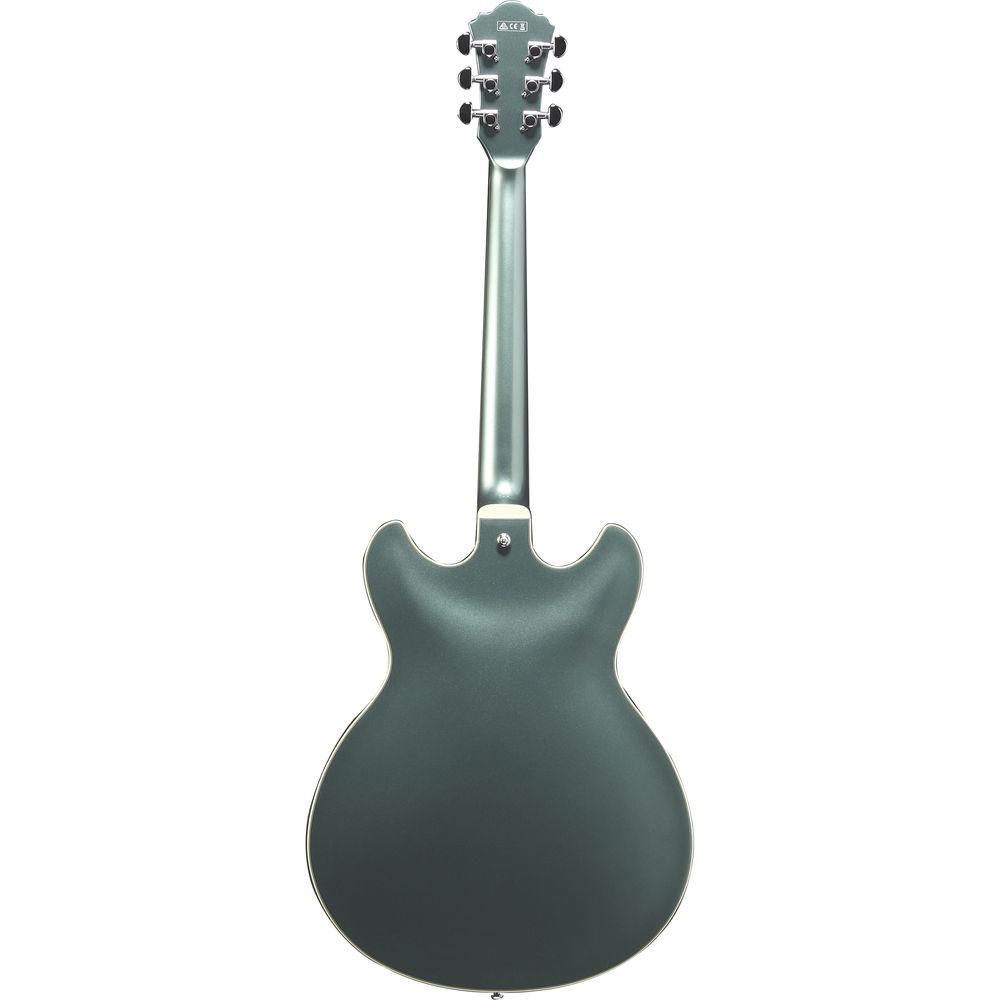

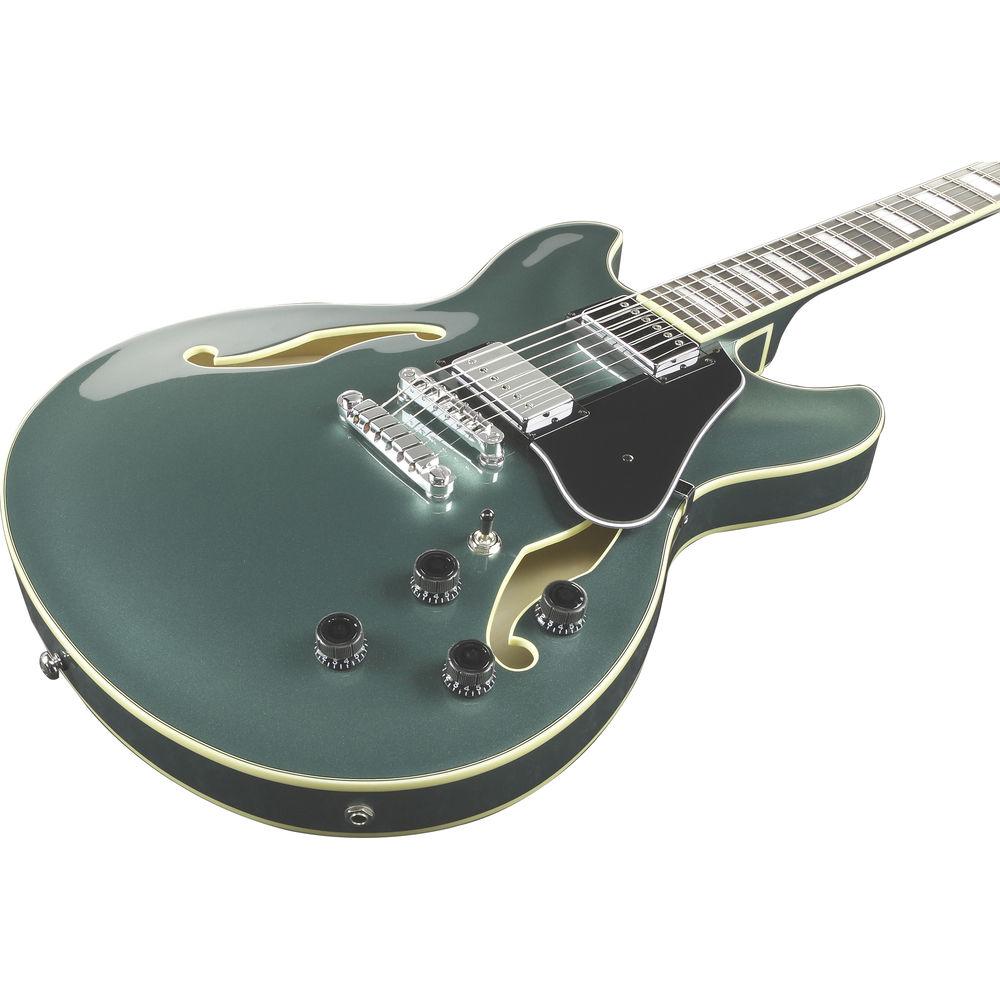

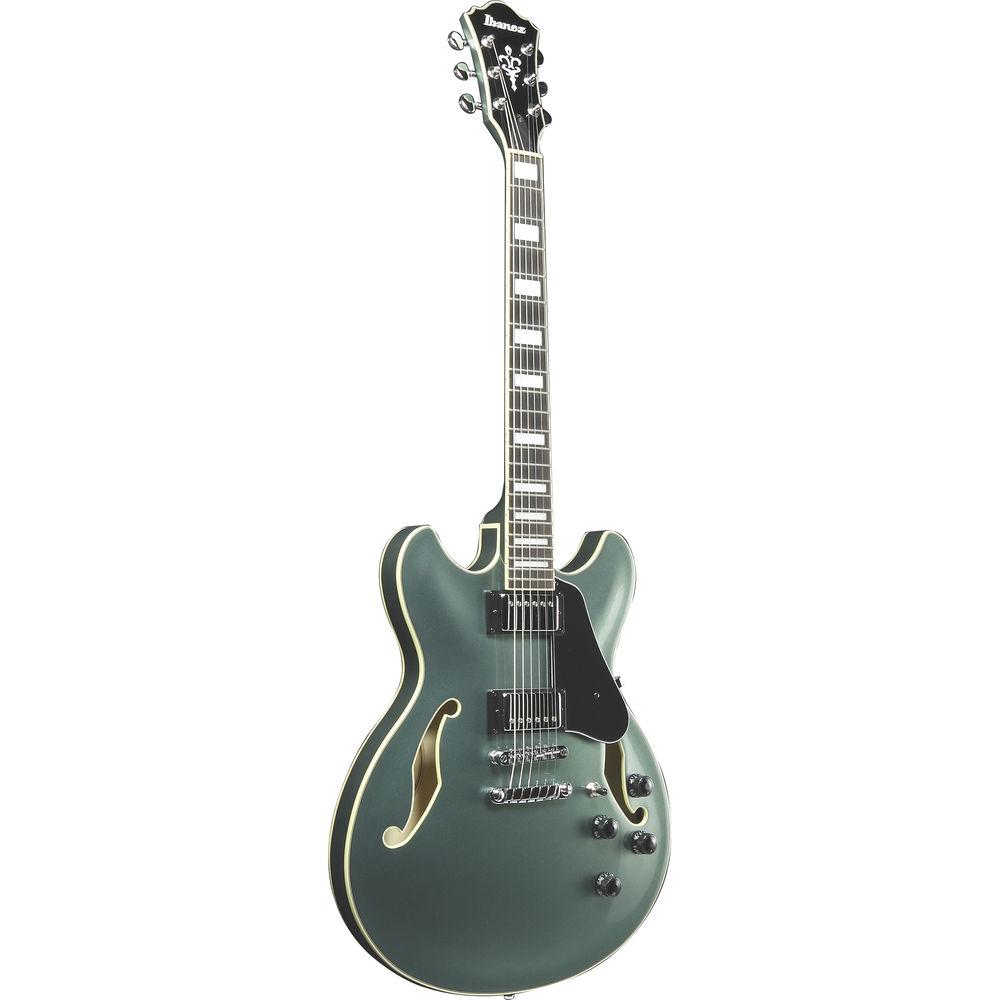

Product description The Artcore Series AS73 from Ibanez is a hollow-body electric guitar made from maple for the top, back, and sides with a olive metallic finish. The body is fitted with a mahogany set-in neck which has a bound 22-fret rosewood fingerboard and white dot inlay. The hollow double-cutaway body delivers a warm, resonant sound that is well suited for playing jazz, funk, blues, and rock. The AS73 is equipped with a pair of Classic Elite humbucking neck and bridge pickups which offer a rich, nuanced tone with fat low end. A 3-way pickup selector switch and dedicated volume and tone controls for each pickup allow the player to fine-tune their desired sound. The guitar's sustain is enhanced by the ART-1 tuneomatic-style bridge and Quik Change III stop tailpiece. This attractive instrument is highly regarded for its playability and tone, and is also reasonably priced, making it an ideal choice for intermediate and advanced players. - Quik Change III Tailpiece
-
- The Quik Change III tailpiece enables faster and easier string changing
- Sure Grip III Control Knobs
-
- Designed for precise control of knobs with non-slip functionality, while offering a classic look
- Classic Elite Pickups
-
- The Classic Elite pickups offer rich, nuanced tone with fat low-end
- General Features
-
- Neck Type: Artcore mahogany set-in neck
- Body: Maple top/back/sides
- Fingerboard: Bound rosewood fingerboard with white dot inlay
- Frets: 22, Medium frets
- Bridge: ART-1
- Tailpiece: Quik Change III
- Neck Pickup: Classic Elite (Humbucker, passive/ceramic)
- Bridge Pickup: Classic Elite (Humbucker, passive/ceramic)
- Hardware Color: Chrome
- Neck Dimensions
-
- Scale: 24.7" / 628.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at Last Fret: 2.2" / 57.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 12th: 0.9" / 2.0mm
- Radius: 12.0" / 305.0mm
- Body Dimensions
-
- Length: 19.3" / 489.0mm
- Width: 15.8" / 400.1mm
- Max Depth: 2.6" / 66.7mm
In the Box Ibanez AS73 Artcore Series Hollow-Body Electric Guitar (Olive Metallic) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AS73 Artcore Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AS73 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Double-Cutaway | | Body Wood | Top: Maple
Back: Maple
Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.7" / | | Radius | 12" OR | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 11.35 lb | | Box Dimensions (LxWxH) | 46.0 x 21.0 x 5.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
