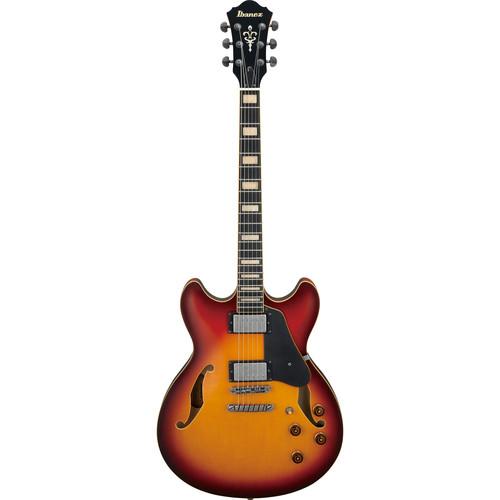

User Manual for Ibanez ASV93 Artcore Expressionist Vintage Series Hollow-Body Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez ASV93 Artcore Expressionist Vintage Series
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez ASV93 Artcore Expressionist Vintage Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

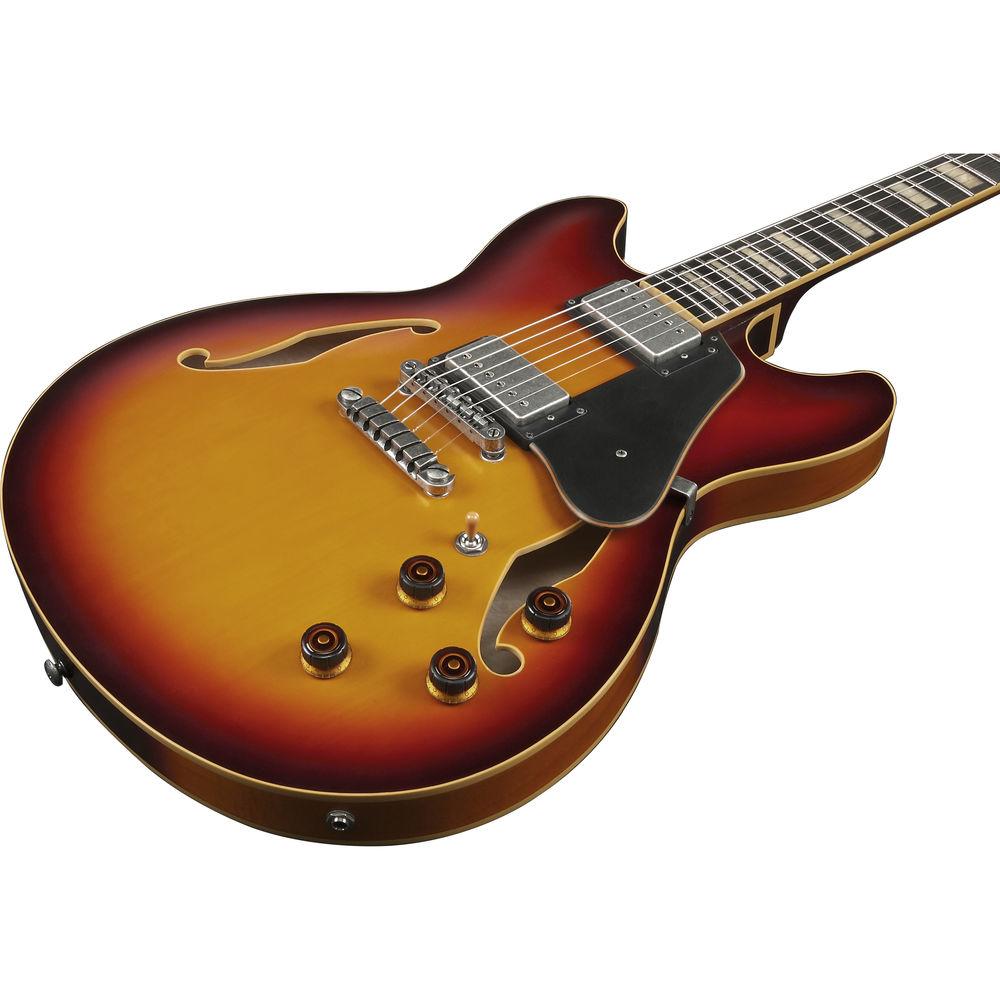

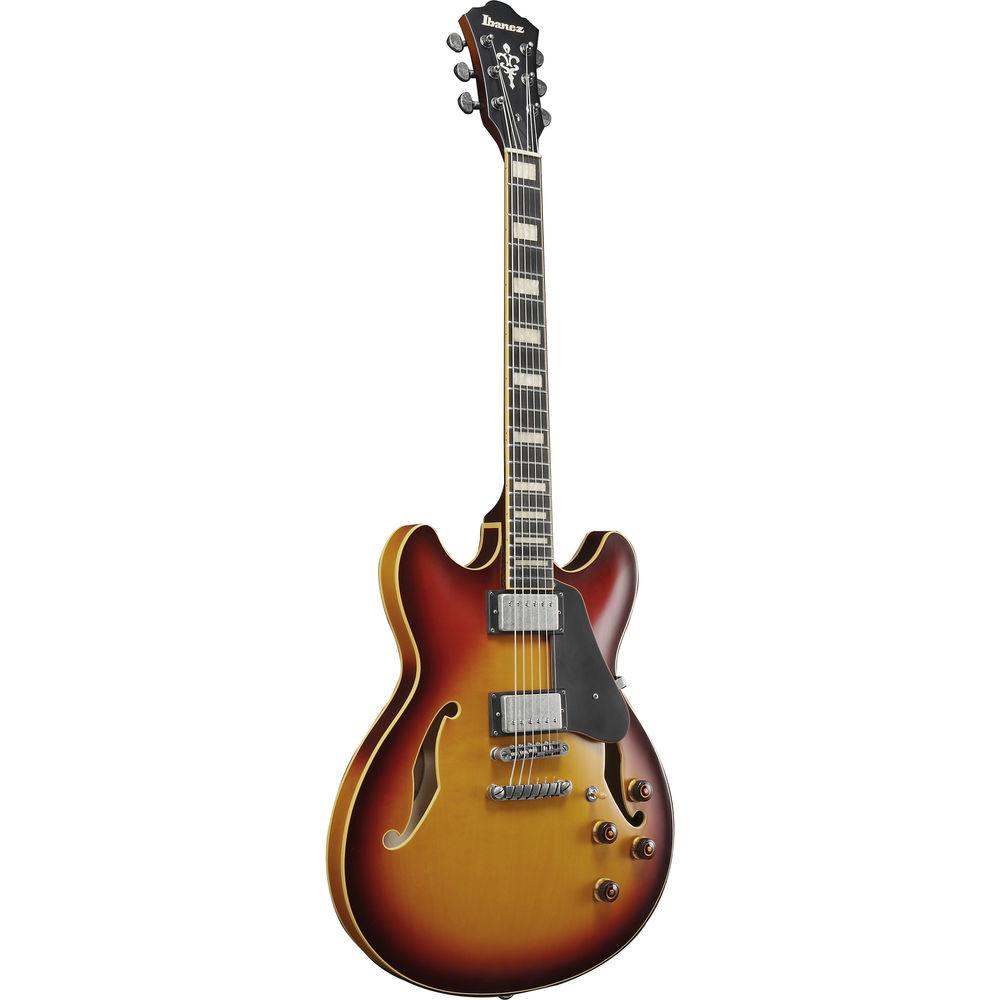

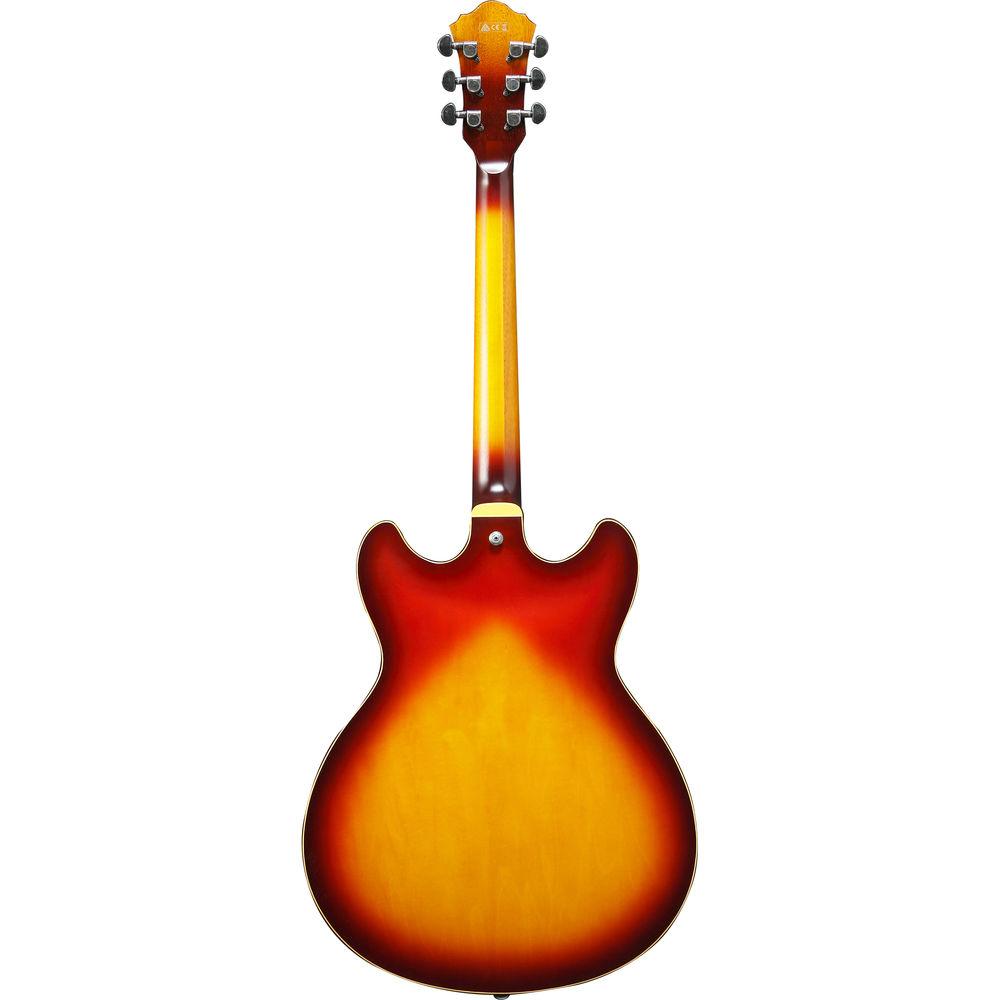

Product description Styled in a tri-fade low-gloss finish, the Ibanez Artcore Vintage Series ASV93 is a hollow-body electric guitar featuring a maple top, back, and sides, and a maple/mahogany set-in neck. Other features include a bound ebony fingerboard with aged white block inlay, 22 medium frets, an ART-1 bridge, a Quik Change III tailpiece, and antique chrome hardware.
For electronics, the instrument provides Super 58 humbucking pickups that offer a warm, bluesy sound with a bit of growl. These pickups are selectable via a 3-way toggle switch and can be adjusted using the dedicated volume and tone controls for each pickup. Complementing the guitar's finish, the set of Sure Grip III volume and tone control knobs have a deep honey color inspired by instruments from the late '50s and '60s, which adds to the guitar's vintage vibe. - General Features
-
- Neck Type: Expressionist ASV 3-piece mahogany/maple set-in neck
- Body: Maple top/back/sides
- Fingerboard: Bound ebony fingerboard with aged white block inlay
- Fret: Medium, 22
- Bridge: ART-1
- Tailpiece: Quik Change III
- Neck Pickup: Super 58 humbucker neck pickup (passive/ceramic)
- Bridge Pickup: Super 58 humbucker bridge pickup (passive/ceramic)
- Hardware Color: Antique chrome
- Neck Dimensions
-
- Scale: 24.7" / 628mm
- Width at Nut: 1.7" / 43mm
- Width at 22nd Fret: 2.2" / 57.0mm
- Thickness at 1st: 0.91" / 23.0mm
- Thickness at 9th: 0.94" / 24.0mm
- Radius: 12.0" / 305mm
- Body Dimensions
-
- Length: 19.3" / 489.0mm
- Width: 15.8" / 400.1mm
- Max Depth: 2.6" / 66.8mm
In the Box Ibanez ASV93 Artcore Expressionist Vintage Series Hollow-Body Electric Guitar (Tri-Fade Low Gloss) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez ASV93 Artcore Expressionist Vintage Series Hollow-Body Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez ASV93 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Hollow-Body | | Cutaway | Double-Cutaway | | Body Wood | Top, Back, Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany, Maple | | Fingerboard | Ebony | | Number of Frets | 22 | | Type of Frets | Medium | | Scale Length | 24.72" / 628 mm | | Radius | 12.0" | | Nut Width | 43 mm | | Bridge Type | Tune-O-Matic | | Pickguard | Yes | | Pickups | Neck: Humbucker
Bridge: Humbucker | | Controls | Tone Control: x 2
Volume Control: x 2 | | Switching | 3-Way Pickup Selector Switch |
