User Manual for Ibanez AVC9CE Artwood Vintage Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AVC9CE Artwood Vintage Acoustic Electric
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez AVC9CE Artwood Vintage Acoustic Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

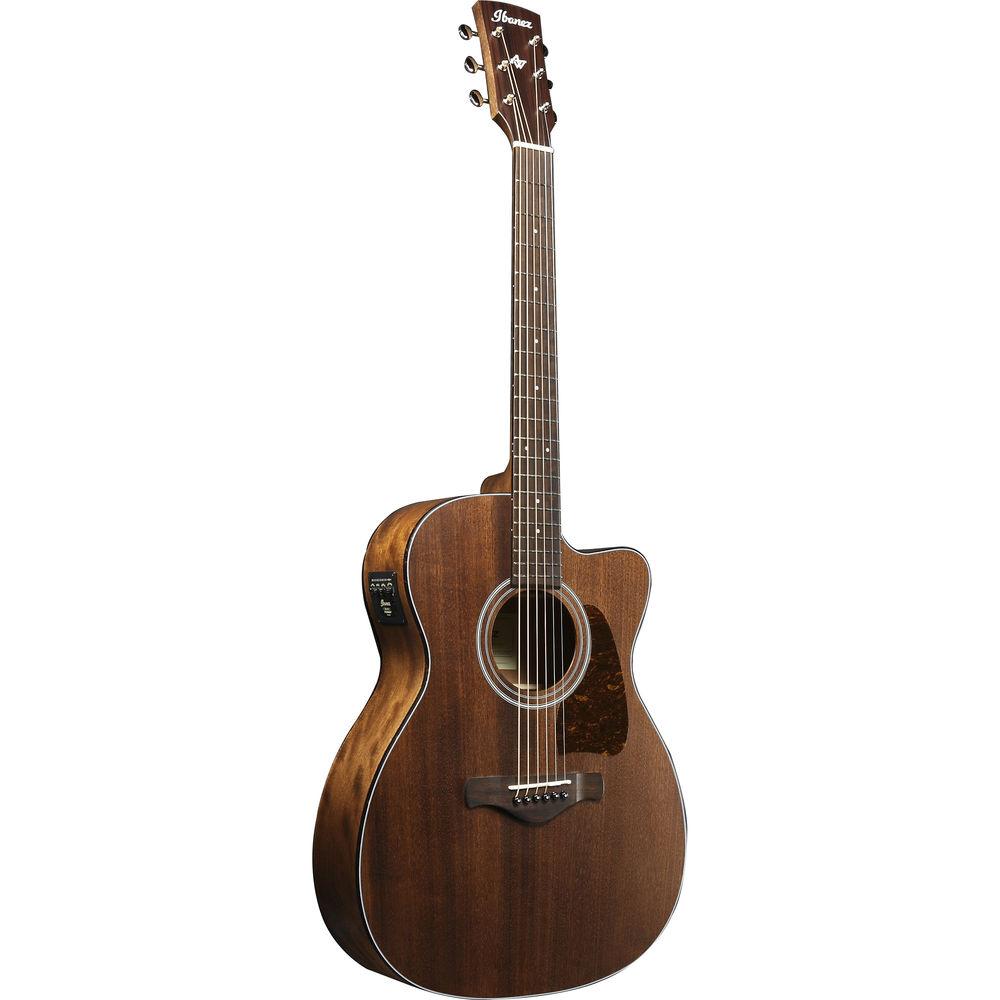

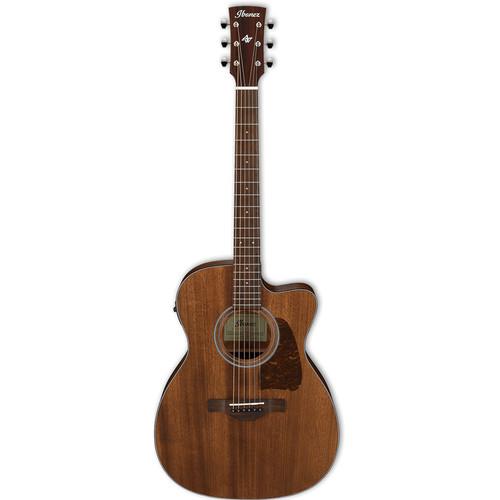

Product description The Ibanez Artwood Vintage Series AVC9CE is an acoustic/electric guitar with a grand concert body and a single-cutaway design. It features a solid mahogany top, as well as mahogany back and sides. The top has been Thermo Aged—a process that boosts the overall volume across the instrument's entire frequency spectrum, giving it more bass, treble, punch, and level.The soft-V shaped mahogany neck, measuring 25.0" in scale, has an ovangkol fingerboard fitted with 20 frets and a set of chrome open gear tuners (18:1 ratio) atop the headstock, furnished with butterbean knobs for a vintage look and tuning stability. Strings are secured to the body by means of an ovangkol bridge replete with Ibanez Advantage bridge pins, which are tapered to keep the string's ball end positioned correctly and makes them easier to remove whenever you need to change strings.For electronics, the guitar is equipped with a Fishman Sonicore pickup and an Ibanez AEQ-SP2 preamp, which has a 2-band EQ and an onboard tuner. A 1/4" output is on hand, as is a balanced XLR jack that obviates the need for a DI box when sending signal from the guitar to a house PA or mixer.The body also boasts a few ornamental touches pleasing to the eye, including tortoiseshell binding and an open pore natural finish. The combination of elements used in the instrument's construction, including the Thermo Aged solid top, engender more resonance and make for a playing experience that is equally well suited for solo performances as it is in full-band scenarios. - General Features
-
- Grand concert body
- Thermo Aged solid mahogany top
- Mahogany back and sides
- Mahogany soft-V shaped neck with dovetail joint
- Ovangkol fingerboard and bridge
- Tortoiseshell body binding

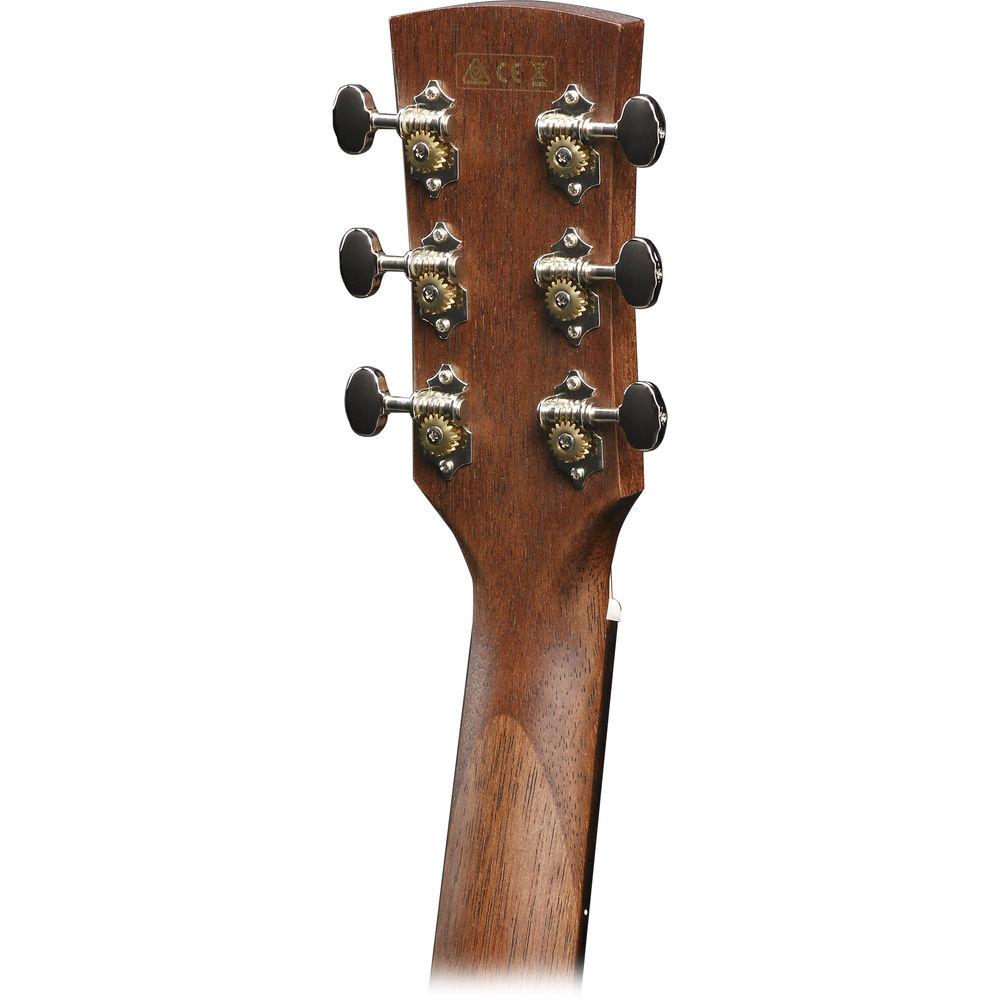

- Chrome open gear tuners with butterbean knobs (18:1 gear ratio)
- Bone nut
- 20 frets
- Compensated bone saddle
- Fishman Sonicore pickup
- Ibanez AEQ-SP2 preamp with onboard tuner
- Ibanez Advantage bridge pins
- Open pore finish on body and neck
- Neck Dimensions
-
- Scale: 25.0" / 634.0mm
- Width at Nut: 1.8" / 45.0mm
- Width at 14th Fret: 2.2" / 56.0mm
- Thickness at 1st Fret: 0.9" / 21.5mm
- Thickness at 7th Fret: 0.9" / 22.5mm
- Radius: 15.8" / 400.0mm
- Body Dimensions
-
- Length: 19.5" / 495mm
- Width: 15.3" / 387.3mm
- Max Depth: 4.3" / 108mm
In the Box Ibanez AVC9CE Artwood Vintage Acoustic/Electric Guitar (Open Pore Natural) Limited 1-Year Warranty on Hardware Limited Lifetime Warranty on Materials & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AVC9CE Artwood Vintage Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AVC9CE Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Grand Concert | | Cutaway | Single-Cutaway | | Body Wood | Top: Mahogany
Back: Mahogany
Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Ovangkol | | Number of Frets | 20 | | Scale Length | 24.96" / | | Radius | 15.75" OR | | Nut Width | 45 mm | | Bridge Type | Ovangkol | | Pickguard | Yes | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 42.4 x 17.7 x 6.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
