User Manual for Ibanez AVD9CE Artwood Vintage Series Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AVD9CE Artwood Vintage Series Acoustic
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez AVD9CE Artwood Vintage Series Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

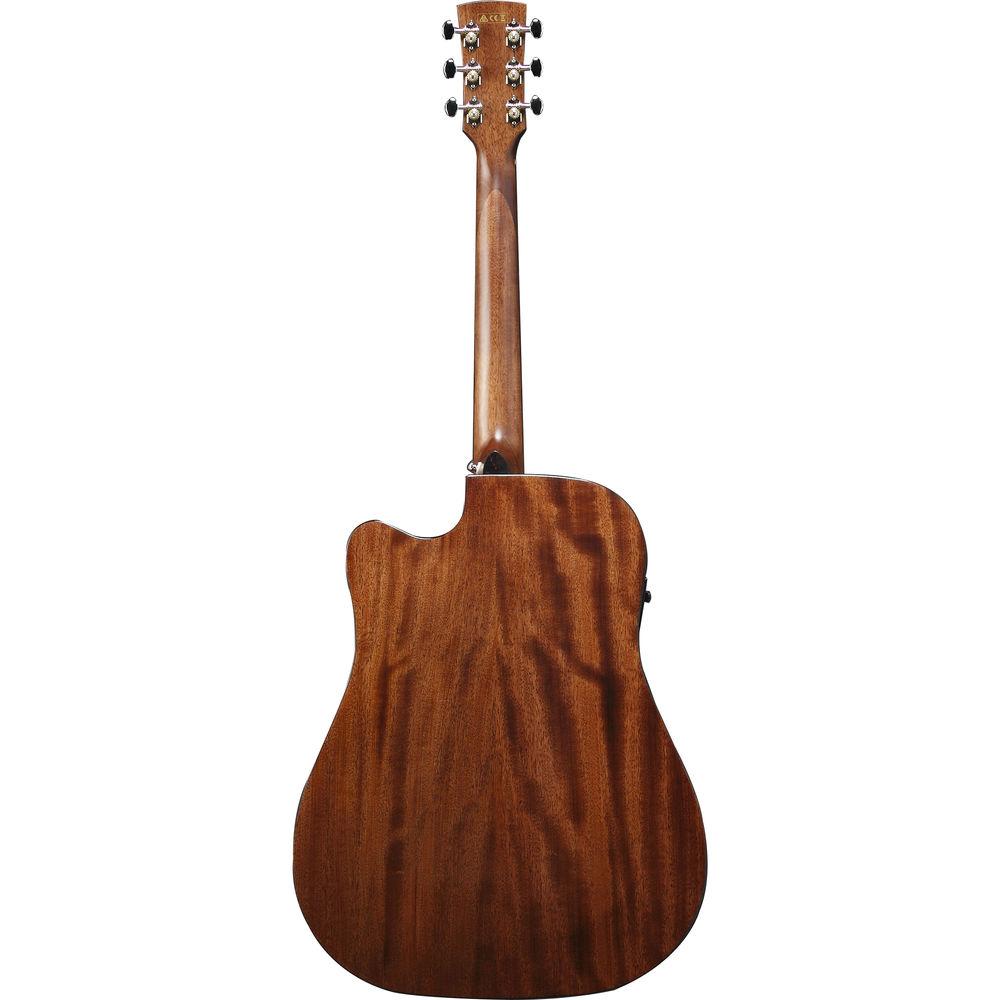

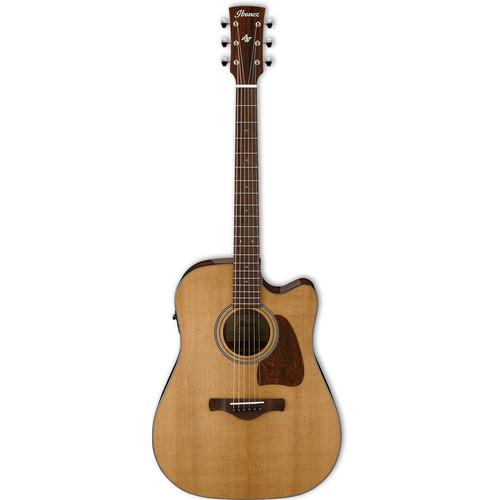

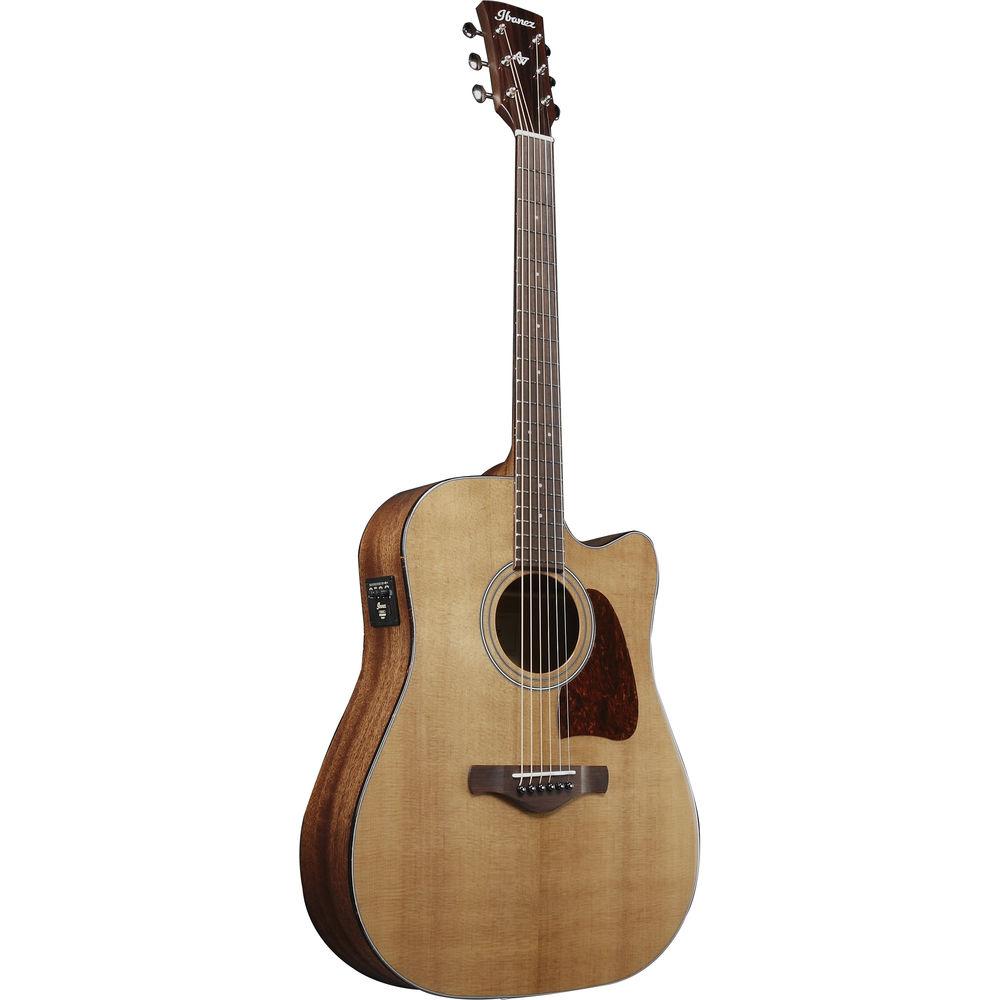

Product description Styled in a natural high-gloss finish, the Ibanez Artwood Series AVD9CE is a full-sized acoustic/electric guitar made from Sitka spruce and mahogany. The single-cutaway dreadnought body delivers a powerful and balanced acoustic sound. Unplugged or amplified, the instrument is well suited for solo performance or playing with a full band.The AVD9CE features a Thermo Aged Sitka spruce top, mahogany back and sides, and a 25.6" scale mahogany neck. The fingerboard and bridge are both made of ovangkol. Other features include chrome open-geared tuners with butterbean knobs and a gear ratio of 18:1.
For electronics, the guitar is equipped with a Fishman Sonicore pickup and an Ibanez AEQ-SP2 preamp, which has a 2-band EQ and an onboard tuner. A 1/4" output is on hand, as is a balanced XLR jack that obviates the need for a DI box when sending signal from the guitar to a PA system or mixer. - General Features
-
- Body Shape: Cutaway dreadnought
- Bracing: Spruce X bracing
- Top: Thermo Aged solid Sitka spruce

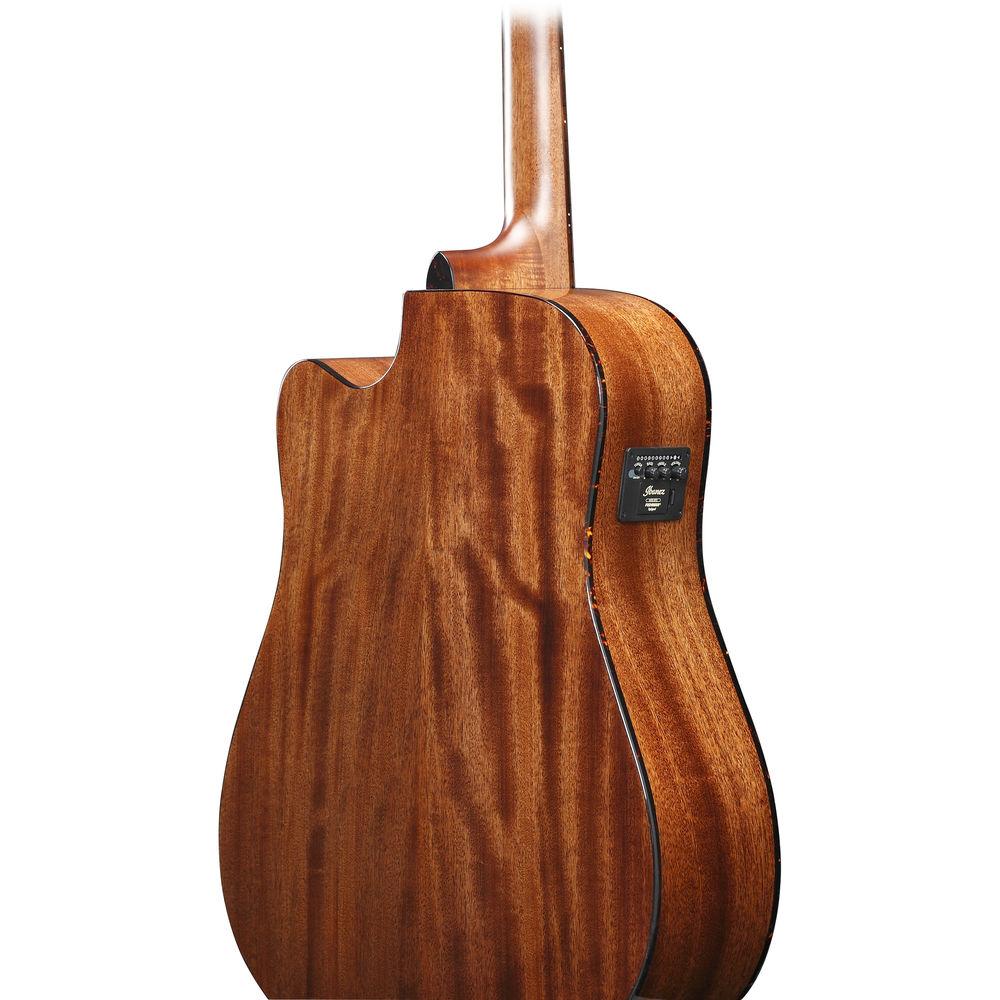

- Back and Sides: Mahogany
- Neck: Mahogany, soft-V shape
- Fingerboard: Ovangkol
- Bridge: Ovangkol

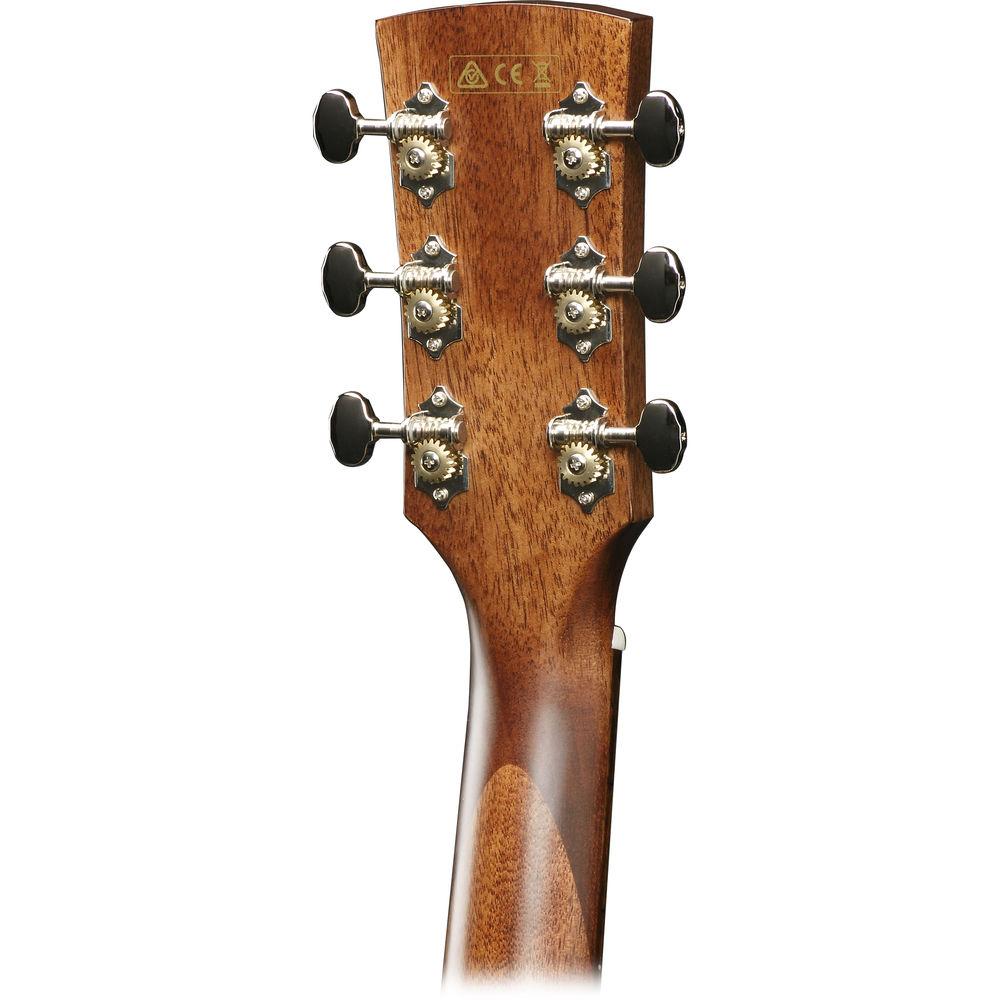

- Tuning Machines: Chrome open-gear tuners with butterbean knobs
- Gear Ratio: 18:1
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage bridge pins
- Pickup: Fishman Sonicore pickup
- Preamp: Ibanez AEQ-SP2 preamp with onboard tuner and 2-band EQ
- Output: Balanced XLR and 1/4"
- Battery: 9V
- Body Binding: Tortoiseshell
- Nut Material: Bone
- Saddle Material: Compensated bone
- Top Finish: Gloss
- Back and Sides Finish: Gloss
- Back-of-Neck Finish: Satin
- Neck Dimensions
-
- Scale: 25.6" / 651.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at 14th Fret: 2.2" / 55.0mm
- Thickness at 1st: 0.8" / 21.5mm
- Thickness at 7th: 0.9" / 22.5mm
- Radius: 15.7" / 400.0mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 15.8" / 400.1mm
- Max Depth: 3.0" / 76.2mm
In the Box Ibanez AVD9CE Artwood Vintage Series Acoustic/Electric Guitar (Natural High Gloss) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware & Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AVD9CE Artwood Vintage Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AVD9CE Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Dreadnought | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Back, Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Ovangkol | | Number of Frets | 20 | | Scale Length | 651.00 mil / | | Radius | 400 mil | | Nut Width | 43 mm | | Bridge Type | Ovangkol | | Pickguard | Yes | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 |
