User Manual for Ibanez AW360CE Artwood Series Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez AW360CE Artwood Series Acoustic Electric
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez AW360CE Artwood Series Acoustic Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

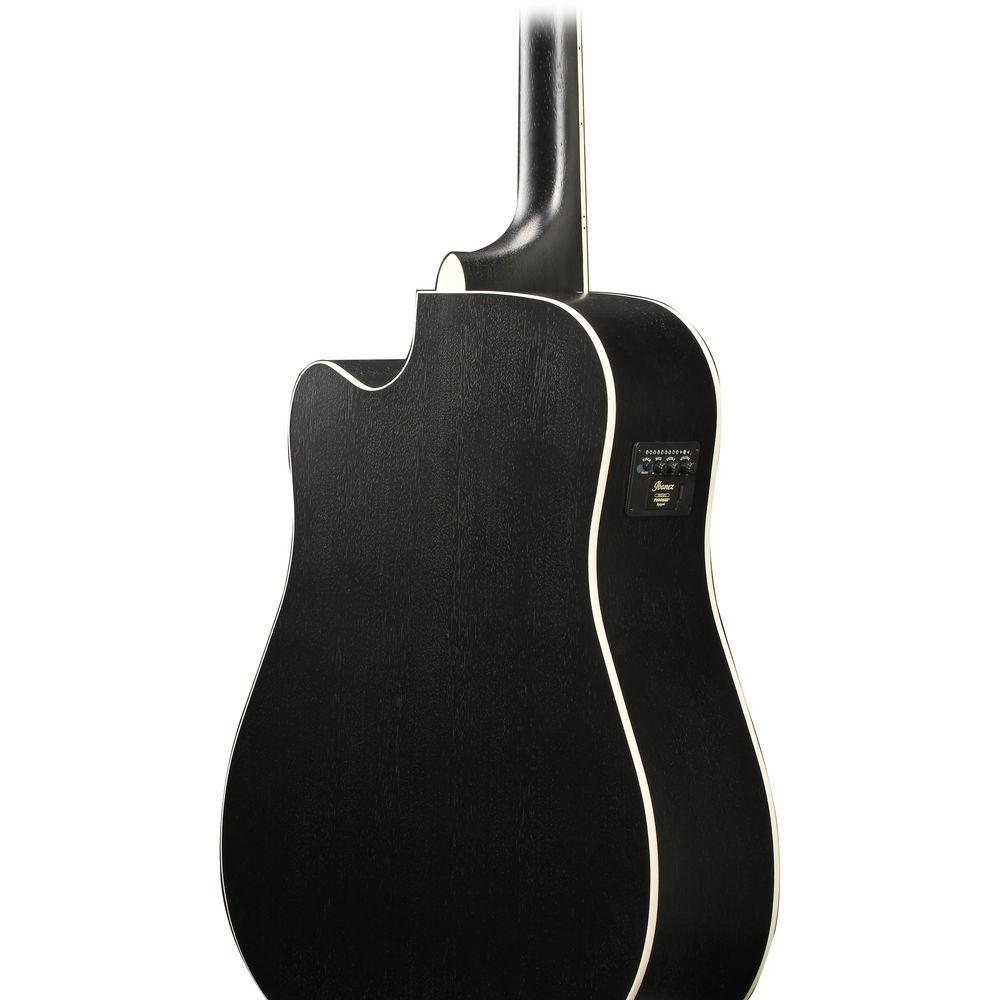

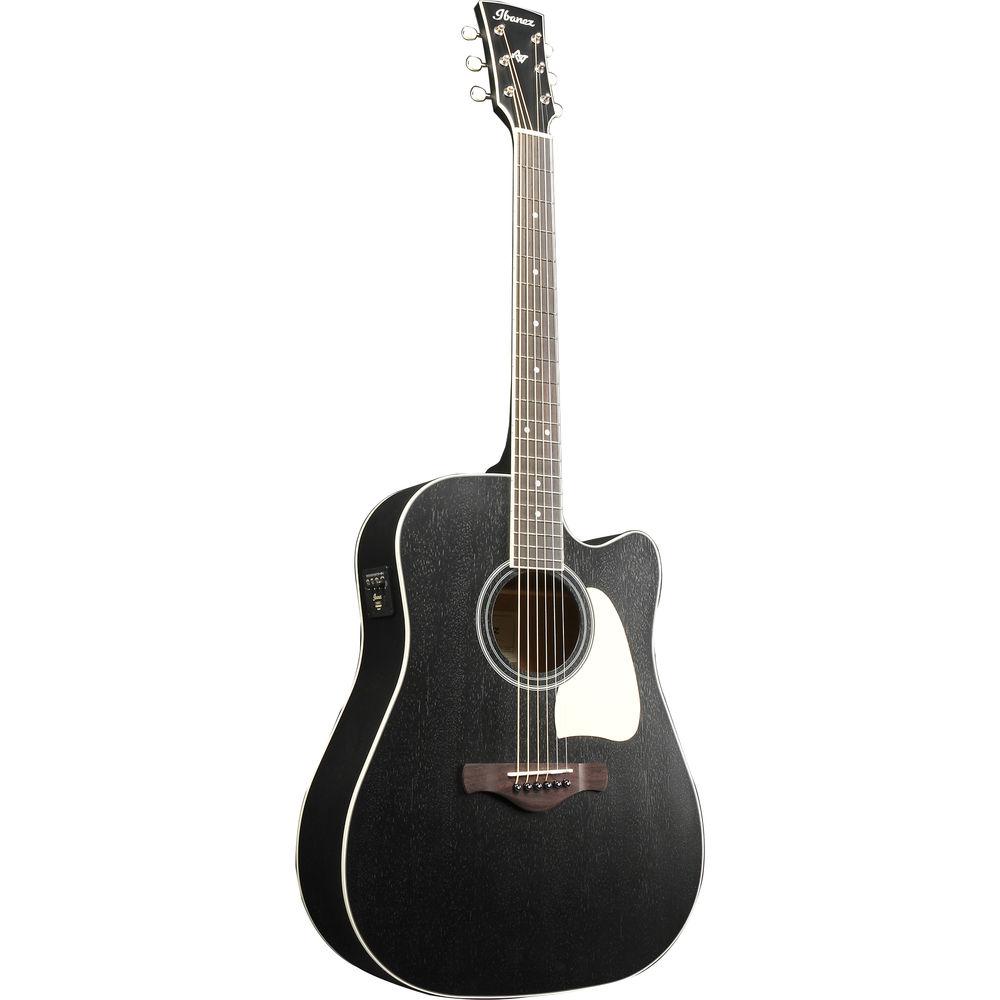

Product description The Artwood Series AW360CE from Ibanez is a full-sized acoustic/electric guitar made from mahogany with a weathered black, open pore finish. The single-cutaway dreadnought body delivers a powerful and balanced acoustic sound, well suited for solo performance or playing with a full band. The AW360CE is constructed with a solid mahogany top, mahogany back and sides, and also has a mahogany neck. The fingerboard and bridge are both made of rosewood. Other features include chrome open gear tuners with ivory knobs, Ibanez Advantage bridge pins, a bone nut and saddle, and an open pore finish on the back of the neck that lets you feel the grain of the wood. For electronics, the guitar is equipped with a Fishman Sonicore pickup and an Ibanez AEQ-SP2 preamp, which has a 2-band EQ, an onboard tuner, an XLR balanced output, and a 1/4" output jack. - General Features
-
- Body Shape: Cutaway dreadnought
- Top: Solid Mahogany
- Back and Sides: Mahogany
- Neck: Mahogany
- Fingerboard: Rosewood
- Bridge: Rosewood

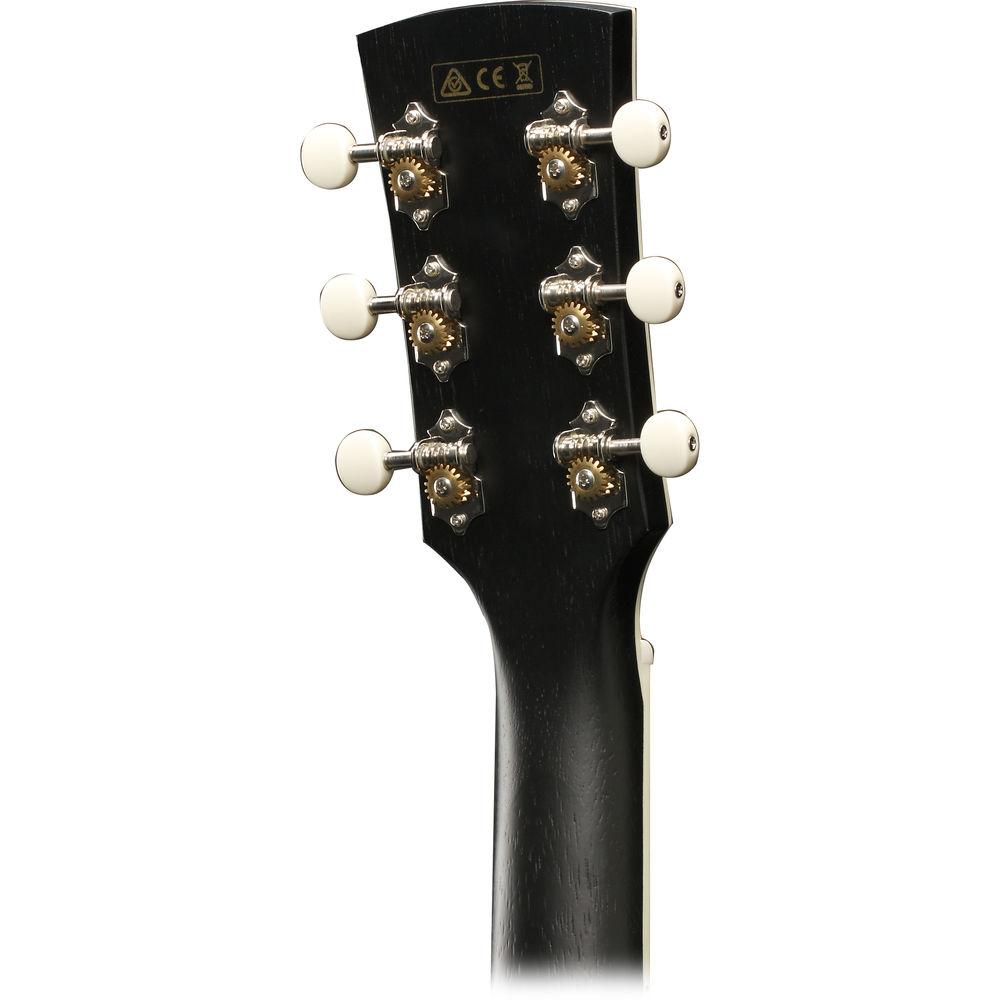

- Tuning Machines: Chrome open gear tuners with ivory knobs
- Nut Material: Bone
- Number of Frets: 20
- Saddle Material: Compensated bone saddle
- Bridge Pins: Ibanez Advantage bridge pins
- Pickup: Fishman Sonicore
- Preamp: Ibanez AEQ-SP2 preamp with onboard tuner and 2-band EQ
- Output Jack: Balanced XLR & 1/4"
- Battery: 9V
- Finish Top: Open pore
- Finish Back and Sides: Open pore
- Finish Neck Back: Open pore
- Neck Dimensions
-
- Scale: 25.6" / 651.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at 14th Fret: 2.2" / 55.0mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 7th: 0.9" / 22.0mm
- Radius: 15.7" / 400.0mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 15.8" / 400.1mm
- Max Depth: 5.0" / 127.0mm
In the Box Ibanez AW360CE Artwood Series Acoustic/Electric Guitar (Weathered Black, Open Pore) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware & Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AW360CE Artwood Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AW360CEWK Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Dreadnought | | Cutaway | Single-Cutaway | | Body Wood | Top: Mahogany
Back: Mahogany
Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 15.7" OR | | Nut Width | 43 mm | | Bridge Type | Rosewood | | Pickguard | Yes | | Pickups | Bridge: Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 |
