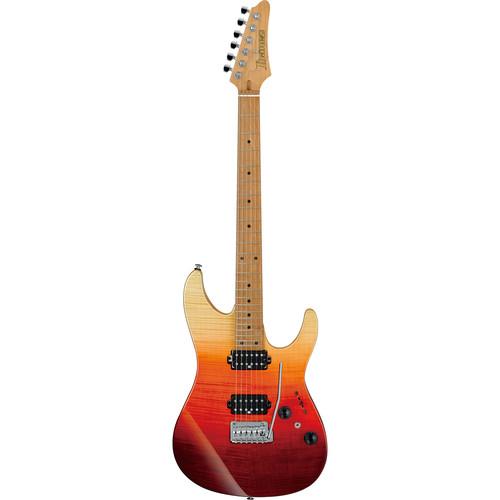

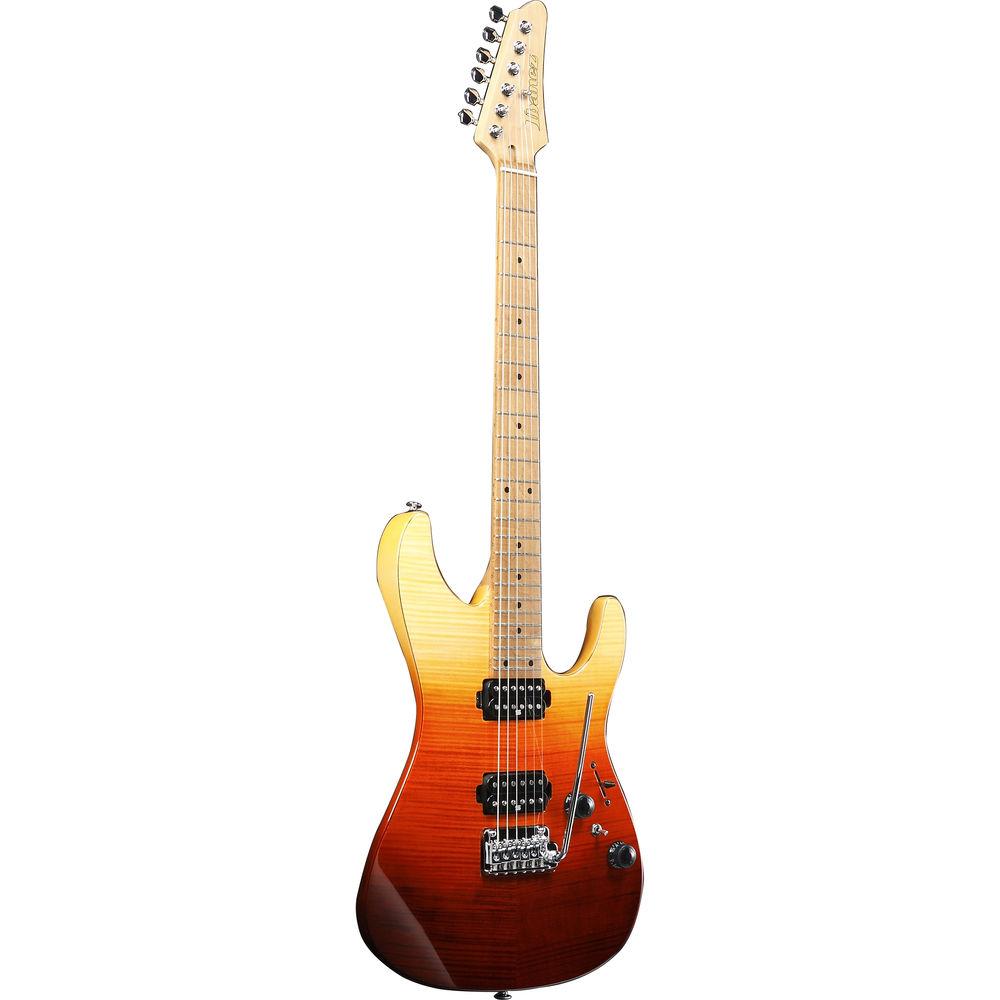

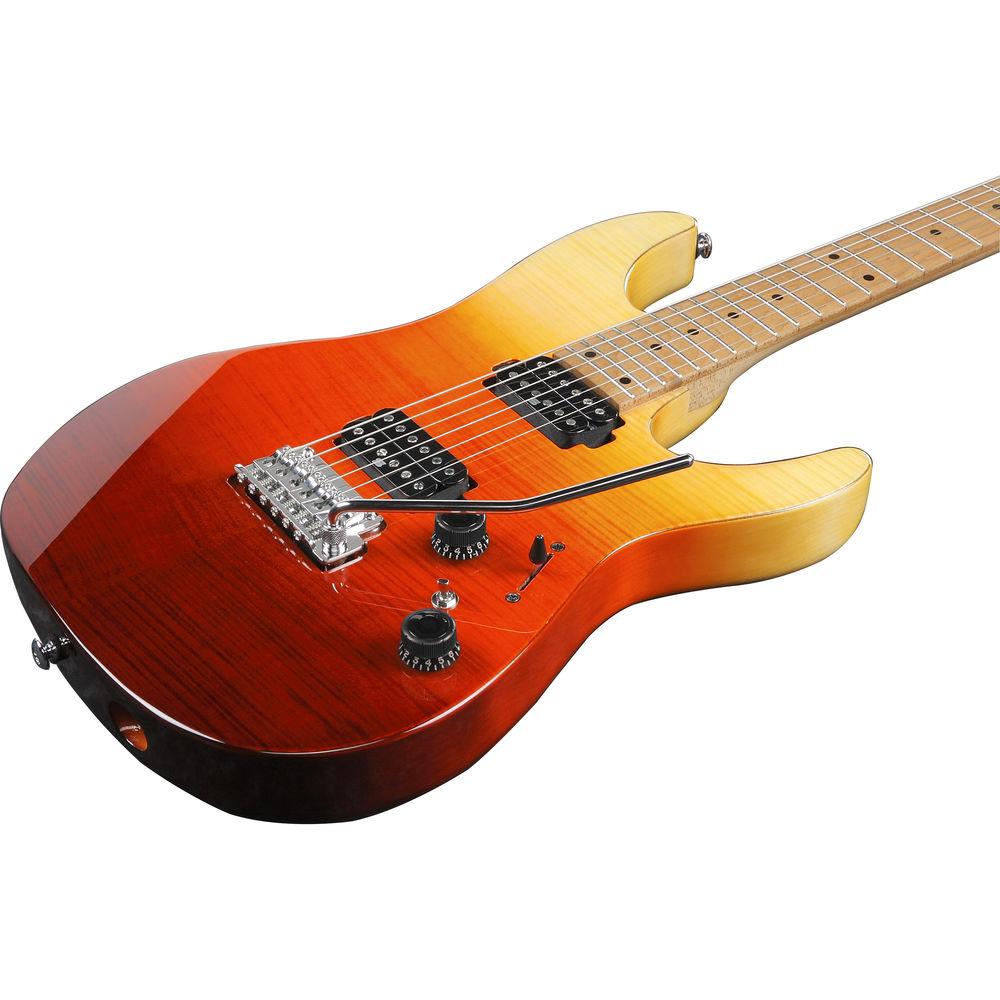

Product description Styled in a tequila sunrise burst finish, the Ibanez Premium Series AZ242F is an electric guitar with a double-cutaway body that utilizes a flamed maple top and an American basswood body. These two complement each other to provide a well-rounded tone. The neck, which offers a 25.5" scale, is crafted out of roasted maple and offers a roasted maple fingerboard with 24 stainless-steel jumbo frets. Black dot inlays are provided, as are luminescent side inlays so you can track fret positions on darkened stages. Strings are anchored to the body by a Gotoh T1502 tremolo bridge, while the headstock makes use of Gotoh MAGNUM LOCK machine heads. For electronics, this guitar employs two Seymour Duncan Hyperion humbucking pickups. These feature a moderate output to preserve the clarity of your tone, even when you're playing through heaps of distortion. They also help you retain the definition of your pick attack, though not at the expense of tonal balance.The guitar gives you a 5-way pickup selector switch. Two different pickup configurations are available through the Alter mini-switch. This gives you effectively 10 different guitar tones, some humbucker-based, some sounding more single-coil in timbre. Volume and tone knobs are also on hand to shape your sound. - AZ Roasted Maple Neck
- Heat treatment increases the wood's stability, durability, water resistance, and tolerance of temperature changes.

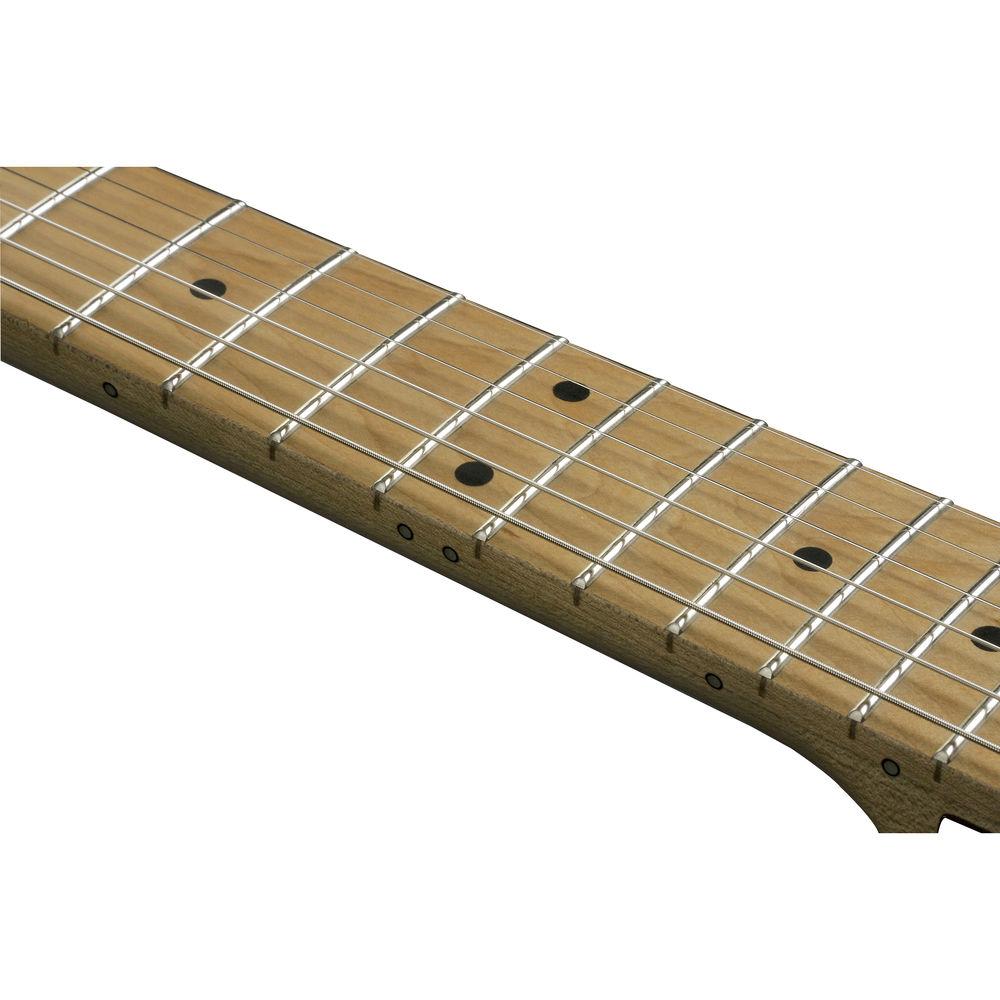

- Roasted Maple Fingerboard with Black Dot Inlays
- Heat treatment provides a well-balanced attack, as well as a bolstered tone and a rich sustain. In order to achieve supreme neck grip comfort, the fingerboard edge is finished with a smooth curve.
- Super All Access Neck Joint
- The Super All Access Neck Joint offers eminent playability with its 8mm concave curve from the top of the body to the spherical surface of the joint. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.

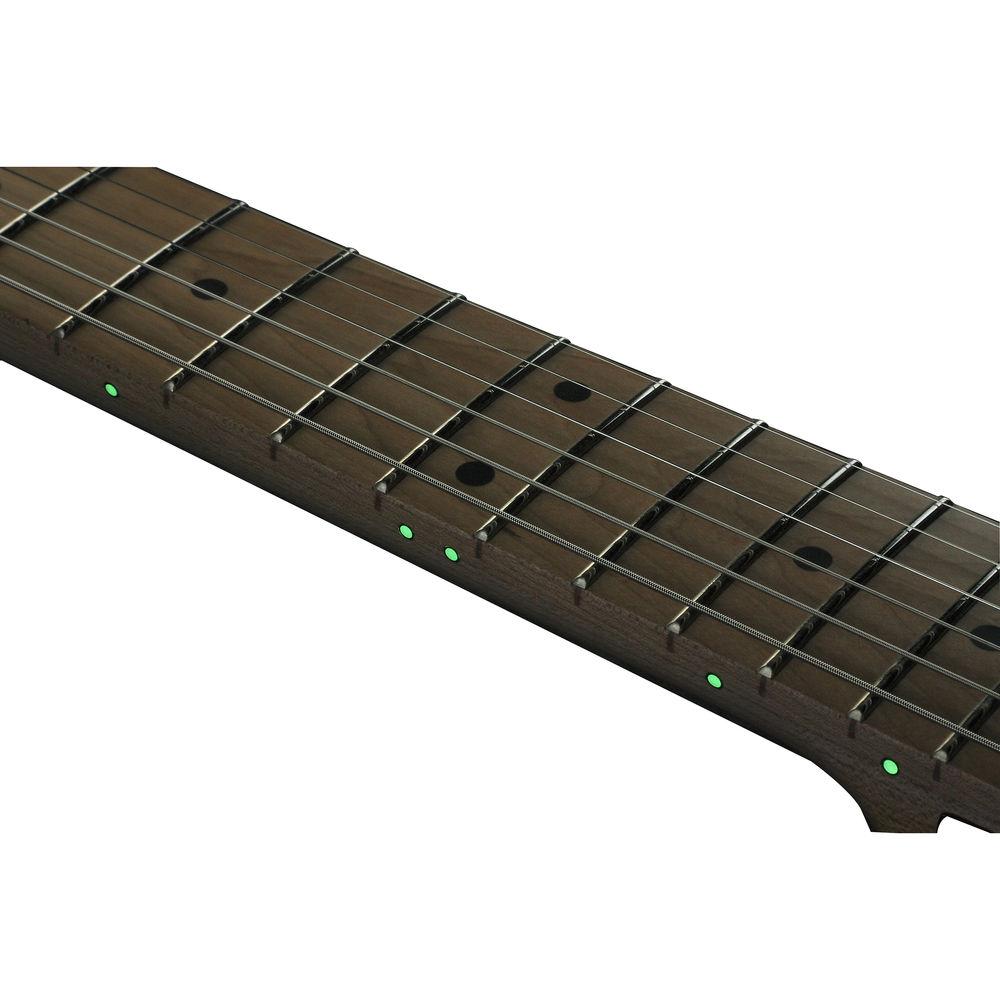

- Luminescent Side Dot Inlay
- The luminescent side dot position marks make it easy for players to see their fingerboard position when performing on dark stages.

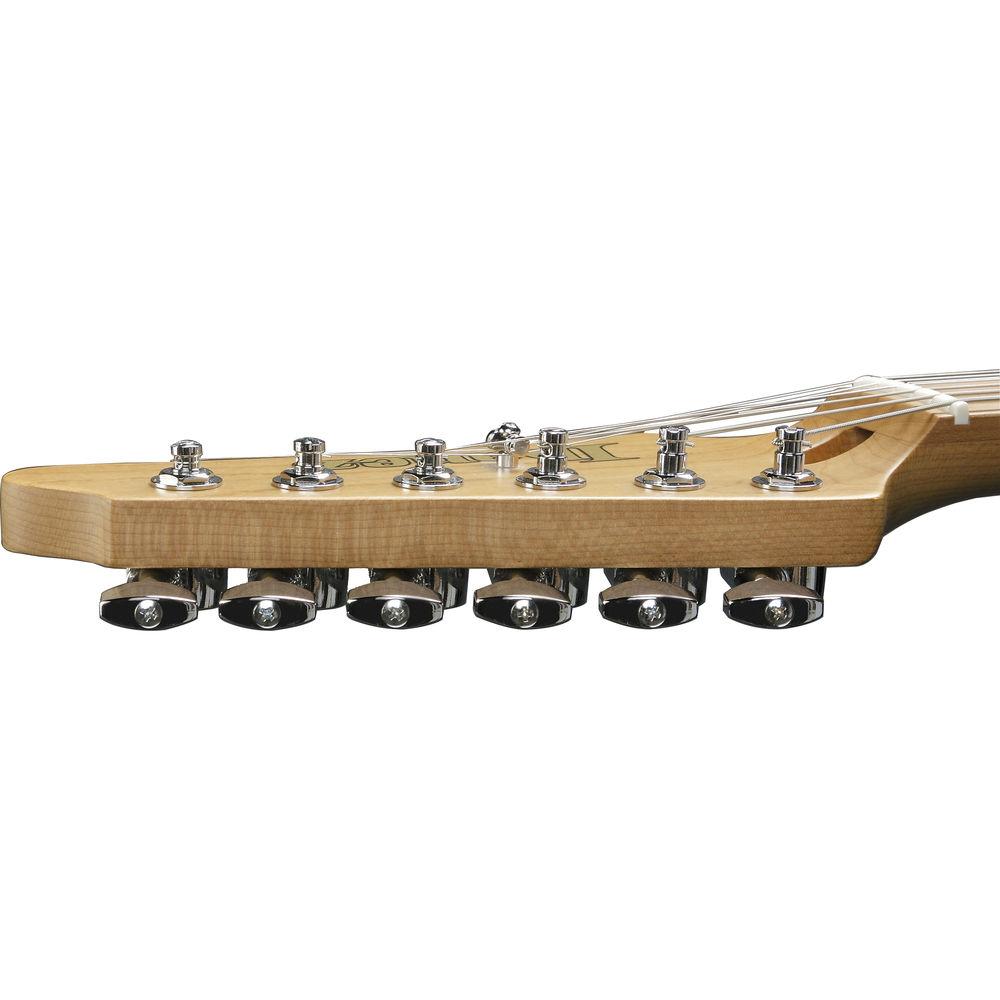

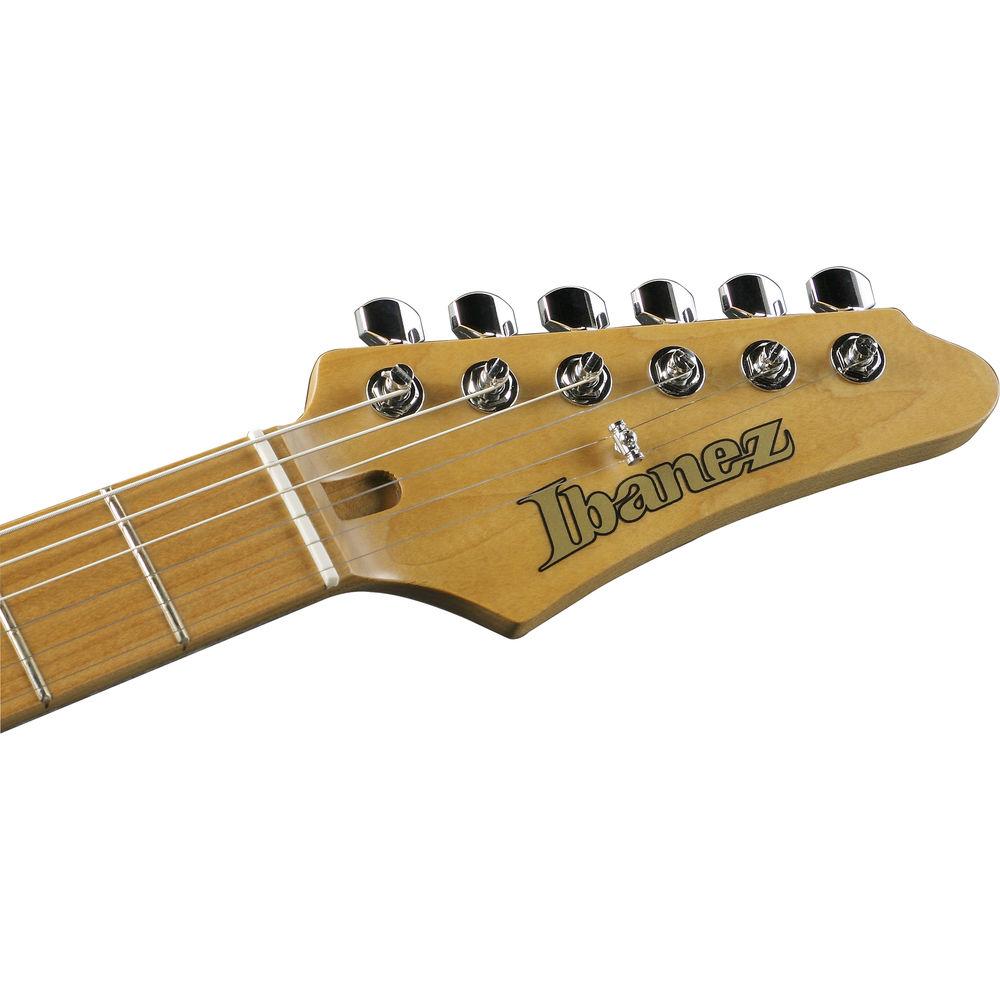

- Gotoh Magnum Lock Machine Heads with Height-Adjustable Posts
- The AZ comes with Gotoh MAGNUM LOCK machine heads, which have an established reputation for tuning stability. Its H.A.P. (height adjustable post) system allows for the adjustment of string posts for the appropriate tension of each string.

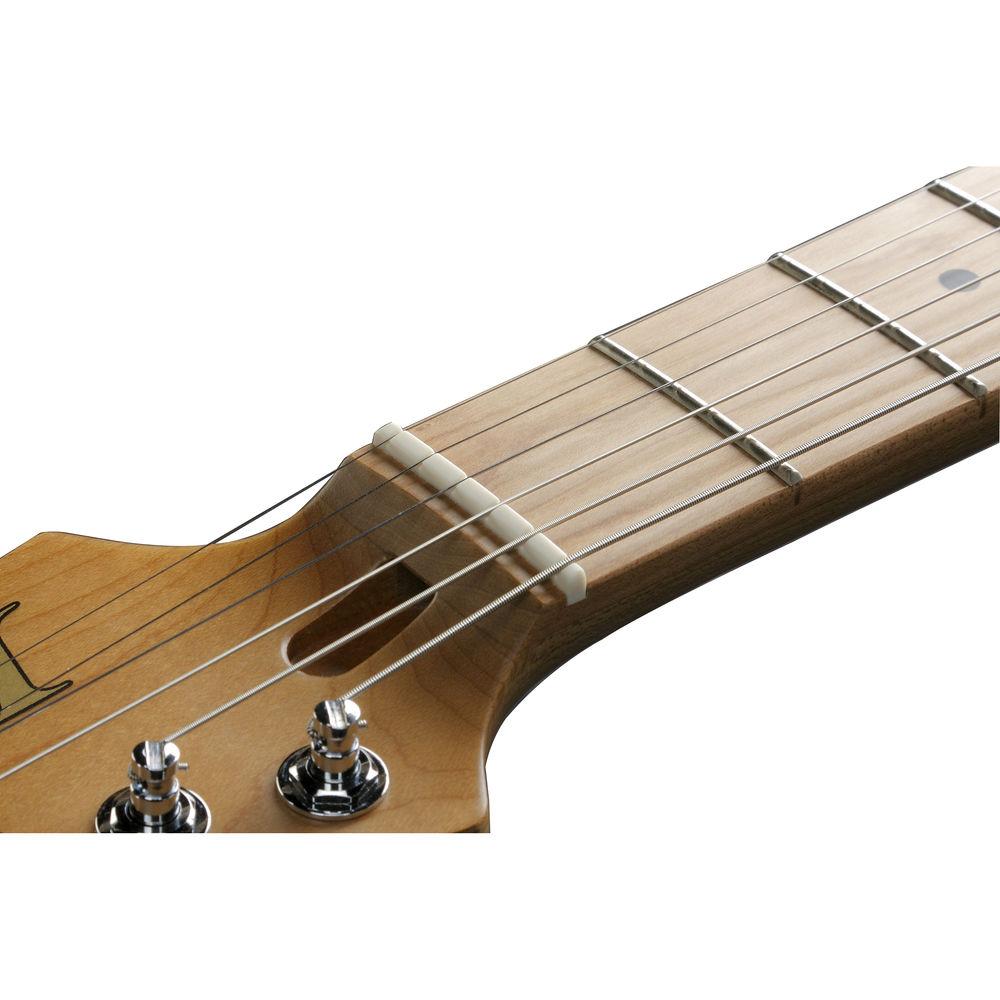

- Graph Tech TUSQ XL Nut and Stainless-Steel Frets
- The smooth Graph Tech nut increases tuning stability and bolsters the sustain and clarity of sound. Stainless-steel frets foster corrosion resistance. The wide and tall jumbo fret type offers a quick response, good articulation when playing chords, and a clear tone when playing single notes.

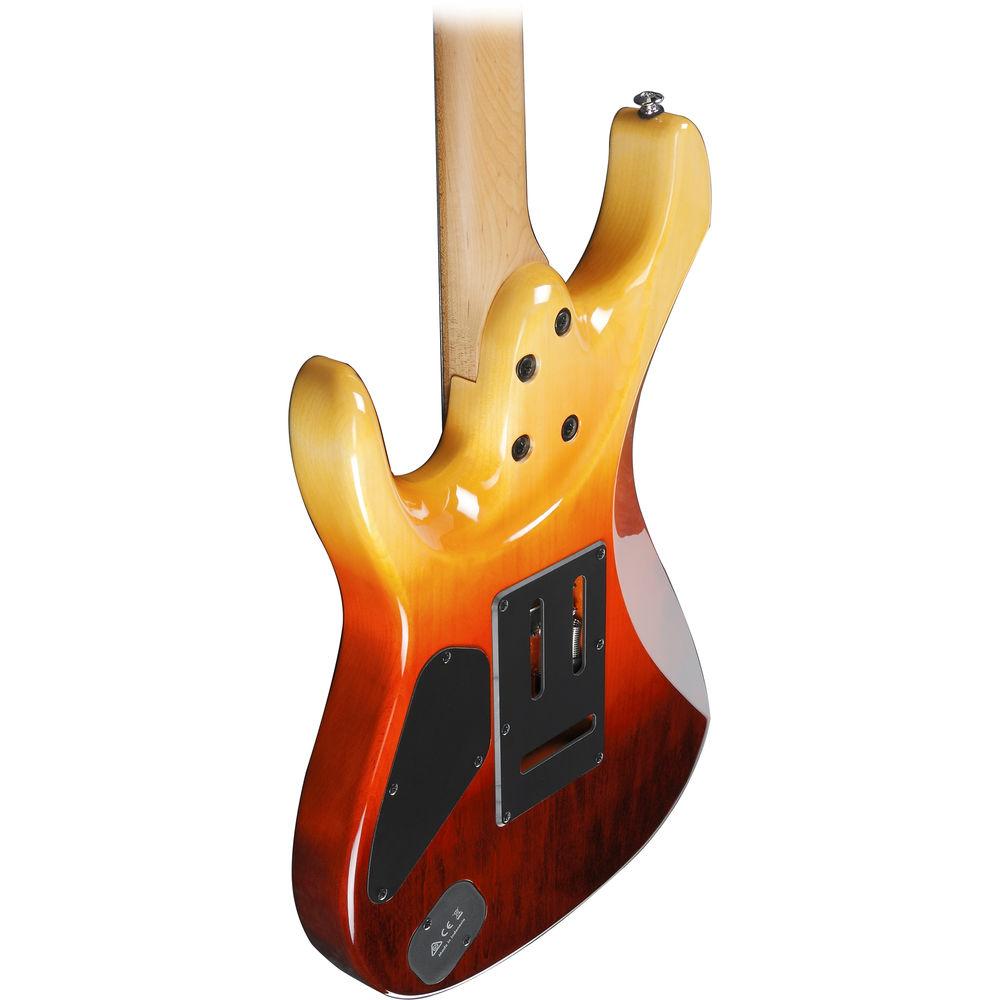

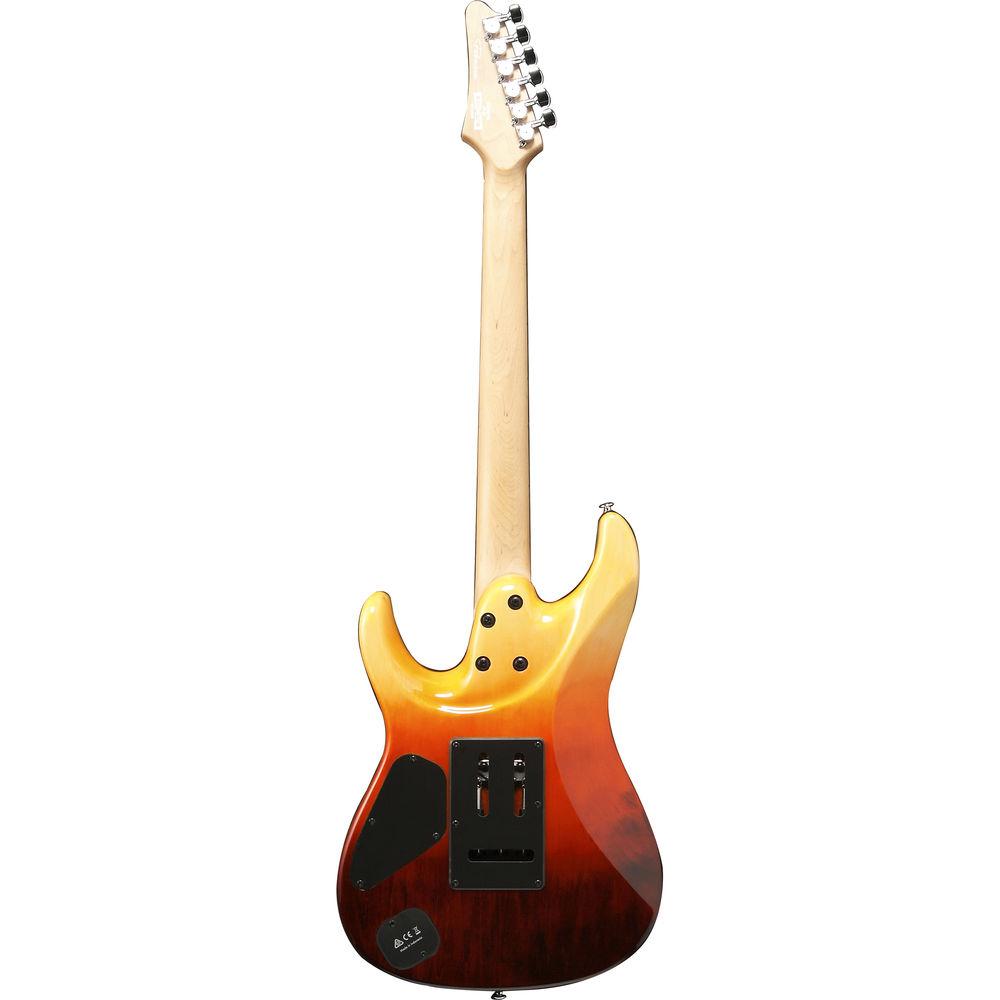

- Ergonomic Body Back Contour
- A shallow body back contour and a big forearm contour allow the guitar to fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
- Seymour Duncan Hyperion Pickups
- Seymour Duncan Hyperion Pickups feature a moderate output through Alnico 5 magnets to preserve the clarity of the fundamental tone when using a distortion sound. These pickups also deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effects pedals.
- dyna-MIX 10 Switching System with Alter Switch
- The dyna-MIX 10 system offers ten sound variations and can easily move from humbucker to single-coil modes through the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
- Gotoh T1502 Synchronized Bridge
- The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.
- General Features
-
- Neck Type: AZ roasted maple
- Body: Flamed maple top / American basswood body
- Fingerboard: Roasted maple fingerboard with black dot inlay
- Frets: Jumbo stainless steel frets
- Bridge: Gotoh T1502 tremolo bridge
- Neck Pickup: Seymour Duncan Hyperion (humbucker, passive/alnico)
- Bridge Pickup: Seymour Duncan Hyperion (humbucker, passive/alnico)
- dyna-MIX10 Switching system with Alter switch
- Nut: Graph Tech TUSQ XL nut
- Hardware Color: Chrome
- Tuners: Gotoh MAGNUM LOCK machine heads with H.A.P.
- Neck Dimensions
-
- Scale: 25.5" / 648.0mm
- Width at Nut: 1.7" / 42.0mm
- Width at 24th Fret: 2.2" / 57.0mm
- Thickness at 1st Fret: 0.8" / 20.5mm
- Thickness at 12th Fret: 0.9" / 22.5.mm
- Radius: 12.0" / 305.0 mm
In the Box Ibanez AZ242F Premium Series Electric Guitar (Tequila Sunrise Gradation) Gig Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez AZ242F Premium Series Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez AZ242F Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Maple
Basswood | | Neck Type | Bolt-On Neck | | Neck Wood | Maple | | Fingerboard | Maple | | Number of Frets | 24 | | Scale Length | 25.51" / 648 mm | | Radius | 305 mil | | Nut Width | 42 mm | | Bridge Type | Tremolo | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 5-Way Pickup Selector Switch Additional Alter switch for multiple pickup voicings |
