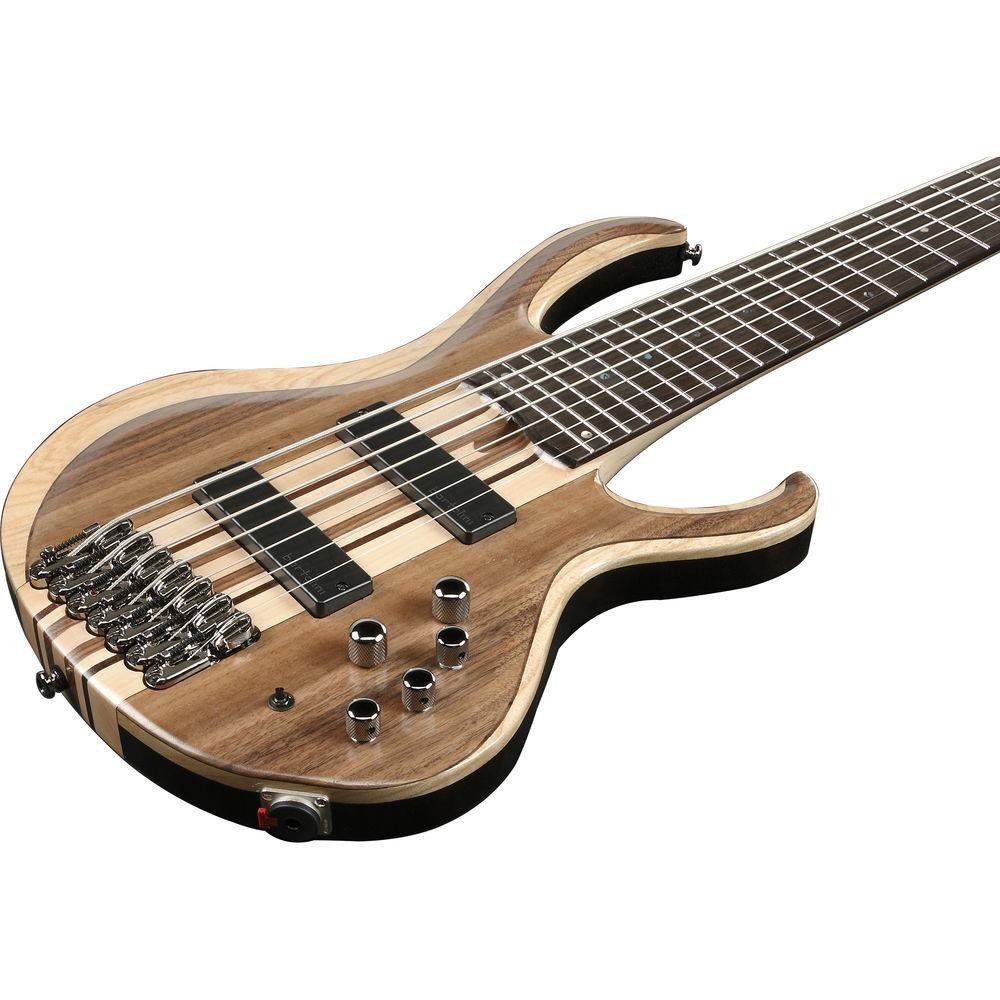

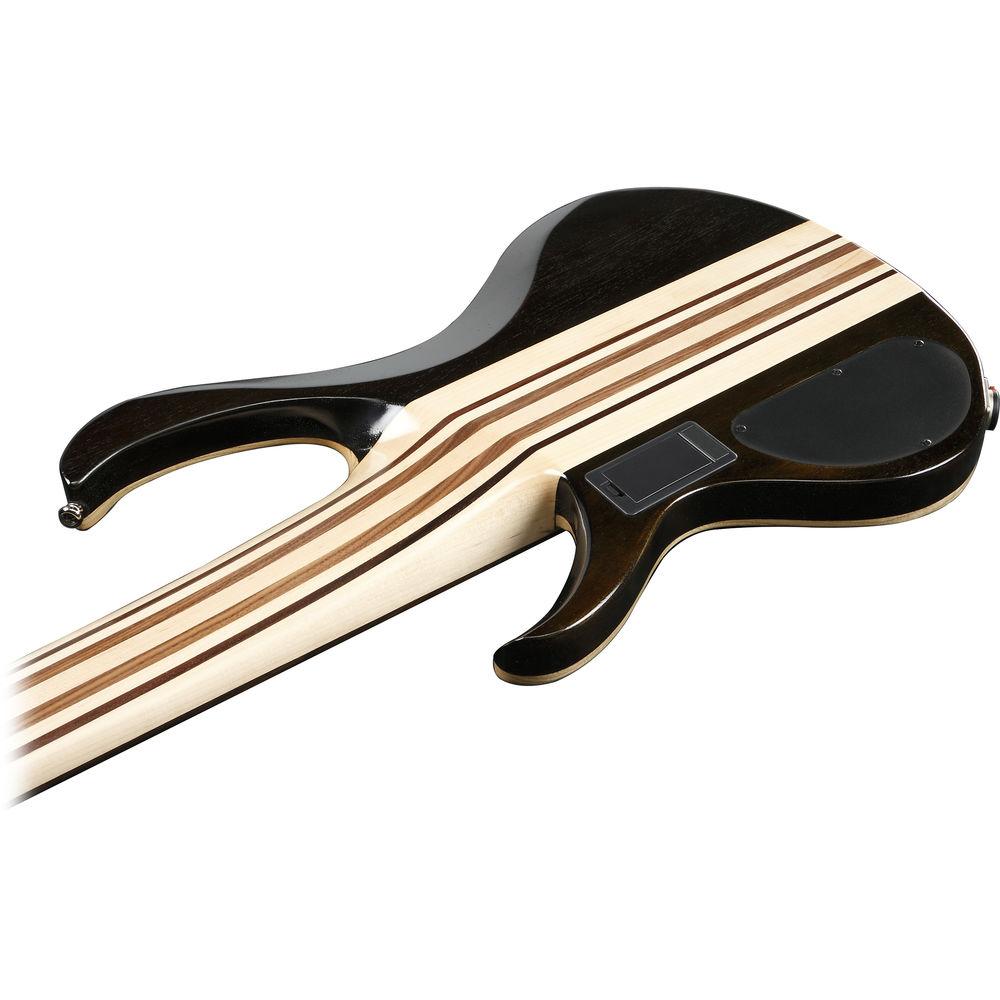

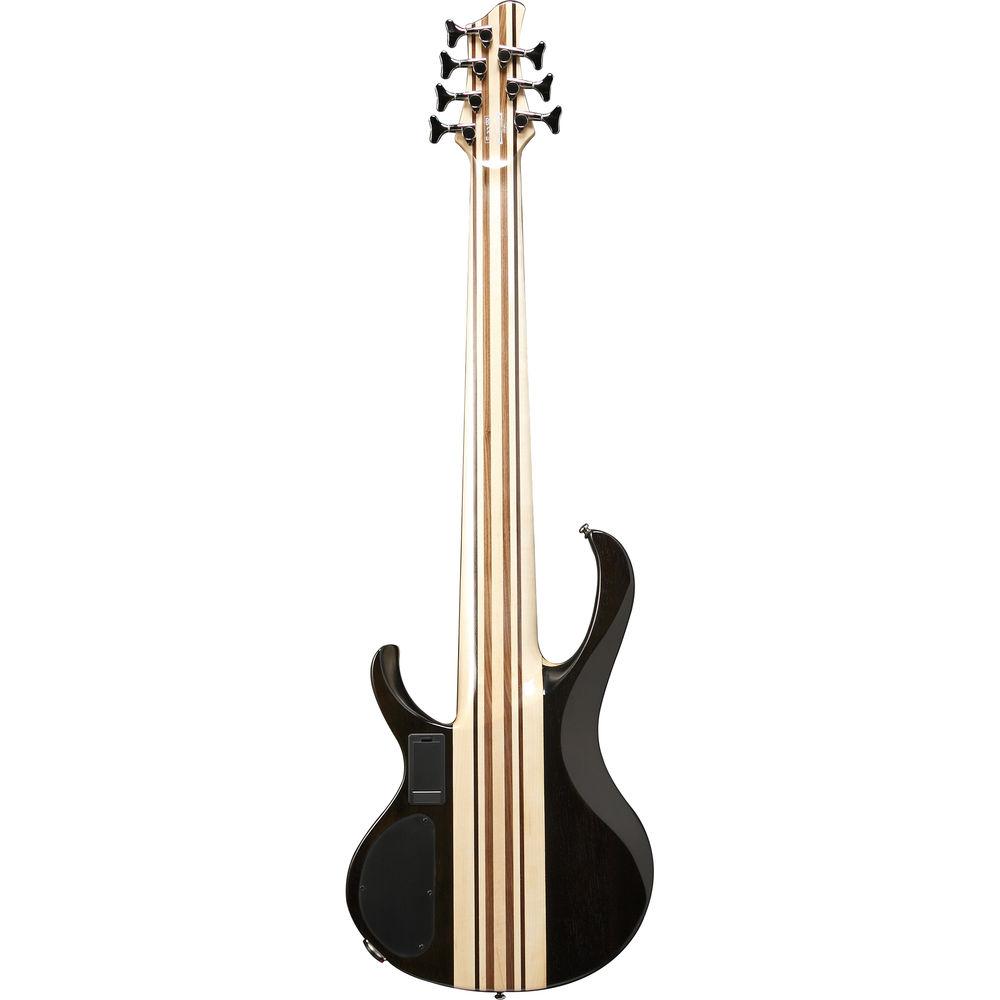

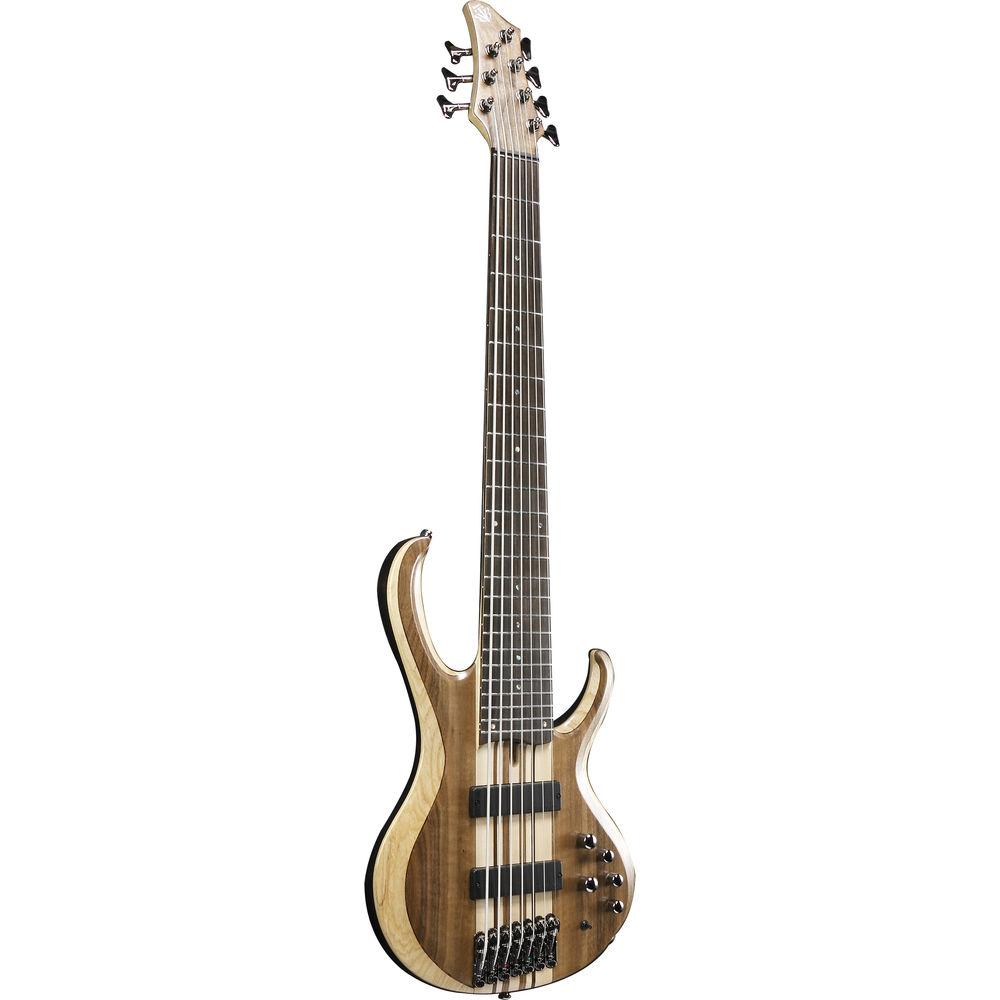

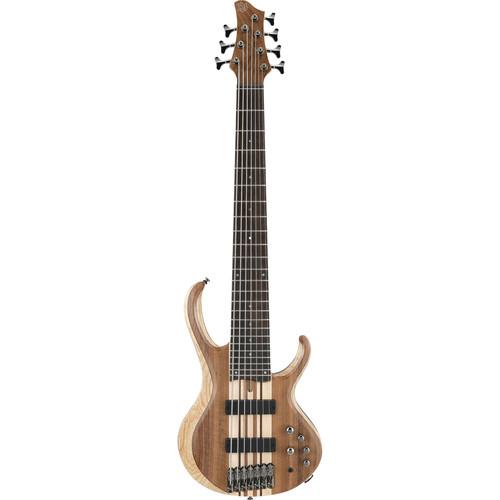

Product description Styled in a natural low-gloss finish, the Ibanez BTB747 is a seven-string electric bass that utilizes many woods in its construction. It sports an ash/mahogany wing body with a walnut top, while the nine-piece 35"-scale neck is crafted out of panga panga, walnut, and maple, with graphite reinforcement rods as well. The neck is joined to the body in the neck-through-body style, which bolsters sustain. Atop the neck sits a jatoba fingerboard with 24 medium stainless-steel frets and abalone dot inlays. A Mono-Rail V bridge affixes strings to the body.
For electronics, the instrument utilizes two Bartolini BH2 soapbar pickups, which provide a tight low end, a punchy midrange, and a smooth response overall. An on-board Ibanez Custom Electronics EQ gives you a three-position midrange control, and the ability to boost or cut the lows, mids, or highs. A pickup-balancer knob and a volume knob help you shape your timbre further. - 35" Scale
- The extra-long 35" scale offers tight, even tension with no flopping on the low end, and added sustain on the high strings. It also bolsters articulation.
- Neck-Through Construction
- Neck-through construction provides massive sustain and excellent stability.
- Deep Cutaway
- The BTB's deep cutaways allow effortless access to the upper frets.
- Jatoba Fingerboard
- Jatoba features a reddish-brown hue and produces a rich midrange with a clear high end.
- Stainless-Steel Frets
- The stainless-steel frets are known for their bright tone, and they add player-friendly features, such as long durability and a smoothness to bend on.
- Zero Fret
- A zero fret provides accurate intonation, while allowing open strings to ring with the same resonance as notes played up the neck.
- Bartolini BH2 Pickups and 3-Band EQ
- The Bartolini BH2 pickups provide a tight bottom-end, punchy midrange, and a smooth response. The dual-coil style configuration of these pickups maximizes articulation, while a long blade pole piece widens the magnetic field. This provides balanced string-to-string pickup response. Combined with the Ibanez Custom Electronics 3-band EQ and a 3-way mid-frequency switch, the BTB Premium offers many tonal possibilities.
- Mono-Rail V Bridge
- The Mono-rail V provides bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.
- Neutrik Locking Output Jack
- This jack provides a stable and secure connection that doesn't allow for accidental disconnection.
- General Features
-
- Neck type: BTB7 9-piece maple/walnut/panga panga neck-through
- Body: walnut top, ash/mahogany wing body
- Fingerboard: jatoba with abalone dot inlay
- Fret: medium stainless-steel frets
- Number of frets: 24, with zero fret
- Bridge: Mono-rail V bridge, (15.5mm string spacing)
- Neck pickup: Bartolini BH2 (passive)
- Bridge pickup: Bartolini BH2 (passive)
- Equalizer: Ibanez Custom Electronics 3-band EQ
- Hardware color: Cosmo black
- Neck Dimensions
-
- Scale: 35.0" / 889.0mm
- Width at nut: 2.5" / 63mm
- Width at last fret: 3.8" / 96mm
- Thickness at 1st: 0.8" / 21.0mm
- Thickness at 12th: 0.9" / 24.0mm
- Radius: 37.4" / 950mm
In the Box Ibanez BTB747 7-String Electric Bass (Natural Low Gloss) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez BTB747 7-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez BTB747NTL Specs | Right/Left Handed | Right-Handed | | Number of Strings | 7 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Walnut
Ash, Mahogany | | Neck Type | Neck-Through Construction | | Neck Wood | Maple, Panga Panga, Walnut | | Fingerboard | Jatoba | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 35.00" / 889 mm | | Radius | 950 mil | | Nut Width | 63 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Bass Soapbar | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 3-Way mid-frequency switch | | Switching | None |
