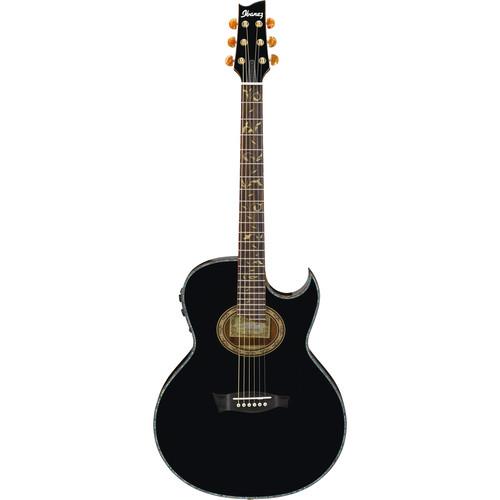

Product description The Steve Vai Euphoria Series EP10 is an electric/acoustic guitar with a black pearl high-gloss finish and a single-cutaway, thin EP body. The top is constructed out of solid Englemann spruce, while the back and sides are fashioned out of solid mahogany. The 25.6" scale neck—also made out of mahogany—gives you a Pau Ferro fingerboard with 20 frets a tree-of-life inlay. The bridge is also fashioned Pau Ferro.
For electronics, this guitar utilizes a Fishman Matrix Pickup and a Fishman Aura IC preamplifier. These two elements are designed to capture a transparent tone, though it also allows you to utilize Fishman's Image Gallery software.
This software gives you sonic images of hundreds of tonal profiles that you can blend with the pickup's sound by means of the Image knob. Off the bat, the guitar comes loaded with Steve Vai's preferred preset. Up to four images can be saved in the preamp.The bridge makes use of Ibanez Advantage pins to secure strings to the body, while Grover gold die-cast tuners with half-moon knobs sit in the headstock. You'll note other aesthetic and timbral touches, such as the metal-plate soundhole rosette and Abalone top-board purfling. - Pau Ferro Fingerboard and Bridge
- Pau Ferro produces a well-balanced tonal character from the bass to the trebles.
- Solid Engelmann Spruce Top
- Engelmann Spruce offers a rich midrange and a vibrant tonal character with precise articulation.
- General Features
-
- Body Shape: Special Thin EP
- Top: Solid Engelmann spruce
- Back and Sides: Solid Mahogany
- Neck: Mahogany
- Fingerboard: Pau Ferro
- Bridge: Pau Ferro
- Top-Board Purfling: Abalone
- Soundhole Rosette: Original metal-plate
- Tuning Machines: Grover gold tuners with brown acrylic half-moon knobs
- Number of Frets: 24
- Bridge Pins: Ibanez Advantage
- Pickup: Fishman Matrix
- Preamp: Fishman Aura IC with Steve Vai Preset
- Output: 1/4" jacks
- Finish Top: Gloss
- Finish Back and Sides: Gloss
- Finish Neck Back: Gloss
- Neck Dimensions
-
- Scale: 25.6" / 651mm
- Width at Nut: 1.7" / 43.0mm
- Width at 14th Fret: 2.2" / 55.0mm
- Thickness at 1st Fret: 0.8" / 20.0mm
- Thickness at 7th Fret: 0.8" / 21.0mm
- Radius: 12" / 305.omm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 16.0" / 406.4mm
- Max Depth: 2.8" / 69.9mm
UPC: 606559715107 In the Box Ibanez EP10 Steve Vai Euphoria Series Acoustic/Electric Guitar (Back Pearl High Gloss) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez EP10 Steve Vai Euphoria Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez EP10 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Thin-Line | | Cutaway | Single-Cutaway | | Body Wood | Top: Spruce
Back, Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Pau Ferro | | Number of Frets | 24 | | Scale Length | 25.6" / | | Radius | 305 mil | | Nut Width | 43 mm | | Bridge Type | Ebony | | Pickguard | No | | Pickups | Undersaddle | | Controls | Tone Control: x 1
Volume Control: x 1
Balance Control: x 1 | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 43.0 x 17.75 x 5.75" |
