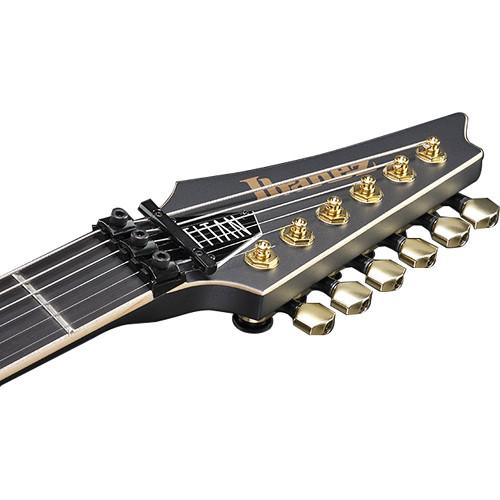

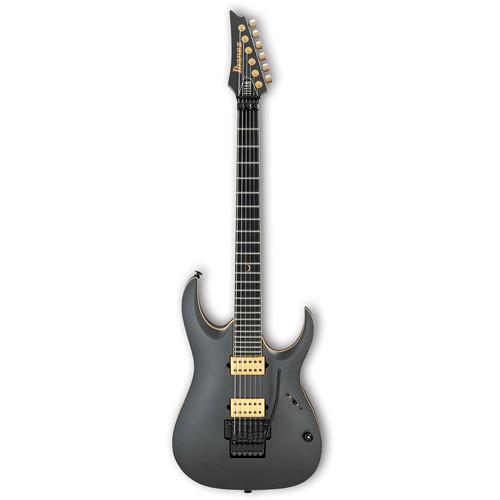

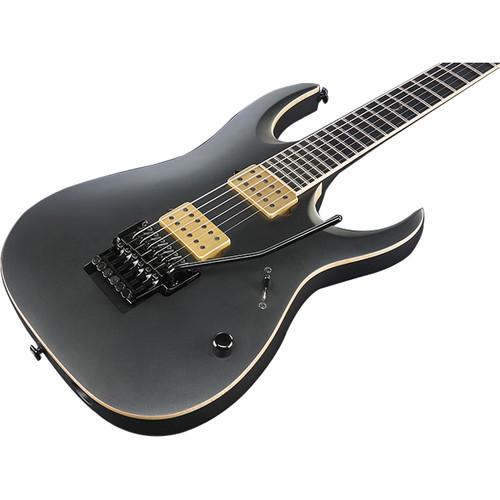

Product description Step into Periphery with the Jake Bowen Signature Series Guitar Read More fbwseadcwqwfrvzryffafsdeqsrs Designed for progressive rock guitarist Jake Bowen of Periphery, the Signature Series JBM100 model from Ibanez features a mahogany body with a maple top, and a 5-piece maple/walnut bolt-on neck with a bound ebony fingerboard, 24 jumbo frets, and special JBM inlay marking the 12th fret. The solid double-cutaway body delivers maximum resonance and sustain, while the ebony fingerboard offers tight low end and a fast, articulate response. Other features include scooped and contoured cutaways which enable full access to the highest frets, a Lo-Pro Edge locking tremolo bridge, and a reverse headstock equipped with a set of gold Sperzel Trim-Lok machineheads, which help maintain tuning stability. Voiced specifically for Bowen's Ibanez Signature models, the DiMarzio Titan neck and bridge humbucking pickups offer a wide variety of tones with depth, warmth, and rich dynamics, ranging from tight and aggressive for palm-muted chords, to clear and ambient for open chords or picked phrases, to velvety and fluid for soaring lead tones. The pickups work equally well when playing in standard and dropped tunings, maintaining definition in the lower ranges. In addition to the standard full-humbucking tones, the 5-way pickup selector is wired to include a parallel-coil configuration on the neck pickup, and a combination of split coils for both the neck and bridge pickups. - General Features
-
- Neck Type: JBM 5pc maple/walnut
- Body: Mahogany with maple top

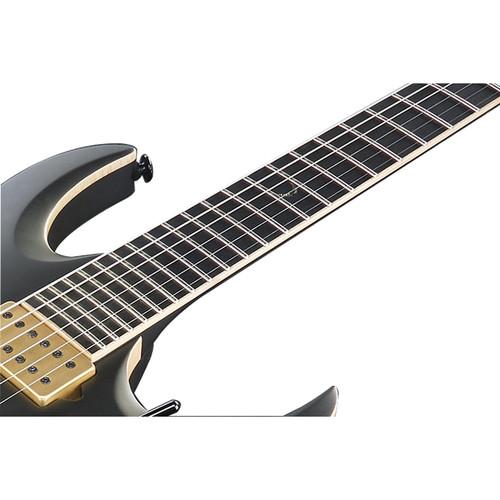

- Fingerboard: Bound ebony fingerboard with JBM special inlay on the 12th fret
- Frets: 24, jumbo with Prestige fret edge treatment
- Bridge: Lo-Pro Edge tremolo

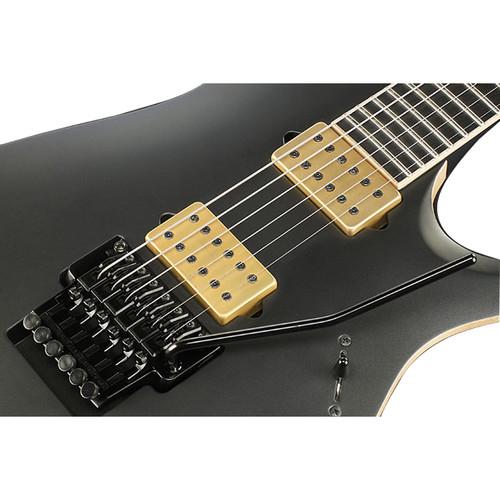

- Neck Pickup: DiMarzio Titan (Humbucker, passive/ceramic)
- Bridge Pickup: DiMarzio Titan (Humbucker, passive/ceramic)
- Factory Tuning: 1D, 2A, 3F, 4C, 5G, 6C (Drop C)
- String Gauge: .011/.014/.019/.032/.044/.056
- Hardware color: Black tremolo, locking nut, and control knob / gold machineheads
- Tuners: Sperzel Trim-Lok machineheads
- Neck Dimensions
-
- Scale: 25.5" / 648.0mm
- Width at Nut: 1.7" / 43.0mm
- Width at 24th Fret: 2.3" / 58.0mm
- Thickness at 1st Fret: 0.7" / 18.0mm
- Thickness at 12th Fret: 0.8" / 20.0mm
- Radius: 16.9" / 430.0 mm
UPC: 887802029374 In the Box Ibanez JBM100 Jake Bowen Signature Series Electric Guitar with Hardshell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez JBM100 Jake Bowen Signature Series Electric Guitar with Hardshell Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez JBM100 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Mahogany
Top: Maple | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Walnut | | Fingerboard | Ebony | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.5" / | | Radius | 16.9" OR | | Nut Width | 43 mm | | Bridge Type | Tremolo | | Pickguard | No | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 0
Volume Control: x 1 | | Switching | 5-Way Pickup Selector Switch | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 44.3 x 17.5 x 6.0" |
