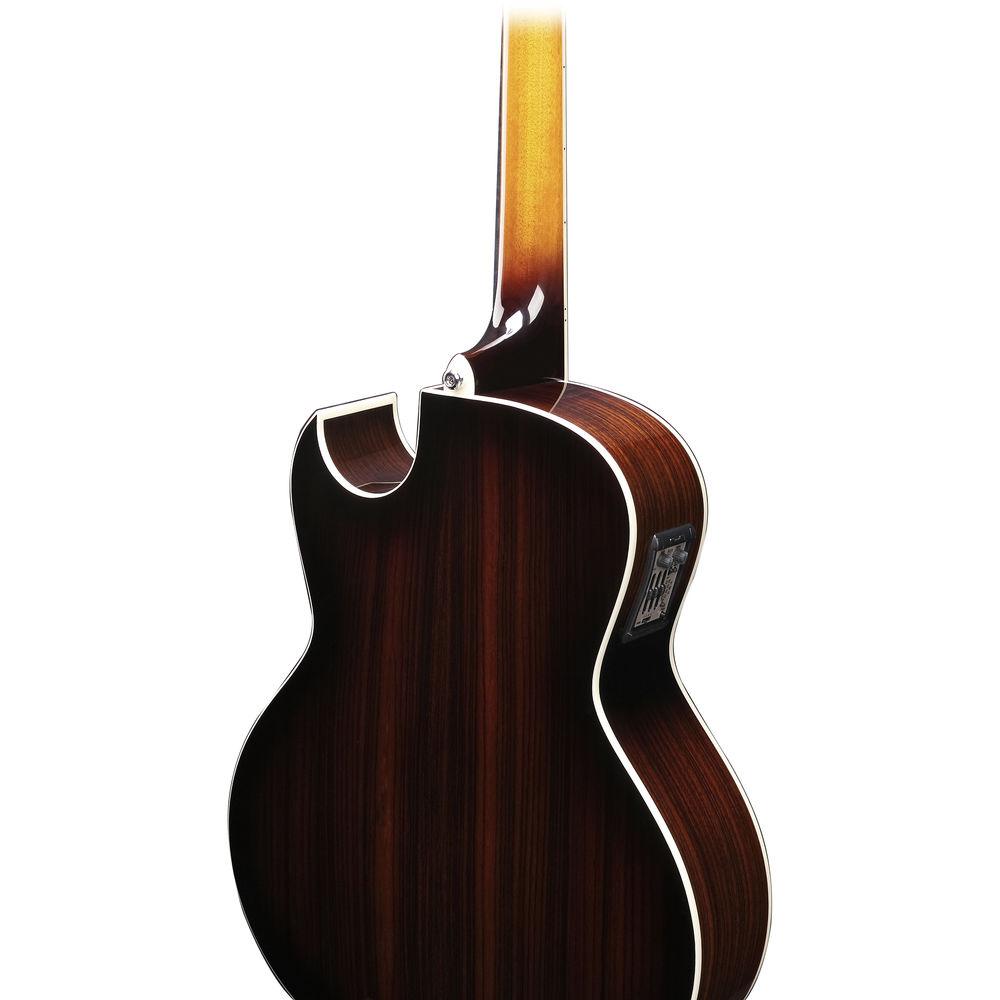

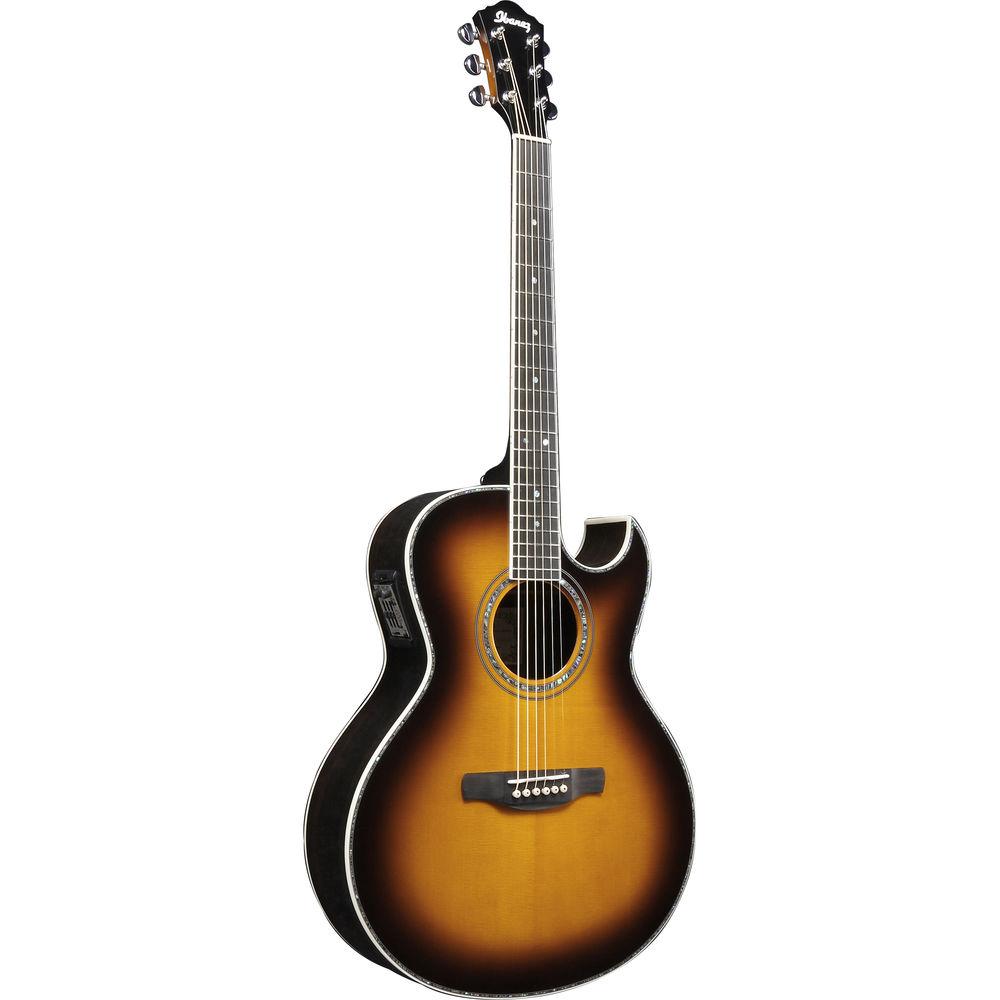

User Manual for Ibanez JSA20 Joe Satriani Series Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez JSA20 Joe Satriani Series Acoustic
- Product category: Acoustic Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Acoustic Guitars
 |
User manual for the Ibanez JSA20 Joe Satriani Series Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|
Product description The Ibanez Joe Satriani Series JSA20 is an electric/acoustic guitar with a vintage burst gloss finish and an exotic-wood, single-cutaway body. The top is constructed out of solid Englemann spruce, while the back and sides are fashioned out of solid Pau Ferro. The mahogany, 25.6" scale neck gives you an ebony fingerboard with 20 frets and abalone inlays. The bridge is also fashioned ebony
For electronics, this guitar utilizes a Fishman Acoustic Matrix Pickup and a Fishman Aura Pro preamplifier. These two elements are designed to capture a transparent tone, though it also allows you to utilize Fishman's Image Gallery software.
This software gives you sonic images of hundreds of tonal profiles that you can blend with the pickup's sound by means of the Image knob. Off the bat, the guitar comes loaded with Joe Satriana's preferred preset. Up to four images can be saved in the preamp. You'll also find that the Anti-Feedback button, Phase button, and onboard tuner will come in handy on stage. The bridge makes use of Ibanez Advantage pins to secure strings to the body, while Grover Chrome die-cast tuners with half-moon knobs sit atop the headstock. You'll note other aesthetic and timbrel touches, such as the abalone soundhole rosette, and the Graph Tech TUSQ nut and saddle. - Ebony Fingerboard and Bridge
- Ebony produces tight lows and mids, while giving you a focused high-end. It also exhibits a quick response and rich sustain.
- Solid Engelmann Spruce Top
- Engelmann Spruce offers a rich midrange and a vibrant tonal character with precise articulation.
- General Features
-
- Body Shape: JSA Body
- Top: Solid Engelmann spruce
- Back and Sides: Solid Pau Ferro
- Neck: Mahogany
- Fingerboard: Ebony
- Bridge: Ebony
- Top-Board Purfling: Abalone
- Soundhole Rosette: Abalone
- Tuning Machines: Grover chrome open-gear tuners with half-moon knobs
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage
- Pickup: Fishman Matrix
- Preamp: Fishman Auro pro with onboard tuner and Joe Satriani Preset
- Output: 1/4" jacks
- Finish Top: Gloss
- Finish Back and Sides: Gloss
- Finish Neck Back: Gloss
- Neck Dimensions
-
- Scale: 25.6" / 651mm
- Width at Nut: 1.7" / 43.0mm
- Width at 14th Fret: 2.2" / 55.0mm
- Thickness at 1st Fret: 0.8" / 20.0mm
- Thickness at 7th Fret: 0.8" / 21.0mm
- Radius: 12" / 305mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 16.0" / 406.4mm
- Max Depth: 4.25" / 108.0mm
UPC: 606559874019 In the Box Ibanez JSA20 Joe Satriani Series Acoustic/Electric Guitar (Vintage Burst High Gloss) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez JSA20 Joe Satriani Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez JSA20 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Cutaway | Single-Cutaway | | Body Wood | Top: Spruce
Back, Sides: Pau Ferro | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Ebony | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 305 mil | | Nut Width | 43 mm | | Bridge Type | Ebony | | Pickguard | No | | Pickups | Undersaddle | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 Onboard Tuner and Phase buttons |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
