User Manual for Ibanez K5 Fieldy Signature Series 5-String Electric Bass Click to enlarge the picture
Contents of the user manual for the Ibanez K5 Fieldy Signature Series 5-String
- Product category: Bass Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Bass Guitars
 |
User manual for the Ibanez K5 Fieldy Signature Series 5-String contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

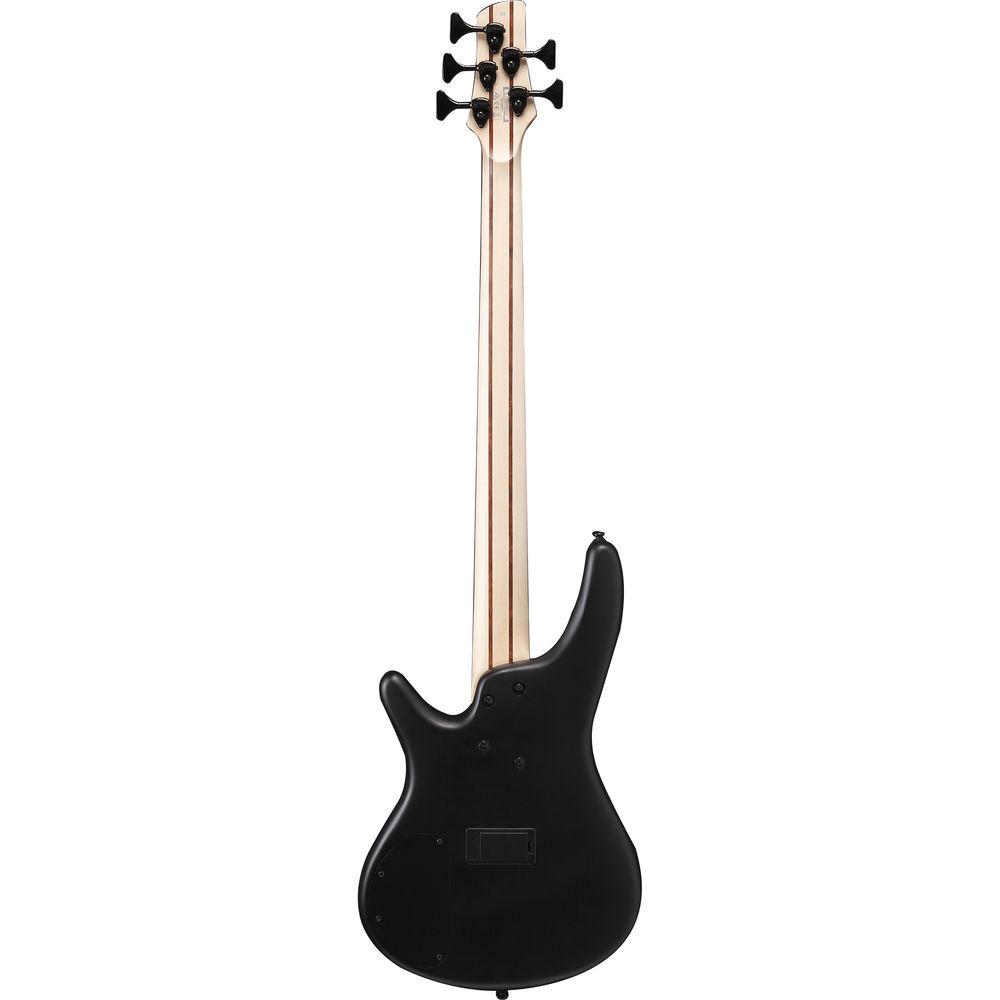

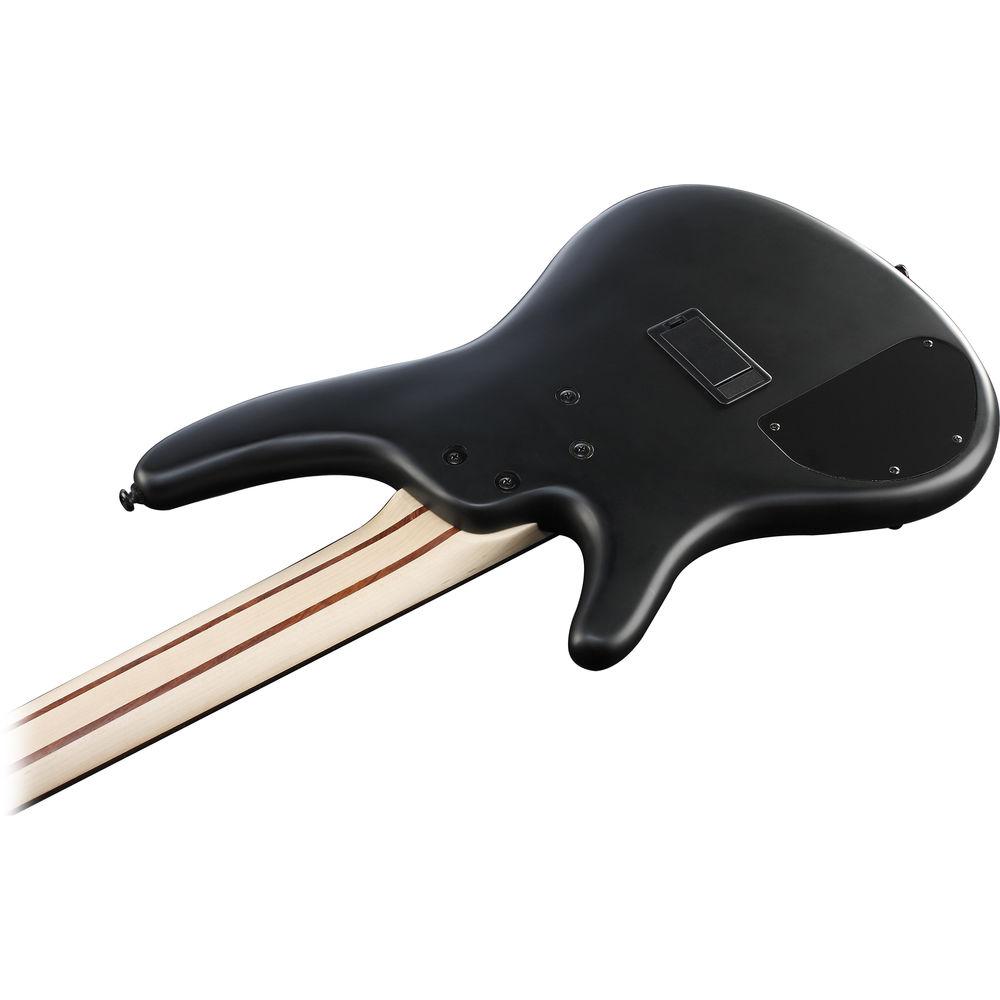

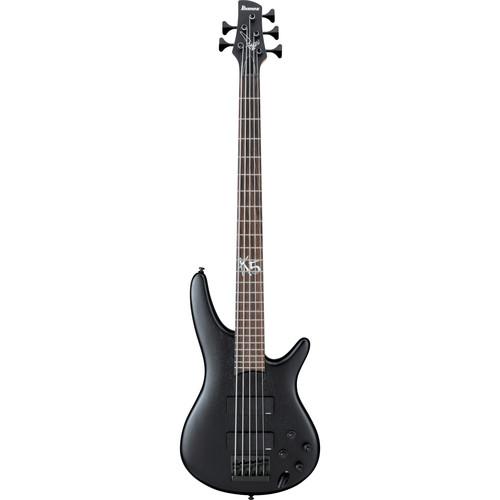

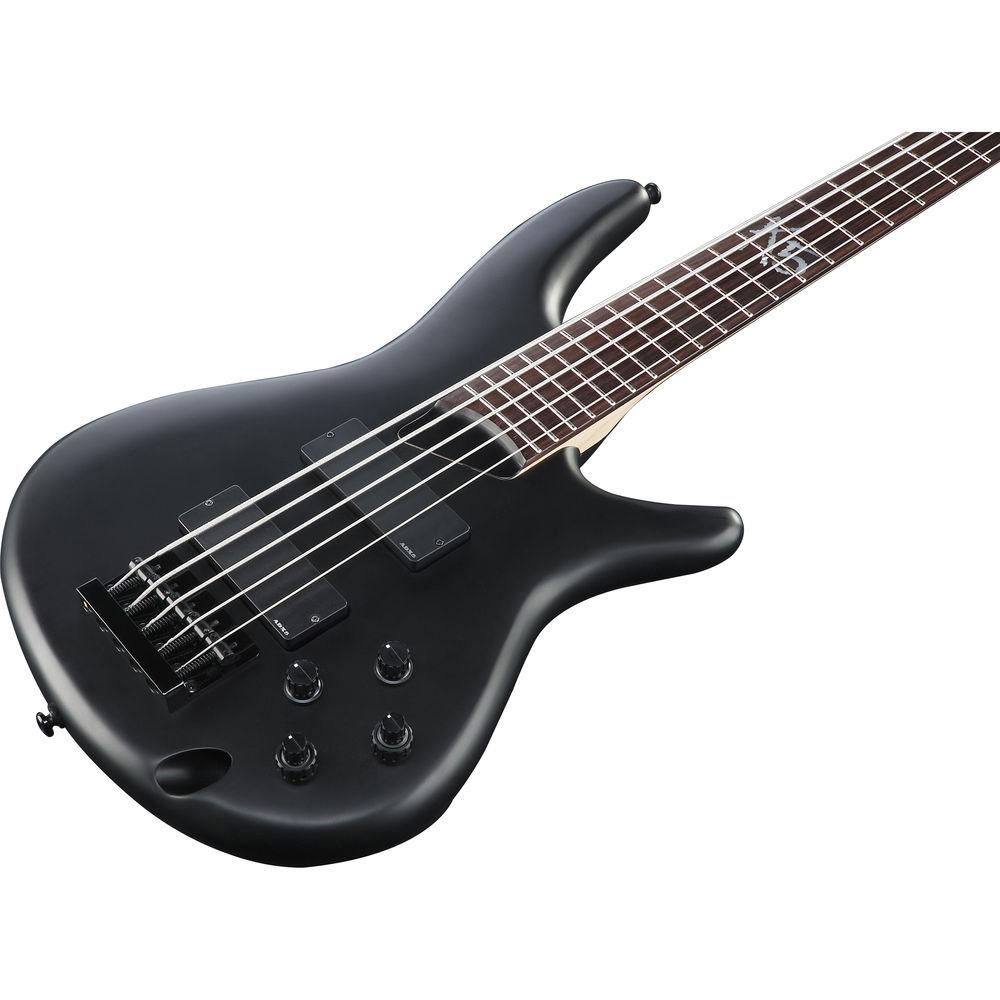

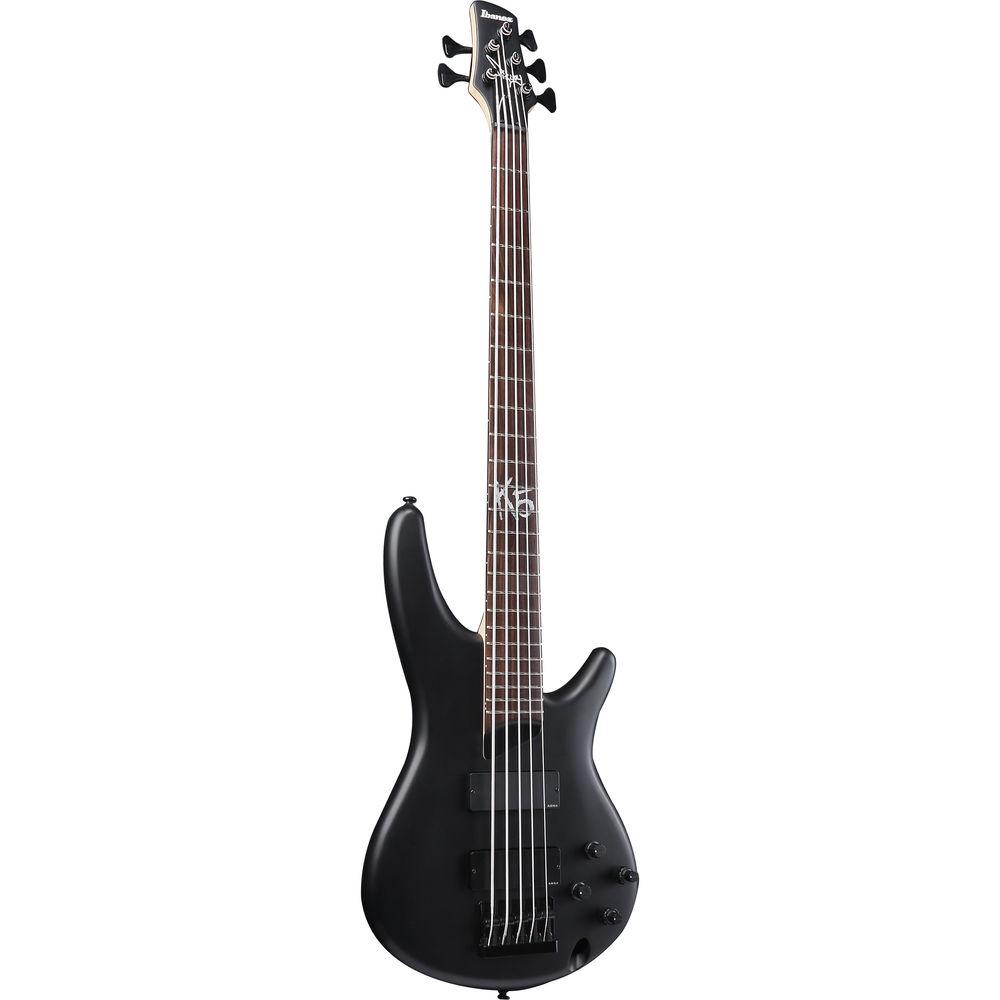

Product description Styled in a black flat finish, the Ibanez K5BKF is Fieldy's signature series 5-string electric bass. Fieldy is the bass player from Korn, and his playing is quite recognizable for its aggressive slaps and pops in a nu-metal context. The instrument sports a mahogany body and a 34" scale, bolt-on maple/walnut neck with a jatoba fingerboard and 24 medium frets. For electronics, the instrument utilizes two Ibanez ADX5 active pickups, one in the neck and the other in the bridge. A Vari-Mid 3-band EQ is on hand for tonal tweaking. This preamp gets its name from its concentrically stacked midrange knobs, with one knob controlling the level of boost or cut, and the other determining the center frequency of the boost/cut in a continuously variable way. The bass and treble boost/cut knobs are also concentrically stacked. A volume and pickup balance knobs are also available for tonal shaping. - Tough and Durable 5-Piece Maple/Walnut Neck
- Fieldy's K5 features a tough and durable five-piece maple/walnut neck.
- Jatoba Fingerboard
- Jatoba has a reddish-brown color, and produces a rich midrange with a crisp high end.
- Vari-Mid 3-Band EQ
- A Vari-mid EQ with sweepable midrange allows you to dial in various bass sounds, including Fieldy's preference of no midrange at all.
- General Features
-
- Neck type: K5 5-piece maple/walnut
- Body: mahogany body
- Fingerboard: jatoba with K5 special inlay
- Frets: 24, medium
- Bridge: EB-7 (16.5mm string spacing)
- Neck pickup: IBZ ADX5N (active)
- Bridge pickup: IBZ ADX5B (active)
- Equalizer: Vari-mid 3-band EQ
- Hardware color: black
- Neck Dimensions
-
- Scale: 34" / 864mm
- Width at nut: 1.8" / 45mm
- Width at last fret: 2.7" / 68mm
- Thickness at 1st: 0.8" / 19.5mm
- Thickness at 12th: 0.8" / 21.5mm
- Radius: 12" / 305mm
UPC: 606559699568 In the Box Ibanez K5 Fieldy Signature Series 5-String Electric Bass (Black Flat) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez K5 Fieldy Signature Series 5-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez K5 Fieldy Signature Specs | Right/Left Handed | Right-Handed | | Number of Strings | 5 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Walnut | | Fingerboard | Jatoba | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 34.02" / 864 mm | | Radius | 305 mil | | Nut Width | 45 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Bass Soapbar | | Controls | Tone Control: x 4
Volume Control: x 1
Balance Control: x 1 Tone knobs are stacked, concentric pots | | Switching | None |
