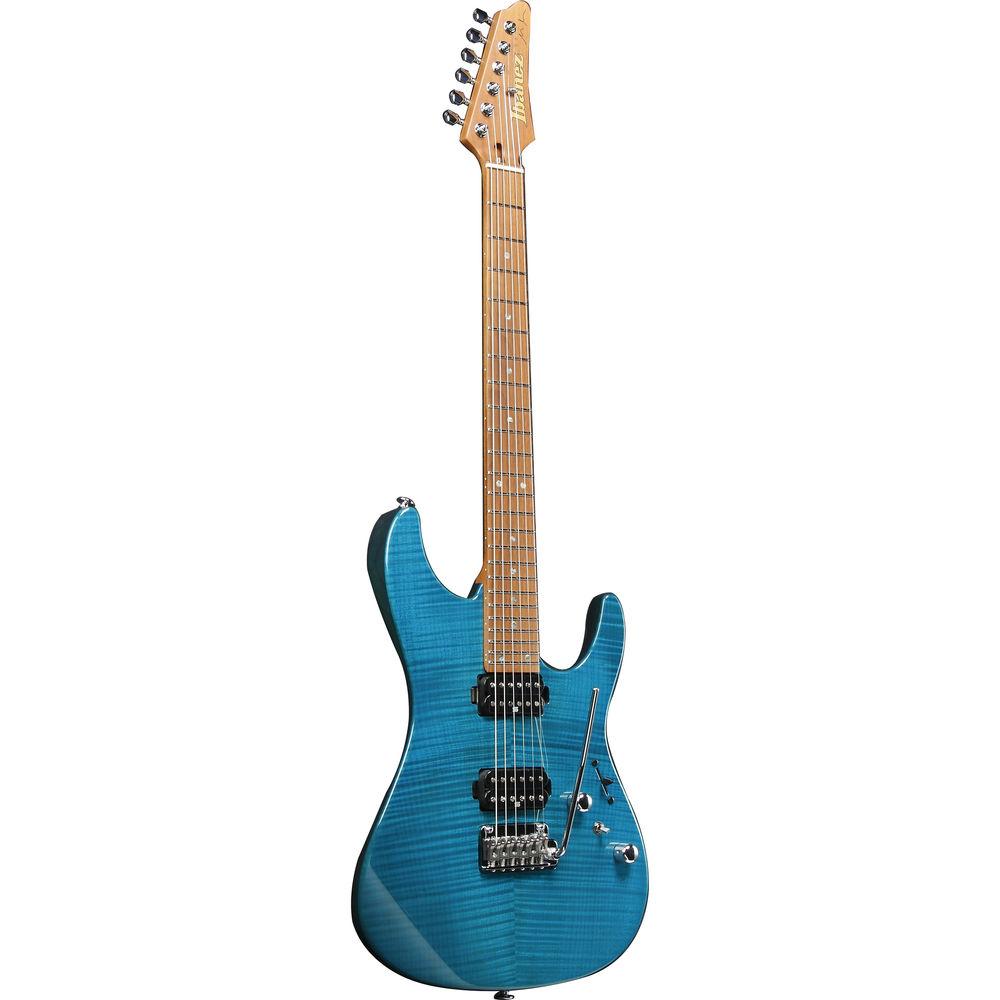

User Manual for Ibanez MM1 Martin Miller Signature Series Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez MM1 Martin Miller Signature Series
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez MM1 Martin Miller Signature Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

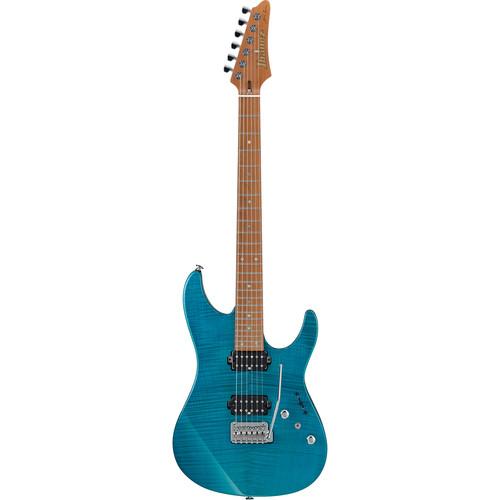

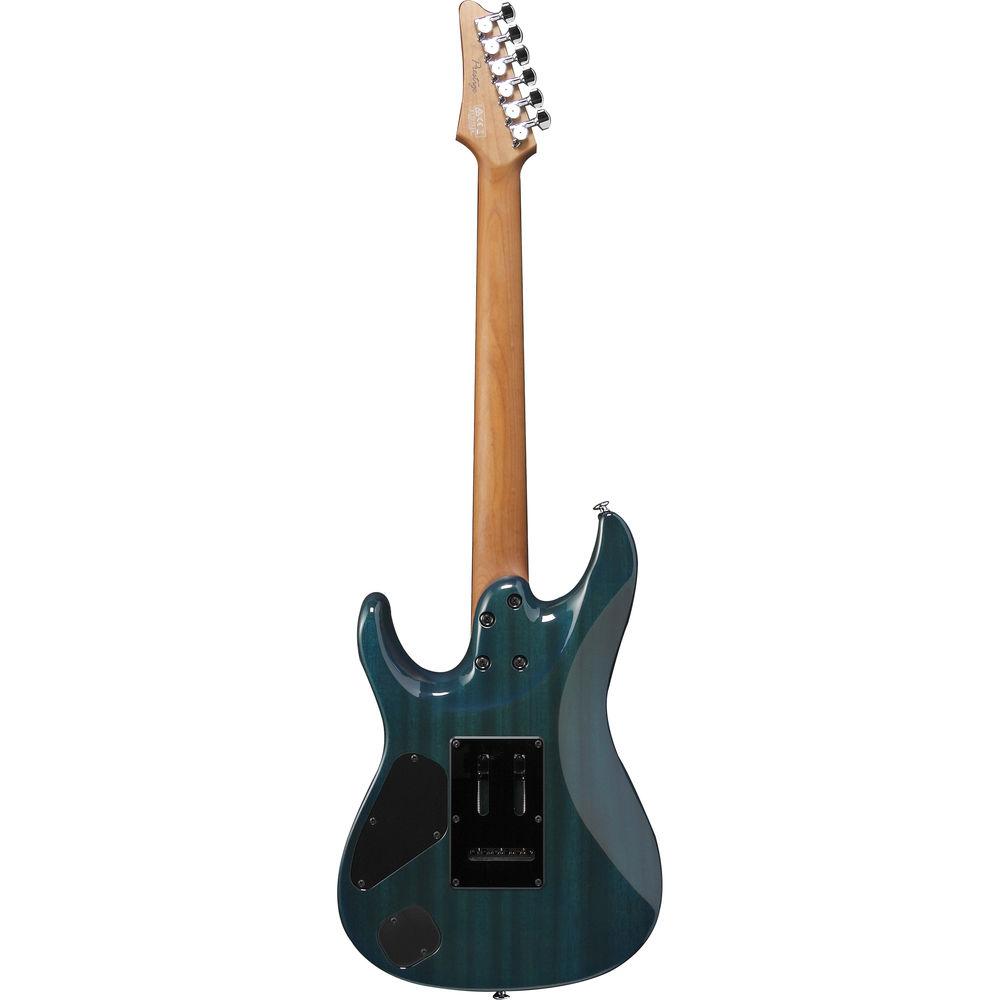

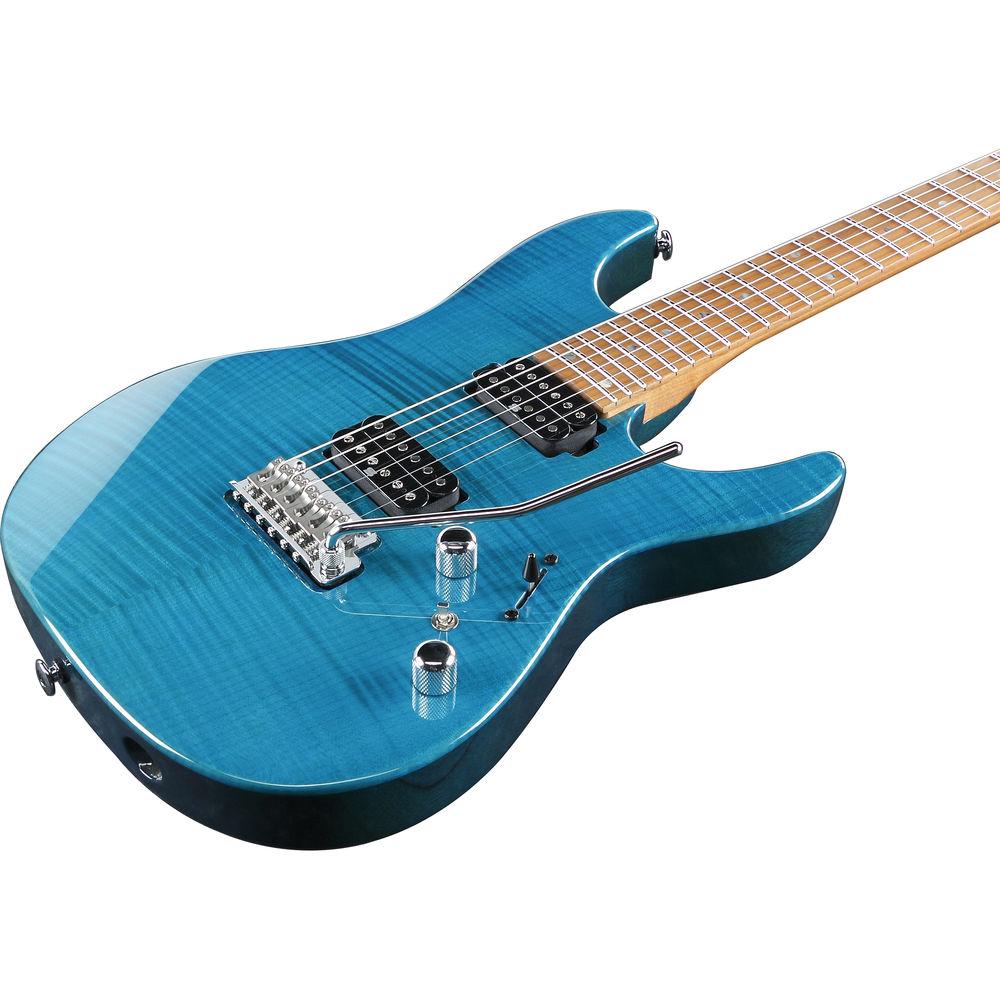

Product description Styled in a transparent aqua blue finish, the Ibanez Martin Miller Signature Series MM1 is an electric guitar with a double-cutaway, African mahogany body and a flamed maple top. Its neck, which offers a 25.5" scale, is crafted out of maple that's been roasted to ensure stability, durability, and a feel more commensurate with vintage instruments than out-of-the-box axes. Atop the neck sits a roasted maple fingerboard with 24 stainless-steel jumbo frets. Abalone dot inlays are provided, as are luminescent side inlays that help you track fret positions on darkened stages. Strings are anchored to the body by a Gotoh T1802 tremolo bridge, while the headstock makes use of Gotoh MAGNUM LOCK machine heads. For electronics, this guitar employs two Seymour Duncan Hyperion humbucking pickups. These feature a moderate output to preserve the clarity of your tone, even when you're playing through heaps of distortion. They also help you retain the definition of your pick attack, though not at the expense of tonal balance.The guitar gives you a 5-way pickup selector switch. Two different pickup configurations are available through the Alter mini-switch. This gives you effectively 10 different guitar tones, some humbucker-based, some sounding more single-coil in timbre. Volume and tone knobs are also on hand to shape your sound. A hardshell case is included. - S-TECH WOOD Roasted Maple Neck
- S-TECH roasted treatment increases the wood's stability, durability, water resistance, and tolerance of temperature changes. The neck is sealed with an oil finish, which helps make it feel similar to a well-played guitar neck.
- Roasted Maple Fingerboard with Black Dot Inlays
- S-TECH roasted treatment provides an excellent attack, a well-balanced tone, and a rich sustain. It also offers increased tolerance to temperature changes.

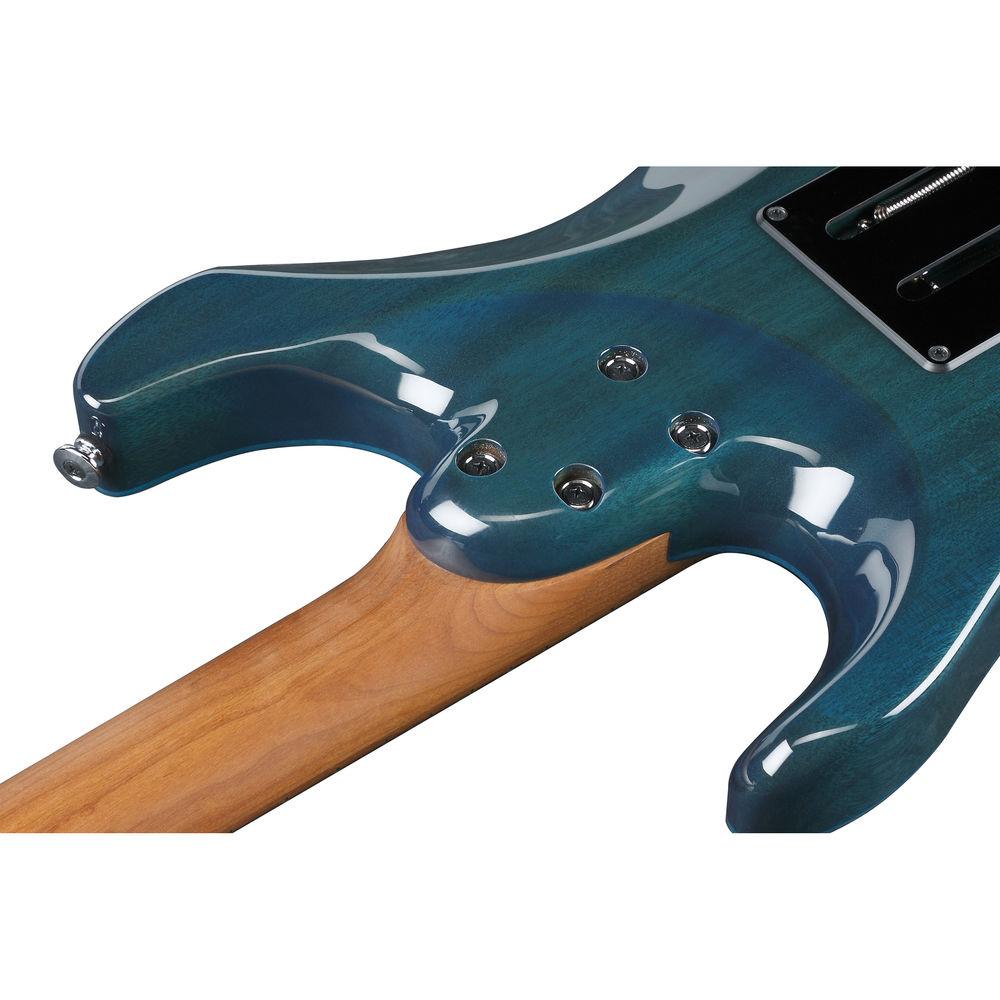

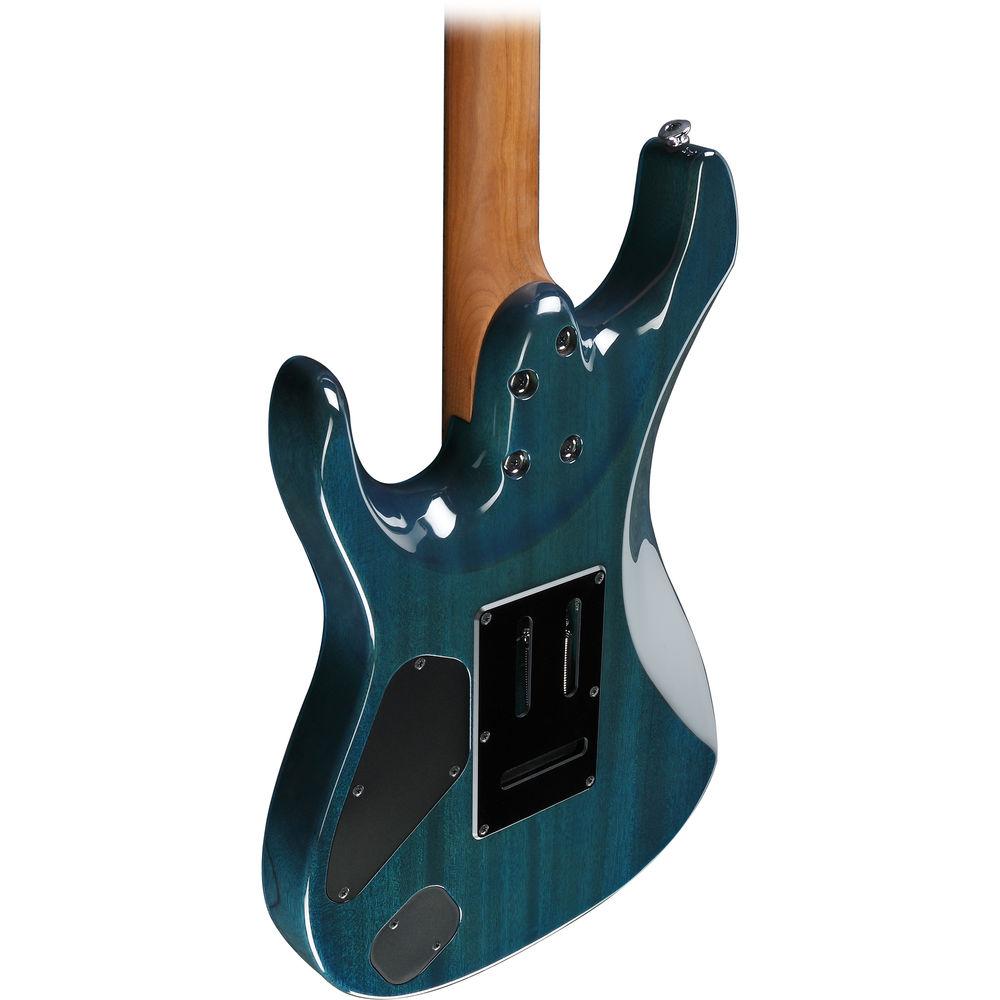

- Super All Access Neck Joint
- The Super All Access Neck Joint offers eminent playability with its 8mm concave curve from the top of the body to the spherical surface of the joint. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.
- Luminescent Side Dot Inlay
- The luminescent side dot position marks make it easy for players to see fingerboard position marks when performing on dark stages.

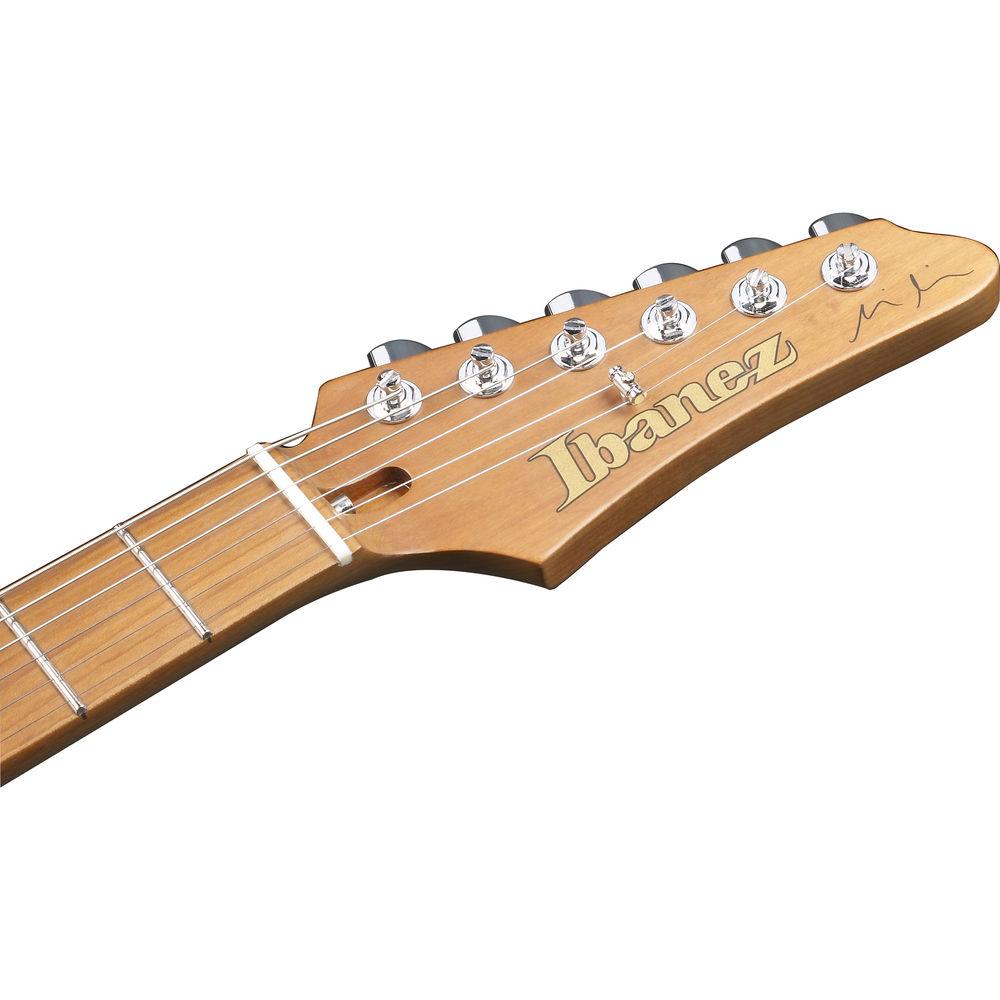

- Gotoh Magnum Lock Machine Heads with Height-Adjustable Posts
- The instrument comes with Gotoh MAGNUM LOCK machine heads, which have an established reputation for tuning stability. Its H.A.P. (height adjustable post) system allows for the adjustment of string posts for the appropriate tension of each string.
- Oil-Impregnated Bone Nut and Stainless Steel Frets
- The oil-impregnated bone nut provides excellent tuning stability and a warm, rich resonance. Stainless steel frets foster corrosion resistance. The wide and tall jumbo fret type offers a quick response, good articulation when playing chords, and clear tone when playing single notes.

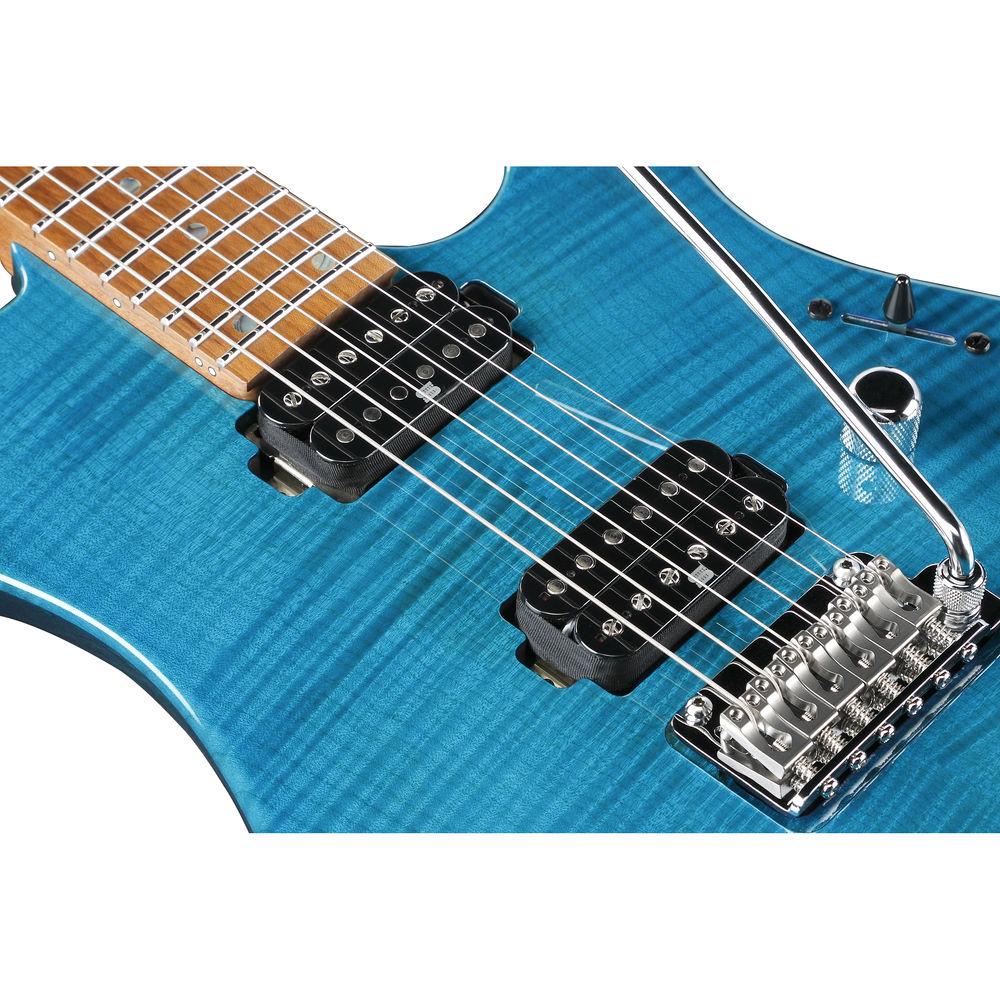

- Seymour Duncan Hyperion Pickups
- Seymour Duncan Hyperion Pickups feature a moderate output through Alnico-5 magnets to preserve the clarity of the fundamental tone when using a distortion sound. These pickups also deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted, and works well with various effect pedals.

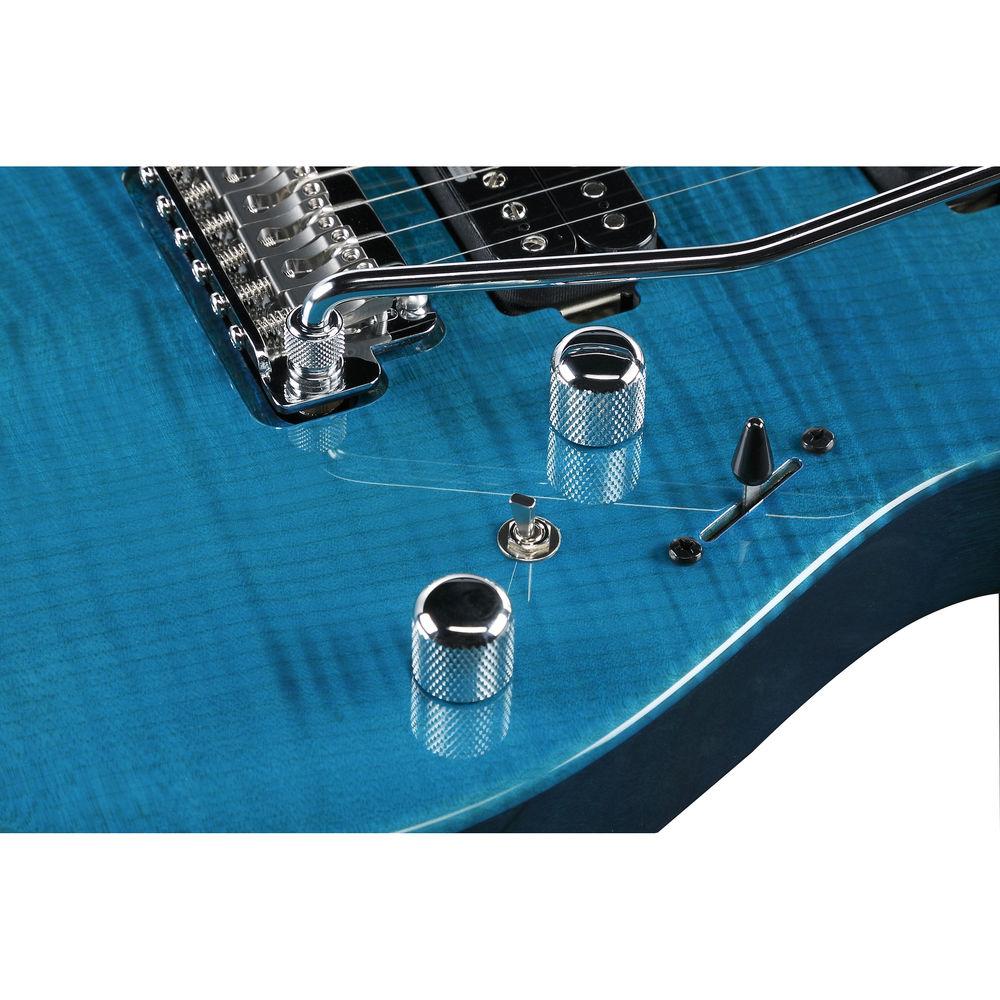

- dyna-MIX 10 Switching System with Alter Switch
- The dyna-MIX 10 system offers ten sound variations and can easily move from humbucker to single-coil modes through the mini-switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
- Gotoh T1802 Synchronized Bridge
- The T1802 tremolo bridge features machined titanium saddles and a machined tremolo block for a quick response and a rich, thick tone throughout the frequency spectrum. The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.
- General Features
-
- Neck Type: MM S-TECH WOOD roasted maple
- Body: Flamed maple top / African mahogany
- Fingerboard: S-TECH WOOD roasted maple fingerboard with abalone dot inlay
- Frets: Jumbo stainless-steel frets
- Bridge: Gotoh T1802 tremolo bridge
- Neck Pickup: Seymour Duncan Hyperion (humbucker, passive/alnico)
- Bridge Pickup: Seymour Duncan Hyperion (humbucker, passive/alnico)
- dyna-MIX 10 switching system with Alter switch
- Nut: Oil-impregnated bone
- Hardware Color: Chrome
- Tuners: Gotoh MAGNUM LOCK machine heads with H.A.P.
- Neck Dimensions
-
- Scale: 25.5" / 648.0mm
- Width at Nut: 1.7" / 42.0mm
- Width at 24th Fret: 2.2" / 57.0mm
- Thickness at 1st Fret: 0.8" / 20.5mm
- Thickness at 12th Fret: 0.9" / 22.5.mm
- Radius: 12.0" / 305.0 mm
In the Box Ibanez MM1 Martin Miller Signature Series Electric Guitar (Transparent Aqua Blue) Hardshell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez MM1 Martin Miller Signature Series Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez MM1 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Maple
Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Maple | | Fingerboard | Maple | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.51" / 648 mm | | Radius | 305 mil | | Nut Width | 42 mm | | Bridge Type | Tremolo | | Pickguard | Yes | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 5-Way Pickup Selector Switch Additional Alter switch for multiple pickup voicings |
