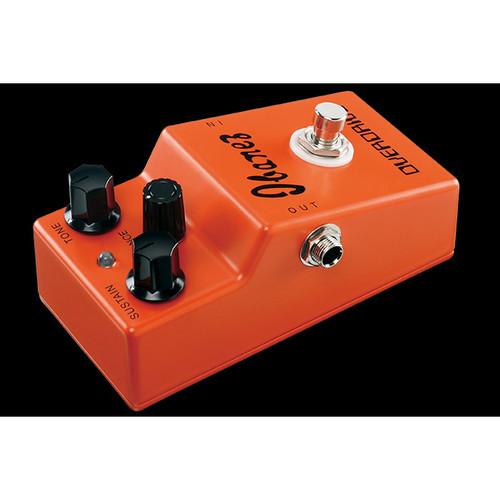

User Manual for Ibanez OD850 Limited Edition Overdrive Pedal Click to enlarge the picture
Contents of the user manual for the Ibanez OD850 Limited Edition Overdrive Pedal
- Product category: Effects Pedals Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Effects Pedals
 |
User manual for the Ibanez OD850 Limited Edition Overdrive Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

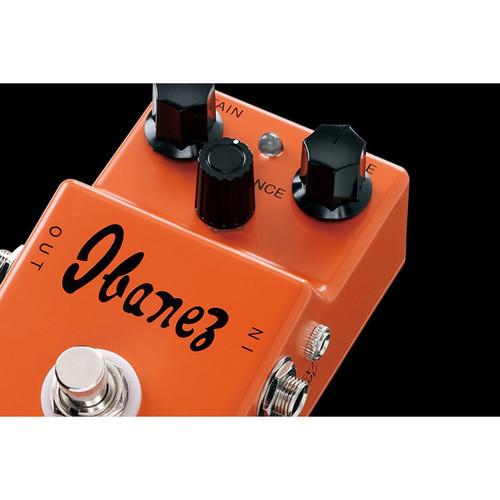

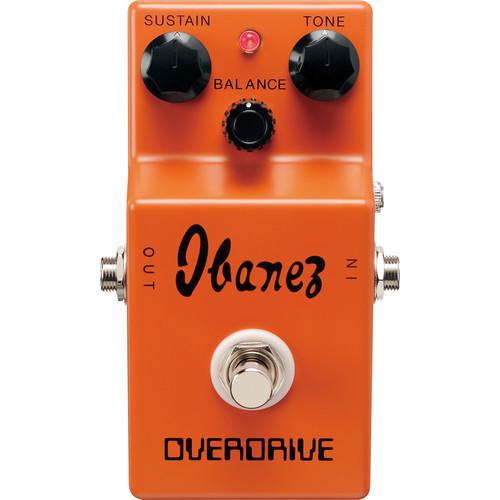

Product description A limited-edition reissue of a classic stompbox introduced in the mid-1970s, this Ibanez OD850 is an overdrive pedal intended for electric guitars and capable of overdrive, fuzz, and distortion tones. It utilizes a 100% analog circuit path and three basic controls to help you achieve a tone appropriate for chunky rhythm sounds, and dirty, sustaining lead tones with more edge. The pedal is powered by a single 9V battery, though with this updated version you can also hook it up to an external power supply via the power jack. In addition, an LED has been included to indicate both operation and battery status, and true-bypass switching ensures that when you turn the effect off, it will not impact your signal chain. - Three-Knob Control System for Wide Range of Tones

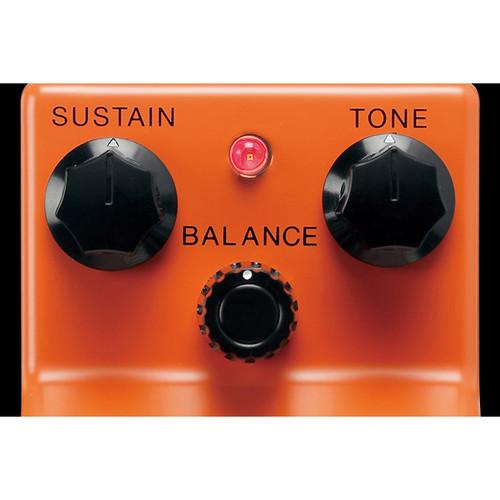

- Increased punch and sustain are made possible with a turn of the SUSTAIN knob, while the tone control can add or subtract edge from your tone. Balance can control the overall level of output
- True Bypass Switching
- A true-bypass switch provides a direct signal path, and keeps the tone clean in bypass mode
In the Box Ibanez OD850 Limited Edition Overdrive Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez OD850 Limited Edition Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez OD850 Specs | Controls and Indicators | 1 x BALANCE knob
1 x SUSTAIN knob
1 x TONE knob
1 x True-Bypass switch
1 x LED indicator | | Connections | 1 x 1/4" instrument input
1 x 1/4" instrument output | | Input Impedance | 1 MOhm | | Output Impedance | 22 kOhms | | Maximum Output Level | -8 dBu | | Maximum Gain | +45 dB | | Power Supply | 1 x 9 V battery
Ibanez AC509 AC Adapter (available separately) | | Dimensions (D x W x H) | 4.8 x 2.8 x 2.2" / 122.0 x 71.6 x 55.4 mm | | Weight | 10.1 oz / 285.0 g (including battery) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.2 x 3.3 x 2.4" |
