User Manual for Ibanez Paul Waggoner Signature Series Electric Guitar with Case Click to enlarge the picture
Contents of the user manual for the Ibanez Paul Waggoner Signature Series Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez Paul Waggoner Signature Series Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

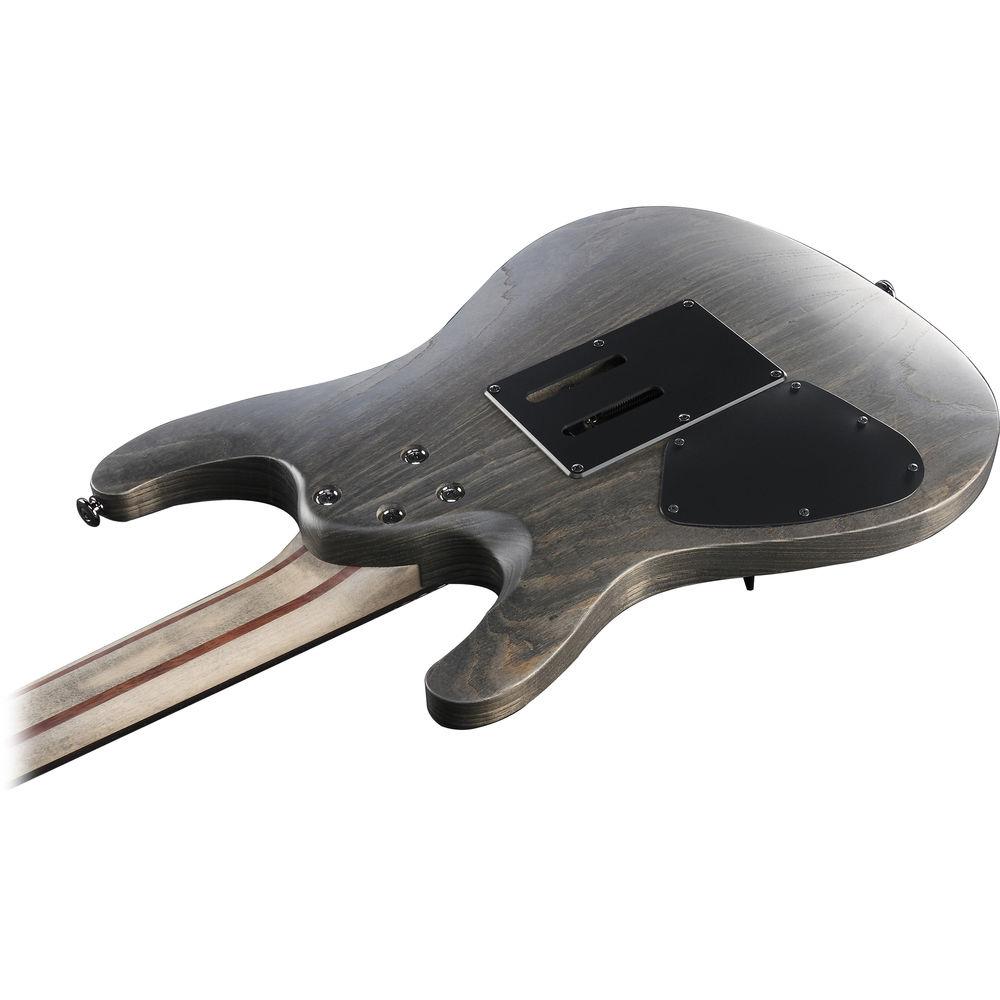

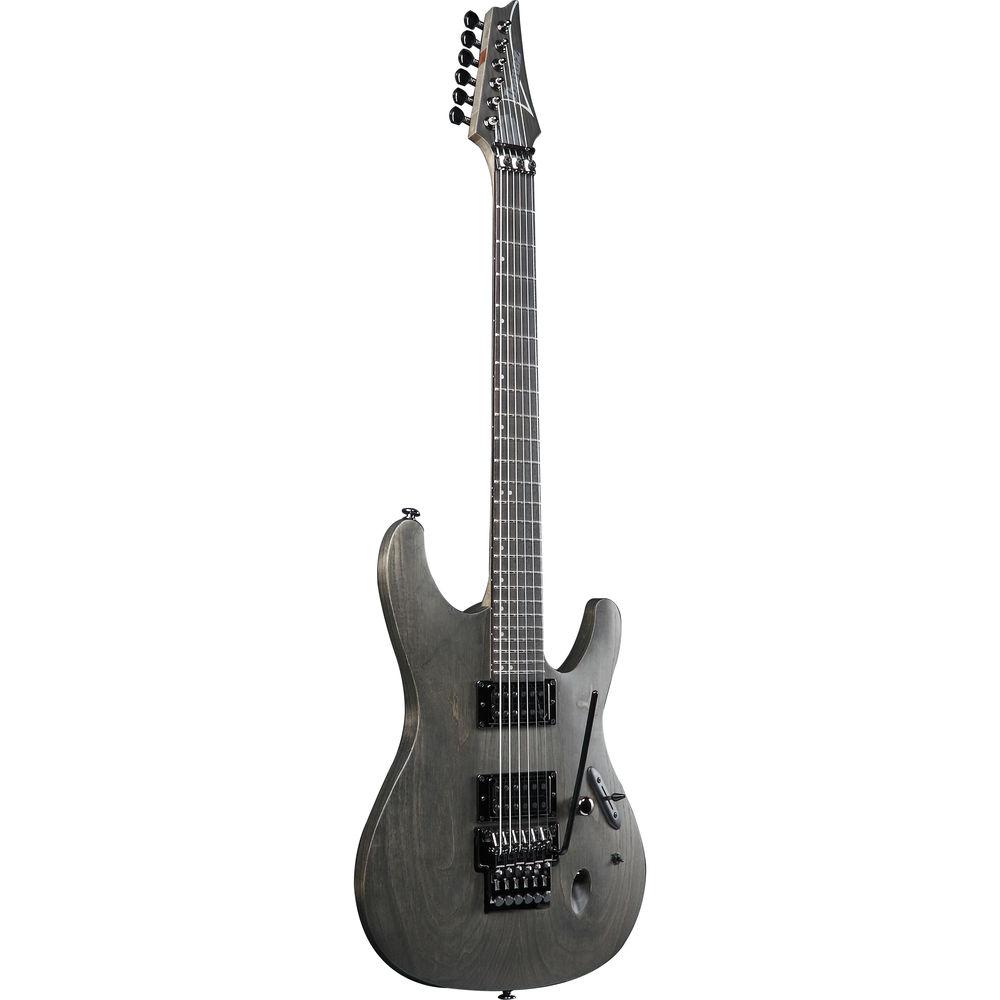

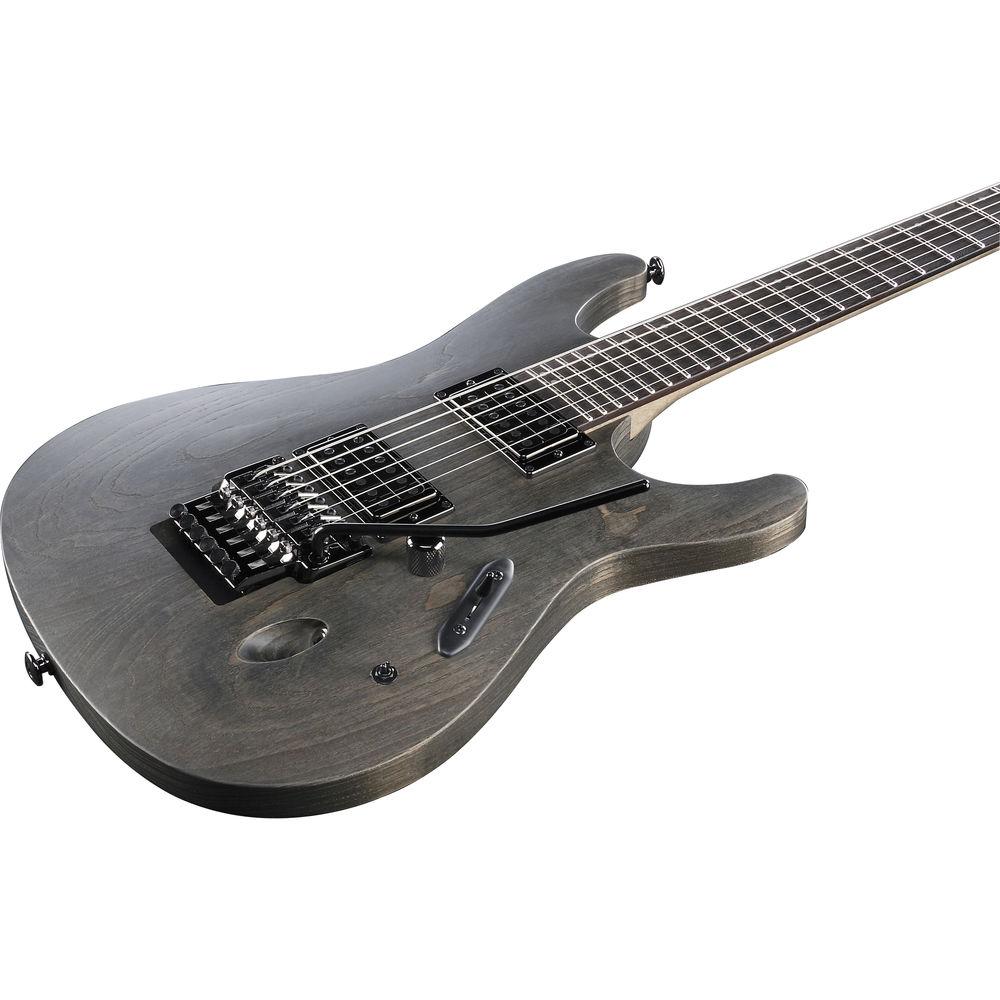

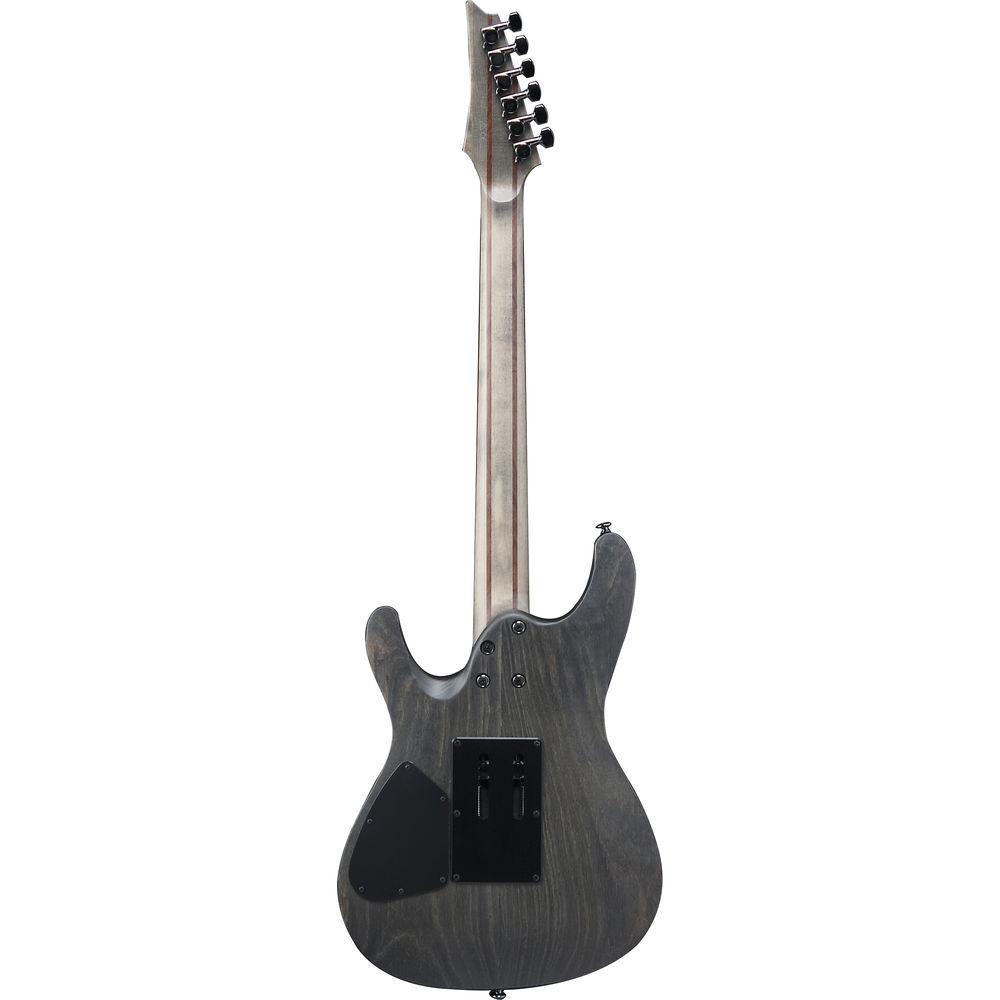

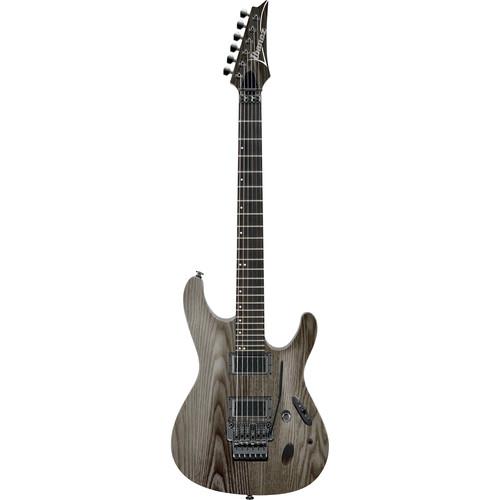

Product description Styled in a black satin finish, the Ibanez PWM100 Paul Waggoner Signature Series PWM100 is an electric guitar with a double-cutaway ash body and a five-piece maple/bubinga neck. This neck, outfitted with a 25" scale, sports a rosewood fingerboard with offset white dot inlays, as well as 24 jumbo frets for all your shrieking, shredding needs. Strings are affixed to the body by means of a Lo-pro Edge tremolo bridge.
For electronics, the guitar is outfitted with two Mojotone PW Hornet humbucking pickups, one in the neck and another in the bridge. These pickups were designed for Paul Waggoner, and they provide a variety of tones from clear cleans to heavy leads, all without adding muddy lows or brittle highs. These pickups can be tapped for a more single-coil sound. A volume knob and a three-way pickup selector are also on hand for tonal shaping. A hardshell case is included. - PWM 5-Piece Maple/Bubinga Neck
- The PWM 5pc maple/bubinga neck provides tonal clarity and superior attack, and its slim grip shape permits superior playability.
- Lo-Pro Edge tremolo
- The well-regarded Lo-Pro Edge bridge offers playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
- General Features
-
- Neck Type: PWM 5-piece maple/bubinga neck
- Body: Ash body (44mm body thickness)
- Fingerboard: Rosewood with offset white dot inlay
- Fret: Jumbo with prestige fret edge treatment
- Bridge: Lo-Pro Edge tremolo bridge
- Neck Pickup: Mojotone PW Hornet (humbucker, passive/alnico)
- Bridge Pickup: Mojotone PW Hornet (humbucker, passive/ceramic)
- Hardware Color: Cosmo black
- Neck Dimensions
-
- Scale: 25.5" / 648mm
- Width at Nut: / 43mm
- Width at 24th Fret: 1.7" / 58mm
- Thickness at First Fret: 2.3" / 18mm
- Thickness at 12th Fret: 0.8" / 20mm
- Radius: 16.9" / 430mm
UPC: 887802125557 In the Box Ibanez Paul Waggoner Signature Series Electric Guitar with Case (Black Stain) Hardshell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez Paul Waggoner Signature Series Electric Guitar with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez PWM100 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Ash | | Neck Type | Bolt-On Neck | | Neck Wood | Bubinga, Maple | | Fingerboard | Rosewood | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.51" / 648 mm | | Radius | 430 mil | | Nut Width | 43 mm | | Bridge Type | Tremolo | | Pickguard | No | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 0
Volume Control: x 1 | | Switching | 3-Way Pickup Selector Switch Coil-tap switch |
