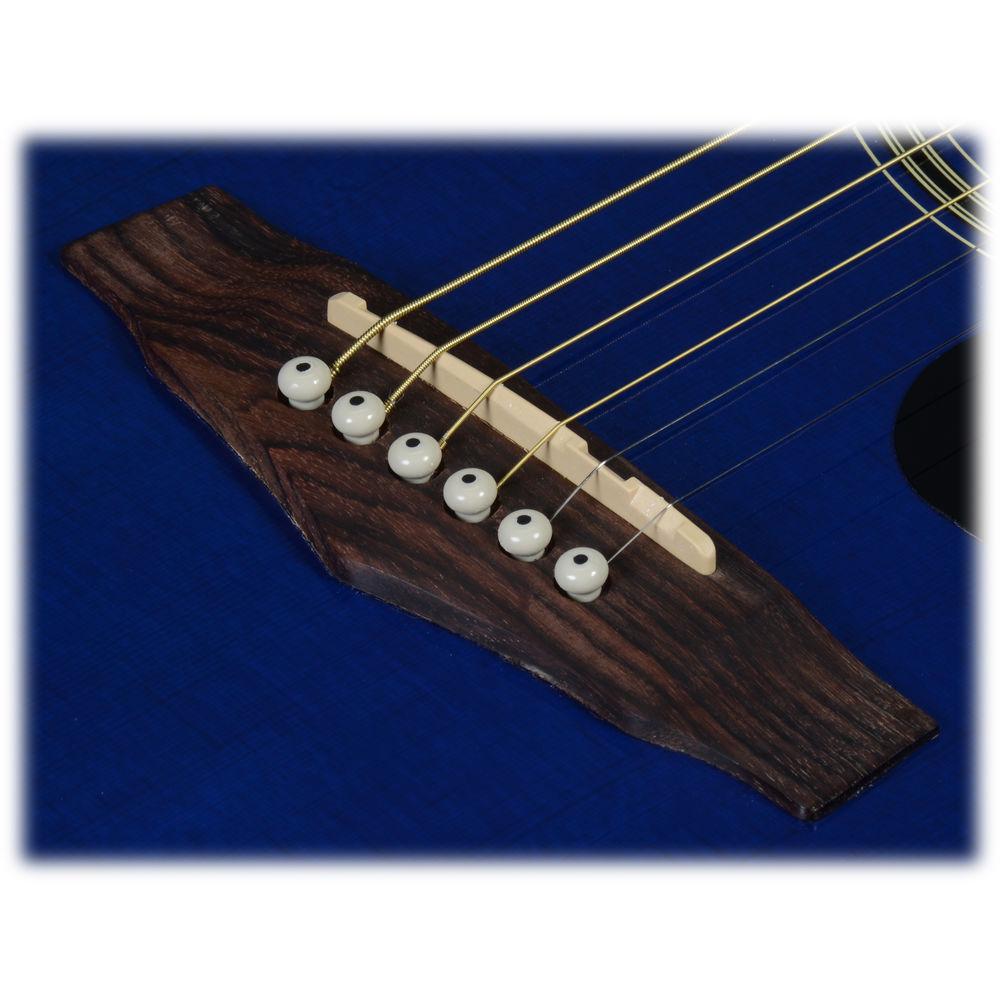

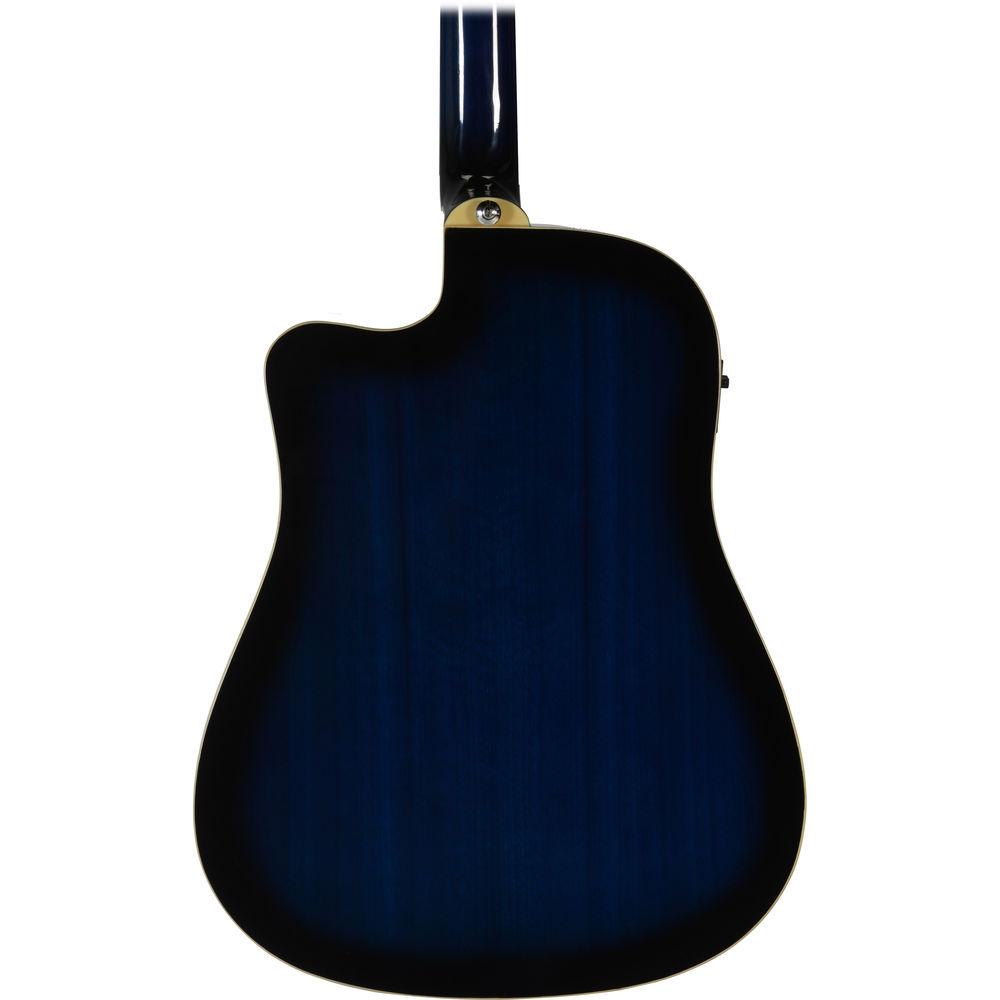

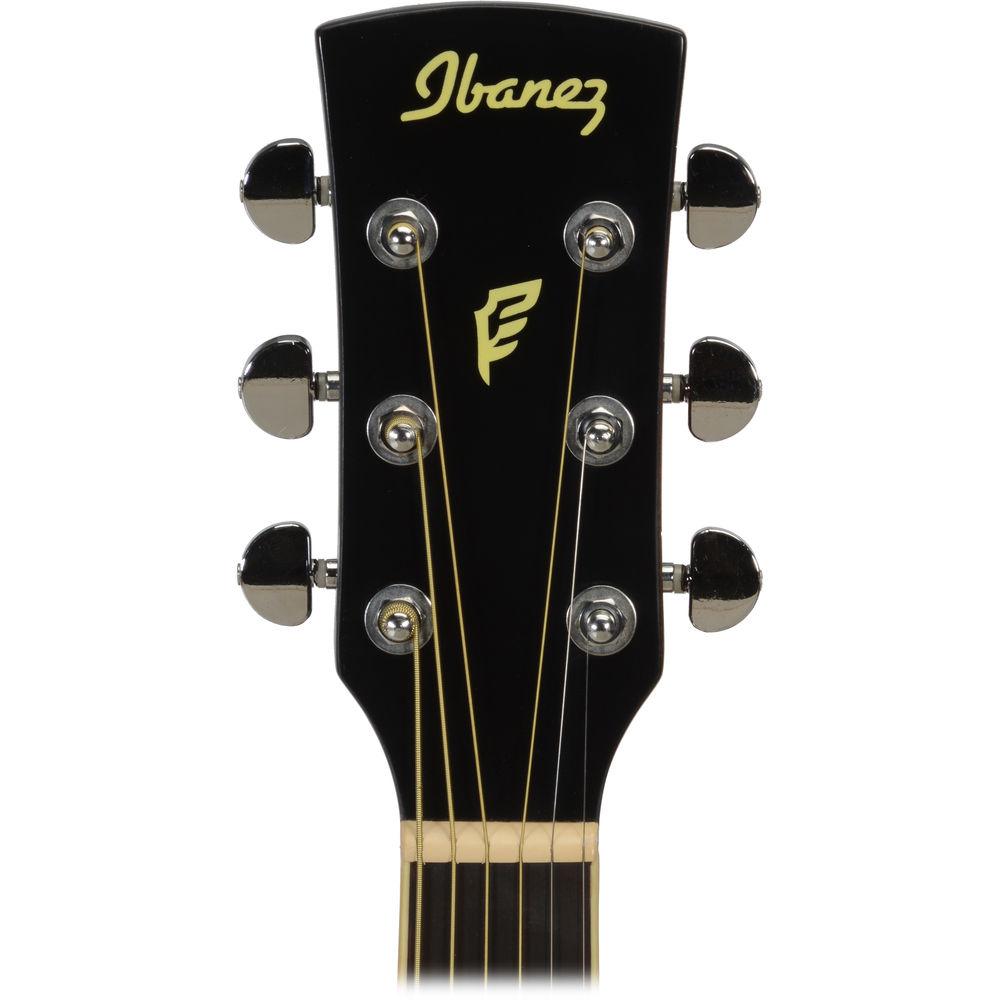

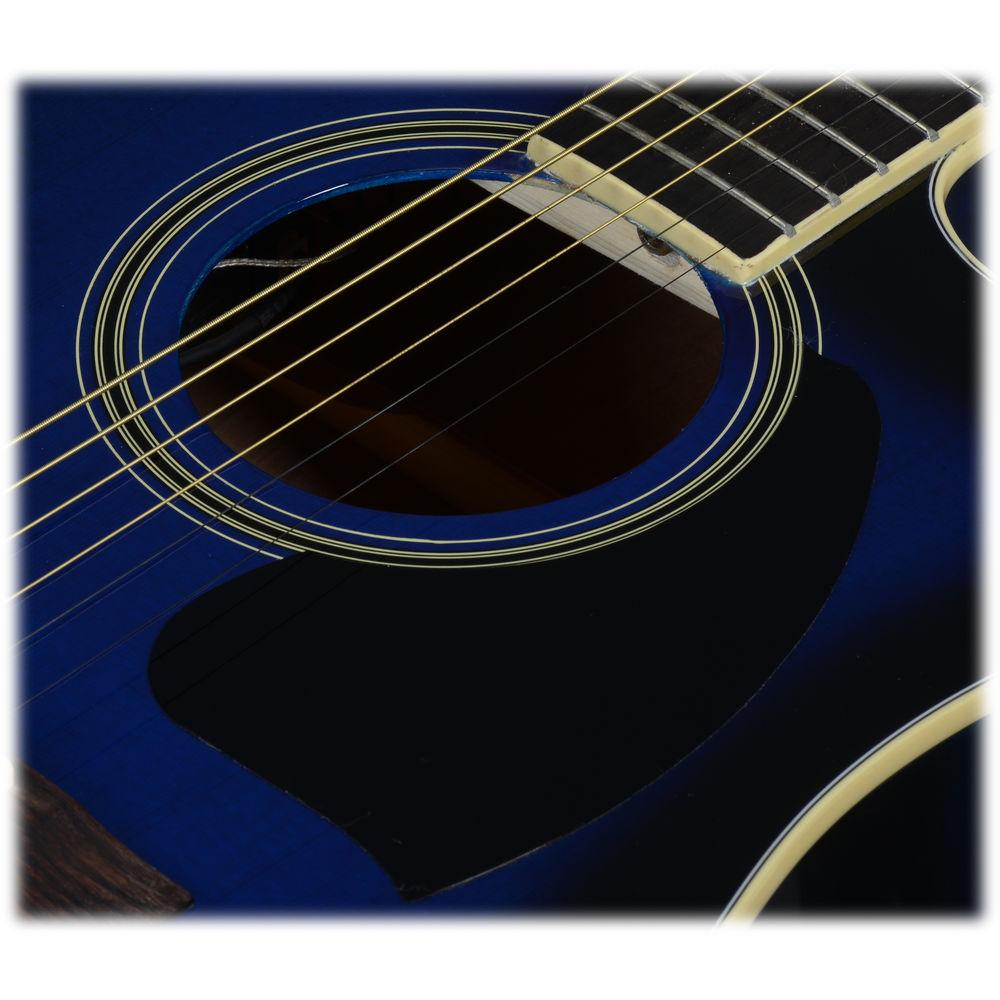

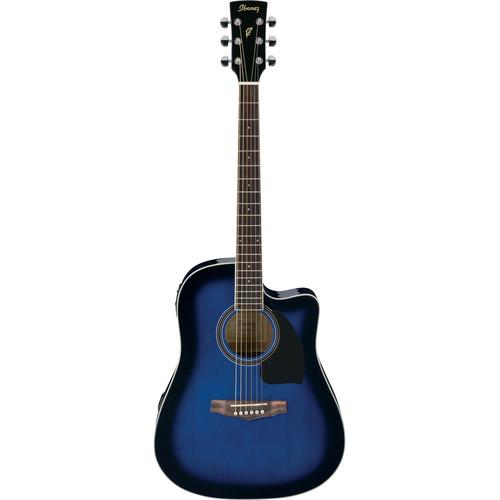

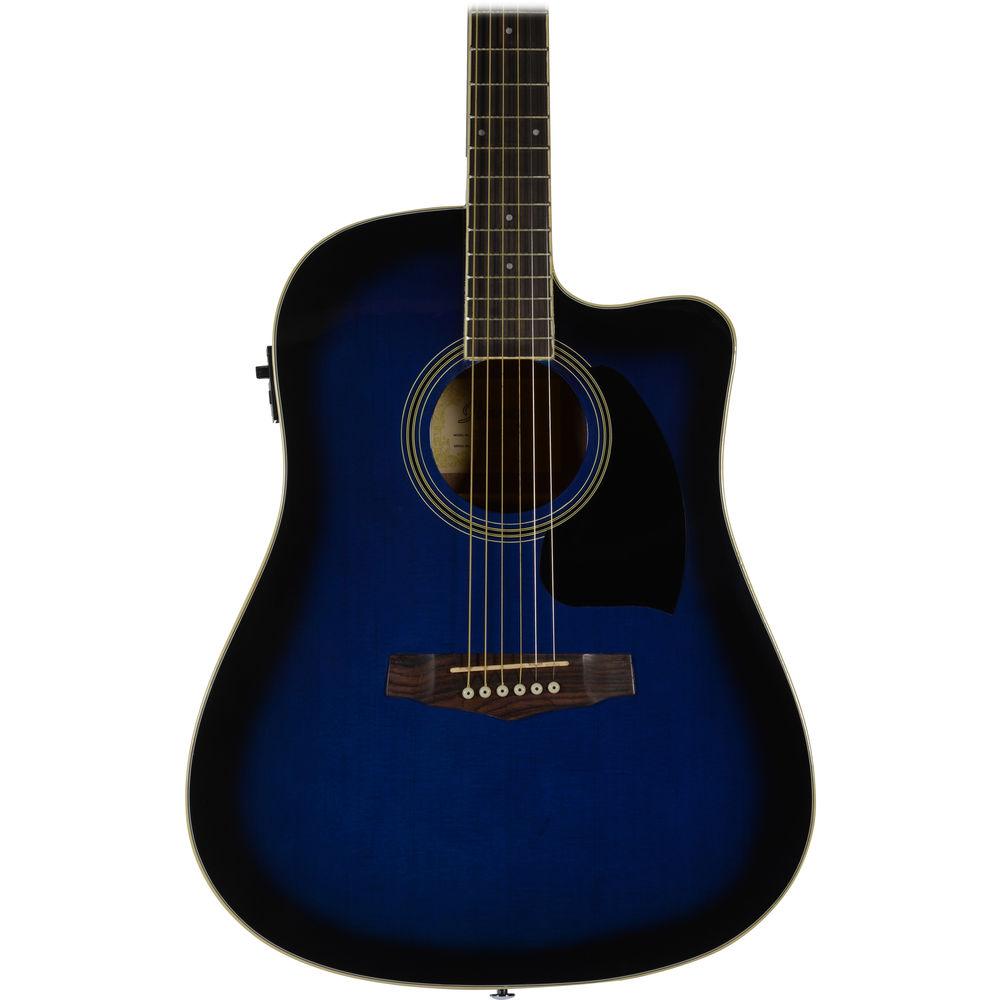

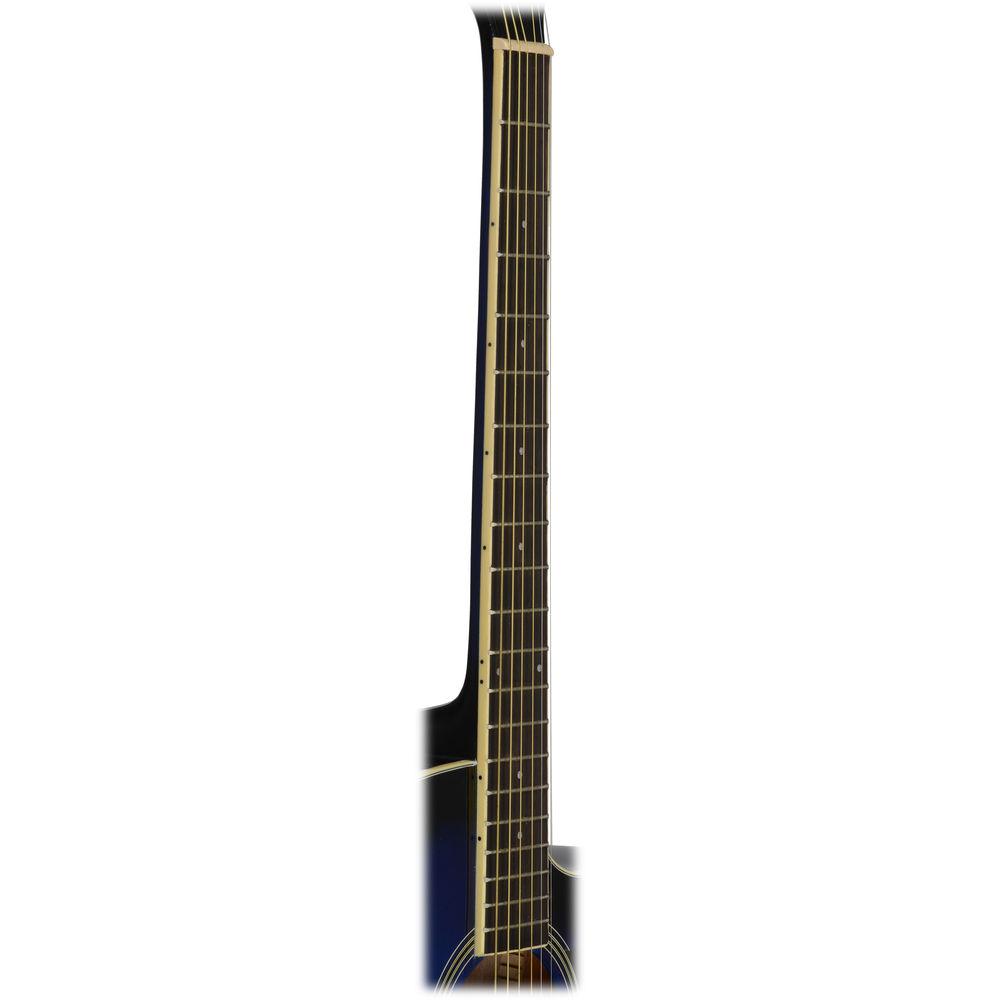

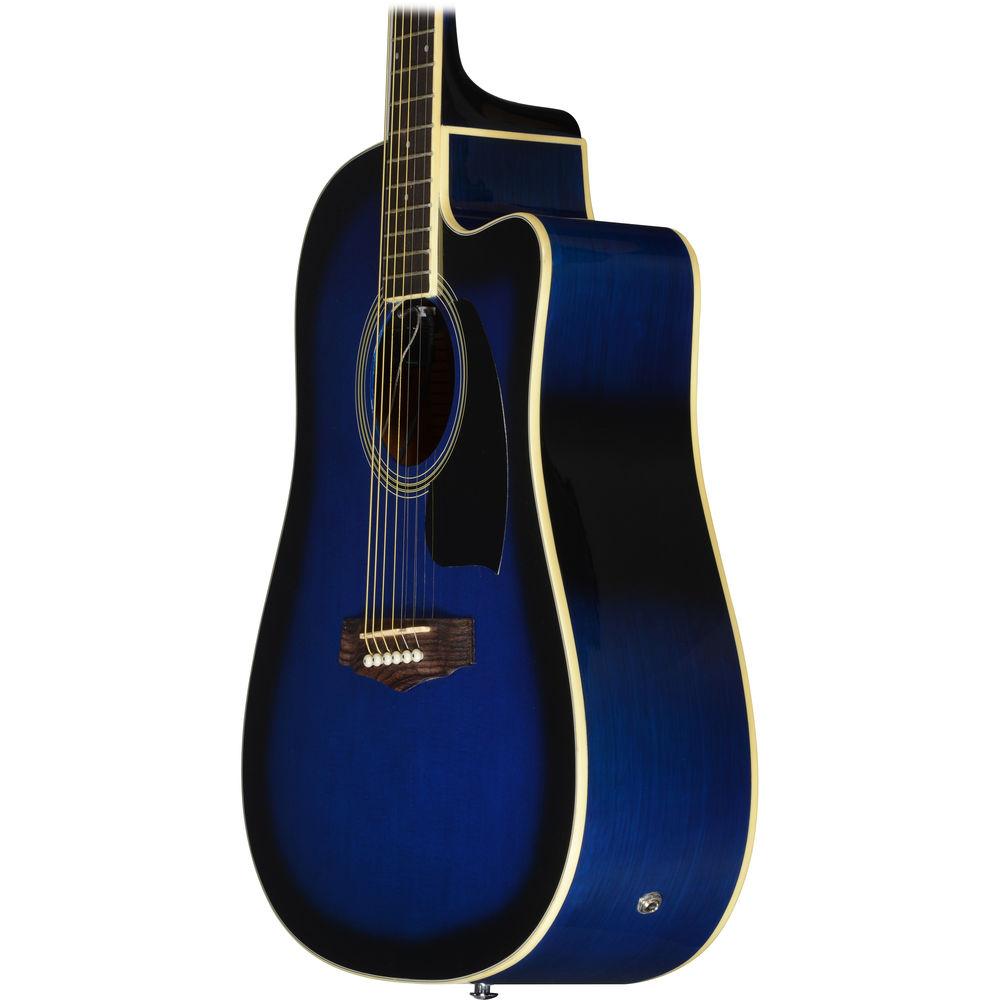

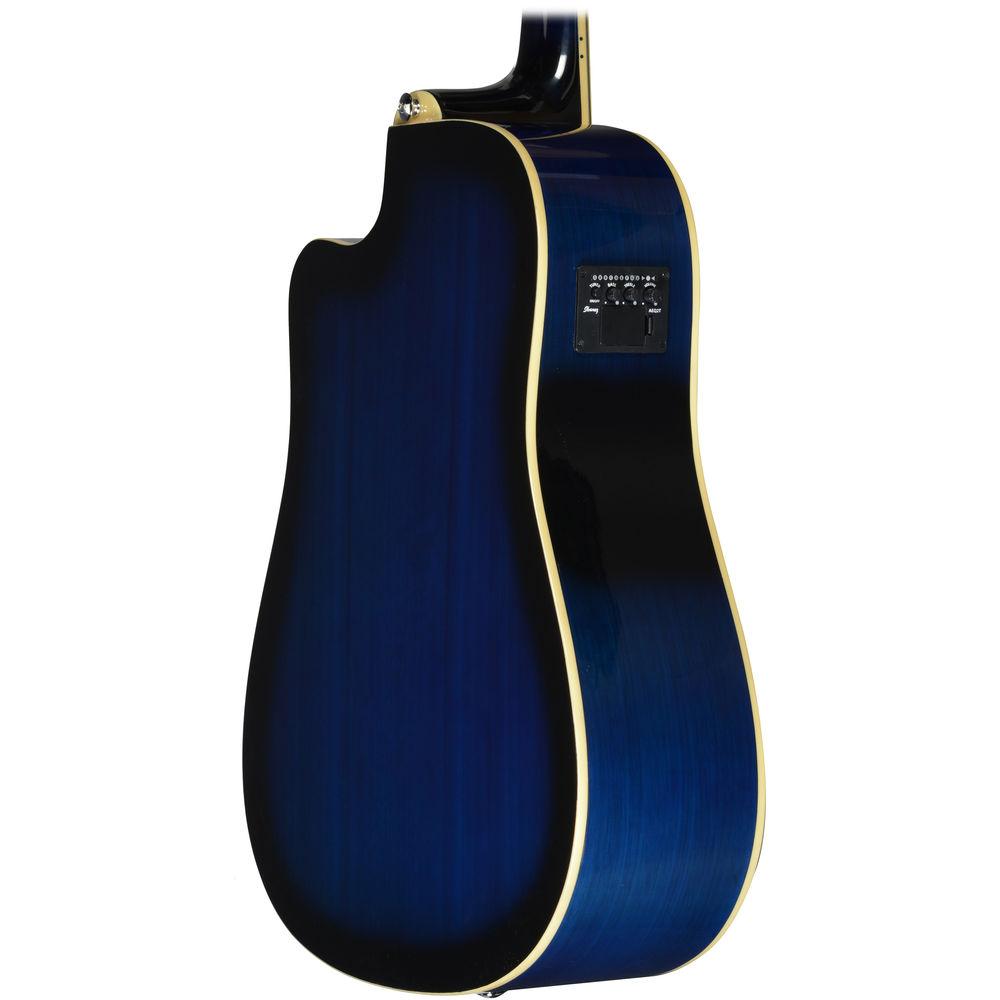

Product description The PF Performance Series PF15ECE from Ibanez is a dreadnought acoustic/electric guitar made from spruce and mahogany with a transparent blue sunburst high-gloss finish. The single-cutaway dreadnought body delivers a powerful and balanced acoustic sound. Unplugged or amplified, the instrument is well suited for solo performance or playing with a full band. The PF15ECE features a spruce top with mahogany back and sides, as well as a mahogany neck, rosewood fingerboard and bridge, chrome die-cast tuners, Ibanez Advantage bridge pins, and ivory body binding. For electronics, the guitar is equipped with an Ibanez undersaddle pickup, and an Ibanez AEQ-2T preamp with a 2-band EQ and onboard tuner. The PF15ECE comes set up with coated bronze strings. - General Features
-
- Body Shape: Cutaway Dreadnought
- Bracing: X Bracing
- Top: Spruce
- Back and Sides: Mahogany
- Neck: Mahogany
- Fingerboard: Rosewood
- Bridge: Rosewood
- Body Binding: Ivory

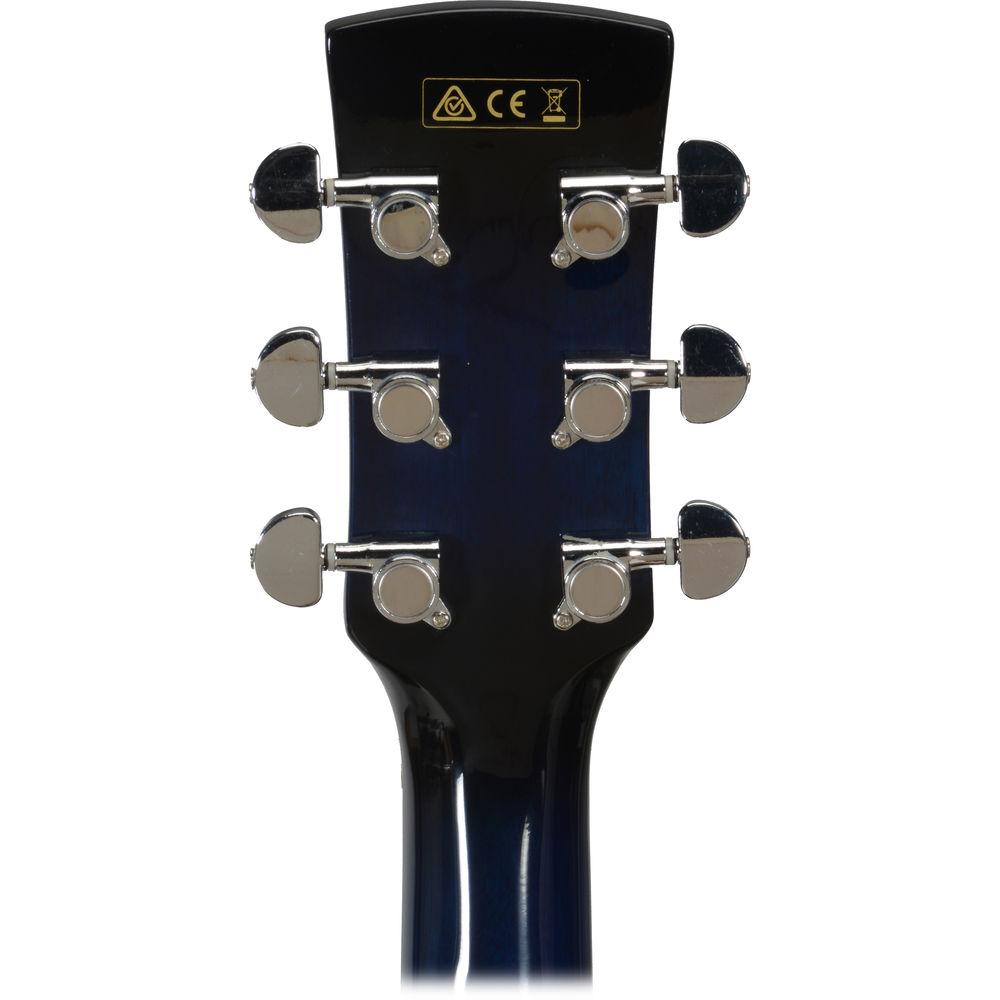

- Tuning Machines: Chrome die-cast tuners
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage bridge pins
- Strings: Coated bronze strings
- Pickup: Ibanez Undersaddle pickup
- Preamp: Ibanez AEQ-2T preamp w/onboard tuner and 2-band EQ
- Output: 1/4" / 6.35mm
- Battery: 9V
- Finish Top: Gloss
- Finish Back and Sides: Gloss
- Finish Neck Back: Gloss
- Neck Dimensions
-
- Scale: 25.6" / 650.0mm
- Width at Nut: 1.7" / 42.0mm
- Width at 14th Fret: 2.1" / 54.0mm
- Thickness at 1st: 0.8" / 21.5mm
- Thickness at 7th: 0.9" / 23.5mm
- Radius: 9.8" / 250.0mm
- Body Dimensions
-
- Length: 20.0" / 508.0mm
- Width: 15.8" / 400.1mm
- Max Depth: 3.0" / 76.2mm
UPC: 606559806256 In the Box Ibanez PF15ECE PF Performance Series Acoustic/Electric Guitar (Transparent Blue Sunburst) Limited Lifetime Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware & Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez PF15ECE PF Performance Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez PF15ECETBS Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Dreadnought | | Cutaway | Single-Cutaway | | Body Wood | Top: Spruce
Back: Mahogany
Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 9.8" OR | | Nut Width | 42 mm | | Bridge Type | Rosewood | | Pickguard | Yes | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 42.0 x 19.0 x 5.0" |
