User Manual for Ibanez RG1070PBZ RG Premium Series Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez RG1070PBZ RG Premium Series Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez RG1070PBZ RG Premium Series Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

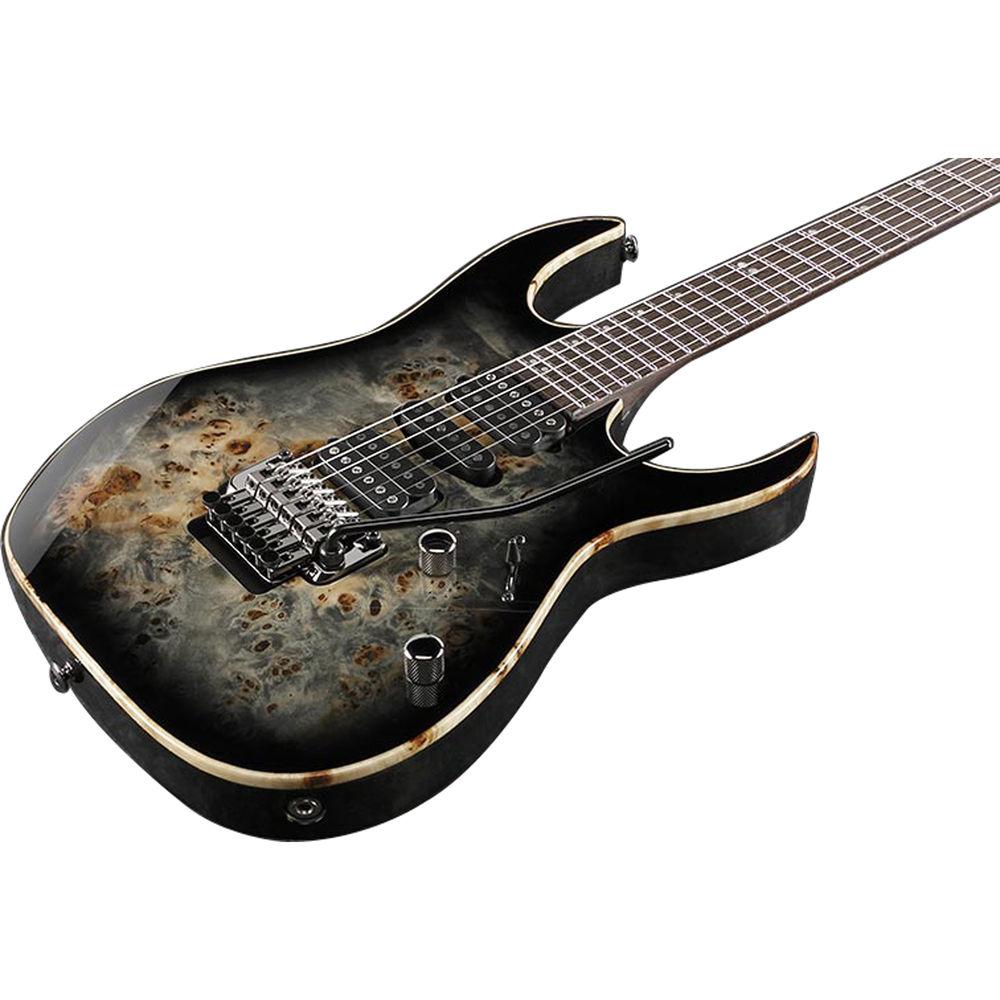

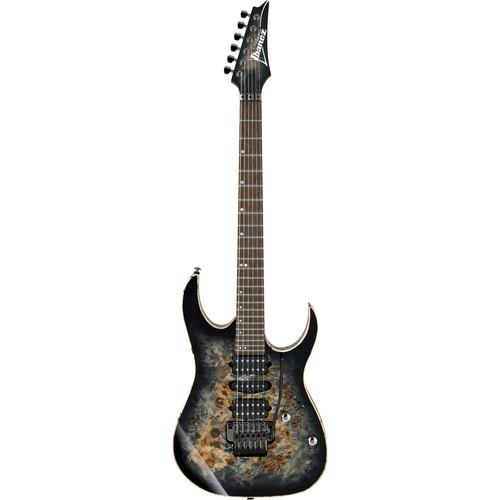

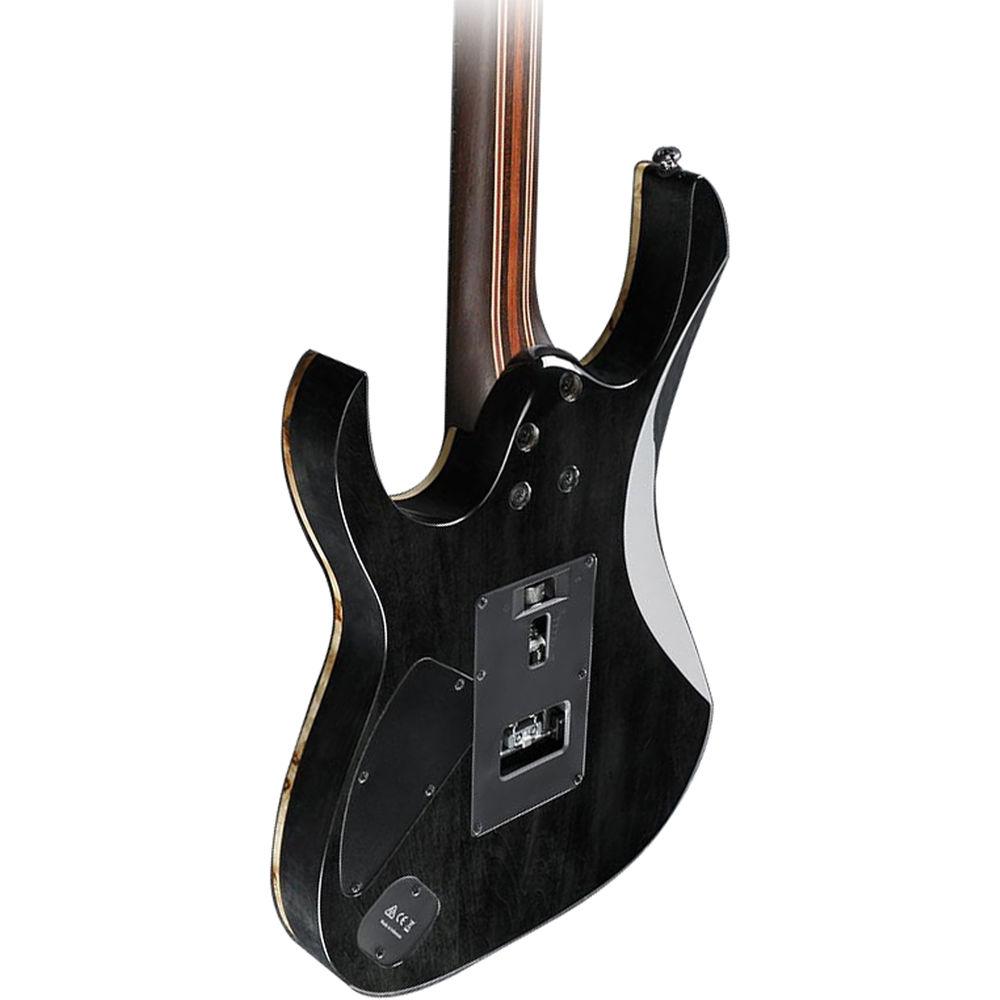

Product description Styled in a charcoal black burst finish, the Ibanez RG1070PBZ is an electric guitar featuring a double-cutaway body shape, three pickups for tonal options, and a variety of exotic woods throughout. The body is constructed out of American basswood and features a 7mm poplar burl top. The 11-piece Wizard neck, which has been bolted onto the body, utilizes panga panga, walnut, maple, and purpleheart woods in its construction to facilitate both solidity and sustain. The scale measures 25.5”, while a panga panga fingerboard offers 24 jumbo stainless steel frets with mother-of-pearl off-set dot inlays, as well as luminescent markings on the side of the neck to indicate your positioning even on dark stages.For electronics, this guitar features DiMarzio pickups, including an Air Norton humbucker in the neck, a True Velvet single coil in the middle, and a Tone Zone at the bridge. The bridge humbucker provides a warm tone that doesn’t stray into muddy tonalities, while the neck humbucker offers a hot signal, wide dynamic range, and a developed tone in the bass and midrange frequencies to give the sound heft and depth. The single coil, located in the middle, is tuned to a bright—yet not thin—frequency range, to give an equal sweetness to notes above the 12th fret. A five-way pickup-selector switch allows for various combinations and tonal options, while a shared set of volume and tone knobs provides broader level and timbre controls.Strings have been secured to the body with an Edge-Zero II tremolo bridge sporting a ZPS3Fe spring system for facilitating whammy pyrotechnics while preserving intonation and playing comfort. At the headstock, Gotoh MG-T locking machine heads further preserve tuning stability. - Natural Body Binding
- An exotic body top with natural binding distinguishes this instrument.

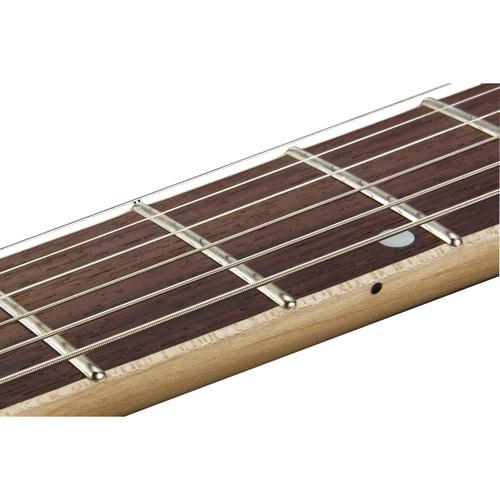

- Premium Fret Edge Treatment
- This model offers hand-rolled fret edges, ensuring a smooth, fast-playing neck.

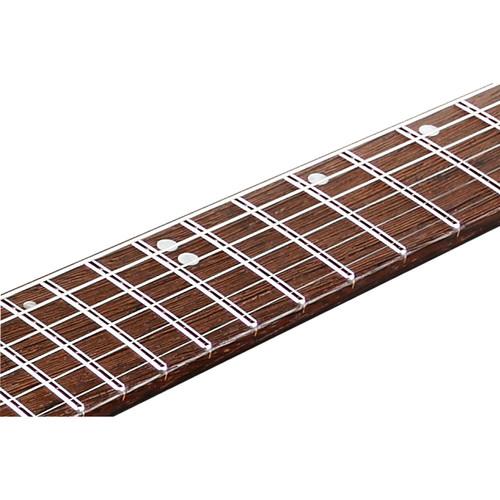

- Stainless Steel Frets
- Stainless steel frets are employed for both bright tone and durability.

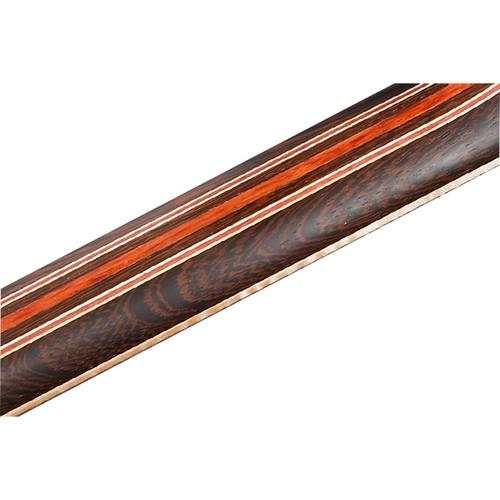

- Wizard 11-Piece Neck
- An 11-piece Wizard neck, which features a slim grip shape made of panga panga, walnut, maple, and purpleheart, promotes sustain and contributes to the neck's rigidity.

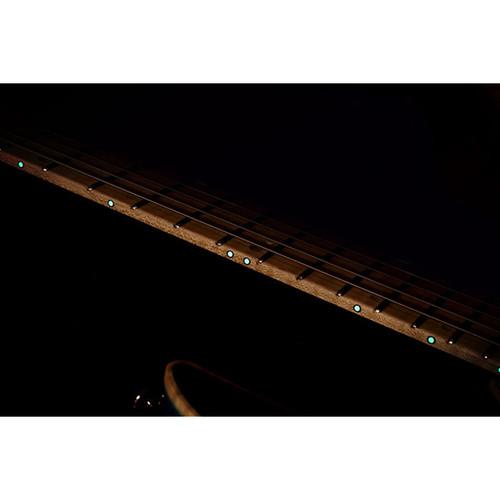

- Luminescent Side-Dot Inlays
- The luminescent side-dot position marks provide light on dark stages, making it simpler for players to see their fingerboard position during performance.

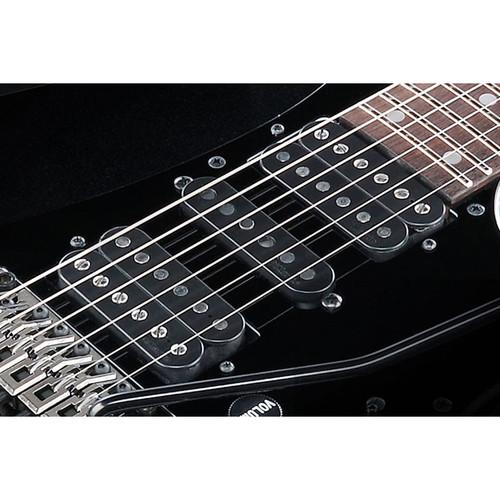

- DiMarzio Pickups
- The DiMarzio Air Norton, True Velvet, and Tone Zone pickups offer depth, warmth, and a wide dynamic range, while a 5-way pickup switch allows for many selectable timbres.
- Edge-Zero II Tremolo Bridge with ZPS3Fe Spring System
- The Edge-Zero II tremolo bridge w/ZPS3Fe promotes tuning stability, intonation adjustment, and playing comfort.

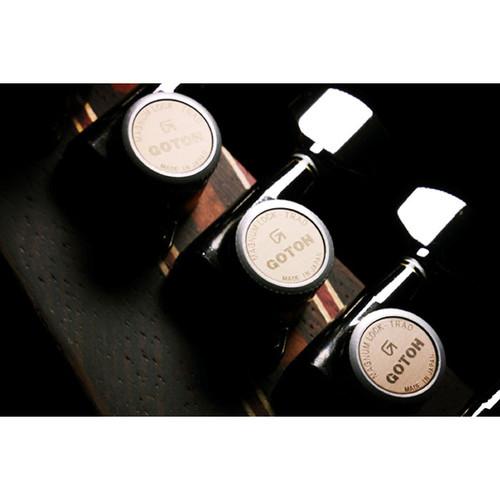

- Gotoh MG-T Locking Machine Heads
- The Gotoh MG-T locking machine heads provide tuning stability and cut down on time spent changing strings.
- Neck Dimensions
-
- Scale: 25.5" / 648mm
- Width at Nut: 1.7” / 43mm
- Width at 24th Fret: 2.3” / 58mm
- Thickness at first Fret: 0.7” / 18mm
- Thickness at 12th Fret: 0.8” / 20mm
- Radius: 15.8” / 400mm
In the Box Ibanez RG1070PBZ RG Premium Series Electric Guitar (Charcoal Black Burst) Gig Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez RG1070PBZ RG Premium Series Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez RG1070PBZ Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Poplar
Back: Basswood | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Panga Panga, Purpleheart, Walnut | | Fingerboard | Panga Panga | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.5" / 64.77 cm | | Radius | 400 mil | | Nut Width | 43 mm | | Bridge Type | Tremolo | | Pickguard | No | | Pickups | Bridge: Humbucker
Middle: Single Coil
Neck: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 5-Way Pickup Selector Switch | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 46.65 x 21.0 x 6.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
