User Manual for Ibanez RG657PB RG Prestige Series Electric Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez RG657PB RG Prestige Series Electric
- Product category: Electric Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Electric Guitars
 |
User manual for the Ibanez RG657PB RG Prestige Series Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

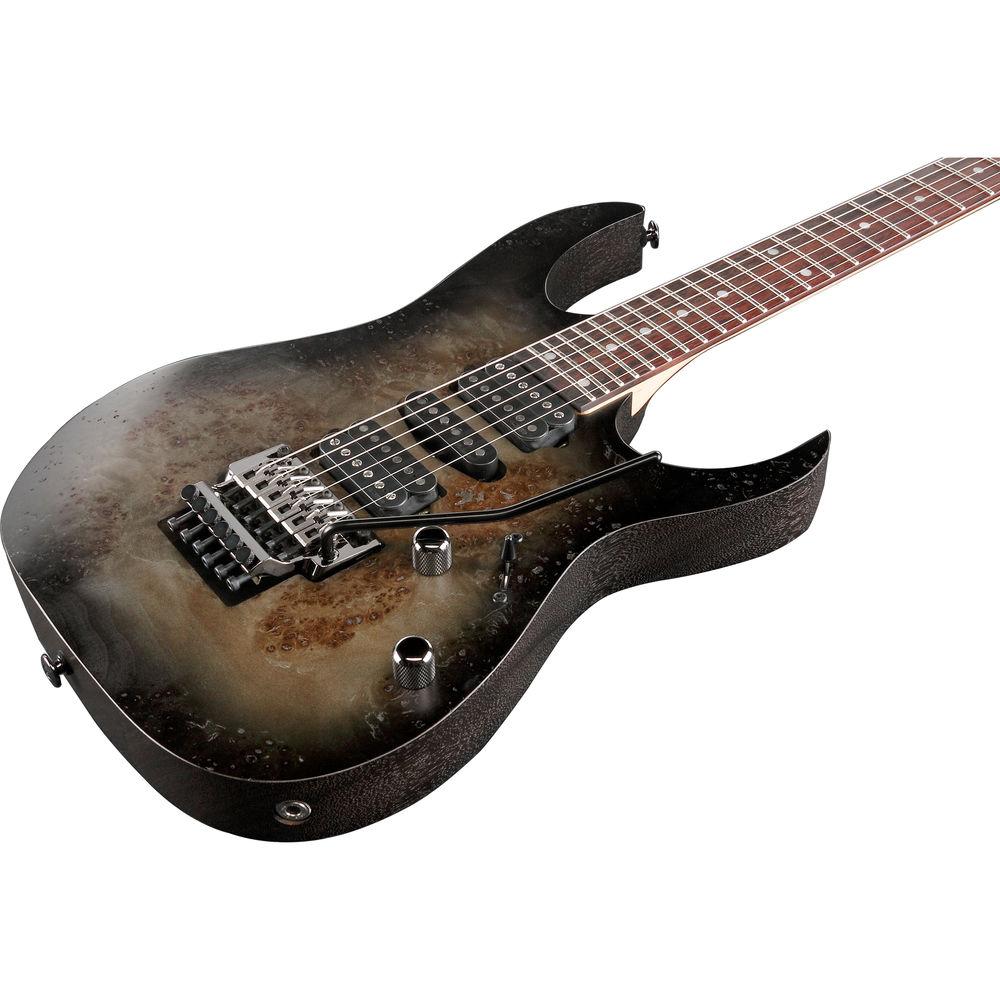

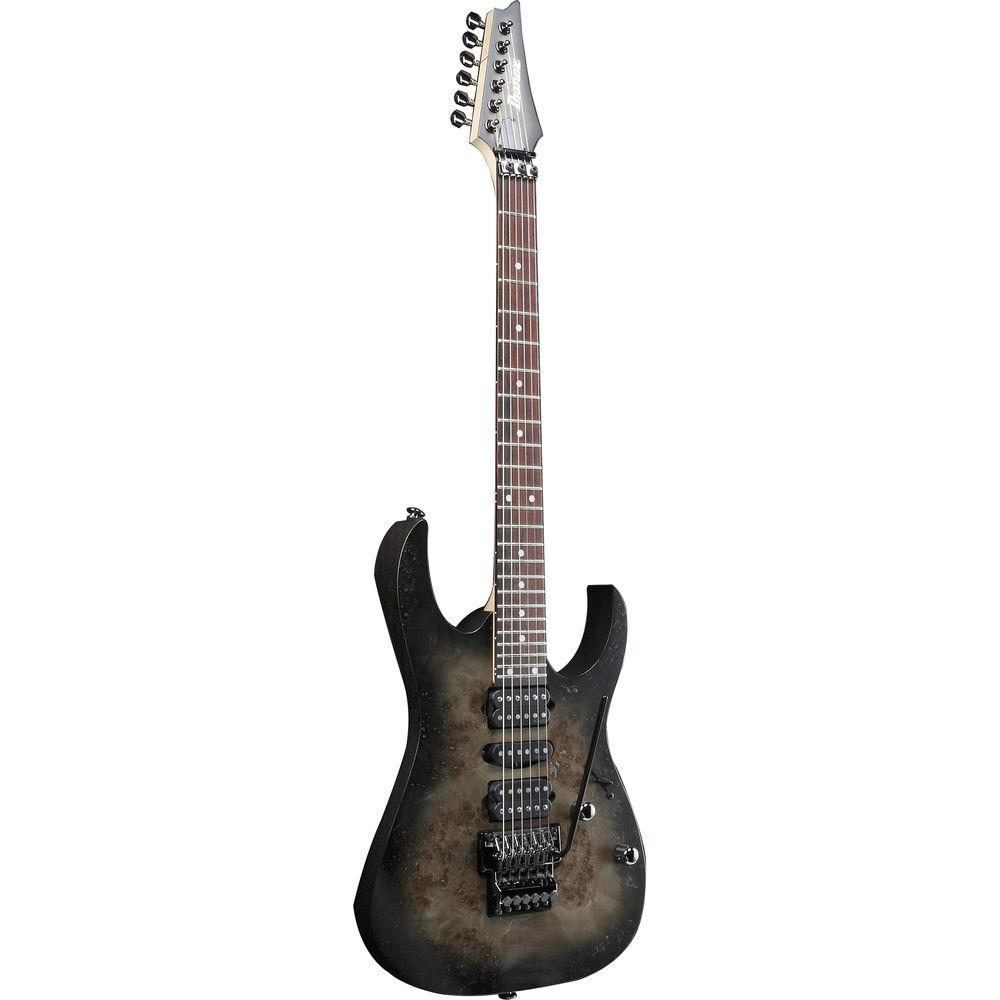

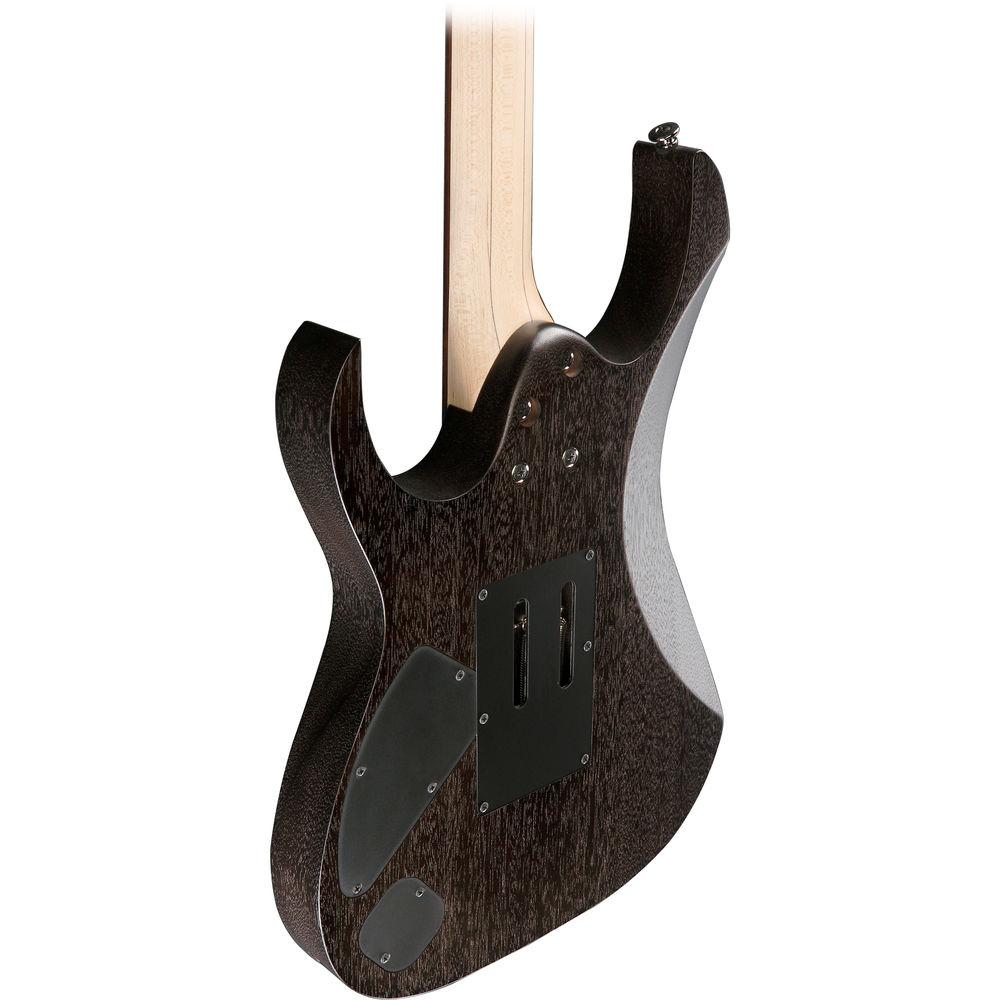

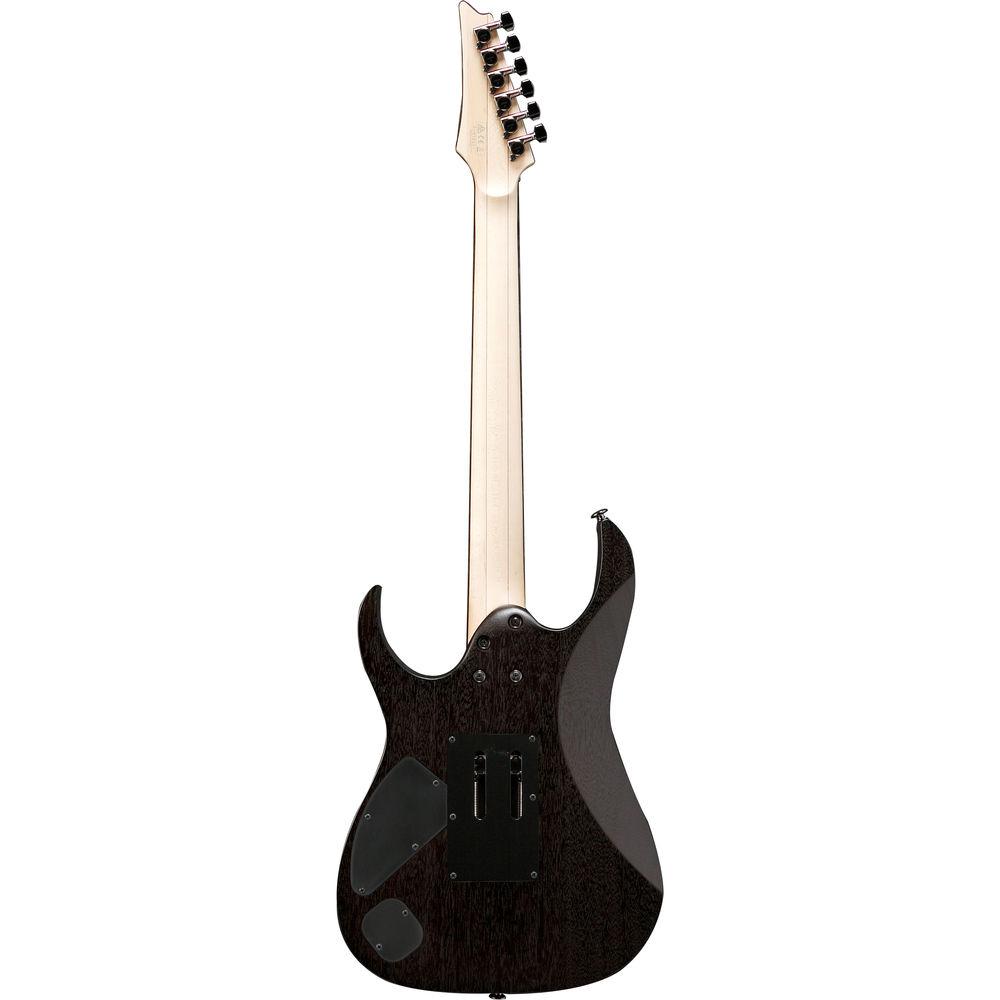

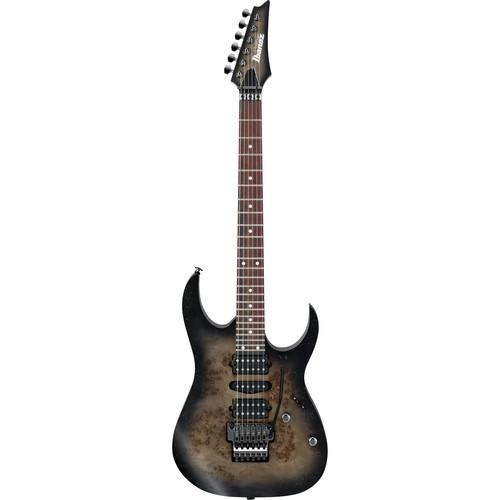

Product description Styled in an anvil gray burst finish, the Ibanez Prestige Series RG657PB is an electric guitar with a solid, double-cutaway body, a bolt-on neck, DiMarzio pickups, and an Edge Tremolo bridge. The Super Wizard HP five-piece neck, constructed out of maple and walnut, provides a scale of 25.5” and features a rosewood with 24 jumbo frets and white dot inlays. The body is fashioned out of mahogany, with a poplar burl top.For electronics, this guitar utilizes DiMarzio pickups, including an Air Norton humbucker in the neck, a True Velvet single coil in the middle, and a Tone Zone humbucking pickup at the bridge. The neck humbucker provides a warm tone that doesn’t stray into muddy timbres, while the bridge humbucker offers a hot signal, wide dynamic range, and a sound developed in the bass and midrange frequencies to give the sound heft and depth. The single coil, located in the middle, is tuned to a bright, but not thin, frequency range, thus lending sweetness to notes above the 12th fret. A five-way selector switch allows for various pickup combinations and tonal options, while a shared set of volume and tone knobs provide broad level and timbre controls. - Super Wizard HP Neck
- Sporting a 17mm thickness at the first fret and a 19mm thickness at the twelfth, the Super Wizard HP Neck is quite suitable for shredders.
- Premium Fret Edge Treatment
- This model offers hand-rolled fret edges, ensuring a smooth, fast-playing neck.
- Edge Tremolo Bridge
- This tremolo bridge offers tuning stability, precise intonation adjustment, and playing comfort.
- DiMarzio Pickups
- The DiMarzio Air Norton, True Velvet, and Tone Zone pickups offer depth, warmth, and a wide dynamic range, while a 5-way pickup switch allows for many selectable timbres.
- Neck Dimensions
-
- Scale: 25.5" / 648mm
- Width at Nut: 1.7” / 43mm
- Width at 24th Fret: 2.3” / 58mm
- Thickness at 1st Fret: 0.67” / 17mm
- Thickness at 12th Fret: 0.75” / 19mm
- Radius: 16.9” / 430mm
In the Box Ibanez RG657PB RG Prestige Series Electric Guitar (Anvil Gray Burst) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez RG657PB RG Prestige Series Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez RG657PB Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Mahogany
Top: Poplar Poplar Burl Top | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Walnut | | Fingerboard | Rosewood | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.5" / | | Radius | 16.9" | | Nut Width | 43 mm | | Bridge Type | Tremolo | | Pickguard | No | | Pickups | Neck: Humbucker
Middle: Single Coil
Bridge: Humbucker | | Controls | Tone Control: x 1
Volume Control: x 1 | | Switching | 5-Way Pickup Selector Switch |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
